54F676L1MQB datasheet, PDF - EEWORLD Datasheet

54F676L1MQB: DescriptionParallel In Serial Out, F/FAST Series, 16-Bit, Right Direction, True Output, TTL, CQCC28, CERAMIC, LCC-28; Categorylogic logic; File Size69KB，3 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric View All

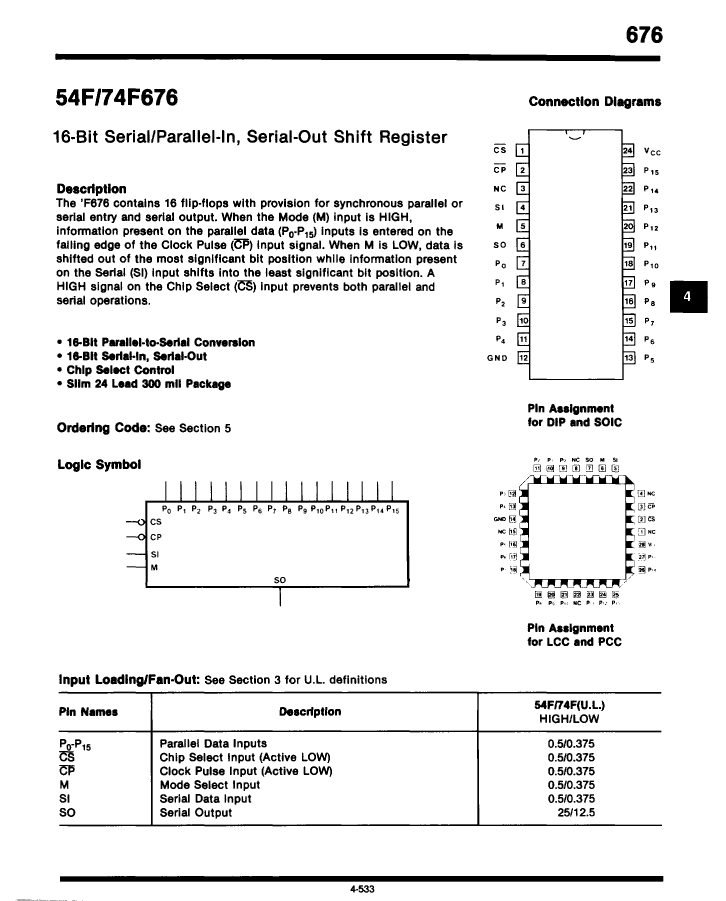

54F676L1MQB Overview

Parallel In Serial Out, F/FAST Series, 16-Bit, Right Direction, True Output, TTL, CQCC28, CERAMIC, LCC-28

Parameter Name	Attribute value
Maker	Fairchild
Parts packaging code	QLCC
package instruction	CERAMIC, LCC-28
Contacts	28
Reach Compliance Code	unknown

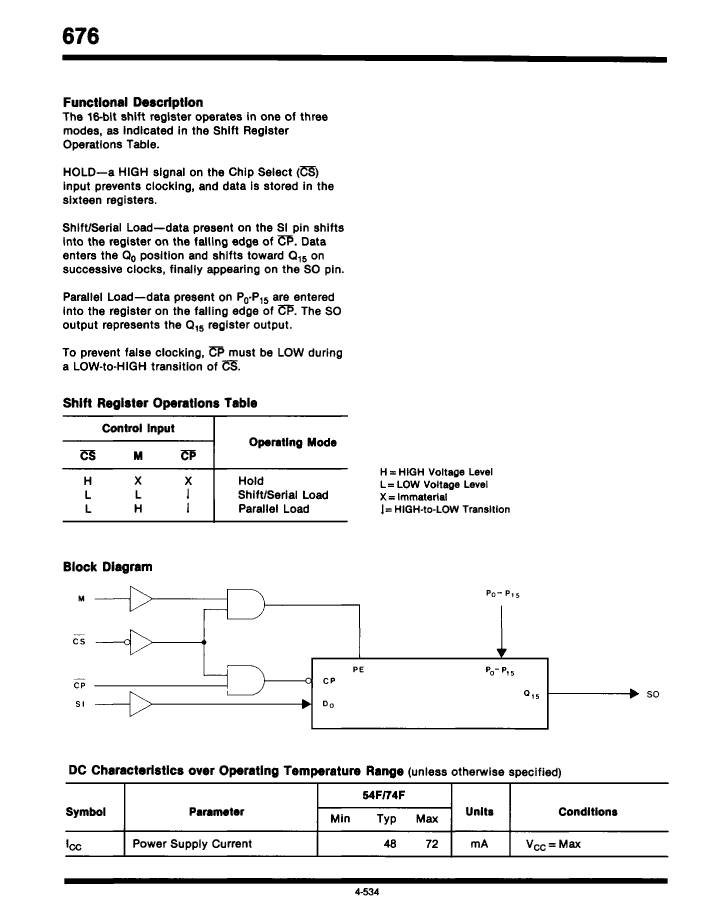

Other features	HOLD MODE; CHIP SELECT DISABLES BOTH SERIAL & PARALLEL OPERATIONS
Counting direction	RIGHT
series	F/FAST
JESD-30 code	S-CQCC-N28
length	11.43 mm
Logic integrated circuit type	PARALLEL IN SERIAL OUT
Number of digits	16
Number of functions	1
Number of terminals	28
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output polarity	TRUE
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCN
Package shape	SQUARE
Package form	CHIP CARRIER

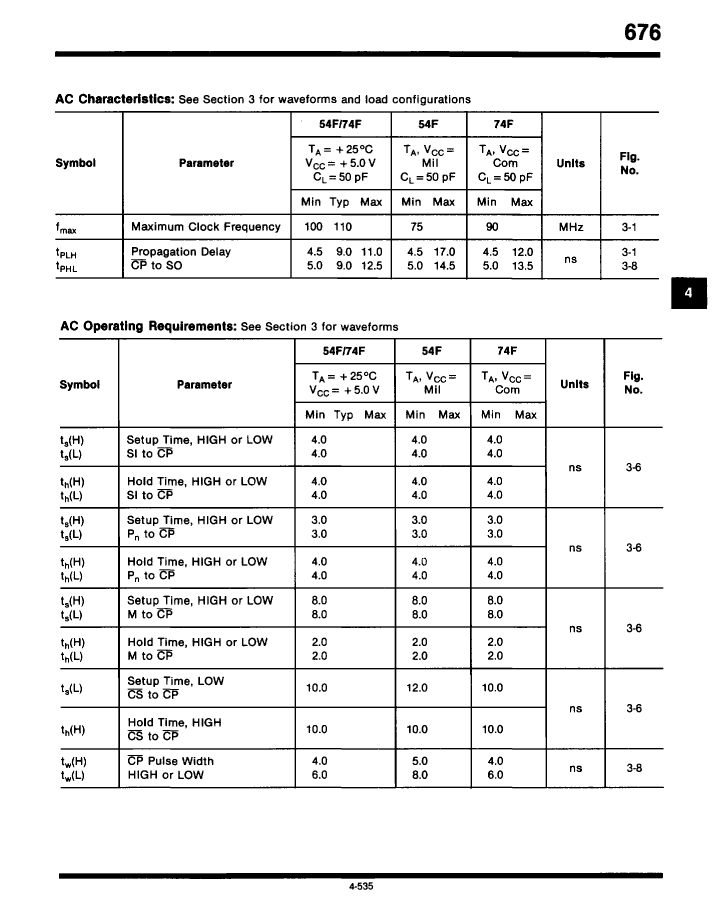

propagation delay (tpd)	14.5 ns
Certification status	Not Qualified
Maximum seat height	2.54 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	MILITARY
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	QUAD
Trigger type	NEGATIVE EDGE
width	11.43 mm
minfmax	110 MHz
Base Number Matches	1
