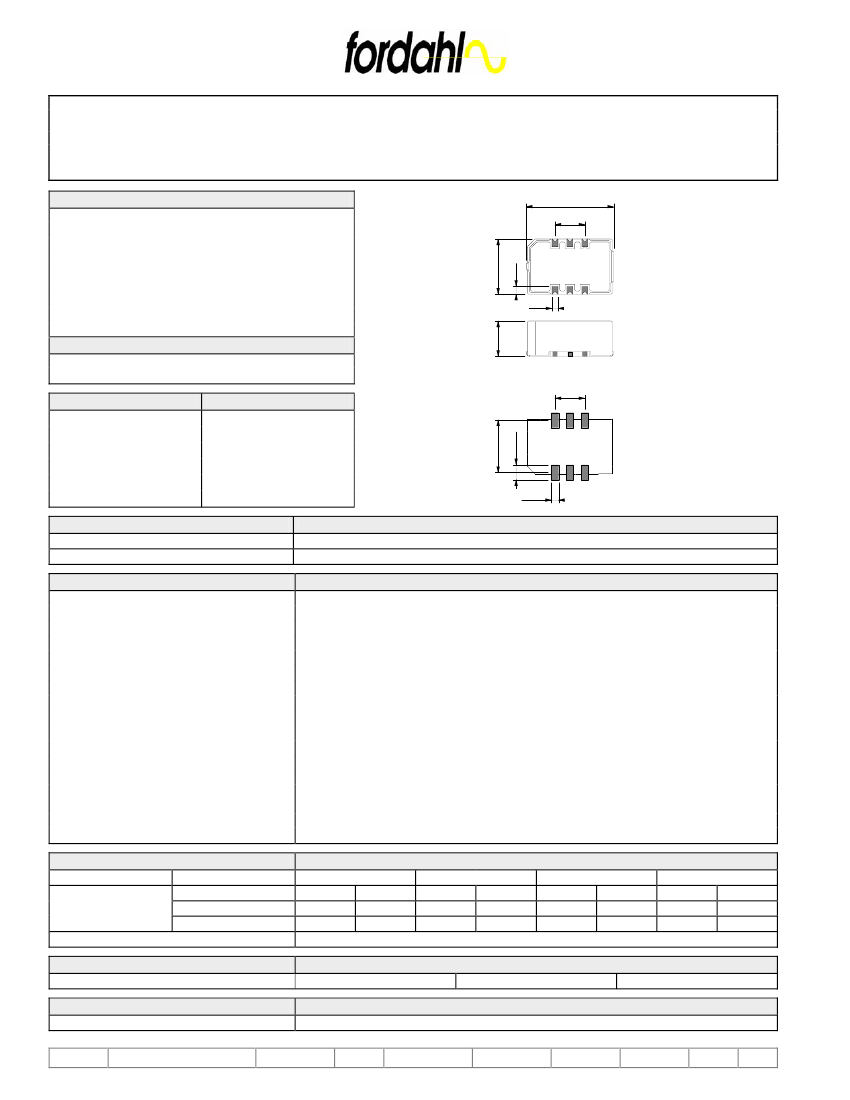

FREQUENCY CONTROL PRODUCTS
HIGH FREQUENCY MINIATURE SURFACE MOUNT PXO
DFN S1-MLECPI (3.3 V)
KEY FEATURES
600 to 800 MHz
1.4
14.8±0.3
5.08
± 20 ppm/15 years stability available
Parametric frequency multiplication
0.4 ps RMS jitter over 50 kHz to 80 MHz B.W.
APPLICATIONS
OC-192/Sonet/SDH
Function
N/C
E/D
GND
Output 1
Output 2
Vcc
TYPE
Frequency Range
Standard Frequencies
9.1±0.2
1.0
+0.1
-0.2
5.9
DFN S1
1
2
3
4
5
6
5.08
2.54
8.9
6
1
5
2
4
3
PC board footprint
1.27
DFN S1-MLECPI
600 to 800 MHz
622.0800; 644.5313; 666.5143; 669.3266; 693.4828; 777.6000 MHz
3.3 V ± 5 %
≤
60 mA
LVPECL 100 K ( 50
Ω
to 1.3 V )
45/55...55/45 %
≤
0.5 ns
≥
2.22 V/
≤
1.7 V
0.10 ps typ;
≤
0.15 ps
0.15 ps typ;
≤
0.20 ps
0.40 ps typ;
≤
0.50 ps
low or open = enable, high = disable
180° phase shifted
≤
10 ms @ 3.15 V
ELECTRICAL SPECIFICATIONS
supply voltage
supply current (no load)
output load
duty cycle @ 50% level
rise/fall times ( 20 to 80% )
high/low levels
jitter RMS ( 12 kHz to 5 MHz )
jitter RMS ( 12 kHz to 20 MHz )
jitter RMS ( 50 kHz to 80 MHz )
enable / disable on pin 2
complementary output on pin 5
start up
FREQUENCY STABILITY
types
all types
remark
stability [ ppm ] and temperature code
temperature range
stability code
stability code
stability code
stability code
0 to 70°C
± 20
XB20
± 25
XB25
± 50
XB50
± 100
XB100
-10 to 70°C
± 20
XI20
± 25
XI25
± 50
XI50
± 100
XI100
-40 to 85°C
± 25
XE25
± 50
XE50
± 75
XE75
± 100
XE100
includes calibration at 25°C, temperature, ageing, Vcc and load changes 1
st
year
A = 5 years
B = 10 years
DFN S1-MLECPI 622.08 MHz XB20C
DFN S1-MLECPI
REVISION
00
CHECKED
NE
DATE
14.10.2002
PAGE
18
OPTIONS
stability over long life time
C = 15 years
ORDERING CODE
Example
TYPE
type + option code + frequency + stability / temperature code
