5962-8406702RA datasheet, PDF - EEWORLD Datasheet

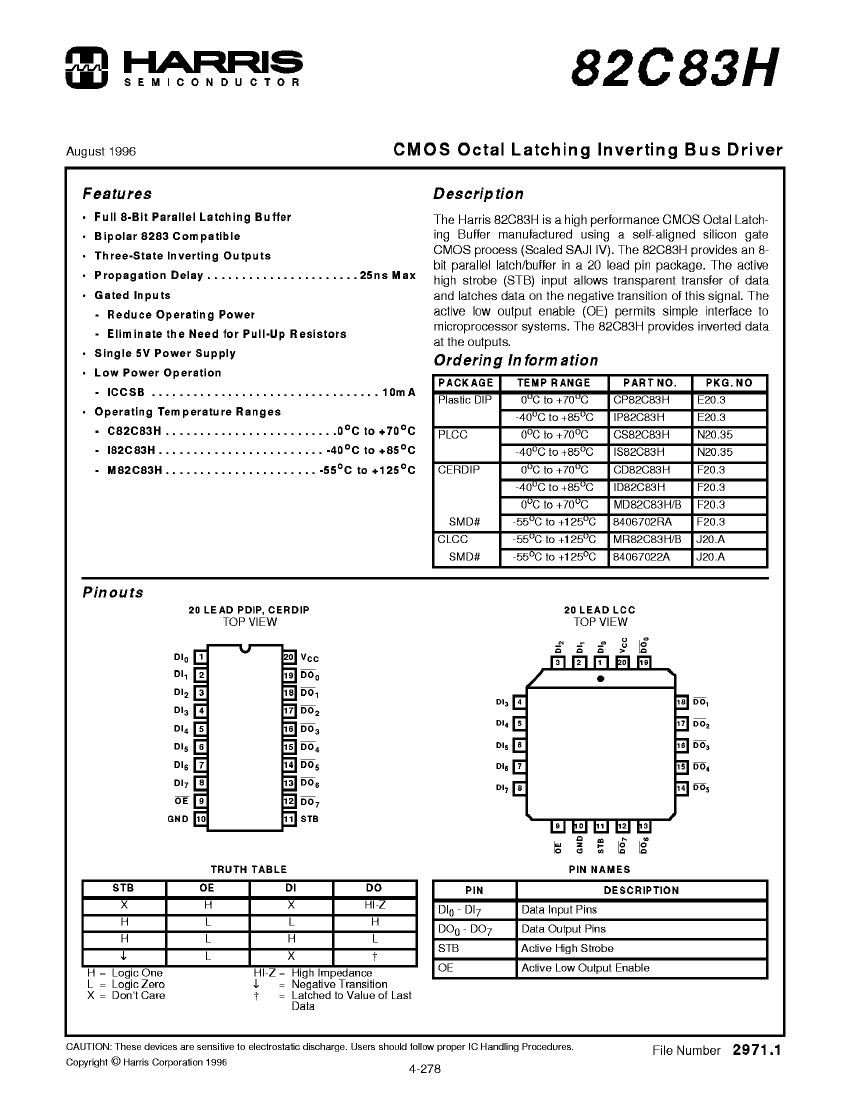

5962-8406702RA: DescriptionBus Driver, CMOS Series, 1-Func, 8-Bit, Inverted Output, CMOS, CDIP20, CERDIP-20; Categorylogic logic; File Size154KB，6 Pages; ManufacturerHarris; Websitehttp://www.harris.com/

Download Datasheet Parametric Compare View All

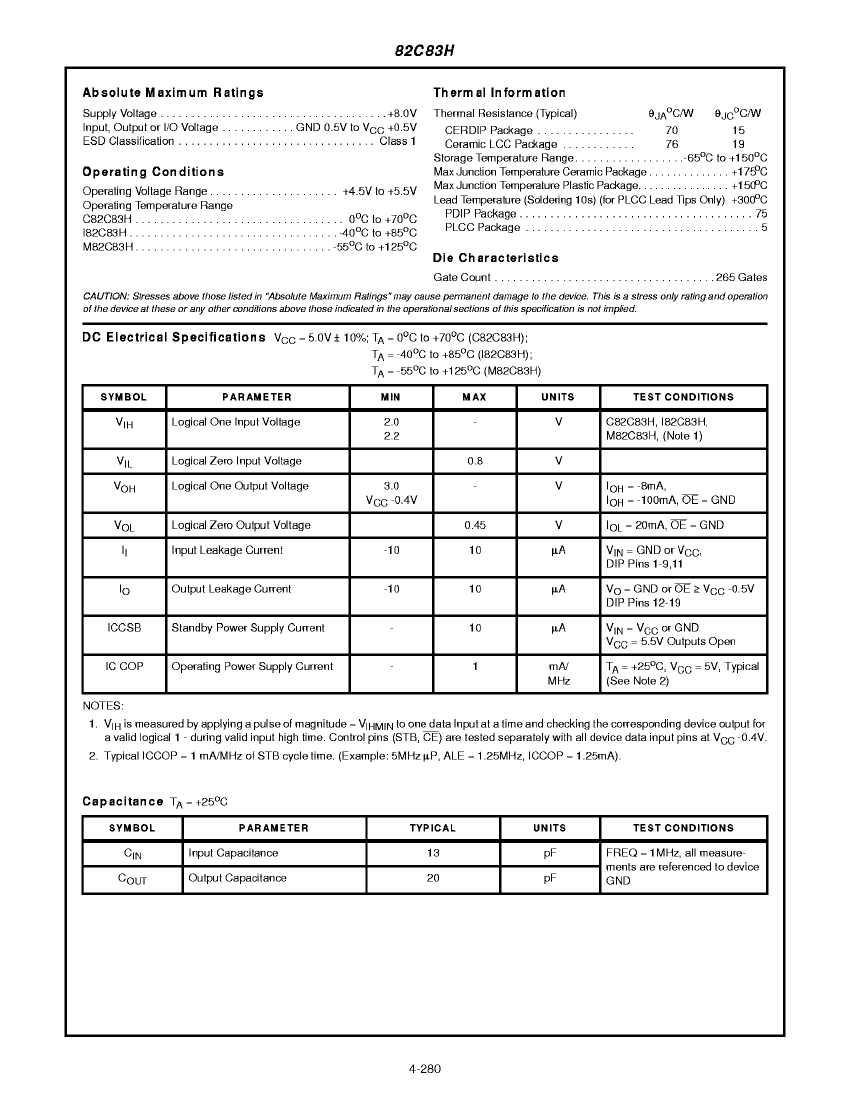

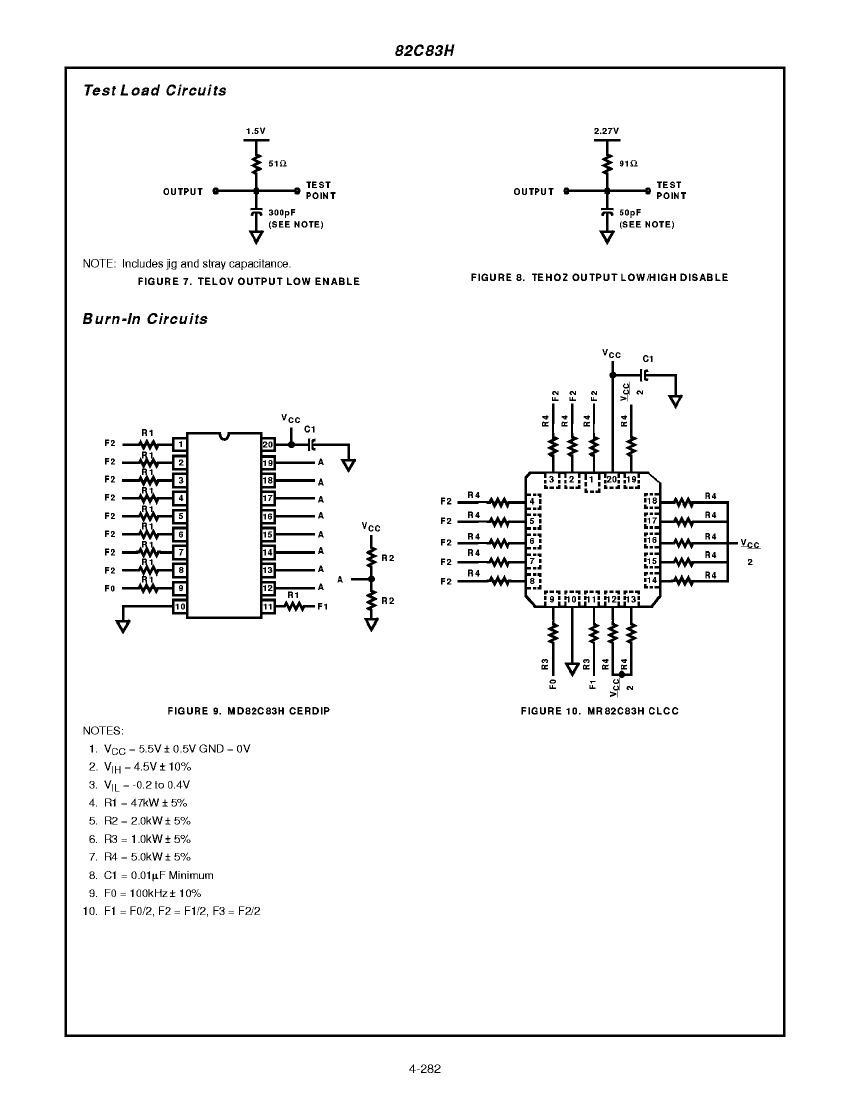

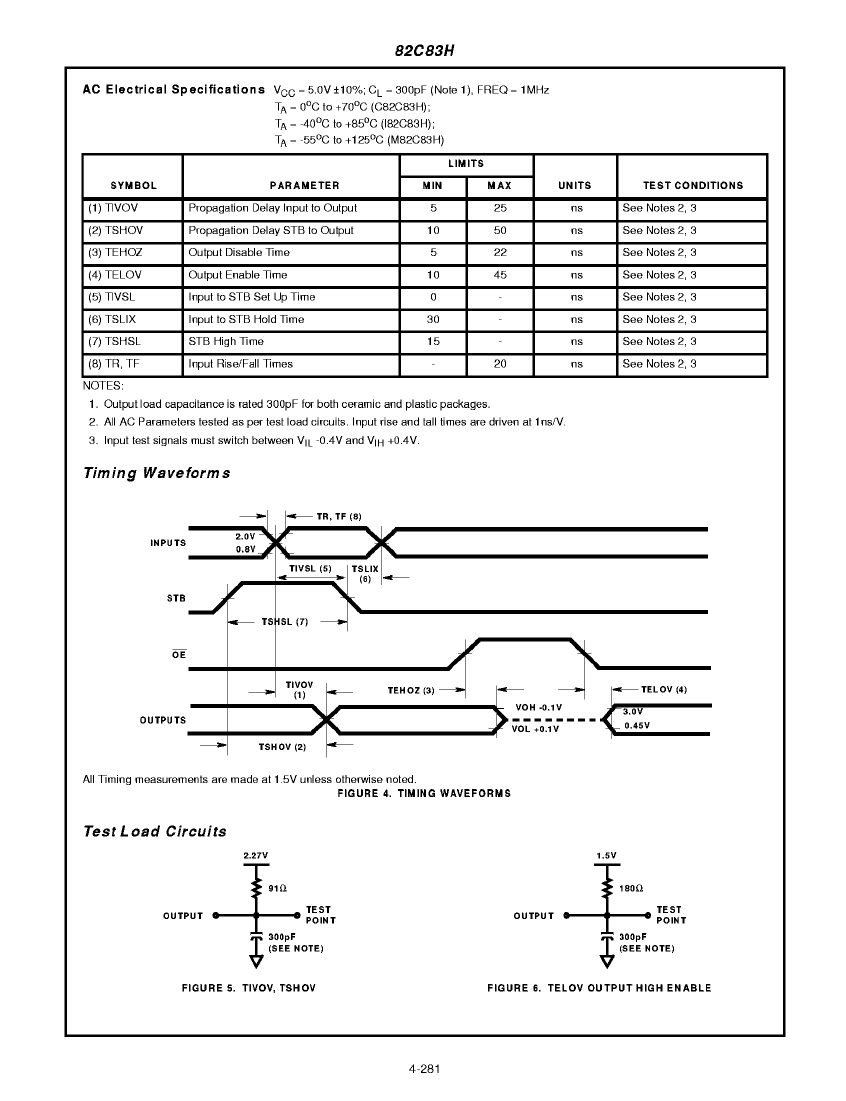

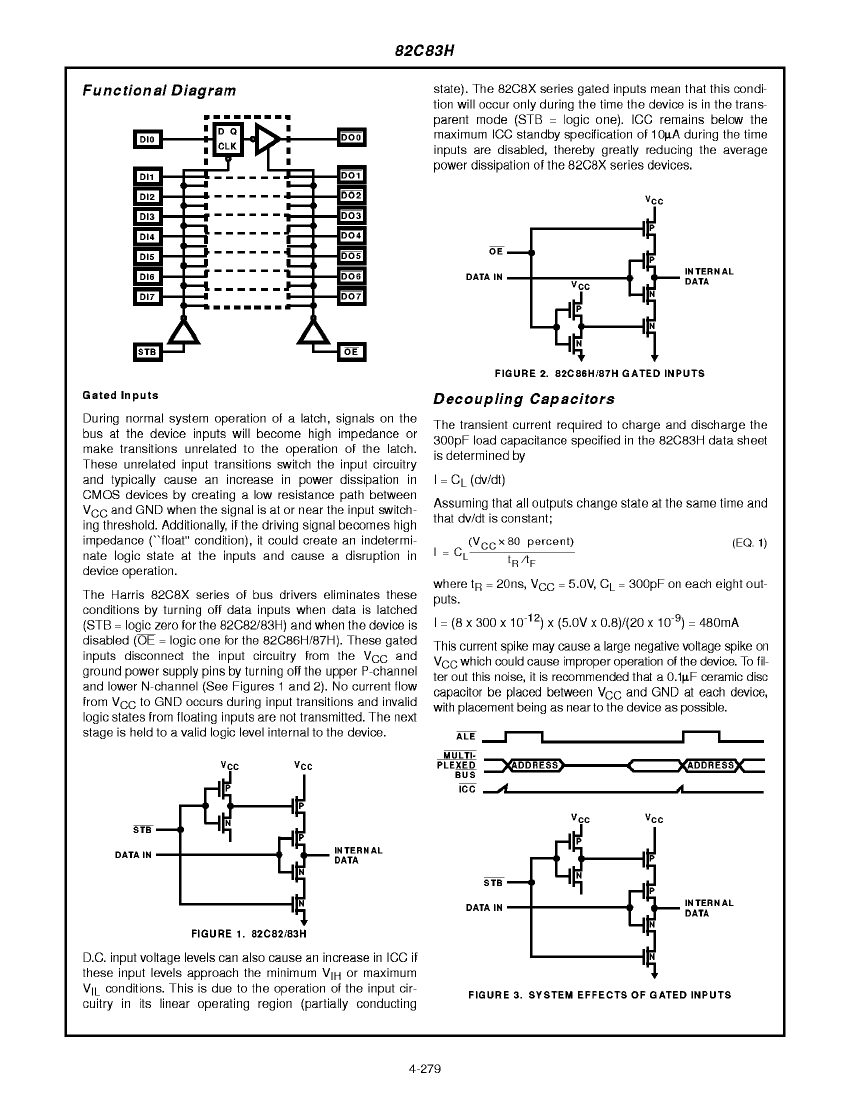

5962-8406702RA Overview

Bus Driver, CMOS Series, 1-Func, 8-Bit, Inverted Output, CMOS, CDIP20, CERDIP-20

Parameter Name	Attribute value
package instruction	DIP,
Reach Compliance Code	unknown
series	CMOS
JESD-30 code	R-GDIP-T20
JESD-609 code	e0
Load capacitance (CL)	300 pF
Logic integrated circuit type	BUS DRIVER
Number of digits	8
Number of functions	1
Number of ports	2
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Output polarity	INVERTED
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
propagation delay (tpd)	50 ns
Certification status	Not Qualified
Maximum seat height	5.08 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	TIN LEAD
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	7.62 mm
Base Number Matches	1

	5962-8406702RA	5962-84067022A
Description	Bus Driver, CMOS Series, 1-Func, 8-Bit, Inverted Output, CMOS, CDIP20, CERDIP-20	Bus Driver, CMOS Series, 1-Func, 8-Bit, Inverted Output, CMOS, CQCC20, CERAMIC, LCC-20
package instruction	DIP,	QCCN,
Reach Compliance Code	unknown	unknown
series	CMOS	CMOS
JESD-30 code	R-GDIP-T20	S-CQCC-N20
JESD-609 code	e0	e0
Load capacitance (CL)	300 pF	300 pF
Logic integrated circuit type	BUS DRIVER	BUS DRIVER
Number of digits	8	8
Number of functions	1	1
Number of ports	2	2
Number of terminals	20	20
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C
Output characteristics	3-STATE	3-STATE
Output polarity	INVERTED	INVERTED
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP	QCCN
Package shape	RECTANGULAR	SQUARE
Package form	IN-LINE	CHIP CARRIER
propagation delay (tpd)	50 ns	50 ns
Certification status	Not Qualified	Not Qualified
Maximum seat height	5.08 mm	2.54 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	NO	YES
technology	CMOS	CMOS
Temperature level	MILITARY	MILITARY
Terminal surface	TIN LEAD	TIN LEAD
Terminal form	THROUGH-HOLE	NO LEAD
Terminal pitch	2.54 mm	1.27 mm
Terminal location	DUAL	QUAD
width	7.62 mm	8.89 mm
Base Number Matches	1	1
