HCTS147HMSR datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > logic> logic> HCTS147HMSR

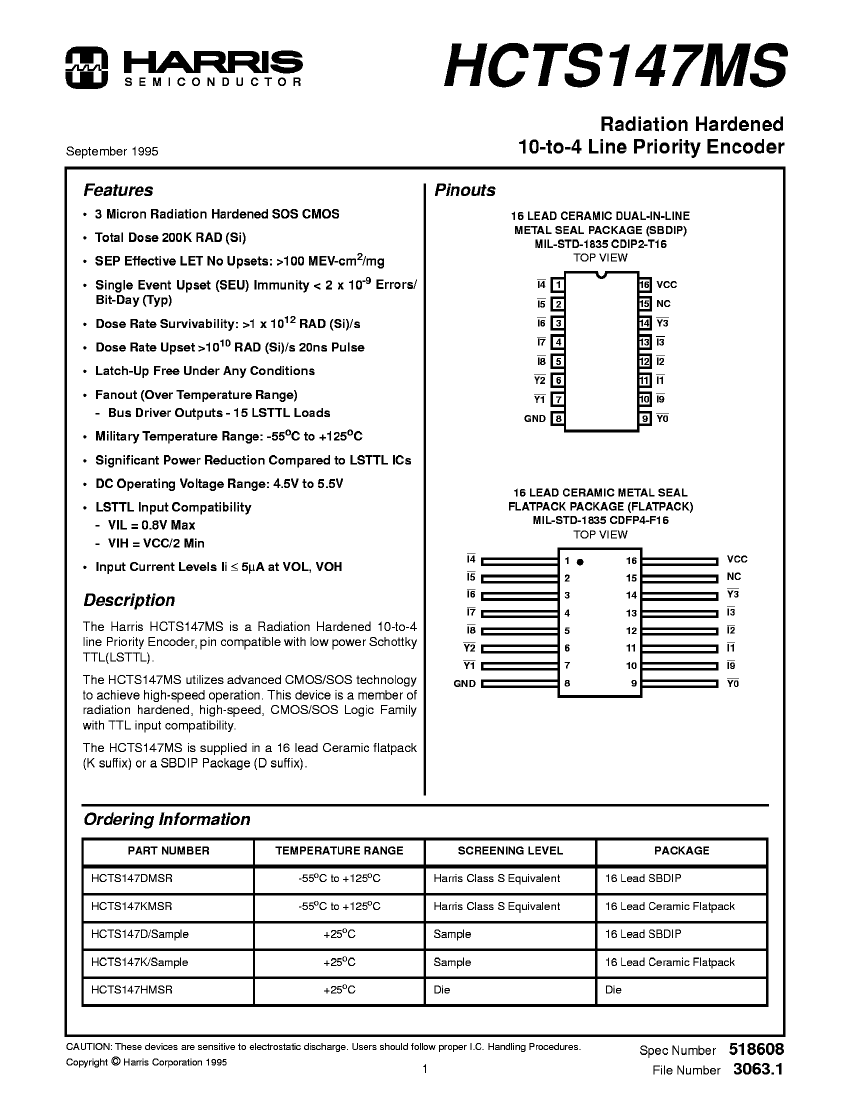

Preview

HCTS147HMSR: DescriptionEncoder, HCT Series, 9-Bit, CMOS; Categorylogic logic; File Size214KB，9 Pages; ManufacturerHarris; Websitehttp://www.harris.com/

Download Datasheet Parametric Compare View All

HCTS147HMSR Overview

Encoder, HCT Series, 9-Bit, CMOS

HCTS147HMSR Parametric

Parameter Name	Attribute value
Maker	Harris
package instruction	DIE,
Reach Compliance Code	unknown
Other features	9 TO 4 LINE PRIORITY ENCODER
series	HCT
JESD-30 code	X-XUUC-N15
Logic integrated circuit type	ENCODER
Number of digits	9
Number of functions	1
Number of terminals	15
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	UNSPECIFIED
encapsulated code	DIE
Package shape	UNSPECIFIED
Package form	UNCASED CHIP
propagation delay (tpd)	32 ns
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal form	NO LEAD
Terminal location	UPPER
Base Number Matches	1

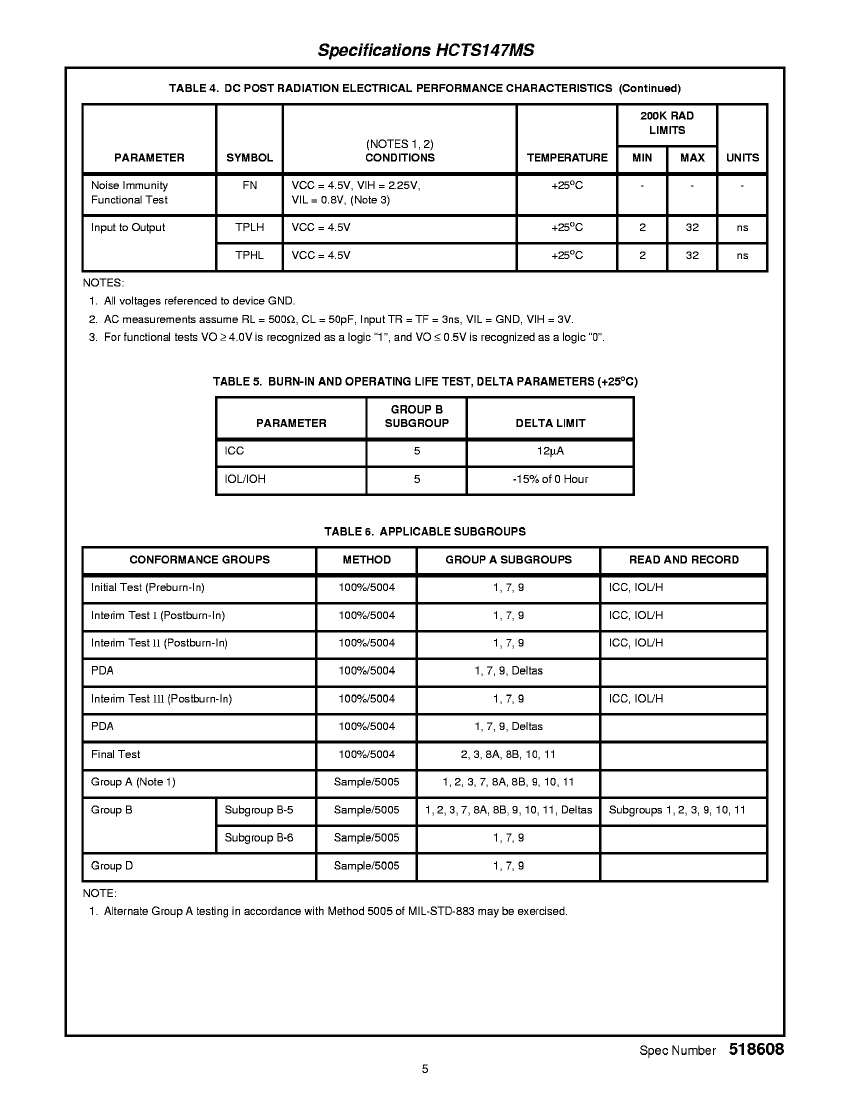

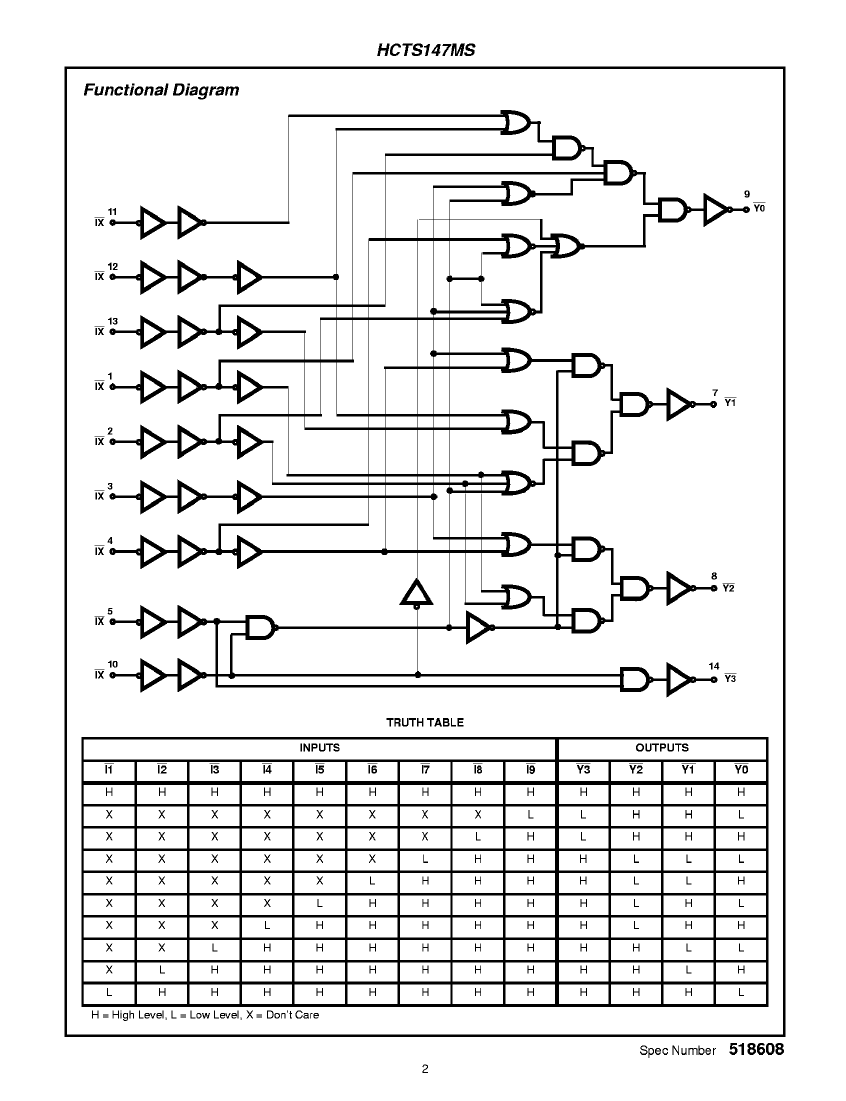

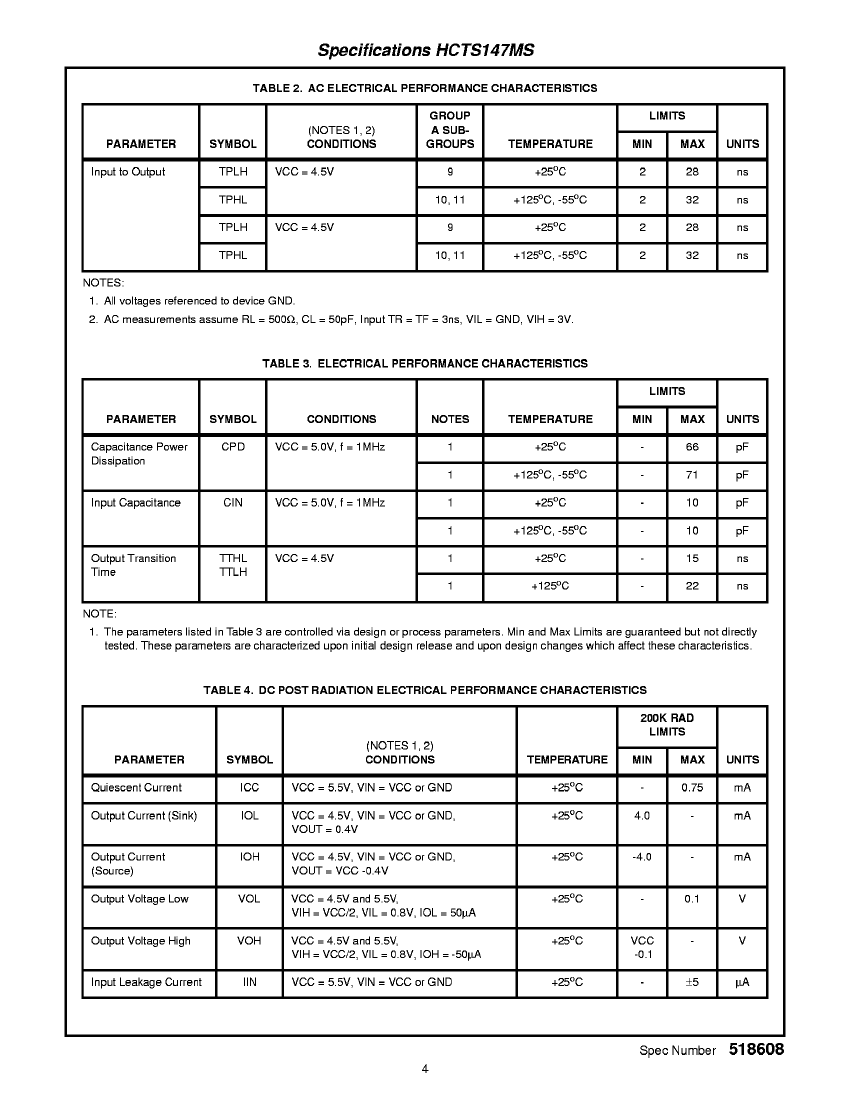

Preview

Download Datasheet

View All

HCTS147HMSR Related Products

	HCTS147HMSR	5962R9574101V9A	HCTS147D/SAMPLE	HCTS147DMSR	HCTS147KMSR
Description	Encoder, HCT Series, 9-Bit, CMOS	Encoder, HCT Series, 9-Bit, CMOS	Encoder, HCT Series, 9-Bit, CMOS, CDIP16	Encoder, HCT Series, 9-Bit, CMOS, CDIP16	Encoder, HCT Series, 9-Bit, CMOS, CDFP16
package instruction	DIE,	DIE,	,	DIP, DIP16,.3	DFP, FL16,.3
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
Other features	9 TO 4 LINE PRIORITY ENCODER	9 TO 4 LINE PRIORITY ENCODER	9 TO 4 LINE PRIORITY ENCODER	9 TO 4 LINE PRIORITY ENCODER	9 TO 4 LINE PRIORITY ENCODER
series	HCT	HCT	HCT	HCT	HCT
JESD-30 code	X-XUUC-N15	X-XUUC-N15	R-CDIP-T16	R-CDIP-T16	R-CDFP-F16
Logic integrated circuit type	ENCODER	ENCODER	ENCODER	ENCODER	ENCODER
Number of digits	9	9	9	9	9
Number of functions	1	1	1	1	1
Number of terminals	15	15	16	16	16
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Package body material	UNSPECIFIED	UNSPECIFIED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
Package shape	UNSPECIFIED	UNSPECIFIED	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	UNCASED CHIP	UNCASED CHIP	IN-LINE	IN-LINE	FLATPACK
propagation delay (tpd)	32 ns	32 ns	32 ns	32 ns	32 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	NO	NO	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal form	NO LEAD	NO LEAD	THROUGH-HOLE	THROUGH-HOLE	FLAT
Terminal location	UPPER	UPPER	DUAL	DUAL	DUAL
Maker	Harris	-	-	Harris	Harris
encapsulated code	DIE	DIE	-	DIP	DFP
Base Number Matches	1	1	1	1	-
JESD-609 code	-	e0	-	e0	e0
Terminal surface	-	TIN LEAD	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
