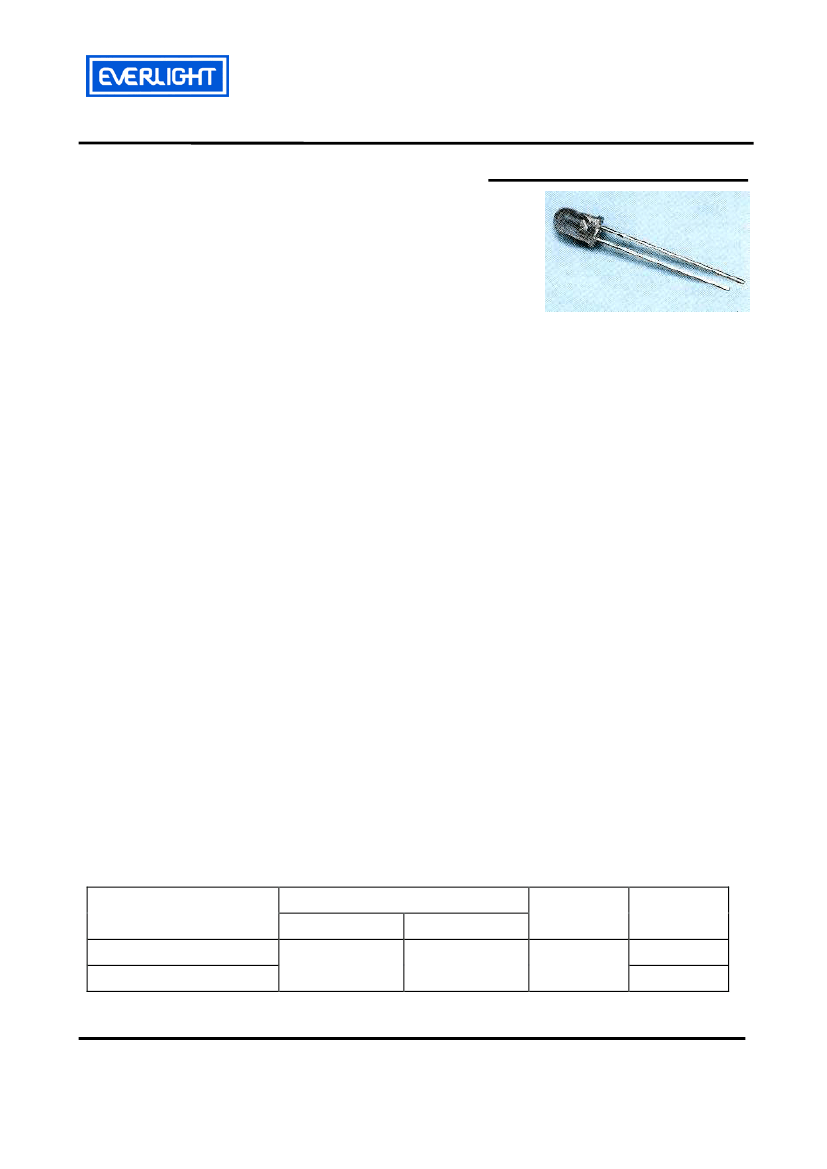

EVERLIGHT ELECTRONICS CO.,LTD.
Technical Data Sheet
333/R5C1-ATWB/X/MS
Features
˙Popular
T-1 3/4 diameter package.
˙Choice
of various viewing angles.
˙Available
on tape and reel.
˙Reliable
and robust.
˙The
product itself will remain within RoHS compliant version.
˙UV
resistant epoxy
Descriptions
˙The
series is specially designed for
applications requiring higher
brightness.
˙The
LED lamps are available with
different colors,intensities,epoxy
colors, etc.
Applications
˙Color
Graphic Signs
˙Message
boards
˙Variable
message signs (VMS)
˙Commercial
outdoor advertising
Device Selection Guide
LED Part No.
333/R5C1-ATWB/MS
333/R5C1-ATWB/P/MS
Chip
Material
AlGaInP
Emitted Color
Brilliant Red
Lens Color
Water clear
Stopper
No
Yes
Everlight Electronics Co., Ltd.
Device Number : DLE-033-B77
http\\:www.everlight.com
Prepared date:02-25-2008
Rev 3
Page: 1 of 9
Prepared :Flourix Chen
EVERLIGHT ELECTRONICS CO.,LTD.
Technical Data Sheet
333/R5C1-ATWB/X/MS

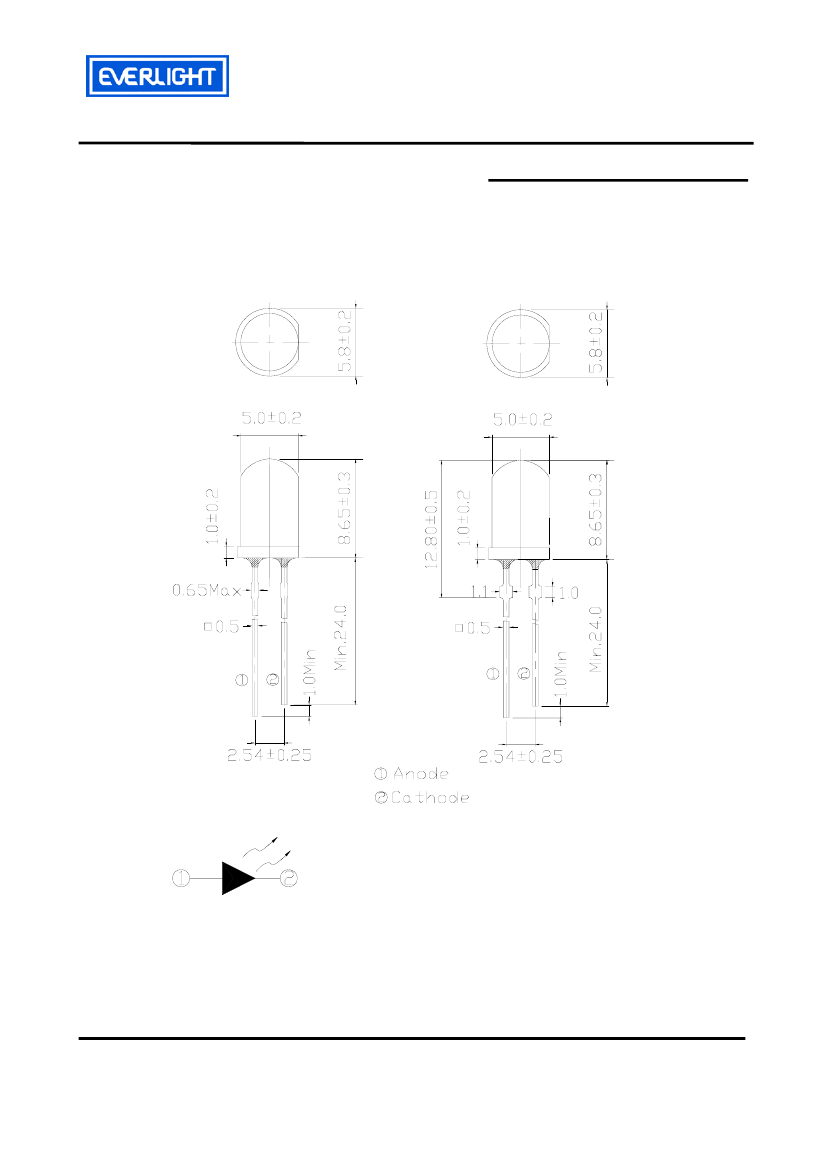

Package Dimensions
No
Stopper type
Stopper type
Notes:
˙All
dimensions are in millimeters, tolerance is 0.25mm except being specified.
˙Protruded
resin under flange is 1.5mm Max LED.
Everlight Electronics Co., Ltd.
Device Number : DLE-033-B77
http\\:www.everlight.com
Prepared date:02-25-2008
Rev 3
Page: 2 of 9
Prepared :Flourix Chen
EVERLIGHT ELECTRONICS CO.,LTD.
Technical Data Sheet
333/R5C1-ATWB/X/MS
Absolute Maximum Ratings (Ta=25℃)
Parameter
Forward Current
Pulse Forward Current
*1
Operating Temperature
Storage Temperature
Electrostatic
Discharge
Soldering Temperature
*2
Power Dissipation
Reverse Voltage
Symbol
I
F
I
FP
T
opr
T
stg
ESD
T
sol
P
d
V
R
Rating
50
160
-40 ~ +85
-40 ~ +100
2K
260
115
5
Units
mA
mA
℃
℃
V
℃
mW
V
Notes:
*1:I
FP
Conditions--Pulse Width≦10msec and Duty≦1/10.
*2:Soldering time≦5 seconds.
Electro-Optical Characteristics (Ta=25℃)
Parameter
Forward Voltage
Luminous Intensity
Viewing Angle
Peak Wavelength
Dominant Wavelength
Spectrum Radiation
Bandwidth
Reverse Current
Symbol
V
F
I
V
2θ1/2
λ
p
λ
d
Δλ
I
R
Condition
I
F
=20mA
I
F
=20mA
I
F
=20mA
I
F
=20mA
I
F
=20mA
I
F
=20mA
V
R
=5V
Min.
1.8
7150
--
--
620
--
--
Typ.
2.0
11250
15
632
624
20
--
Max.
2.6
18000
--
--
628
--
10
Units
V
mcd
deg
nm
nm
nm
μA
Everlight Electronics Co., Ltd.
Device Number : DLE-033-B77
http\\:www.everlight.com
Prepared date:02-25-2008
Rev 3
Page: 3 of 9
Prepared :Flourix Chen
EVERLIGHT ELECTRONICS CO.,LTD.
Technical Data Sheet
333/R5C1-ATWB/X/MS
Rank Combination (I
F
=20mA)
Rank
Luminous Intensity
T
7150~9000
U
9000~11250
V
11250~14250
W
14250~18000
Unit: :mcd
*Measurement Uncertainty of Luminous Intensity:
±15%
Rank
Forward Voltage
1
1.8~2.0
2
2.0~2.2
3
2.2~2.4
4
2.4~2.6
Unit: V
*Measurement Uncertainty of Forward Voltage:
±0.1V
Rank
Dominant Wavelength
1
2
Unit: nm
620~624
624~628
*Measurement Uncertainty of
Dominant Wavelength
±1.0nm
*The quantity ratio of the ranks is decided by EVERLIGHT.
Everlight Electronics Co., Ltd.
Device Number : DLE-033-B77
http\\:www.everlight.com
Prepared date:02-25-2008
Rev 3
Page: 4 of 9
Prepared :Flourix Chen
EVERLIGHT ELECTRONICS CO.,LTD.
Technical Data Sheet
333/R5C1-ATWB/X/MS

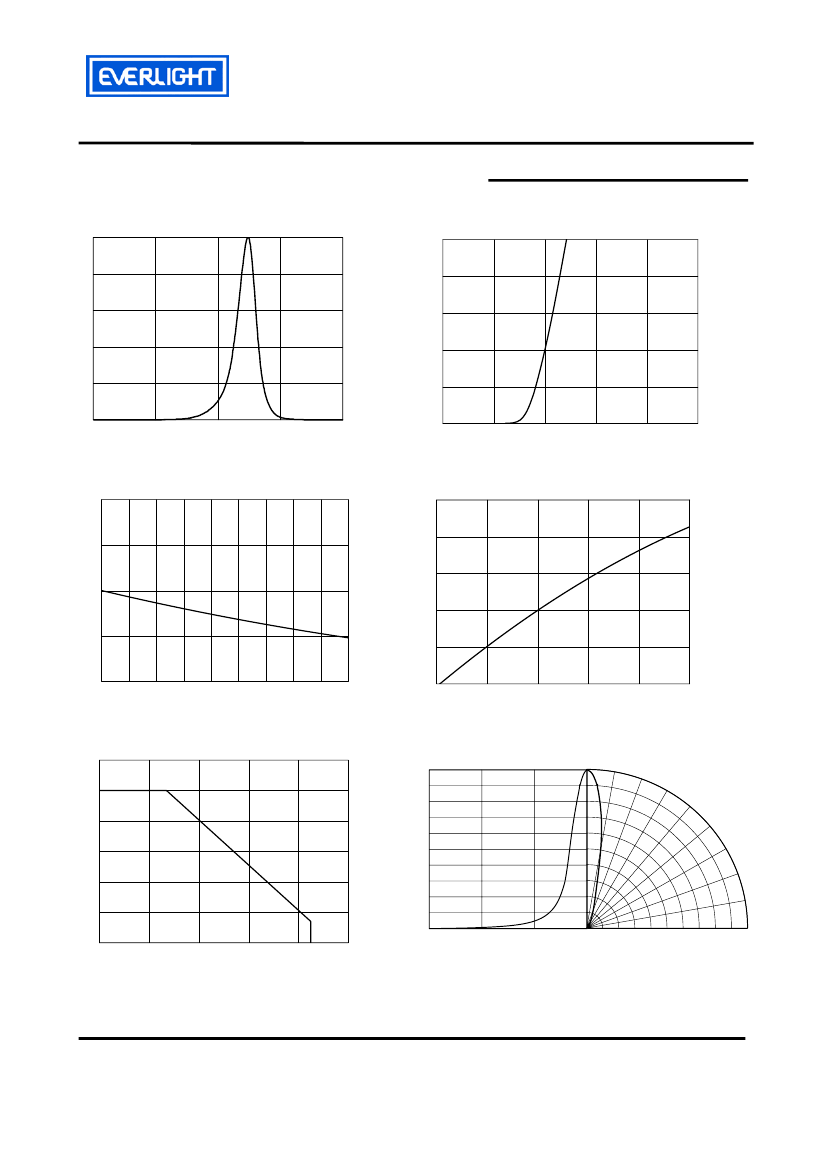

Typical Electro-Optical Characteristics Curves
Relative Intensity vs. Wavelength
1.0
Forward Current vs. Forward Voltage
50
Relative Intensity(a.u.)
0.8
Forward Current(mA)
550
600
650
700
40
0.6
30
0.4
20
0.2
10
0.0
500
0
1.0
1.5
2.0
2.5
3.0
3.5
Wavelength(nm)
Forward Voltage(V)
Relative Intensity vs. Ambient Temp.
Relative Luminous Intensity(a.u.)
2.0
Relative Intensity vs. Forward Current
Relative Luminous Intensity(a.u.)
2.5
1.5
2.0
1.5
1.0
1.0
0.5
0.5
0.0
25
30
35
40
45
50
55
60
O
65
70
0.0
0
10
20
30
40
50
Ambient Temperature Ta( C)
Forward Current(mA)
Forward Current vs. Ambient Temp.
60
Radiation Characteristics
90
1.0
O
60
O
30
O
0
O
10
O
20
O
30
O
Forward Current(mA)
50
40
30
20
10
Relative Luminusity
40
O
O
50
0.5
60
O
70
O
80
0
O
0
0
0.5
90
1.0
O
0
20
40
60
80
O
100
Ambient Temperature Ta( C)
Radiation Angle
Everlight Electronics Co., Ltd.
Device Number : DLE-033-B77
http\\:www.everlight.com
Prepared date:02-25-2008
Rev 3
Page: 5 of 9
Prepared :Flourix Chen
