TECHNICAL DATA SHEET – CABLE ASSEMBLIES
1/1

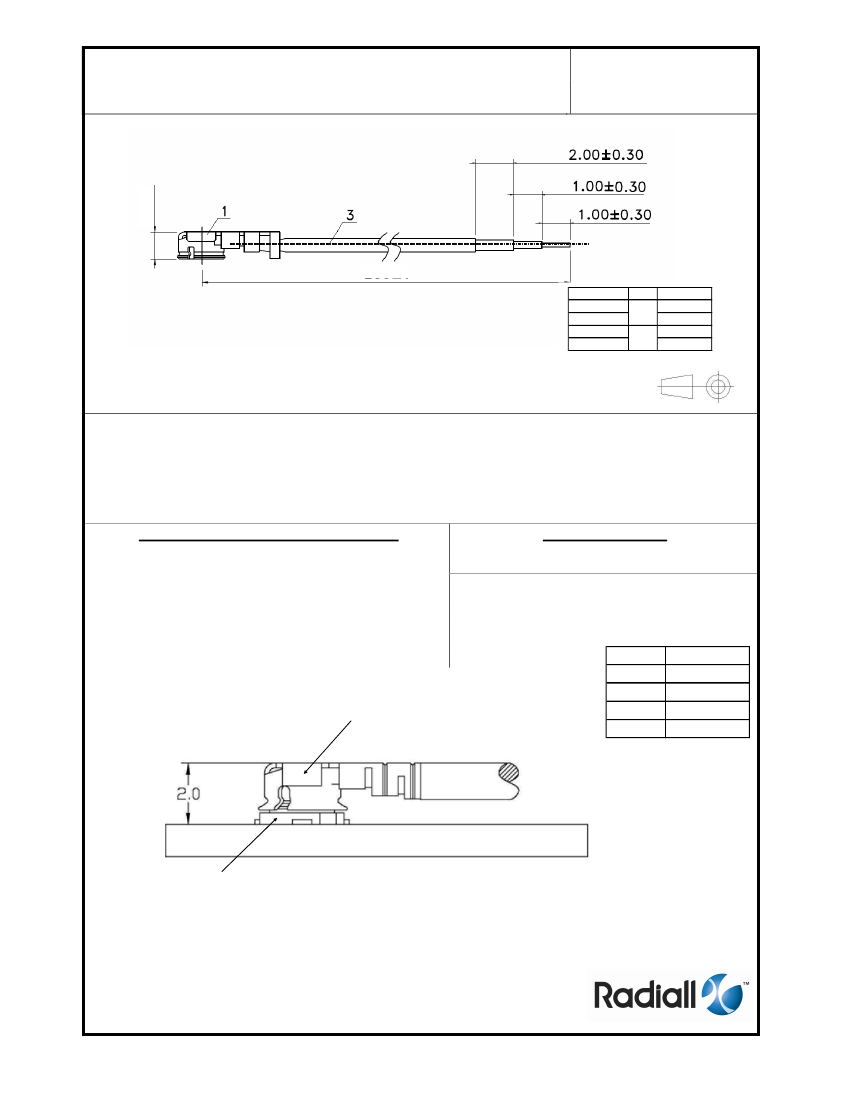

PLUG MML H2.0 - PIGTAIL
CABLE 1.13/50 S-BR, LENGTH=XXXMM
R302.205.001 XXX
Series :
MML
1.5
LENGTH
Length=XXX
30 to 100
110 to 200
225 to 300
325 to 400
.
pn
.
ao
Step
10
25
Tolerance
±2
±3
±5
±10
E.g. XXX=070 means length is 70±2, the part number is R302.205.001 070
All dimensions are in mm
* 1 * Connector A :
* 2 * Connector B :
* 3 * Cable
:
MML H2.0 PLUG(gold plated)
NA
1.13/50S BLACK
ELECTRICAL CHARACTERISTICS
Impedance
50
Ω
Frequency
0-6
GHz
Operating temperature
-40/+90
° C
VSWR
NA + 0.00
x F(GHz) Maxi
Insertion loss
NA
√F(GHz)
dB Maxi
Voltage rating
250
Veff Maxi
Dielectric withstanding voltage
300
Veff mini
Insulation resistance
500
MΩ mini
SPECIFICATION
Weight
Cable retention
Mating life:
Others :
0.80*
g
4
N mini
30
Cycle
Length
30 to 100
110 to 200
225 to 300
325 to 400
*Weight(Maxi)
0.8 g
1.6 g
2.4 g
3.2 g
MML PLUG
Mating status
Mated with MML receptacle
R302.302.000
Edition : 1308
A
Design changes may be in order to improve the product.
This document contains proprietary information and such information shall not be
disclosed to any third party for any purpose whatsoever or used for manufacturing
purposes without prior written agreement from RADIALL
