3040-8822 datasheet, PDF - EEWORLD Datasheet

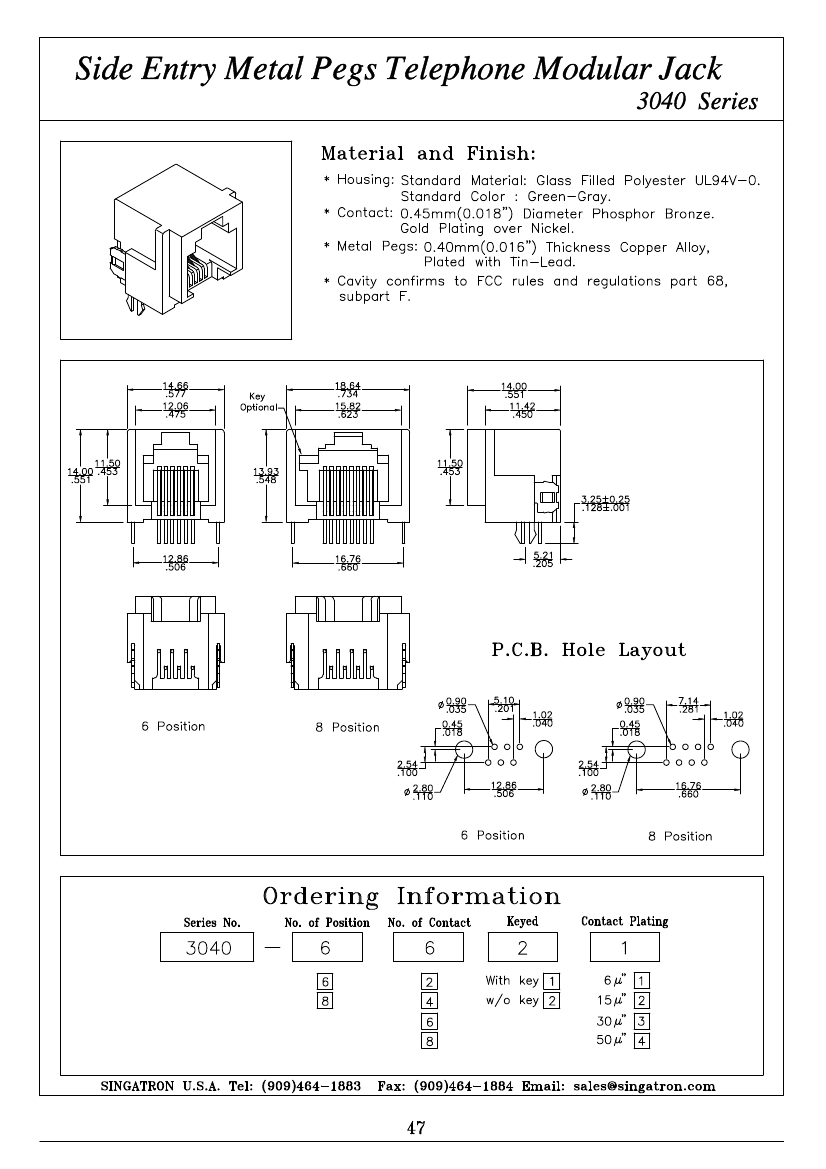

3040-8822: DescriptionTelecom and Datacom Connector, 8 Contact(s), Male, Right Angle, Solder Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size83KB，1 Pages; ManufacturerSingatron Enterprises Co

Download Datasheet Parametric View All

3040-8822 Overview

Telecom and Datacom Connector, 8 Contact(s), Male, Right Angle, Solder Terminal, Locking, Receptacle

Parameter Name	Attribute value
Maker	Singatron Enterprises Co
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	WITHOUT KEY
Board mount options	SPLIT BOARD LOCK
body width	0.548 inch
subject depth	0.551 inch
body length	0.734 inch
Body/casing type	RECEPTACLE
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
Contact style	TELCOM, MODULAR
insulator material	GLASS FILLED POLYESTER
Manufacturer's serial number	3040
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of ports	1
PCB contact pattern	STAGGERED
Plating thickness	15u inch
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.128 inch
Terminal pitch	2.032 mm
Termination type	SOLDER
Total number of contacts	8
Base Number Matches	1
