TA31033F(ER) datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Telecom circuit> TA31033F(ER)

TA31033F(ER): DescriptionIC TELEPHONE SPEECH CKT, PDSO16, 0.225 INCH, PLASTIC, SOP-16, Telephone Circuit; CategoryWireless rf/communication Telecom circuit; File Size274KB，11 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/

Download Datasheet Parametric Compare View All

TA31033F(ER) Overview

IC TELEPHONE SPEECH CKT, PDSO16, 0.225 INCH, PLASTIC, SOP-16, Telephone Circuit

TA31033F(ER) Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Toshiba Semiconductor
Parts packaging code	SOIC
package instruction	SOP,
Contacts	16
Reach Compliance Code	unknown
JESD-30 code	R-PDSO-G16
JESD-609 code	e0
length	10 mm
Number of functions	1
Number of terminals	16
Maximum operating temperature	60 °C
Minimum operating temperature	-30 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum seat height	1.9 mm
surface mount	YES
Telecom integrated circuit types	TELEPHONE SPEECH CIRCUIT
Temperature level	OTHER
Terminal surface	TIN LEAD
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	4.4 mm
Base Number Matches	1

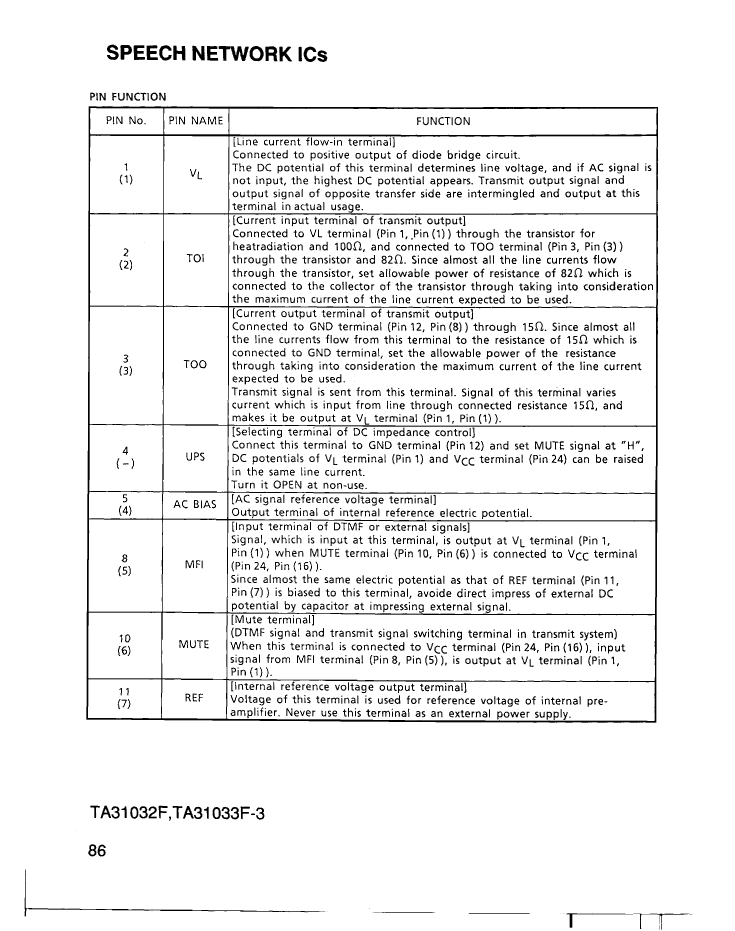

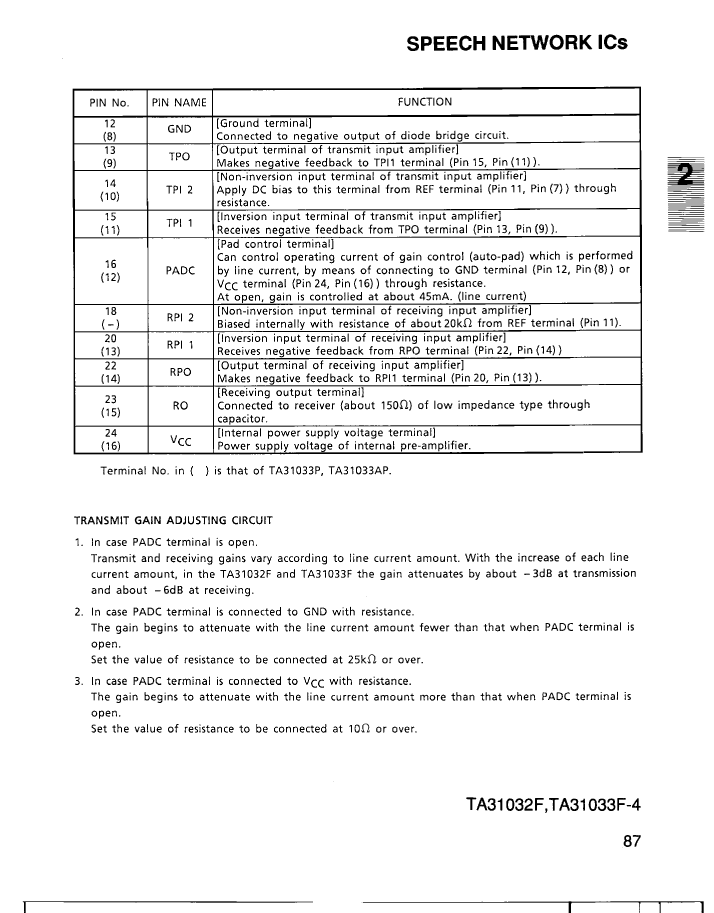

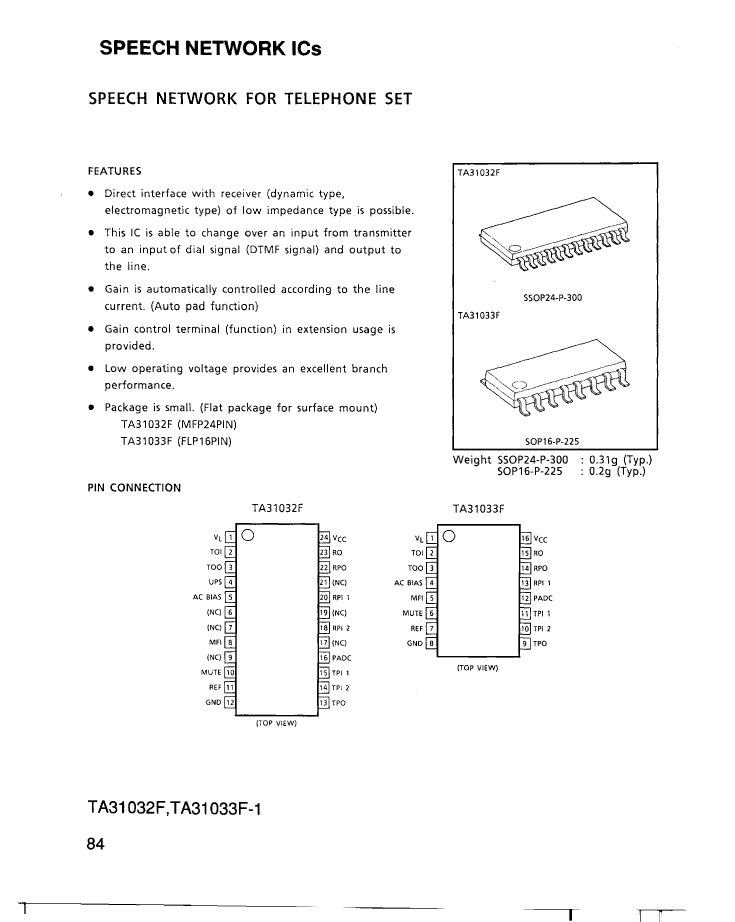

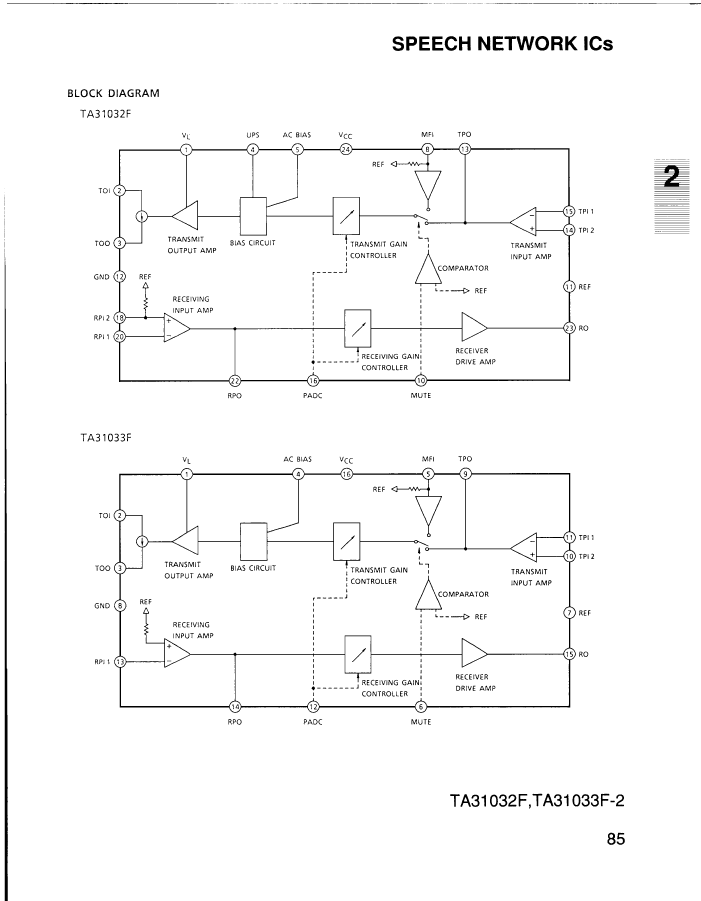

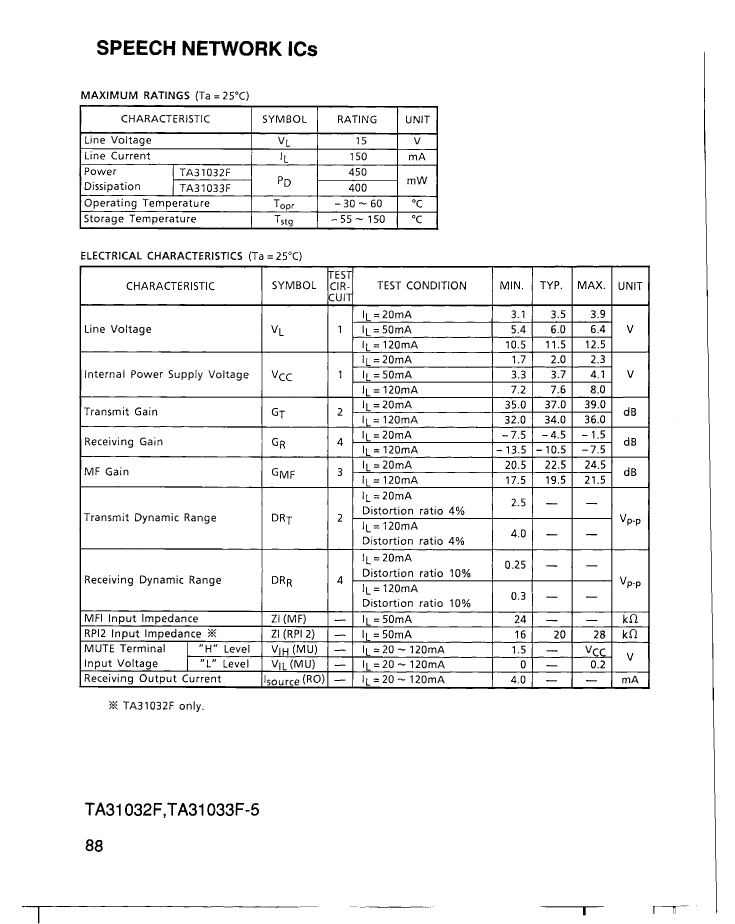

Preview

Download Datasheet

View All

TA31033F(ER) Related Products

	TA31033F(ER)	TA31033F	TA31033F-TP1	TA31033F(EL)	TA31033F-TP2	TA31032F(EL)	TA31032F(ER)	TA31032F-TP1	TA31032F-TP2	TA31032F
Description	IC TELEPHONE SPEECH CKT, PDSO16, 0.225 INCH, PLASTIC, SOP-16, Telephone Circuit	IC TELEPHONE SPEECH CKT, PDSO16, 0.225 INCH, PLASTIC, SOP-16, Telephone Circuit	IC TELEPHONE SPEECH CKT, PDSO16, 0.225 INCH, PLASTIC, SOP-16, Telephone Circuit	IC TELEPHONE SPEECH CKT, PDSO16, 0.225 INCH, PLASTIC, SOP-16, Telephone Circuit	IC TELEPHONE SPEECH CKT, PDSO16, 0.225 INCH, PLASTIC, SOP-16, Telephone Circuit	IC TELEPHONE SPEECH CKT, PDSO24, 0.300 INCH, PLASTIC, SSOP-24, Telephone Circuit	IC TELEPHONE SPEECH CKT, PDSO24, 0.300 INCH, PLASTIC, SSOP-24, Telephone Circuit	IC TELEPHONE SPEECH CKT, PDSO24, 0.300 INCH, PLASTIC, SSOP-24, Telephone Circuit	IC TELEPHONE SPEECH CKT, PDSO24, 0.300 INCH, PLASTIC, SSOP-24, Telephone Circuit	IC TELEPHONE SPEECH CKT, PDSO24, 0.300 INCH, PLASTIC, SSOP-24, Telephone Circuit
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Toshiba Semiconductor	Toshiba Semiconductor	Toshiba Semiconductor	Toshiba Semiconductor	Toshiba Semiconductor	Toshiba Semiconductor	Toshiba Semiconductor	Toshiba Semiconductor	Toshiba Semiconductor	Toshiba Semiconductor
Parts packaging code	SOIC	SOIC	SOIC	SOIC	SOIC	SSOP	SSOP	SSOP	SSOP	SSOP
package instruction	SOP,	0.225 INCH, PLASTIC, SOP-16	SOP,	SOP,	SOP,	SSOP,	SSOP,	SSOP,	SSOP,	SSOP,
Contacts	16	16	16	16	16	24	24	24	24	24
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
JESD-30 code	R-PDSO-G16	R-PDSO-G16	R-PDSO-G16	R-PDSO-G16	R-PDSO-G16	R-PDSO-G24	R-PDSO-G24	R-PDSO-G24	R-PDSO-G24	R-PDSO-G24
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0	e0	e0
length	10 mm	10 mm	10 mm	10 mm	10 mm	13 mm	13 mm	13 mm	13 mm	13 mm
Number of functions	1	1	1	1	1	1	1	1	1	1
Number of terminals	16	16	16	16	16	24	24	24	24	24
Maximum operating temperature	60 °C	60 °C	60 °C	60 °C	60 °C	60 °C	60 °C	60 °C	60 °C	60 °C
Minimum operating temperature	-30 °C	-30 °C	-30 °C	-30 °C	-30 °C	-30 °C	-30 °C	-30 °C	-30 °C	-30 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	SOP	SOP	SOP	SOP	SSOP	SSOP	SSOP	SSOP	SSOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	240	240	240	240	240
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.9 mm	1.9 mm	1.9 mm	1.9 mm	1.9 mm	2.2 mm	2.2 mm	2.2 mm	2.2 mm	2.2 mm
surface mount	YES	YES	YES	YES	YES	YES	YES	YES	YES	YES
Telecom integrated circuit types	TELEPHONE SPEECH CIRCUIT	TELEPHONE SPEECH CKT	TELEPHONE SPEECH CIRCUIT	TELEPHONE SPEECH CIRCUIT	TELEPHONE SPEECH CIRCUIT	TELEPHONE SPEECH CIRCUIT	TELEPHONE SPEECH CIRCUIT	TELEPHONE SPEECH CIRCUIT	TELEPHONE SPEECH CIRCUIT	TELEPHONE SPEECH CIRCUIT
Temperature level	OTHER	OTHER	OTHER	OTHER	OTHER	OTHER	OTHER	OTHER	OTHER	OTHER
Terminal surface	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1 mm	1 mm	1 mm	1 mm	1 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	4.4 mm	4.4 mm	4.4 mm	4.4 mm	4.4 mm	6 mm	6 mm	6 mm	6 mm	6 mm
Is it lead-free?	Contains lead	-	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead
