0.3mmピッチ
0.3mm pitch/Connectors for FPC
FXV
CONNECTOR
Emboss Tape
Specifications –––––––––––––––––––
The FXV connector is a market require
space saving and low profile 0.3mm pitch
connector, and designed for corresponding
to FPC with protrusions. As FPC with
protrusions is used for this FXV connector,
easy insertion operation, protection of
incomplete insertion and miss-insertion
are realized.
• Double ZIF design for easy insertion
operation of FPC
• Self-lock cover design
• Low profile and space saving
• FPC with protrusions
• Current rating: 0.2A AC, DC
• Voltage rating: 50V AC, DC
• Temperature range: -25˚C to +85˚C
(including temperature rise in applying
electrical current)
• Contact resistance: Initial value/60m
Ω
max.
After environmental testing/60m
Ω
max.
(variation from initial value)
• Insulation resistance:
50M
Ω
min.
• Withstanding voltage: 200V AC/minute
• Applicable FPC: Conductor pitch/0.3mm
Conductor width/0.3mm
Mating part thickness/0.2±0.03mm
* Compliant with RoHS.
* Refer to "General Instruction and Notice when using
Terminals and Connectors" at the end of this catalog.
* Contact JST for details.

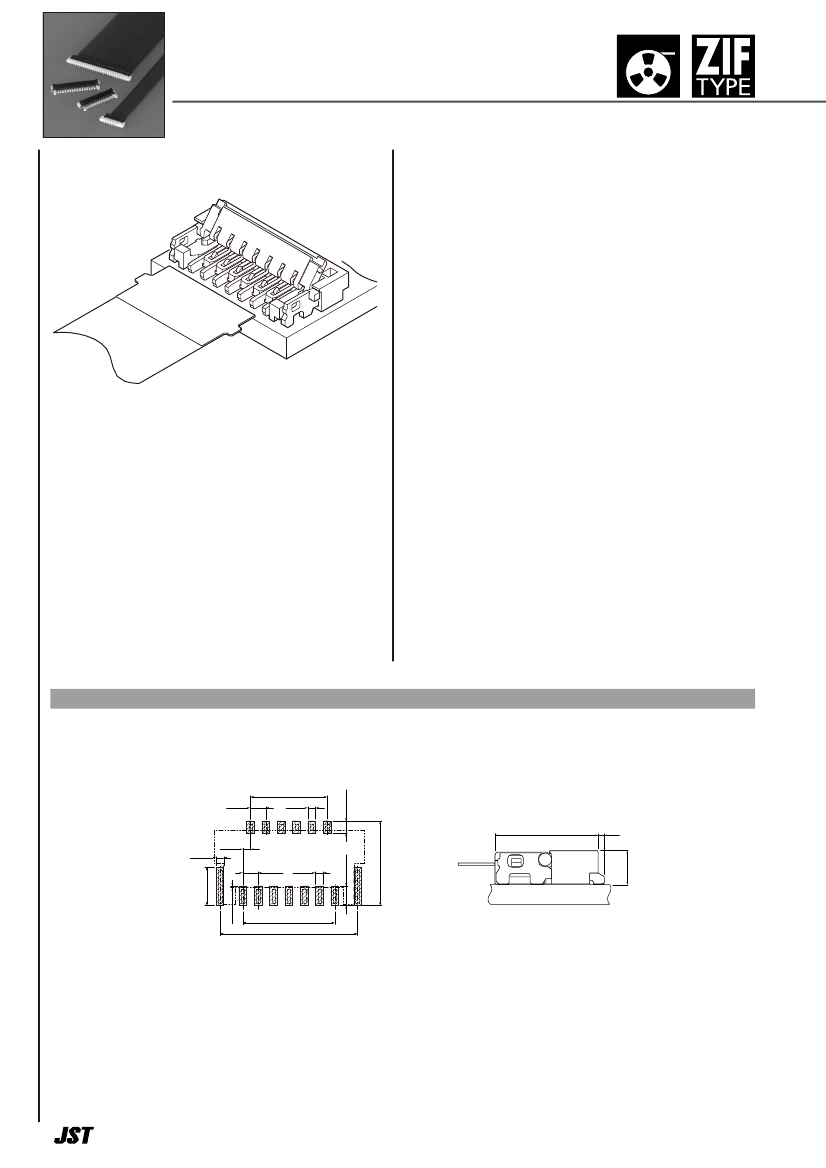

PC board layout (viewed from component side) and Assembly layout
0.6
±0.03
0.48
±0.05
A
±0.05
0.3
±0.05
2.8
0.3
±0.03
0.75
±0.05
3.3
±0.05
0.3
±0.05
0.6
±0.03
1.5
±0.05
0.3
±0.05
0.2
0.05
B
±0.05
C
±0.05
Note: 1. Tolerances are non-cumulative:
±
0.05mm for all centers.
2. The dimensions above should serve as a guideline. Contact JST for details.
1
0.9
FXV CONNECTOR
Connector
Circuits
D
A
0.6
Model No.
11FXV-RSM1-GAN-ETF
13FXV-RSM1-GAN-ETF
15FXV-RSM1-GAN-ETF
17FXV-RSM1-GAN-ETF
21FXV-RSM1-GAN-ETF
25FXV-RSM1-GAN-ETF
27FXV-RSM1-GAN-ETF
29FXV-RSM1-GAN-ETF
31FXV-RSM1-GAN-ETF
33FXV-RSM1-GAN-ETF
35FXV-RSM1-GAN-ETF
37FXV-RSM1-GAN-ETF
39FXV-RSM1-GAN-ETF
43FXV-RSM1-GAN-ETF
51FXV-RSM1-GAN-ETF
Dimensions (mm)
A
2.4
3.0
3.6
4.2
5.4
6.6
7.2
7.8
8.4
9.0
9.6
10.2
10.8
12.0
14.4
B
3.0
3.6
4.2
4.8
6.0
7.2
7.8
8.4
9.0
9.6
10.2
10.8
11.4
12.6
15.0
C
4.82
5.42
6.02
6.62
7.82
9.02
9.62
10.22
10.82
11.42
12.02
12.62
13.22
14.42
16.82
D
5.3
5.9
6.5
7.1
8.3
9.5
10.1
10.7
11.3
11.9
12.5
13.1
13.7
14.9
17.3
Q'ty /
reel
5,000
5,000
5,000
5,000
5,000
5,000
5,000
5,000
5,000
5,000
5,000
5,000
5,000
5,000
5,000
11
13
15
17
21
25
27
1.45
1.15
B
2.8
0.9
29
31
33
35
37
39
43
51
C
Material and Finish
Contact: Copper alloy, nickel-undercoated, gold-plated (nickel-stripe)
Housing: Heat resisting resin, UL94V-0
Solder tab: Copper alloy, copper-undercoated, tin-plated (reflow treatment)
Cover: Heat resisting resin, UL94V-0
RoHS compliance
This product displays (LF)(SN)(M) on a label.
Note: This products listed above are supplied on embossed-tape.

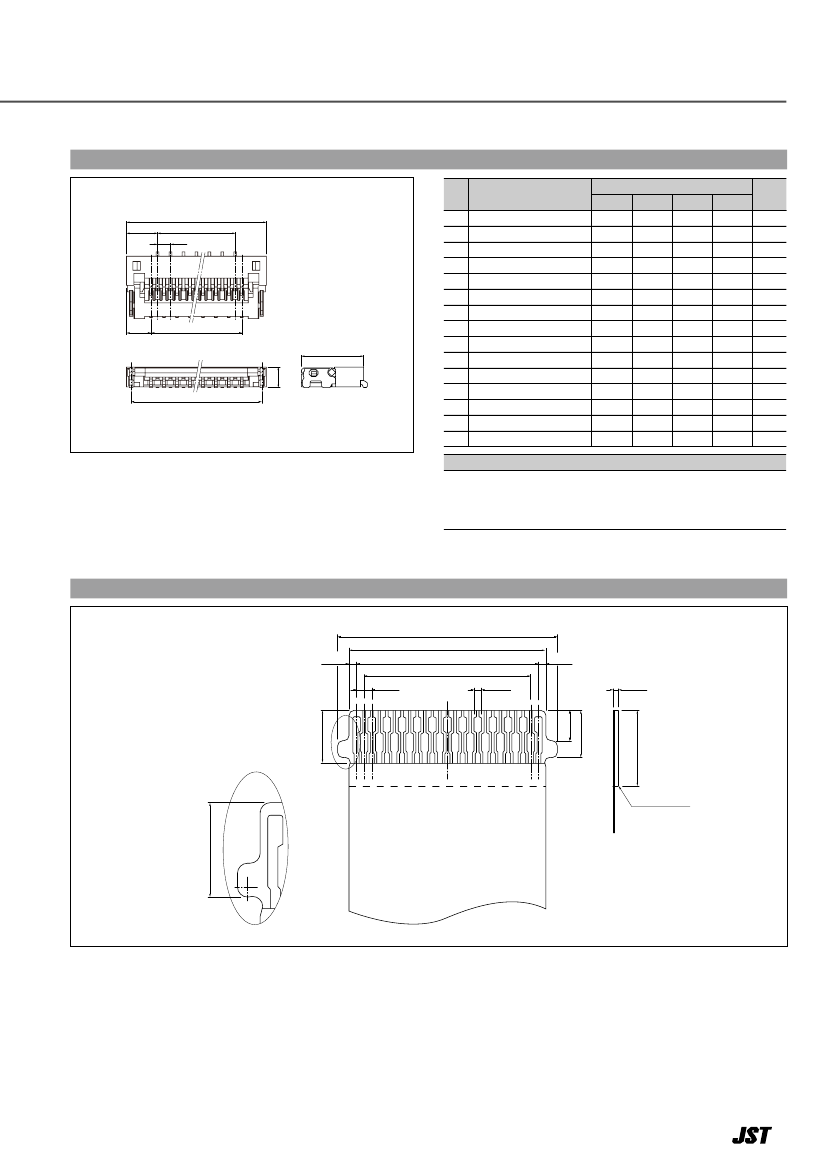

Lead section dimensions of FPC
（0.3×N）
＋1.2
±0.1
±
0.3
（N＋1）
0.05
±0.07
±
0.3
（N−1）
0.03
0.3
0.3
±0.07
0.3
＋0.04
−0.03
0.2
±0.03
0.3
（N−3）
0.6
±0.02
±0.03
1.2
±0.05
1.87
±0.05
2.1
±0.3
Note: N --- Number of circuits
1.87
±0.05
3
±0.5
Reinforcing layer
2
