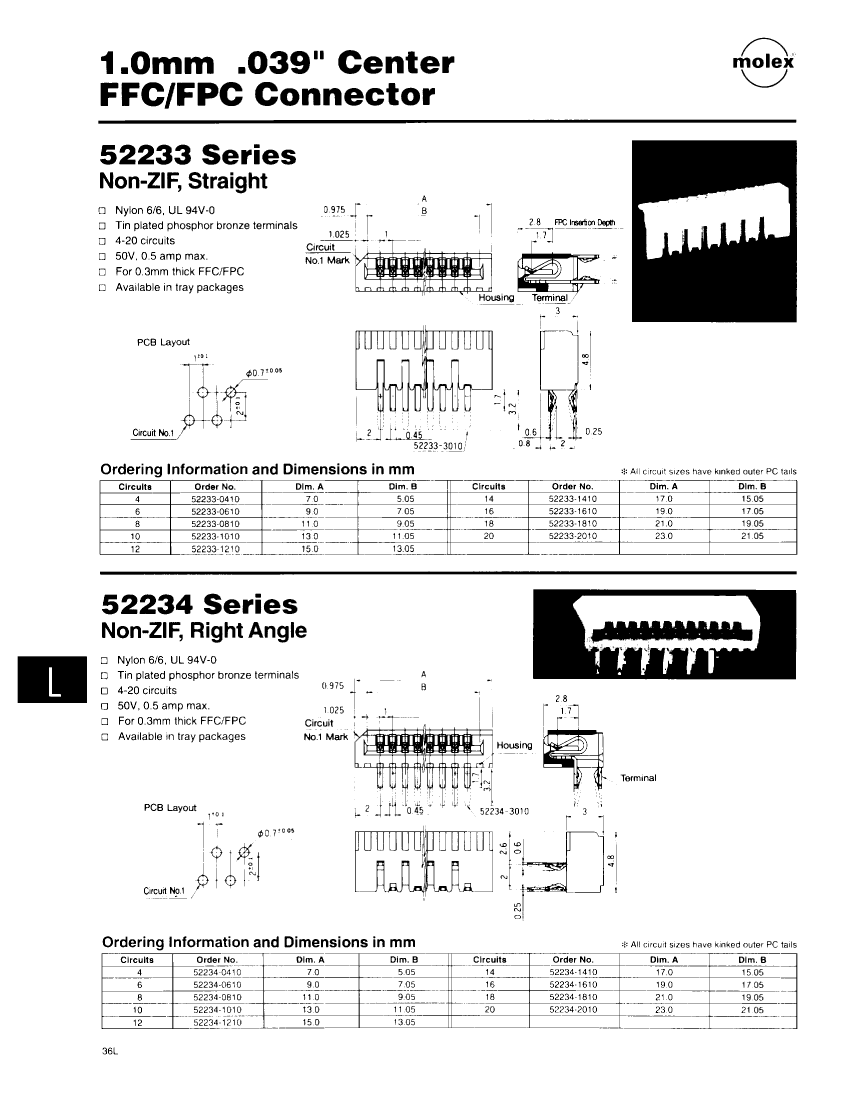

52233-1610: DescriptionCard Edge Connector, 16 Contact(s), 1 Row(s), Female, Straight, Solder Terminal; CategoryThe connector The connector; File Size42KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric Compare View All

52233-1610 Overview

Card Edge Connector, 16 Contact(s), 1 Row(s), Female, Straight, Solder Terminal

52233-1610 Parametric

Parameter Name	Attribute value
Maker	Molex
Reach Compliance Code	unknown
Other features	STAGGERED CONFIGURATION
Connector type	FFC/FPC CONNECTOR
Contact point gender	FEMALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	1
Terminal pitch	2 mm
Termination type	SOLDER
Total number of contacts	16
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

52233-1610 Related Products

	52233-1610	52233-1410	52233-0410	52233-0610	52233-0810	52233-1010	52233-2010	52233-1210	52233-1810
Description	Card Edge Connector, 16 Contact(s), 1 Row(s), Female, Straight, Solder Terminal	Card Edge Connector, 14 Contact(s), 1 Row(s), Female, Straight, Solder Terminal	Card Edge Connector, 4 Contact(s), 1 Row(s), Female, Straight, Solder Terminal	Card Edge Connector, 6 Contact(s), 1 Row(s), Female, Straight, Solder Terminal	Card Edge Connector, 8 Contact(s), 1 Row(s), Female, Straight, Solder Terminal	Card Edge Connector, 10 Contact(s), 1 Row(s), Female, Straight, Solder Terminal	Card Edge Connector, 20 Contact(s), 1 Row(s), Female, Straight, Solder Terminal	Card Edge Connector, 12 Contact(s), 1 Row(s), Female, Straight, Solder Terminal	Card Edge Connector, 18 Contact(s), 1 Row(s), Female, Straight, Solder Terminal
Maker	Molex	Molex	Molex	Molex	Molex	Molex	Molex	Molex	Molex
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknow	unknow
Other features	STAGGERED CONFIGURATION	STAGGERED CONFIGURATION	STAGGERED CONFIGURATION	STAGGERED CONFIGURATION	STAGGERED CONFIGURATION	STAGGERED CONFIGURATION	STAGGERED CONFIGURATION	STAGGERED CONFIGURATION	STAGGERED CONFIGURATION
Connector type	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	1	1	1	1	1	1	1	1	1
Terminal pitch	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	16	14	4	6	8	10	20	12	18
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
