2Mb: 128K x 18, 64K x 32/36
PIPELINED, SCD SYNCBURST SRAM
2Mb SYNCBURST
™
SRAM
FEATURES
• Fast clock and OE# access times
• Single +3.3V +0.3V/-0.165V power supply (V
DD
)
• Separate +3.3V or +2.5V isolated output buffer
supply (V
DD
Q)
• SNOOZE MODE for reduced-power standby
• Single-cycle deselect (Pentium
®
BSRAM-compatible)
• Common data inputs and data outputs
• Individual BYTE WRITE control and GLOBAL
WRITE
• Three chip enables for simple depth expansion
and address pipelining
• Clock-controlled and registered addresses, data
I/Os and control signals
• Internally self-timed WRITE cycle
• Burst control pin (interleaved or linear burst)
• Automatic power-down for portable applications
• 100-pin TQFP package
• 165-pin FBGA package
• Low capacitive bus loading
• x18, x32, and x36 options available
MT58L128L18P, MT58L64L32P, MT58L64L36P;
MT58L128V18P, MT58L64V32P, MT58L64V36P
3.3V V
DD
, 3.3V or 2.5V I/O, Pipelined, Single-
Cycle Deselect

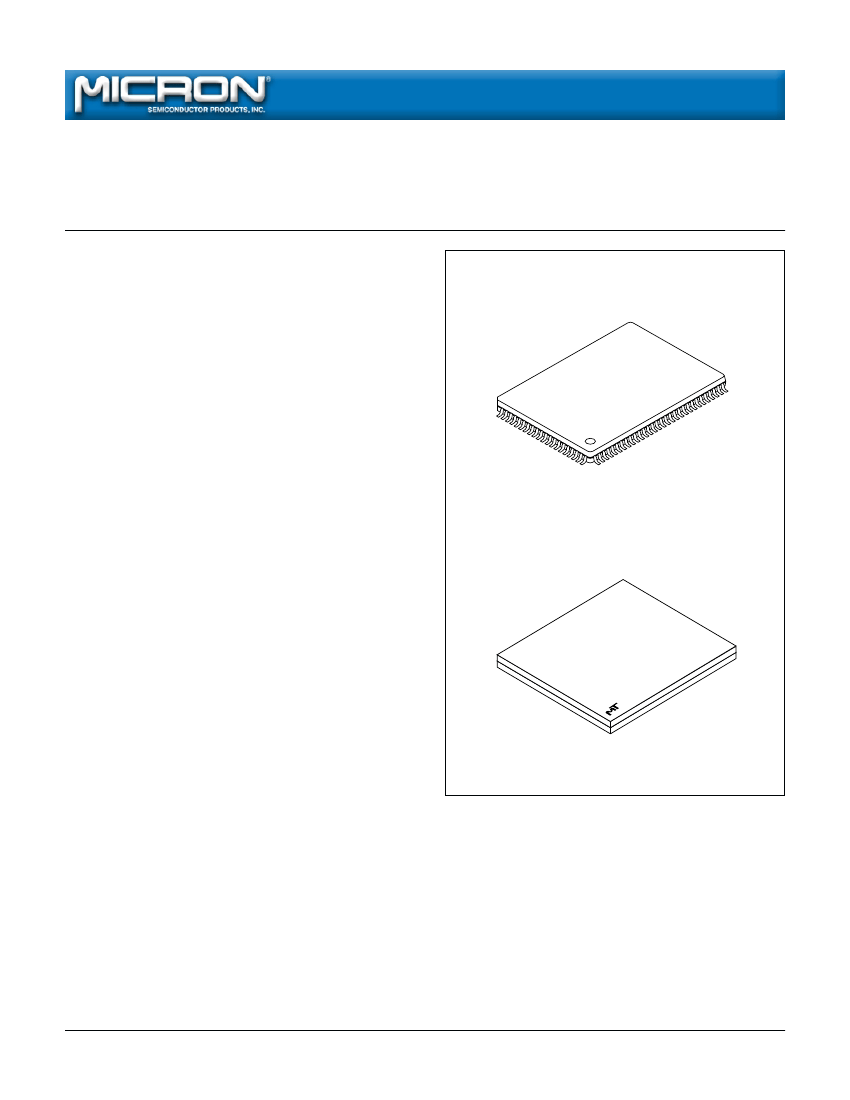

100-Pin TQFP*
165-Pin FBGA
(Preliminary Package Data)
OPTIONS
• Timing (Access/Cycle/MHz)
3.5ns/5ns/200 MHz
3.5ns/6ns/166 MHz
4.0ns/7.5ns/133 MHz
5ns/10ns/100 MHz
• Configurations
3.3V I/O
128K x 18
64K x 32
64K x 36
2.5V I/O
128K x 18
64K x 32
64K x 36
• Package
100-pin TQFP
165-pin FBGA
• Operating Temperature Range
Commercial (0°C to +70°C)
Part Number Example:
MARKING
-5
-6
-7.5
-10
MT58L128L18P
MT58L64L32P
MT58L64L36P
MT58L128V18P
MT58L64V32P
MT58L64V36P
T
F
None
*JEDEC-standard MS-026 BHA (LQFP).
GENERAL DESCRIPTION
The Micron
®
SyncBurst
™
SRAM family employs
high-speed, low-power CMOS designs that are fabri-
cated using an advanced CMOS process.
Micron’s 2Mb SyncBurst SRAMs integrate a 128K x
18, 64K x 32, or 64K x 36 SRAM core with advanced
synchronous peripheral circuitry and a 2-bit burst
counter. All synchronous inputs pass through registers
controlled by a positive-edge-triggered single clock
input (CLK). The synchronous inputs include all
addresses, all data inputs, active LOW chip enable (CE#),
two additional chip enables for easy depth expansion
MT58L128L18PT-10*
* A Part Marking Guide for the FBGA devices can be found on Micron’s
web site—http://www.micronsemi.com/support/index.html.
2Mb: 128K x 18, 64K x 32/36 Pipelined, SCD SyncBurst SRAM
MT58L128L18P_2.p65 – Rev. 8/00
1
Micron Technology, Inc., reserves the right to change products or specifications without notice.
©2000, Micron Technology, Inc.
2Mb: 128K x 18, 64K x 32/36
PIPELINED, SCD SYNCBURST SRAM

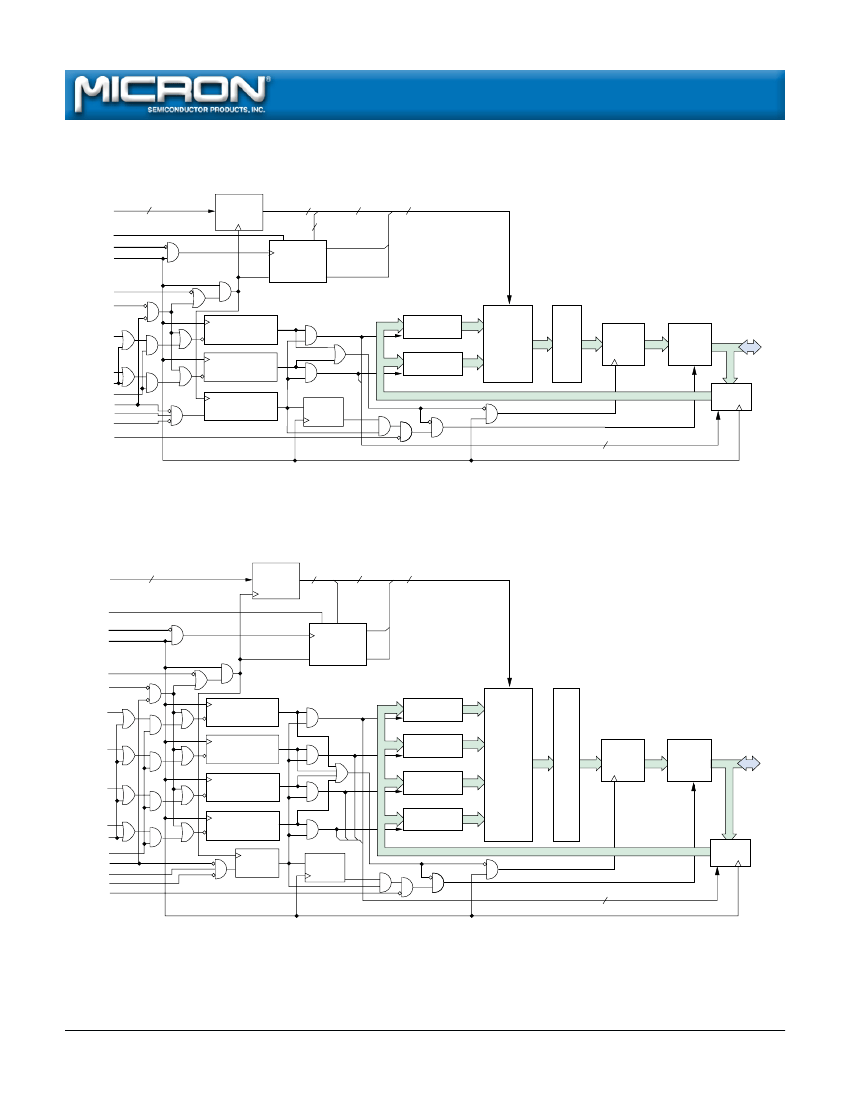

FUNCTIONAL BLOCK DIAGRAM
128K x 18
17
SA0, SA1, SA
MODE
ADV#
CLK
ADDRESS
REGISTER
17
15
17
2
SA0-SA1
SA1'
BINARY Q1
COUNTER AND
LOGIC
CLR
Q0
SA0'
ADSC#
ADSP#
BYTE “b”
WRITE REGISTER
9
BWb#
BYTE “b”
WRITE DRIVER
9
128K x 9 x 2
MEMORY
ARRAY
9
18
SENSE
18
AMPS
OUTPUT
18
REGISTERS
OUTPUT
BUFFERS
18
BWa#
BWE#
GW#
CE#
CE2
CE2#
OE#
BYTE “a”
WRITE REGISTER
9
BYTE “a”
WRITE DRIVER
E
DQs
DQPa
DQPb
ENABLE
REGISTER
18
PIPELINED
ENABLE
2
INPUT
REGISTERS
FUNCTIONAL BLOCK DIAGRAM
64K x 32/36
16
SA0, SA1, SA
ADDRESS
REGISTER
16
14
SA0-SA1
16
MODE
ADV#
CLK
Q1
SA1'
BINARY
COUNTER
SA0'
CLR
Q0
ADSC#
ADSP#
BWd#
BYTE “d”
WRITE REGISTER
BYTE “c”
WRITE REGISTER
9
BYTE
“d”
WRITE DRIVER
BYTE
“c”
WRITE DRIVER
BYTE
“b”
WRITE DRIVER
BYTE
“a”
WRITE DRIVER
9
BWc#
9
9
64K x 8 x 4
(x32)
64K x 9 x 4
(x36)
36
SENSE
AMPS
36
OUTPUT
REGISTERS
36
BWb#
BYTE “b”
WRITE REGISTER
9
9
MEMORY
ARRAY
OUTPUT
BUFFERS
E
36
DQs
DQPa
DQPb
DQPc
DQPd
BWa#
BWE#
GW#
CE#
CE2
CE2#
OE#
BYTE “a”
WRITE REGISTER
9
9
ENABLE
REGISTER
36
PIPELINED
ENABLE
4
INPUT
REGISTERS
NOTE:
Functional block diagrams illustrate simplified device operation. See truth table, pin descriptions, and timing diagrams
for detailed information.
2Mb: 128K x 18, 64K x 32/36 Pipelined, SCD SyncBurst SRAM
MT58L128L18P_2.p65 – Rev. 8/00
2
Micron Technology, Inc., reserves the right to change products or specifications without notice.
©2000, Micron Technology, Inc.
2Mb: 128K x 18, 64K x 32/36
PIPELINED, SCD SYNCBURST SRAM
GENERAL DESCRIPTION (continued)
(CE2, CE2#), burst control inputs (ADSC#, ADSP#,
ADV#), byte write enables (BWx#), and global write
(GW#).
Asynchronous inputs include the output enable
(OE#), clock (CLK), and snooze enable (ZZ). There is
also a burst mode pin (MODE) that selects between
interleaved and linear burst modes. The data-out (Q),
enabled by OE#, is also asynchronous. WRITE cycles
can be from one to two bytes wide (x18) or from one
to four bytes wide (x32/x36), as controlled by the write
control inputs.
Burst operation can be initiated with either address
status processor (ADSP#) or address status controller
(ADSC#) input pins. Subsequent burst addresses can be
internally generated as controlled by the burst advance
pin (ADV#).
Address and write control are registered on-chip to
simplify WRITE cycles. This allows self-timed WRITE
cycles. Individual byte enables allow individual bytes
to be written. During WRITE cycles on the x18 device,
BWa# controls DQa pins and DQPa; BWb# controls
DQb pins and DQPb. During WRITE cycles on the x32
and x36 devices, BWa# controls DQa pins and DQPa;
BWb# controls DQb pins and DQPb; BWc# controls
DQc pins and DQPc; BWd# controls DQd pins and
DQPd. GW# LOW causes all bytes to be written. Parity
pins are only available on the x18 and x36 versions.
This device incorporates a single-cycle deselect fea-
ture during READ cycles. If the device is immediately
deselected after a READ cycle, the output bus goes to a
High-Z state
t
KQHZ nanoseconds after the rising edge
of clock.
Micron’s 2Mb SyncBurst SRAMs operate from a
+3.3V V
DD
power supply, and all inputs and outputs
are TTL-compatible. Users can choose either a 3.3V or
2.5V I/O version. The device is ideally suited for Pentium
and PowerPC pipelined systems and systems that ben-
efit from a very wide, high-speed data bus. The device
is also ideal in generic 16-, 18-, 32-, 36-, 64-, and 72-bit-
wide applications.
Please
refer
to
Micron’s
Web
site
(www.micronsemi.com/datasheets/syncds.html) for
the latest data sheet.
