AD2700JD: DescriptionIC 1-OUTPUT THREE TERM VOLTAGE REFERENCE, 10 V, CDIP14, BOTTOM BRAZED, CERAMIC, DIP-14, Voltage Reference; CategoryPower/power management The power supply circuit; File Size139KB，4 Pages; ManufacturerADI; Websitehttps://www.analog.com; Environmental Compliance

Download Datasheet Parametric Compare View All

AD2700JD Overview

IC 1-OUTPUT THREE TERM VOLTAGE REFERENCE, 10 V, CDIP14, BOTTOM BRAZED, CERAMIC, DIP-14, Voltage Reference

AD2700JD Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	ADI
Parts packaging code	DIP
package instruction	DIP, DIP14,.3
Contacts	14
Reach Compliance Code	compliant
ECCN code	EAR99
Analog Integrated Circuits - Other Types	THREE TERMINAL VOLTAGE REFERENCE
JESD-30 code	R-CDIP-T14
length	20.065 mm
Number of functions	1
Output times	1
Number of terminals	14
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Maximum output voltage	10.005 V
Minimum output voltage	9.995 V
Nominal output voltage	10 V
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP
Encapsulate equivalent code	DIP14,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum seat height	5.08 mm
Maximum supply current (Isup)	14 mA
Maximum supply voltage (Vsup)	16.5 V
Minimum supply voltage (Vsup)	13.5 V
surface mount	NO
technology	HYBRID
Maximum voltage temperature coefficient	10 ppm/°C
Temperature level	OTHER
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Fine-tuning/adjustable output	YES
Maximum voltage tolerance	0.11%
width	7.62 mm
Base Number Matches	1

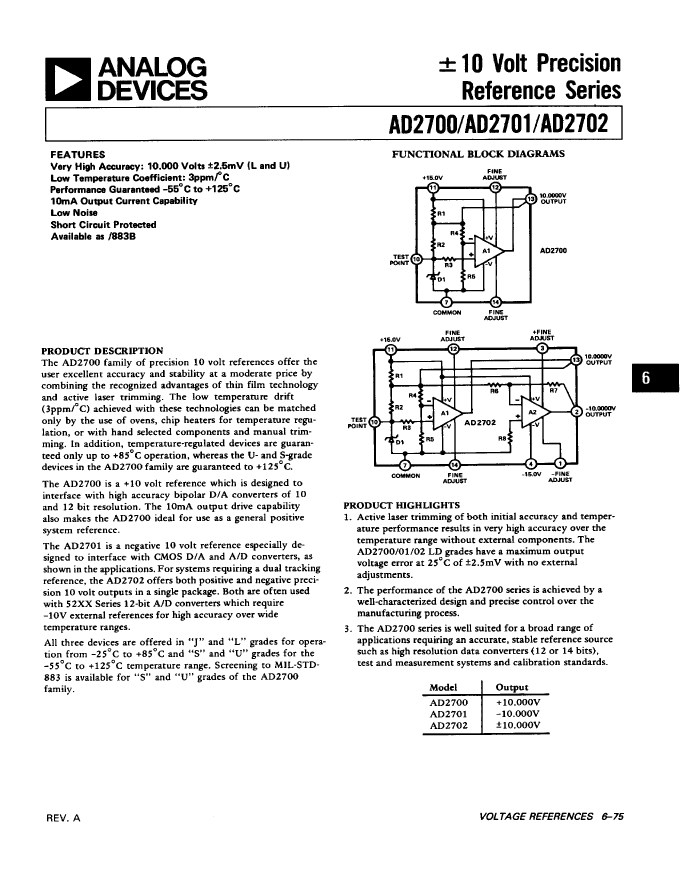

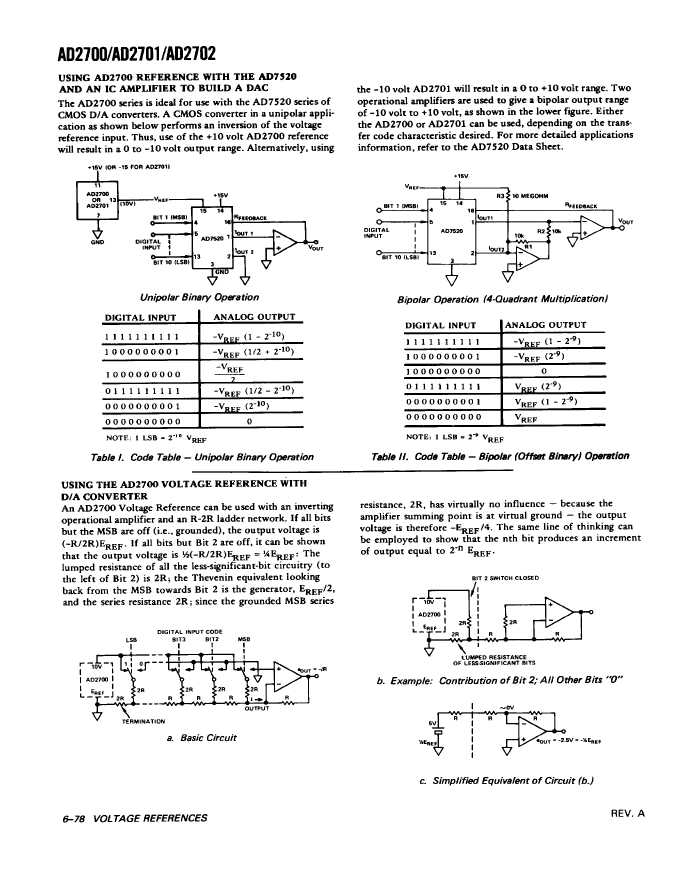

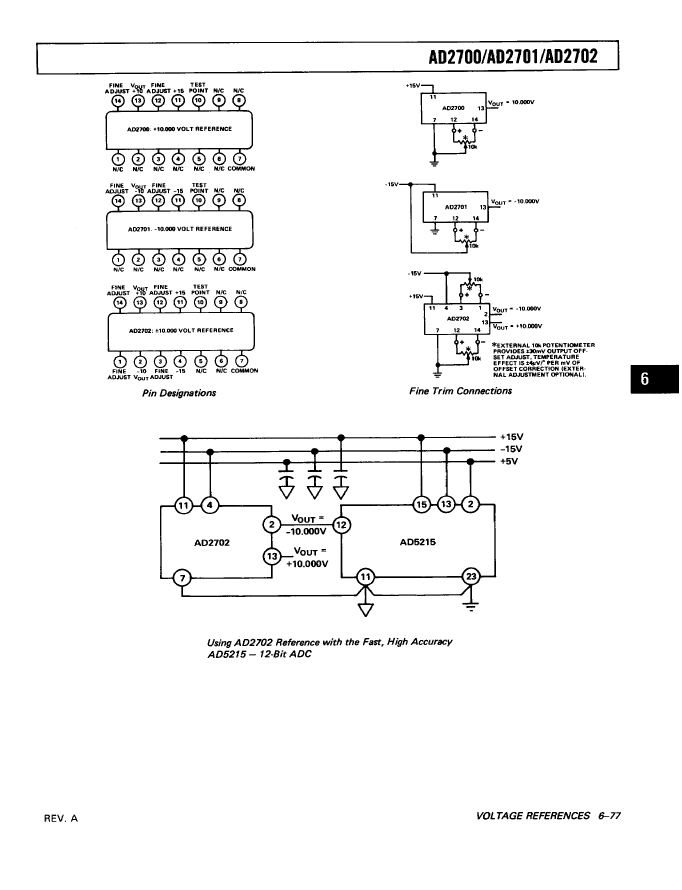

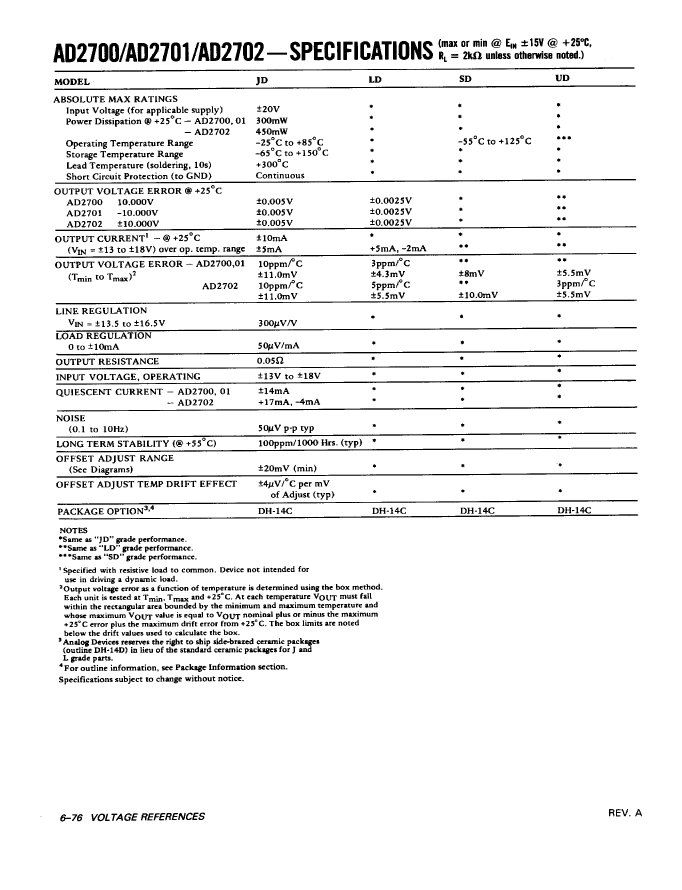

Preview

Download Datasheet

View All

This Material Copyrighted By Its Respective Manufacturer

AD2700JD Related Products

	AD2700JD	AD2701LD	AD2700SD
Description	IC 1-OUTPUT THREE TERM VOLTAGE REFERENCE, 10 V, CDIP14, BOTTOM BRAZED, CERAMIC, DIP-14, Voltage Reference	IC 1-OUTPUT THREE TERM VOLTAGE REFERENCE, -10 V, CDIP14, BOTTOM BRAZED, CERAMIC, DIP-14, Voltage Reference	1-OUTPUT THREE TERM VOLTAGE REFERENCE, 10V, CDIP14, BOTTOM BRAZED, CERAMIC, DIP-14
Is it Rohs certified?	conform to	incompatible	incompatible
Maker	ADI	ADI	ADI
Parts packaging code	DIP	DIP	DIP
package instruction	DIP, DIP14,.3	DIP-14	BOTTOM BRAZED, CERAMIC, DIP-14
Contacts	14	14	14
Reach Compliance Code	compliant	not_compliant	compliant
ECCN code	EAR99	EAR99	EAR99
Analog Integrated Circuits - Other Types	THREE TERMINAL VOLTAGE REFERENCE	THREE TERMINAL VOLTAGE REFERENCE	THREE TERMINAL VOLTAGE REFERENCE
JESD-30 code	R-CDIP-T14	R-CDIP-T14	R-CDIP-T14
length	20.065 mm	20.065 mm	20.065 mm
Number of functions	1	1	1
Output times	1	1	1
Number of terminals	14	14	14
Maximum operating temperature	85 °C	85 °C	125 °C
Minimum operating temperature	-25 °C	-25 °C	-55 °C
Maximum output voltage	10.005 V	-10.0025 V	10.005 V
Minimum output voltage	9.995 V	-9.9975 V	9.995 V
Nominal output voltage	10 V	-10 V	10 V
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP	DIP	DIP
Encapsulate equivalent code	DIP14,.3	DIP14,.3	DIP14,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	5.08 mm	5.08 mm	5.08 mm
Maximum supply current (Isup)	14 mA	14 mA	14 mA
Maximum supply voltage (Vsup)	16.5 V	18 V	16.5 V
Minimum supply voltage (Vsup)	13.5 V	13 V	13.5 V
surface mount	NO	NO	NO
technology	HYBRID	HYBRID	HYBRID
Maximum voltage temperature coefficient	10 ppm/°C	3 ppm/°C	3 ppm/°C
Temperature level	OTHER	OTHER	MILITARY
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Fine-tuning/adjustable output	YES	YES	YES
Maximum voltage tolerance	0.11%	0.04%	0.08%
width	7.62 mm	7.62 mm	7.62 mm
Base Number Matches	1	1	-
JESD-609 code	-	e0	e0
Terminal surface	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
