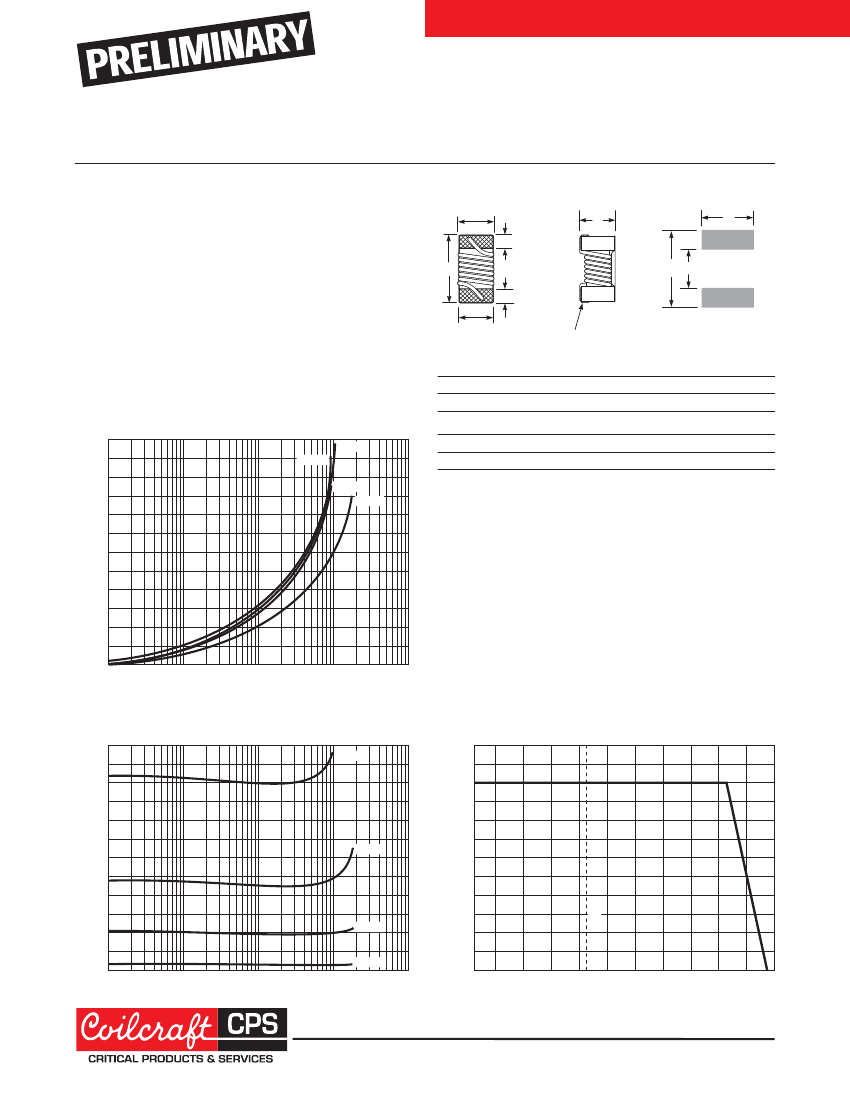

0603 CHIP INDUCTORS
Aerospace Grade Chip Inductors
AE312RAH
■
High SRF, excellent Q values and low DCR
■
45 inductance values from 2.2 nH to 470 nH, some not
found in any of our other 0603 series
■
Comparable with other industry standards
This robust version of Coilcraft’s standard 0603ME series
features high temperature materials that pass NASA low
outgassing specifications and allow operation in ambient
temperatures up to 155°C. The leach-resistant base
metalization with tin-lead (Sn-Pb) terminations ensures
the best possible board adhesion.
B
overall
D
A
D
E
terminal
G
F
C
H
Terminal wraparound:
approx 0.007/0,18 both ends
Suggested
Recommended
Land
Pattern
Land
Pattern
D
0,3 ±0,1
E
0,8 ±0,15
A
1,6 ±0,2
F
B
0,8 ±0,2
G
0.075
1,9
C
0,8 ±0,2
H
0.035
0,9
inches
mm
0.063 ±0.008 0.031 ±0.008 0.031 ±0.008 0.012 ±0.004 0.031 ±0.006
Typical Q vs Frequency
120
110
100
90
80
100 nH
47 nH
3.6 nH
20 nH
0.027
0,7
All dimensions are without solder applied to the terminations. For
maximum dimensions with solder, add 0.006 inches / 0,152 mm.
Core material
Ceramic
Terminations
Tin-lead (63/37) over silver-platinum-glass frit
Ambient temperature
–55°C to +125°C with
Imax
current, +125°C
to +155°C with derated current
Storage temperature
Component: –55°C to +155°C.
Packaging: –55°C to +80°C
Resistance to soldering heat
Max three 40 second reflows at
+260°C, parts cooled to room temperature between cycles
Temperature Coefficient of Inductance (TCL)
+25 to +155 ppm/°C
Moisture Sensitivity Level (MSL)
1 (unlimited floor life at <30°C /
85% relative humidity)
Enhanced crush-resistant packaging
2000 per 7″ reel. Paper
tape: 8 mm wide, 1 mm thick, 4 mm pocket spacing
Q Factor
70
60
50
40
30
20
10
0
1
10
100
1000
10000
Frequency (MHz)
Typical L vs Frequency
120
110
100
100 nH
Irms Derating
120
110
100
Percent of rated
I
rms
90
90
80
70
60
50
25°C
Inductance (nH)
80
70
60
50
40
30
20
10
0
1
10
100
1000
3.6 nH
20 nH
47 nH
40
30
20
10
10000
0
-55 -40
-20
0
20
40
60
80
100
120
140 160
Frequency (MHz)
®
Ambient temperature (°C)
Revised 06/02/09
These parts are preproduction products for electrical evaluation only.
Specification subject to change without notice.
Document AE431-1
1102 Silver Lake Road
Cary IL 60013
© Coilcraft, Inc. 2009
Phone
800-981-0363
Fax
847-639-1508
E-mail
cp@coilcraft.com
Web
www.coilcraft-cps.com
0603 CHIP INDUCTORS
AE312RAH Series (0603)
Part number
1
AE312RAH2N2JSZ
AE312RAH3N6JSZ
AE312RAH3N9JSZ
AE312RAH4N3JSZ
AE312RAH4N7JSZ
AE312RAH5N6JSZ
AE312RAH6N2JSZ
AE312RAH6N8JSZ
AE312RAH7N5JSZ
AE312RAH8N2JSZ
AE312RAH8N7JSZ
AE312RAH9N5JSZ
AE312RAH10NJSZ
AE312RAH11NJSZ
AE312RAH12NJSZ
AE312RAH13NJSZ
AE312RAH15NJSZ
AE312RAH16NJSZ
AE312RAH18NJSZ
AE312RAH20NJSZ
AE312RAH22NJSZ
AE312RAH24NJSZ
AE312RAH27NJSZ
AE312RAH30NJSZ
AE312RAH33NJSZ
AE312RAH36NJSZ
AE312RAH39NJSZ
AE312RAH43NJSZ
AE312RAH47NJSZ
AE312RAH51NJSZ
AE312RAH56NJSZ
AE312RAH62NJSZ
AE312RAH68NJSZ
AE312RAH72NJSZ
AE312RAH75NJSZ
AE312RAH82NJSZ
AE312RAH91NJSZ
AE312RAHR10JSZ
AE312RAHR11JSZ
AE312RAHR12JSZ
AE312RAHR13JSZ
AE312RAHR15JSZ
AE312RAHR16JSZ
AE312RAHR18JSZ
AE312RAHR47GSZ
Inductance
2
(nH)
2.2
3.6
3.9
4.3
4.7
5.6
6.2
6.8
7.5
8.2
8.7
9.5
10
11
12
13
15
16
18
20
22
24
27
30
33
36
39
43
47
51
56
62
68
72
75
82
91
100
110
120
130
150
160
180
470
Percent
tolerance
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
2
Q
3
nom
29
25
35
35
35
35
35
35
35
26
22
24
35
35
35
35
40
40
40
40
40
40
40
40
40
40
40
40
38
38
38
38
38
34
34
34
34
34
32
32
32
32
32
25
28
Q typ at
300 MHz
39
45
45
45
39
45
45
45
45
50
41
43
45
45
50
50
55
55
55
55
55
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
45
45
45
45
45
45
45
45
—
Q typ at
800 MHz
60
75
75
75
64
75
75
80
80
84
68
73
80
80
85
85
90
90
90
90
90
85
85
85
85
85
85
85
85
85
85
85
85
80
80
80
80
75
75
75
75
70
65
60
—
Q typ at
1.5 GHz
83
95
95
95
88
95
95
100
100
122
96
103
100
100
100
100
105
105
105
105
105
95
95
90
90
90
90
75
75
75
75
75
75
60
60
55
55
50
50
50
50
—
—
—
—
SRF min
4
(MHz)
13500
6000
6000
6000
6000
6000
6000
6000
6000
6000
6000
6000
6000
6000
6000
6000
6000
5500
5500
4900
4600
3800
3700
3300
3200
2900
2800
2700
2600
2500
2400
2300
2200
2100
2050
2000
1900
1800
1350
1600
1450
1400
1350
1300
650
DCR max
5
(Ohms)
0.024
0.059
0.059
0.059
0.047
0.082
0.082
0.082
0.090
0.052
0.097
0.099
0.11
0.11
0.13
0.13
0.13
0.16
0.16
0.16
0.17
0.21
0.22
0.23
0.23
0.26
0.26
0.27
0.29
0.33
0.35
0.43
0.38
0.56
0.56
0.60
0.64
0.68
1.2
1.3
1.4
1.5
2.1
2.2
6.0
Imax
(mA)
2500
1600
1600
1600
1600
1400
1400
1400
1300
1250
1100
1100
1100
1100
1050
1050
1400
1000
1000
1000
950
950
750
650
650
600
600
600
550
550
530
450
520
470
450
400
400
380
350
310
250
240
210
200
120
1. When ordering, please specify
testing
code:
AE312RAHR47GSZ
Testing: Z
= Coilcraft Critical Products Environmental Stress
Conditions Testing.
H
= Coilcraft Qual + Coilcraft Hi-Rel Burn-in
P
= Coilcraft Qual + MIL-STD-981 Class S Group A
screening
N
= Coilcraft Qual + MIL-STD-981 Class B Group A
screening
C
= Coilcraft Qual + MIL-STD-981 Class S Group A screening
+ MIL-STD-981 Class S Group B qualification
W
= Coilcraft Qual + MIL-STD-981 Class B Group A screening
+ MIL-STD-981 Class S Group B qualification
2. Inductance measured at 100 MHz, 0.1 Vrms, 0 Adc using a Coilcraft
SMD-A fixture in an Agilent/HP 4286A impedance analyzer with
Coilcraft-provided correlation pieces.
3. Q measured at 100 MHz using an Agilent/HP4291A with Agilent/
HP 16193 test fixture.
4. SRF measured using an Agilent/HP 8753D network analyzer and a
Coilcraft SMD-D test fixture.
5. DCR measured on a Cambridge Technology micro-ohmmeter and a
Coilcraft CCF858 test fixture.
8. Electrical specifications at 25°C.
Refer to Doc 362 “Soldering Surface Mount Components” before soldering.
®
These parts are preproduction products for electrical evaluation only.
Specification subject to change without notice.
Document AE431-2
Revised 06/02/09
1102 Silver Lake Road
Cary IL 60013
© Coilcraft, Inc. 2009
Phone
800-981-0363
Fax
847-639-1508
E-mail
cp@coilcraft.com
Web
www.coilcraft-cps.com
