BXO9316: DescriptionVCO, 2500 MHz - 4000 MHz; CategoryPassive components oscillator; File Size187KB，3 Pages; ManufacturerSpectrum Microwave

Download Datasheet Parametric Compare View All

BXO9316 Overview

VCO, 2500 MHz - 4000 MHz

BXO9316 Parametric

Parameter Name	Attribute value
Maker	Spectrum Microwave
Reach Compliance Code	unknown
Maximum control voltage	20 V
Minimum control voltage
Modulation sensitivity	130 MHz/V
Installation features	CHASSIS MOUNT
offset frequency	100 kHz
Maximum operating frequency	4000 MHz
Minimum operating frequency	2500 MHz
Oscillator type	VOLTAGE CONTROLLED OSCILLATOR
Output Power	8.5 dBm
phase noise	-100 dBc/Hz
physical size	25.4mm x 20.828mm x 12.7mm
Nominal supply voltage	15 V
surface mount	NO
Base Number Matches	1

Preview

Download Datasheet

View All

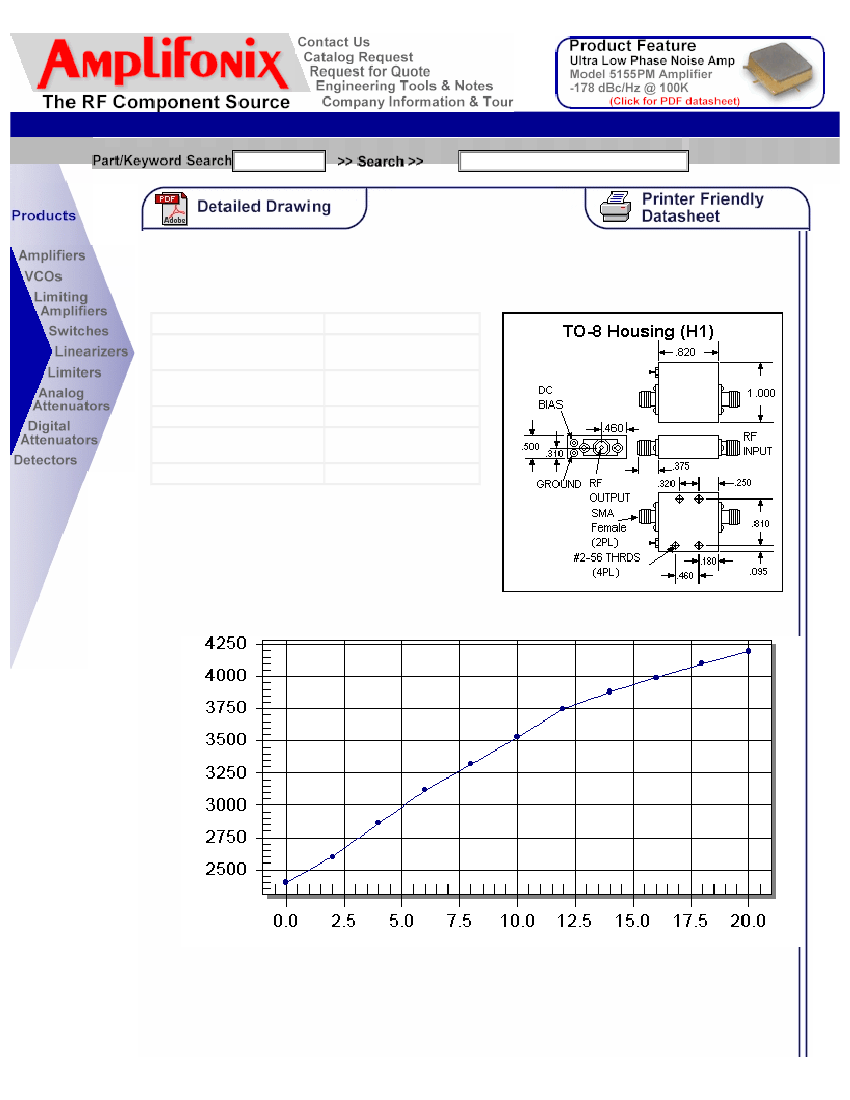

BXO9316 / SXO9316 VCO Performance Datasheet

Cross Reference Guide

BXO9316 / SXO9316*

* Part number for additional environmental screening.

Performance Data

Frequency

P

1dB

Harmonics

Phase Noise @ 100 kHz

Power Supply

Tuning Voltage

2500.0 - 4000.0 MHz

9.0 dBm Typical

7.0 dBm Min

-15.0 dBC Typical

-10.0 dBC Max

-100.0 dBC/Hz Typical

15.0 Volts

25.0 mA

0.0 - 20.0 V

Package Drawing

Frequency

MHz

Tuning Voltage (V)

P

1dB

Compression Point

http://www.amplifonix.com/bin/vco_sheet.pl?Pnum=TOM9316&Pack=H1 (1 of 2) [1/25/2005 10:24:00 AM]

BXO9316 Related Products

	BXO9316	SXO9316
Description	VCO, 2500 MHz - 4000 MHz	VCO, 2500 MHz - 4000 MHz
Reach Compliance Code	unknown	unknown
Maximum control voltage	20 V	20 V
Modulation sensitivity	130 MHz/V	130 MHz/V
Installation features	CHASSIS MOUNT	CHASSIS MOUNT
offset frequency	100 kHz	100 kHz
Maximum operating frequency	4000 MHz	4000 MHz
Minimum operating frequency	2500 MHz	2500 MHz
Oscillator type	VOLTAGE CONTROLLED OSCILLATOR	VOLTAGE CONTROLLED OSCILLATOR
Output Power	8.5 dBm	8.5 dBm
phase noise	-100 dBc/Hz	-100 dBc/Hz
physical size	25.4mm x 20.828mm x 12.7mm	25.4mm x 20.828mm x 12.7mm
Nominal supply voltage	15 V	15 V
surface mount	NO	NO
Base Number Matches	1	1
