RPS-83577 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power management> transformer> RPS-83577

RPS-83577: DescriptionGeneral Purpose Audio Transformer; CategoryPower management transformer; File Size357KB，8 Pages; ManufacturerPico Electronics Inc.

Download Datasheet Parametric View All

RPS-83577 Overview

General Purpose Audio Transformer

RPS-83577 Parametric

Parameter Name	Attribute value
Maker	Pico Electronics Inc.
Reach Compliance Code	compliant
Transformer type	GENERAL PURPOSE AUDIO TRANSFORMER
Base Number Matches	1

Preview

Download Datasheet

View All

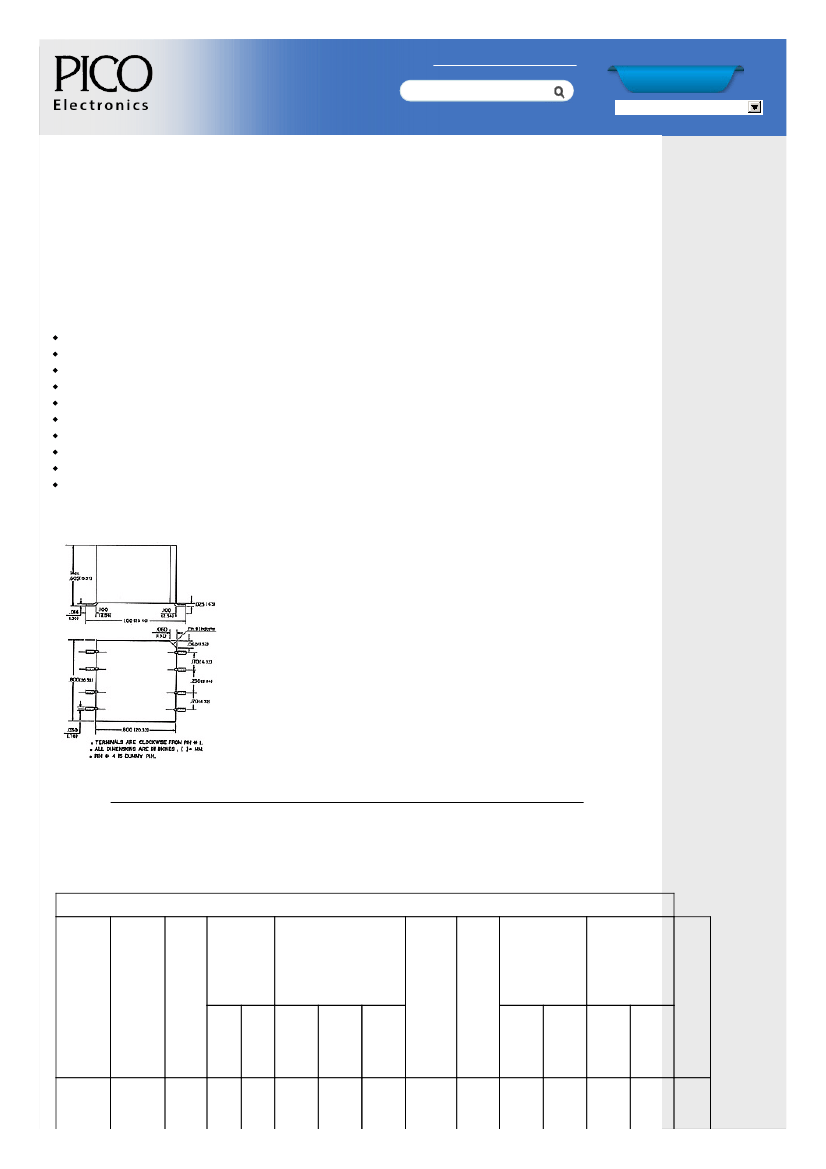

800.431.1064 | 914.738.1400 | info@picoelectronics.com

Search by Part Number

PICO Search Wizard

Apply

Select...

Audio Transformers:

2 Ohm to 135K Ohm; 50Hz to 30KHz; 2 watt at 1KHz

SURFACE MOUNT

PICO surface mount units utilize materials and methods to withstand extreme temperatures of vapor phase, I.R., and other

reflow procedures without degradation of electrical or mechanical characteristics.

Specifications

MIL-PRF-27:

All units manufactured to MIL-PRF-27, Grade 5, Class S.

FREQUENCY RESPONSE:

±3db, 50 Hz-30 KHz at 1.0 Milliwatt. (±0.5 db, 300 Hz - 5 KHz)

MAXIMUM DISTORTION:

5% with Rated Power Level at 1 KHz, 300 Hz and 50 Hz.

DIELECTRIC STRENGTH:

All units tested at 200 V RMS.

INSULATION RESISTANCE:

Greater than 10,000 Megohms at 300 V DC.

WEIGHT:

17 Grams

OPERATING TEMPERATURE:

-55º C to +130º C

TERMINALS:

Solderability per MIL-STD-202, Method 208.

THERMAL SHOCK:

25 Cycles, Method 107, MIL-STD-202, Test Condition -55º C to +130º C.

MOISTURE SENSITIVITY LEVEL:

MSL3

Bottom View

Larger size drawing

(http://www.picoelectronics.com/sites/all/staticpage_images/pe014s8b.jpg)

Audio Transformers: 2 Ohm to 135K Ohm; 50Hz to 30KHz; 2 watt at 1KHz

Secondary

Impedance

Turns Ratio Pico

Ohms

Power Watts

Pico

Primary

Resistance

Prime/Sec

Prim

Price

Split

Part

Prim

Unbal

Ohms

1-9

Number Number Imped Windings

Resist

***

Square Round Ohms

Current

300

Ohms

(US

1KHz

75 Hz

SEC

Package Package

SER

PAR

SER PAR and

and

SER

PAR

and

CONN CONN

higher

CONN CONN

higher

RPS-

83003

RPS-

20 ct

8 ct

2.0

1.5

.03

1.6

.88

.22

1.58:1

3.16:1

53.70
