54F656A/B3A datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> 54F656A/B3A

54F656A/B3A: DescriptionBus Driver, F/FAST Series, 1-Func, 8-Bit, True Output, TTL, CQCC28; Categorylogic logic; File Size204KB，6 Pages; ManufacturerYAGEO; Websitehttp://www.yageo.com/

Download Datasheet Parametric Compare View All

54F656A/B3A Overview

Bus Driver, F/FAST Series, 1-Func, 8-Bit, True Output, TTL, CQCC28

54F656A/B3A Parametric

Parameter Name	Attribute value
package instruction	,
Reach Compliance Code	unknown
Other features	WITH TRIPLE OUTPUT ENABLE
series	F/FAST
JESD-30 code	S-CQCC-N28
Load capacitance (CL)	50 pF
Logic integrated circuit type	BUS DRIVER
Number of digits	8
Number of functions	1
Number of ports	2
Number of terminals	28
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	SQUARE
Package form	CHIP CARRIER
Maximum supply current (ICC)	110 mA
propagation delay (tpd)	8 ns
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	MILITARY
Terminal form	NO LEAD
Terminal location	QUAD
Base Number Matches	1

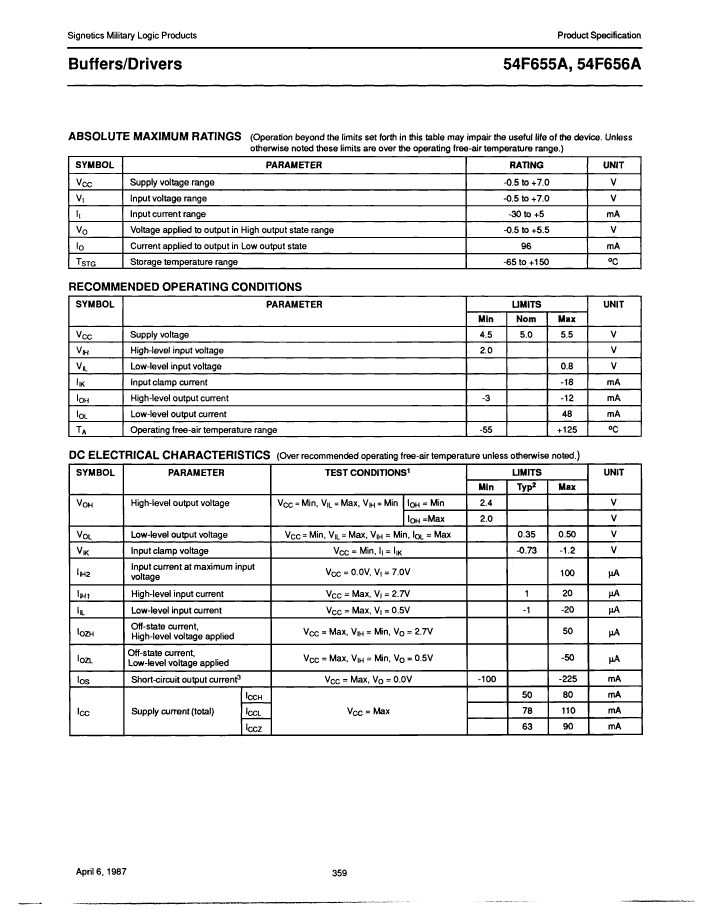

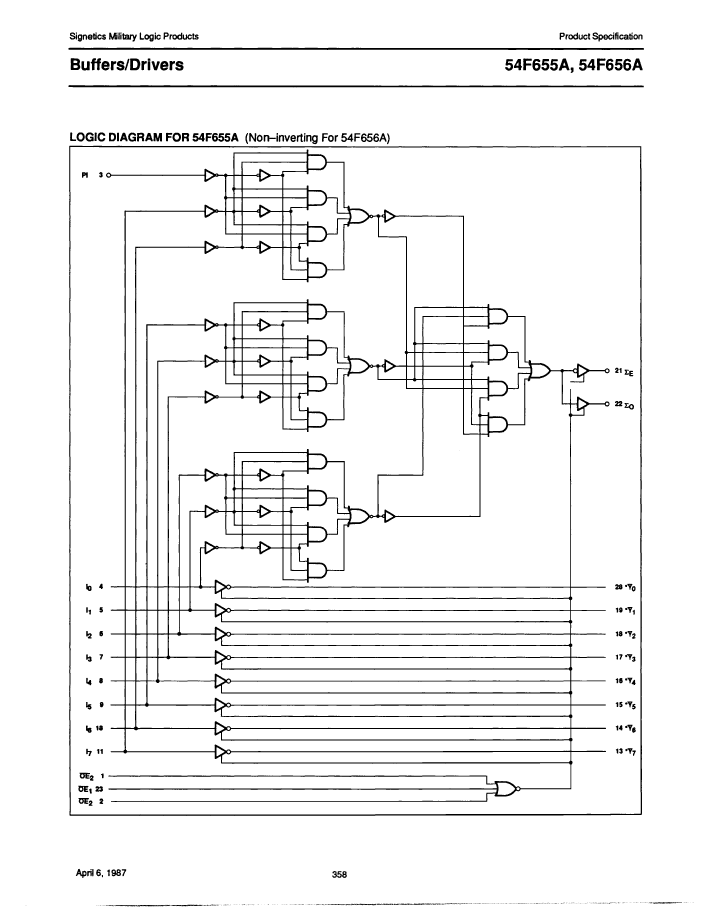

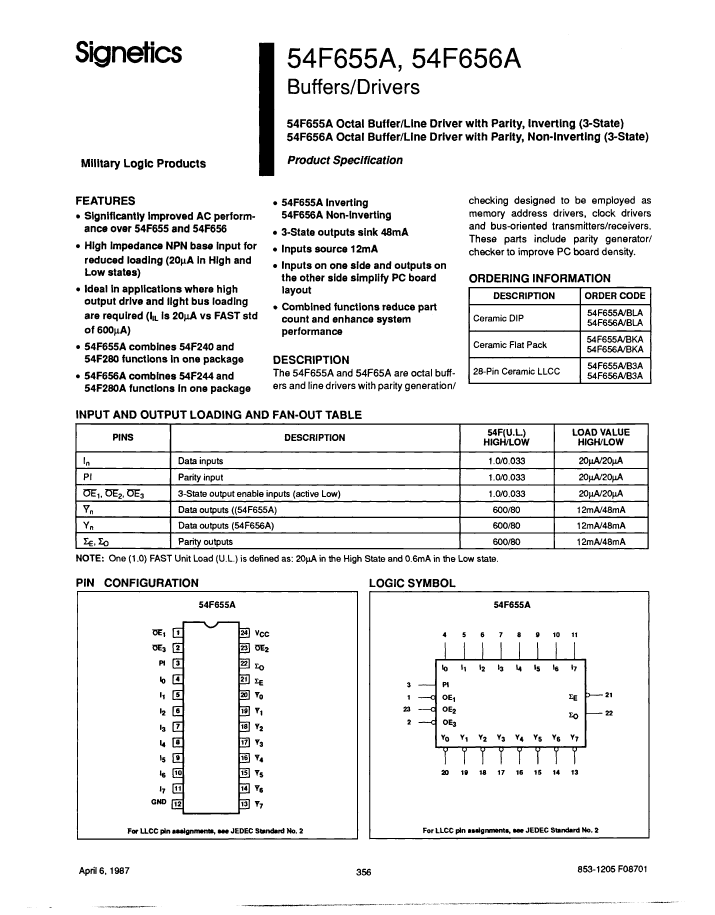

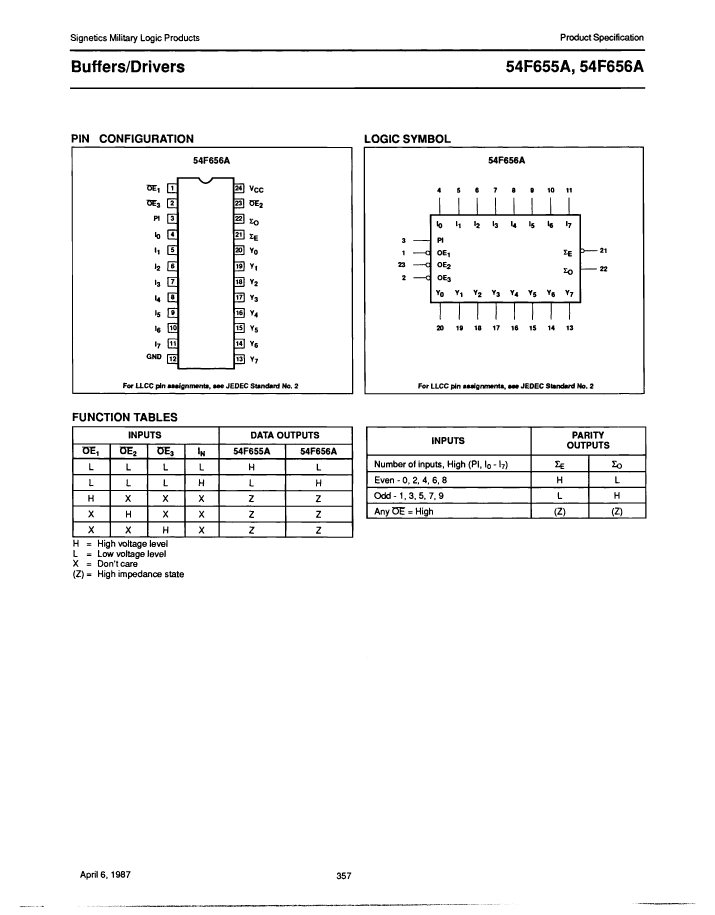

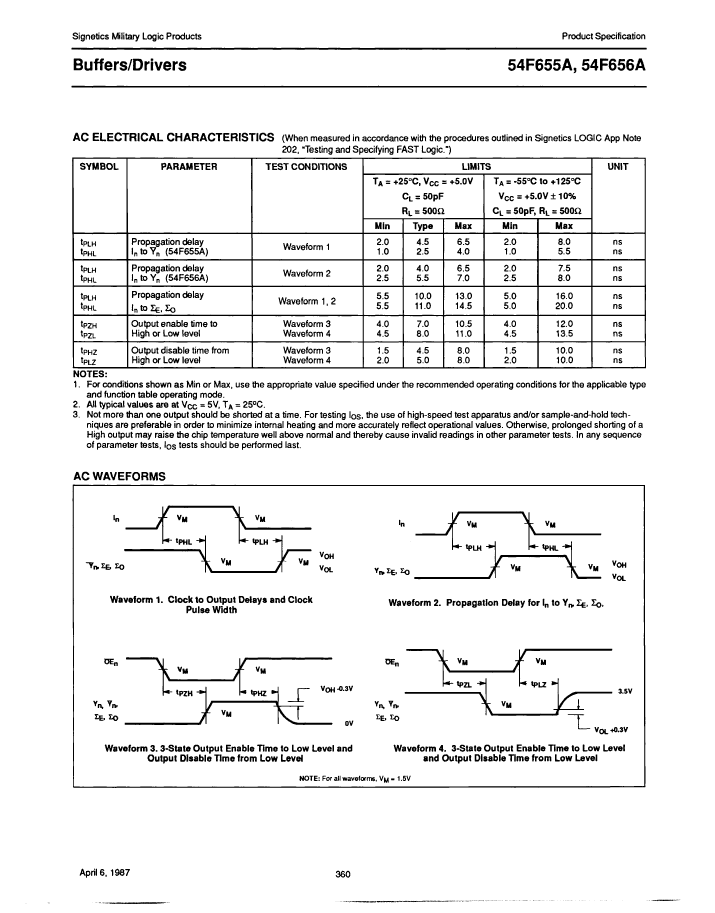

Preview

Download Datasheet

View All

54F656A/B3A Related Products

	54F656A/B3A	54F655A/B3A	54F655A/BLA	54F655A/BKA	54F656A/BLA	54F656A/BKA
Description	Bus Driver, F/FAST Series, 1-Func, 8-Bit, True Output, TTL, CQCC28	Bus Driver, F/FAST Series, 1-Func, 8-Bit, Inverted Output, TTL, CQCC28	Bus Driver, F/FAST Series, 1-Func, 8-Bit, Inverted Output, TTL, CDIP24	Bus Driver, F/FAST Series, 1-Func, 8-Bit, Inverted Output, TTL, CDFP24	Bus Driver, F/FAST Series, 1-Func, 8-Bit, True Output, TTL, CDIP24	Bus Driver, F/FAST Series, 1-Func, 8-Bit, True Output, TTL, CDFP24
Reach Compliance Code	unknown	unknow	unknown	unknown	unknown	unknown
Other features	WITH TRIPLE OUTPUT ENABLE	WITH TRIPLE OUTPUT ENABLE	WITH TRIPLE OUTPUT ENABLE	WITH TRIPLE OUTPUT ENABLE	WITH TRIPLE OUTPUT ENABLE	WITH TRIPLE OUTPUT ENABLE
series	F/FAST	F/FAST	F/FAST	F/FAST	F/FAST	F/FAST
JESD-30 code	S-CQCC-N28	S-CQCC-N28	R-CDIP-T24	R-CDFP-F24	R-CDIP-T24	R-CDFP-F24
Load capacitance (CL)	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF
Logic integrated circuit type	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER
Number of digits	8	8	8	8	8	8
Number of functions	1	1	1	1	1	1
Number of ports	2	2	2	2	2	2
Number of terminals	28	28	24	24	24	24
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Output polarity	TRUE	INVERTED	INVERTED	INVERTED	TRUE	TRUE
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
Package shape	SQUARE	SQUARE	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	CHIP CARRIER	CHIP CARRIER	IN-LINE	FLATPACK	IN-LINE	FLATPACK
Maximum supply current (ICC)	110 mA	110 mA	110 mA	110 mA	110 mA	110 mA
propagation delay (tpd)	8 ns	5.5 ns	5.5 ns	5.5 ns	8 ns	8 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	NO	YES	NO	YES
technology	TTL	TTL	TTL	TTL	TTL	TTL
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal form	NO LEAD	NO LEAD	THROUGH-HOLE	FLAT	THROUGH-HOLE	FLAT
Terminal location	QUAD	QUAD	DUAL	DUAL	DUAL	DUAL
Base Number Matches	1	1	1	1	1	1
