5962F9671901VRX datasheet, PDF

Datasheet> All Categories > logic> logic> 5962F9671901VRX

5962F9671901VRX: DescriptionACT SERIES, 8-BIT TRANSCEIVER, TRUE OUTPUT, CDIP20, SIDE BRAZED, CERAMIC, DIP-20; Categorylogic logic; File Size76KB，3 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/

Download Datasheet Parametric Compare View All

5962F9671901VRX Overview

ACT SERIES, 8-BIT TRANSCEIVER, TRUE OUTPUT, CDIP20, SIDE BRAZED, CERAMIC, DIP-20

5962F9671901VRX Parametric

Parameter Name	Attribute value
Parts packaging code	DIP
package instruction	DIP,
Contacts	20
Reach Compliance Code	unknown
series	ACT
JESD-30 code	R-CDIP-T20
Logic integrated circuit type	BUS TRANSCEIVER
Number of digits	8
Number of functions	1
Number of ports	2
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
propagation delay (tpd)	18 ns
Certification status	Not Qualified
Filter level	MIL-PRF-38535 Class V
Maximum seat height	5.08 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
total dose	300k Rad(Si) V
width	7.62 mm
Base Number Matches	1

Preview

Download Datasheet

View All

ACTS245MS

January 1996

Radiation Hardened Octal

Non-Inverting Bidirectional Bus Transceiver

Pinouts

20 PIN CERAMIC DUAL-IN-LINE, MIL-STD-1835

DESIGNATOR CDIP2-T20, LEAD FINISH C

TOP VIEW

DIR

20 VCC

19 OE

18 B0

17 B1

16 B2

15 B3

14 B4

13 B5

12 B6

11 B7

Features

• Devices QML Qualiﬁed in Accordance with MIL-PRF-38535

• Detailed Electrical and Screening Requirements are Contained in

SMD# 5962-96719 and Intersil’ QM Plan

• 1.25 Micron Radiation Hardened SOS CMOS

• Total Dose . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . >300K RAD (Si)

• Single Event Upset (SEU) Immunity: <1 x 10

(Typ)

-10

Errors/Bit/Day

• SEU LET Threshold . . . . . . . . . . . . . . . . . . . . . . . >100 MEV-cm

/mg

• Dose Rate Upset . . . . . . . . . . . . . . . . >10

RAD (Si)/s, 20ns Pulse

• Dose Rate Survivability . . . . . . . . . . . >10

RAD (Si)/s, 20ns Pulse

• Latch-Up Free Under Any Conditions

• Military Temperature Range . . . . . . . . . . . . . . . . . . -55

C to +125

• Signiﬁcant Power Reduction Compared to ALSTTL Logic

• DC Operating Voltage Range . . . . . . . . . . . . . . . . . . . . 4.5V to 5.5V

• Input Logic Levels

- VIL = 0.8V Max

- VIH = VCC/2 Min

• Input Current

≤

1µA at VOL, VOH

• Fast Propagation Delay . . . . . . . . . . . . . . . . 18ns (Max), 12ns (Typ)

GND 10

20 PIN CERAMIC FLATPACK, MIL-STD-1835

DESIGNATOR CDFP4-F20, LEAD FINISH C

TOP VIEW

DIR

GND

VCC

Description

The Intersil ACTS245MS is a Radiation Hardened octal non-inverting

bidirectional bus transceiver intended for two-way asynchronous commu-

nication between data busses.

The ACTS245MS utilizes advanced CMOS/SOS technology to achieve

high-speed operation. This device is a member of a radiation hardened,

high-speed, CMOS/SOS Logic Family.

The ACTS245MS is supplied in a 20 lead Ceramic Flatpack (K sufﬁx) or

a Dual-In-Line Ceramic Package (D sufﬁx).

Ordering Information

PART NUMBER

5962F9671901VRC

5962F9671901VXC

ACTS245D/Sample

ACTS245K/Sample

ACTS245HMSR

TEMPERATURE RANGE

-55

C to +125

-55

C to +125

SCREENING LEVEL

MIL-PRF-38535 Class V

Sample

Die

PACKAGE

20 Lead SBDIP

20 Lead Ceramic Flatpack

20 Lead SBDIP

20 Lead Ceramic Flatpack

Die

CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling Procedures.

http://www.intersil.com or 407-727-9207

Intersil Corporation 1999

Spec Number

File Number

518785

3188.1

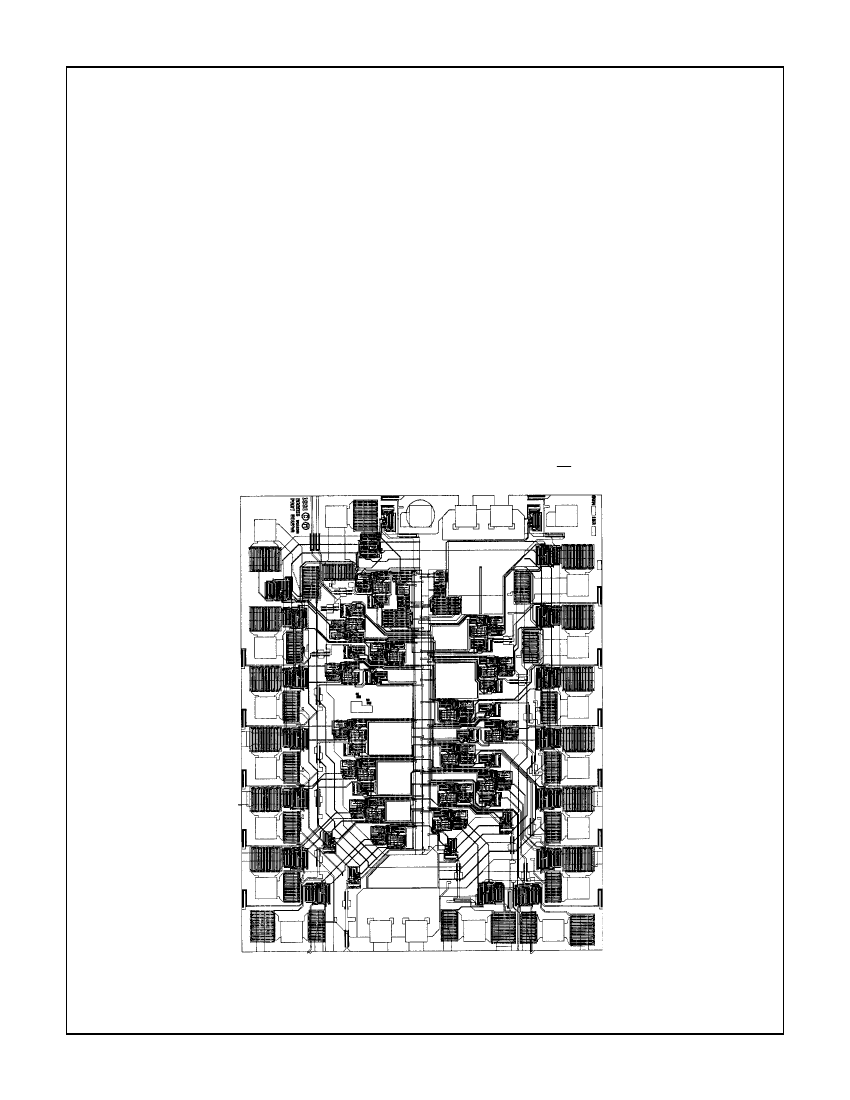

5962F9671901VRX Related Products

	5962F9671901VRX	5962F9671901VXX
Description	ACT SERIES, 8-BIT TRANSCEIVER, TRUE OUTPUT, CDIP20, SIDE BRAZED, CERAMIC, DIP-20	ACT SERIES, 8-BIT TRANSCEIVER, TRUE OUTPUT, CDFP20, CERAMIC, DFP-20
Parts packaging code	DIP	DFP
package instruction	DIP,	DFP,
Contacts	20	20
Reach Compliance Code	unknown	unknown
series	ACT	ACT
JESD-30 code	R-CDIP-T20	R-CDFP-F20
Logic integrated circuit type	BUS TRANSCEIVER	BUS TRANSCEIVER
Number of digits	8	8
Number of functions	1	1
Number of ports	2	2
Number of terminals	20	20
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C
Output characteristics	3-STATE	3-STATE
Output polarity	TRUE	TRUE
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP	DFP
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	FLATPACK
propagation delay (tpd)	18 ns	18 ns
Certification status	Not Qualified	Not Qualified
Filter level	MIL-PRF-38535 Class V	MIL-PRF-38535 Class V
Maximum seat height	5.08 mm	2.92 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	NO	YES
technology	CMOS	CMOS
Temperature level	MILITARY	MILITARY
Terminal form	THROUGH-HOLE	FLAT
Terminal pitch	2.54 mm	1.27 mm
Terminal location	DUAL	DUAL
total dose	300k Rad(Si) V	300k Rad(Si) V
width	7.62 mm	6.92 mm
Base Number Matches	1	1
