51065R datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power management> transformer> 51065R

51065R: DescriptionTelecom Transformer; CategoryPower management transformer; File Size71KB，1 Pages; ManufacturerWurth Elektronik

Download Datasheet Parametric Compare View All

51065R Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	51065R	-	-	View	Buy Now

51065R Overview

Telecom Transformer

51065R Parametric

Parameter Name	Attribute value
Maker	Wurth Elektronik
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	COMPATIBLE WITH ALCATEL MTK20140, 20150, 20450 CHIP SETS
high	10.54 mm
length	9.78 mm
Manufacturer's serial number	51065R
Installation features	SURFACE MOUNT
physical size	9.78mm X 8.89mm X 10.54mm
main impedance	100 OHMS
surface mount	YES
Transformer type	TELECOM TRANSFORMER
width	8.89 mm
Base Number Matches	1

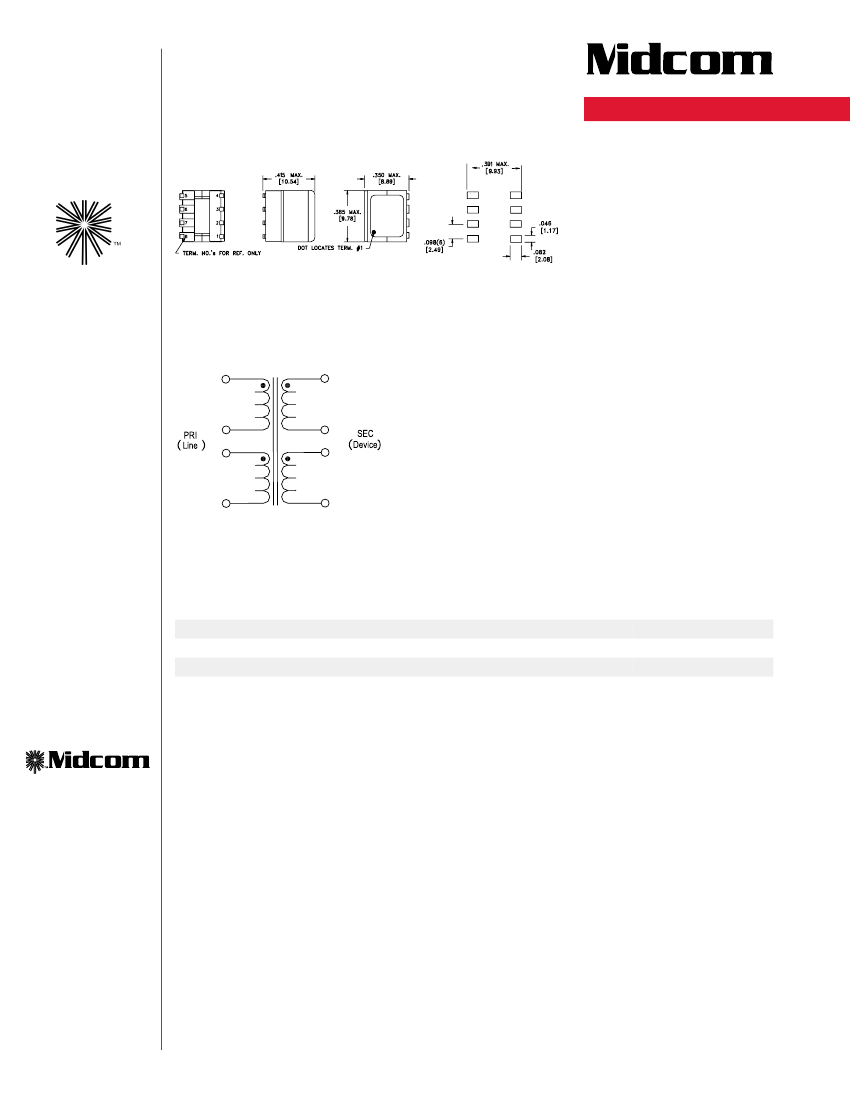

Preview

Download Datasheet

View All

Alcatel Microelectronics ADSL

recommendations

DigitalTelecom

Features

• Designed to meet IEC950

requirements for supplementary

250v isolation

• Compatible with Alcatel chip sets

• Good total harmonic distortion

characteristics

• Optimized design for size and

performance

• Customization available

• Volume production and automated

lines

• For IC manufacturer approval

status, contact Midcom

• 100 ohm line Impedance

SUGGESTED PAD LAYOUT

PATENT PENDING

Part Number

51397R

51065R

51148R

IC Manufacturer

Alc ate l

IC Number

MTK20850

MTK20140, 20150,20450

MTK20140, 20150, 20450

Application

ADSL o v e r POTS CO

ADSL o v e r ISDN CO

Midcom,Inc

121 Airport Drive

PO Box 1330

Watertown, SD 57201-6330 USA

NOTE: POTS applications are for Annex A and Annex C while ISDN applications are for Annex B.

www.midcom-inc.com

e-mail: sales@midcom-inc.com

Toll Free (US & Canada)

800.643.2661

Phone: 605.886.4385

Fax: 605.886.4486

Midcom, Inc.

10/F Spectrum Tower

53 Hung To Road

Kwun Tong, Kowloon, HK

Phone: 852.2320.4221

Fax: 1.605.882.8642

01/09/02

Details subject to change. Contact your Midcom sales representative for additional information. Dimensions: in/mm. Unless otherwise

specified, all tolerances are +/- .010/0,25

51065R Related Products

	51065R	51148R	51397R
Description	Telecom Transformer	Telecom Transformer	Telecom Transformer
Maker	Wurth Elektronik	Wurth Elektronik	Wurth Elektronik
Reach Compliance Code	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99
Other features	COMPATIBLE WITH ALCATEL MTK20140, 20150, 20450 CHIP SETS	COMPATIBLE WITH ALCATEL MTK20140, 20150, 20450 CHIP SETS	COMPATIBLE WITH ALCATEL MTK20850 CHIP SETS
high	10.54 mm	10.54 mm	10.54 mm
length	9.78 mm	9.78 mm	9.78 mm
Manufacturer's serial number	51065R	51148R	51397R
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
physical size	9.78mm X 8.89mm X 10.54mm	9.78mm X 8.89mm X 10.54mm	9.78mm X 8.89mm X 10.54mm
main impedance	100 OHMS	100 OHMS	100 OHMS
surface mount	YES	YES	YES
Transformer type	TELECOM TRANSFORMER	TELECOM TRANSFORMER	TELECOM TRANSFORMER
width	8.89 mm	8.89 mm	8.89 mm
Base Number Matches	1	1	1
