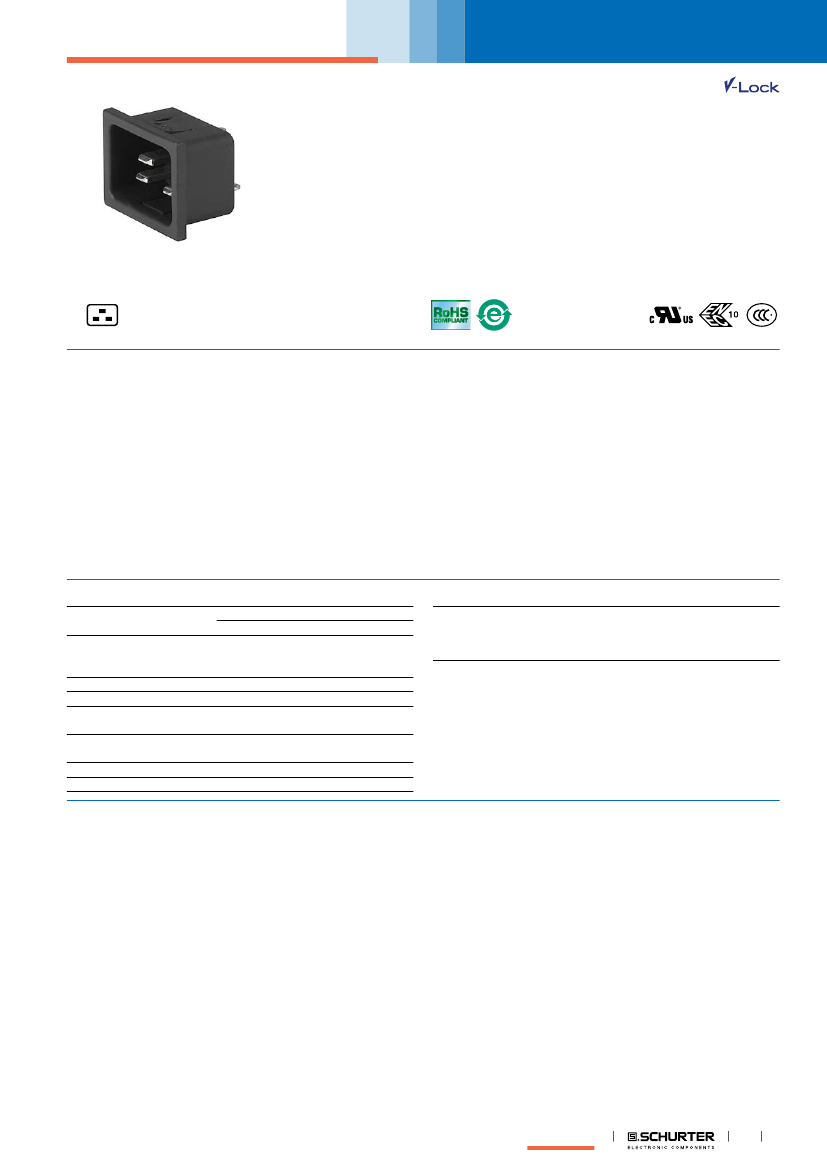

IEC Appliance Inlet C20, Snap-in Mounting, Front Side, Solder or Quick-connect Terminal
4793
Snap-In Version
C20
70° C
Description
- Panel Mount:
Snap-in, from front side
- Appliance Inlet, Pin temperature 70 °C, Protection class I
- Solder terminals or quick connect terminals
Other versions on request
- Types for enhanced glow wire test requirements acc. IEC 60695-2-
12 and -13 for the use in unattended household equipment acc. IEC
60335-1
- Variant with notch for V-Lock mating Cordsets
Approvals
- VDE Certificate Number: 40030341
- UL File Number: E96454
References
Weblinks
Alternative: protection class II version
4794
Alternative: version with line filter
C20F; 5130
pdf-datasheet, html-datasheet, General Product Information, Approvals,
CE declaration of conformity, RoHS, CHINA-RoHS, Mating Connectors,
e-Shop, SCHURTER-Stock-Check, Distributor-Stock-Check, CAD-
Drawings, Accessories, Wire Harnessing, Detailed request for product
Newly available variants corresponding to V-Lock mating cordset. The connector is equipped with a notch intended for use with the latching cordset.
The cord latching system prevents against accidental removal of the cordset.
Technical Data
Ratings IEC
Ratings UL/CSA
Dielectric Strength
16 A / 250 VAC; 50 Hz
20 A / 250 VAC; 60 Hz
> 2 kVAC between L-N
> 2 kVAC between L/N-PE
(1 min/50 Hz)
-25 °C to 70 °C
from front side IP 30 acc. to IEC 60529
Suitable for appliances with protection
class I acc. to IEC 61140
Solder terminals or quick connect ter-
minals
Snap-in: 1/1.2/1.5/2/2.5/3 mm
Thermoplastic, black, UL 94V-0
Appliance Inlet
C20 acc. to IEC 60320,
UL 498, CSA C22.2 no. 42 (for cold
conditions) pin-temperature 70 °C,
16 A, Protection Class I
Allowable Operation Temp.
Degree of Protection
Protection Class
Terminal
Panel Thickness s
Material: Housing
Connectors
1
4793
Dimensions
4793
21.0
36.0
3.0
32.0
- 0
+0.2
Connectors (Inlets/Outlets)
www.schurter.com/PG07
23.9
±0.10
24.0
- 0
28.0
+0.2
max.R3.0
1)
S
31.9
±0.10
E
1) Panel cut-out
E: Solder terminals: 28.5 mm
E: Quick connect terminals 6.3 x 0.8 mm: 31.5 mm
Variants
Panel mounting
Snap-in
Snap-in
Snap-in
Snap-in
Snap-in
Snap-in
Snap-in
Snap-in
Snap-in
Snap-in
Snap-in
Snap-in
Snap-in
Snap-in
█
Most Popular.
Availability for all products can be searched real-time:http://www.schurter.com/en/Stock-Check/Stock-
Check-SCHURTER
Suffix ".21" corresponds to the version with V-Lock mating cordset. The connector is equipped with a notch
intended for use with the latching cordset. The cord latching system prevents against accidental removal of
the cordset.
Articles for enhanced glow wire test requirements acc. IEC 60695-2-12 and -13 can be ordered with ending
“.15" (xxxx.xxxx.15). They are suitable for the use in unattended household equipment acc. IEC 60335-1.
Panel Thickness
s [mm]
1
1.2
1.5
1.5
2
2
2.5
3
1
1.2
1.5
2
2.5
3
Terminal
Quick connect terminals 6.3 x 0.8 mm
Quick connect terminals 6.3 x 0.8 mm
Quick connect terminals 6.3 x 0.8 mm
Quick connect terminals 6.3 x 0.8 mm
Quick connect terminals 6.3 x 0.8 mm
Quick connect terminals 6.3 x 0.8 mm
Quick connect terminals 6.3 x 0.8 mm
Quick connect terminals 6.3 x 0.8 mm
Solder terminals 3.8 x 0.8 mm
Solder terminals 3.8 x 0.8 mm
Solder terminals 3.8 x 0.8 mm
Solder terminals 3.8 x 0.8 mm
Solder terminals 3.8 x 0.8 mm
Solder terminals 3.8 x 0.8 mm
Order Number
4793.3000
4793.8000
4793.4000
4793.4000.21
4793.5000
4793.5000.21
4793.6000
4793.7000
4793.3200
4793.8200
4793.4200
4793.5200
4793.6200
4793.7200
█
█
█
█
█
Packaging unit
100 Pcs
2
Connectors
Connectors (Inlets/Outlets)
www.schurter.com/PG07
4793

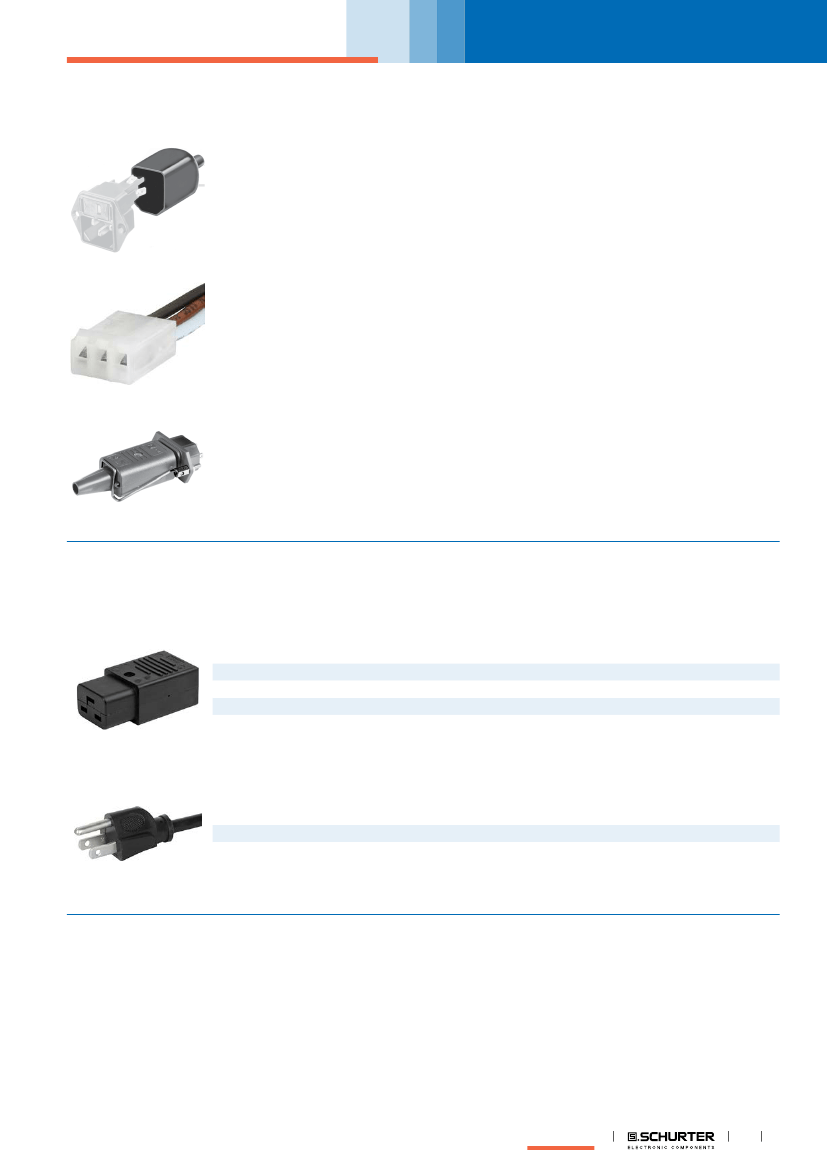

Accessories
Description
Assorted Covers
Rear Cover
Wire Harness
Wire harness for SCHURTER products
Cord retaining kits
Cord retaining strain relief
Mating Outlets/Connectors
Category / Description
Connector Overview complete
IEC Connector C19, Rewireable, Straight
IEC Connector C19, Rewireable, Angled
IEC Connector C19, Rewireable, Straight
Connector further types to 4793
0104U
4790
4795
Power Supply or Interconnection Cord Overview complete
Diverse Power Supply and Interconnection Cords 16 A
Power Supply or Interconnection Cord further types to 4793
Cord Sets 15 A
