2Mb: 128K x 18, 64K x 32/36
PIPELINED, SCD SYNCBURST SRAM
2Mb SYNCBURST
SRAM
FEATURES
™
MT58L128L18P, MT58L64L32P, MT58L64L36P;
MT58L128V18P, MT58L64V32P, MT58L64V36P
3.3V V
DD
, 3.3V or 2.5V I/O, Pipelined, Single-Cycle
Deselect
• Fast clock and OE# access times
• Single +3.3V +0.3V/-0.165V power supply (V
DD
)
• Separate +3.3V or +2.5V isolated output buffer supply
(V
DD
Q)
• SNOOZE MODE for reduced-power standby
• Single-cycle deselect (Pentium
®
BSRAM-compatible)
• Common data inputs and data outputs
• Individual BYTE WRITE control and GLOBAL WRITE
• Three chip enables for simple depth expansion and
address pipelining
• Clock-controlled and registered addresses, data I/Os
and control signals
• Internally self-timed WRITE cycle
• Burst control pin (interleaved or linear burst)
• Automatic power-down for portable applications
• 100-lead TQFP for high density, high speed
• Low capacitive bus loading
• x18, x32 and x36 options available
100-Pin TQFP**
(D-1)
**JEDEC-standard MS-026 BHA (LQFP).
OPTIONS
• Timing (Access/Cycle/MHz)
3.5ns/5ns/200 MHz
3.5ns/6ns/166 MHz
4.2ns/7.5ns/133 MHz
5ns/10ns/100 MHz
• Configurations
3.3V I/O
128K x 18
64K x 32
64K x 36
2.5V I/O
128K x 18
64K x 32
64K x 36
• Package
100-pin TQFP
MARKING
-5
-6
-7.5
-10
GENERAL DESCRIPTION
The Micron
®
SyncBurst
™
SRAM family employs high-
speed, low-power CMOS designs that are fabricated using
an advanced CMOS process.
Micron’s 2Mb SyncBurst SRAMs integrate a 128K x 18,
64K x 32, or 64K x 36 SRAM core with advanced synchronous
peripheral circuitry and a 2-bit burst counter. All
synchronous inputs pass through registers controlled by a
positive-edge-triggered single clock input (CLK). The
synchronous inputs include all addresses, all data inputs,
active LOW chip enable (CE#), two additional chip enables
for easy depth expansion (CE2, CE2#), burst control inputs
(ADSC#, ADSP#, ADV#), byte write enables (BWx#) and
global write (GW#).
Asynchronous inputs include the output enable (OE#),
clock (CLK) and snooze enable (ZZ). There is also a burst
mode pin (MODE) that selects between interleaved and
linear burst modes. The data-out (Q), enabled by OE#, is
also asynchronous. WRITE cycles can be from one to two
bytes wide (x18) or from one to four bytes wide (x32/x36),
as controlled by the write control inputs.
Burst operation can be initiated with either address status
processor (ADSP#) or address status controller (ADSC#)
input pins. Subsequent burst addresses can be internally
generated as controlled by the burst advance pin (ADV#).
Address and write control are registered on-chip to
simplify WRITE cycles. This allows self-timed WRITE cycles.
MT58L128L18P
MT58L64L32P
MT58L64L36P
MT58L128V18P
MT58L64V32P
MT58L64V36P
T
• Operating Temperature Range
Commercial (0°C to +70°C)
Industrial (-40°C to +85°C)
None
T*
• Part Number Example: MT58L128L18PT-10 T
*Under consideration.
2Mb: 128K x 18, 64K x 32/36 Pipelined, SCD SyncBurst SRAM
MT58L128L18P.p65 – Rev. 7/99
1
Micron Technology, Inc., reserves the right to change products or specifications without notice.
©1999,
Micron Technology, Inc.
All registered and unregistered trademarks are the sole property of their respective companies.
2Mb: 128K x 18, 64K x 32/36
PIPELINED, SCD SYNCBURST SRAM

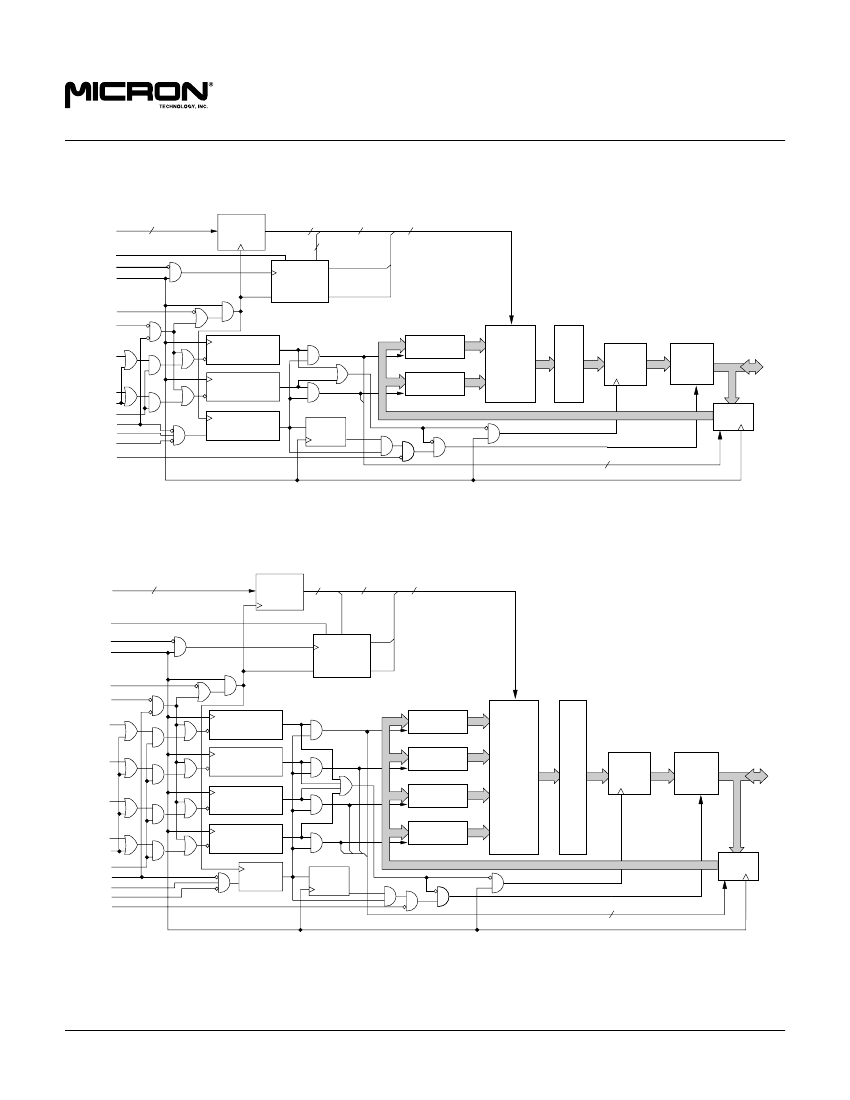

FUNCTIONAL BLOCK DIAGRAM
