54ABT543E/883

Description
Registered Bus Transceiver, 1-Func, 8-Bit, True Output, CQCC28,
Categorylogic    logic
File Size516KB,12 Pages
ManufacturerFairchild
Websitehttp://www.fairchildsemi.com/
Download Datasheet Parametric Compare View All

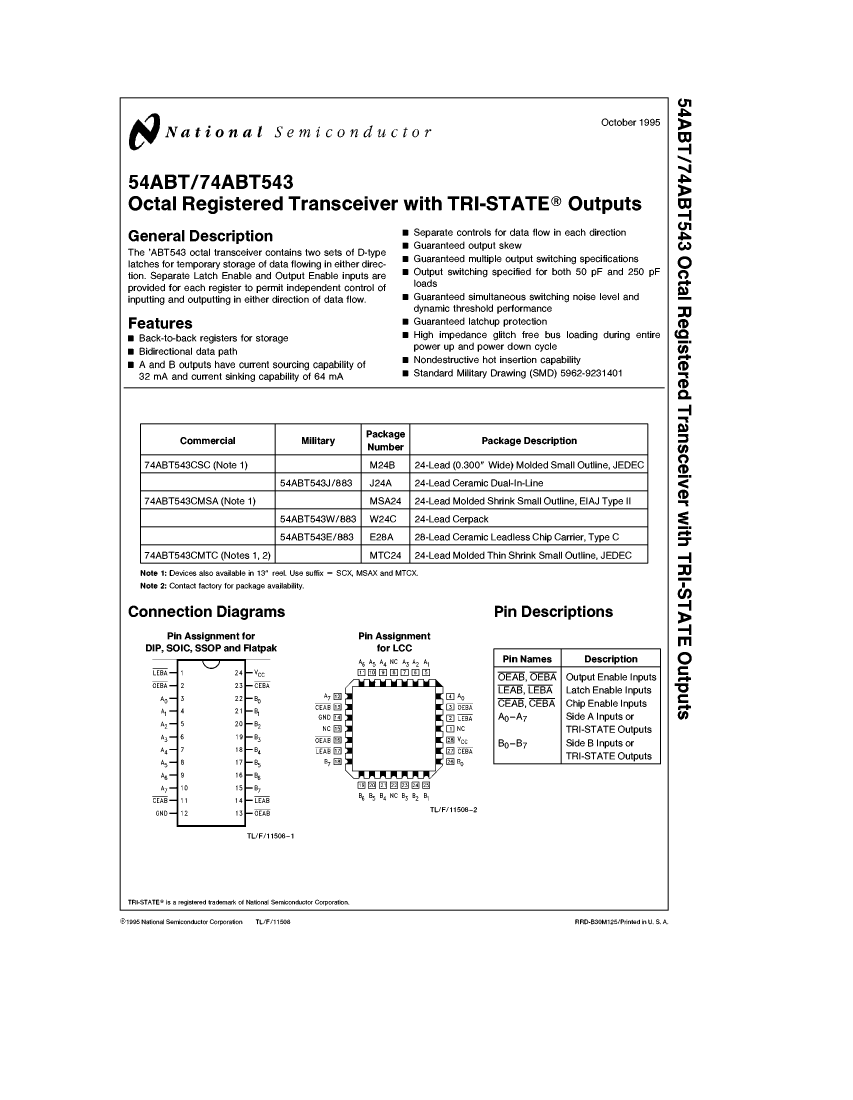

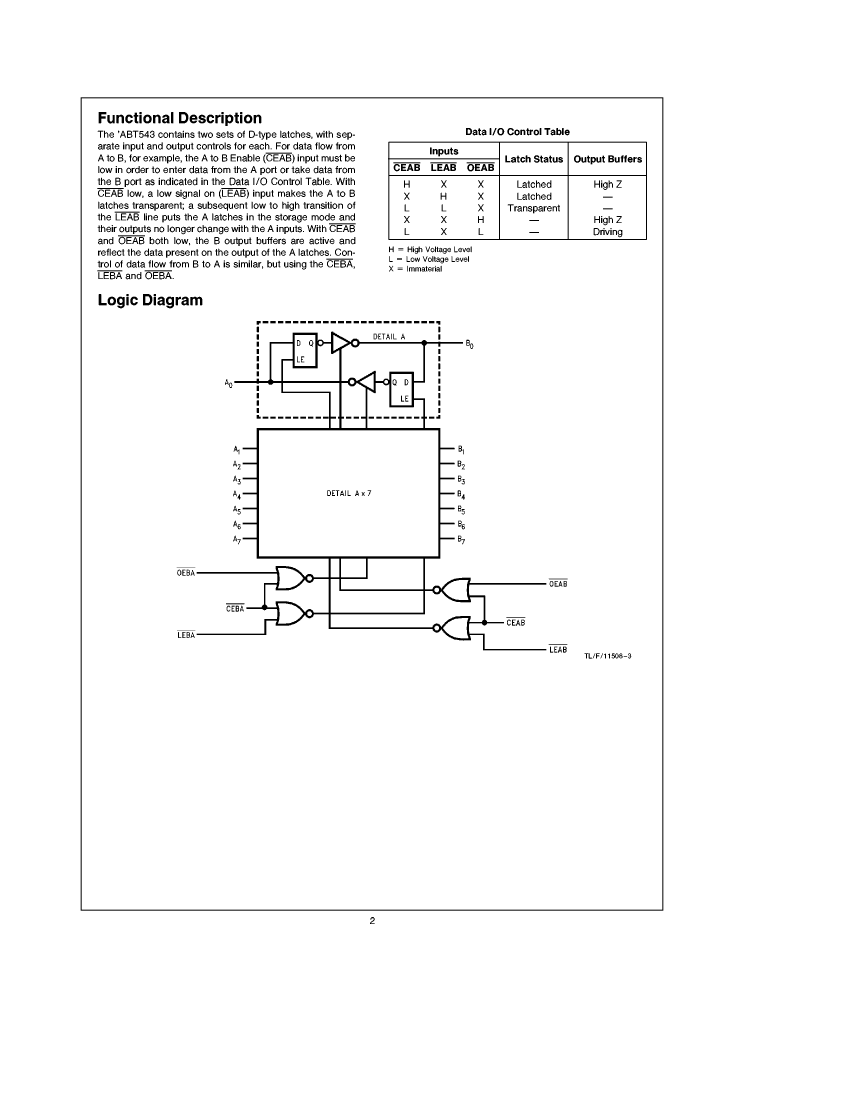

54ABT543E/883 Overview

Registered Bus Transceiver, 1-Func, 8-Bit, True Output, CQCC28,

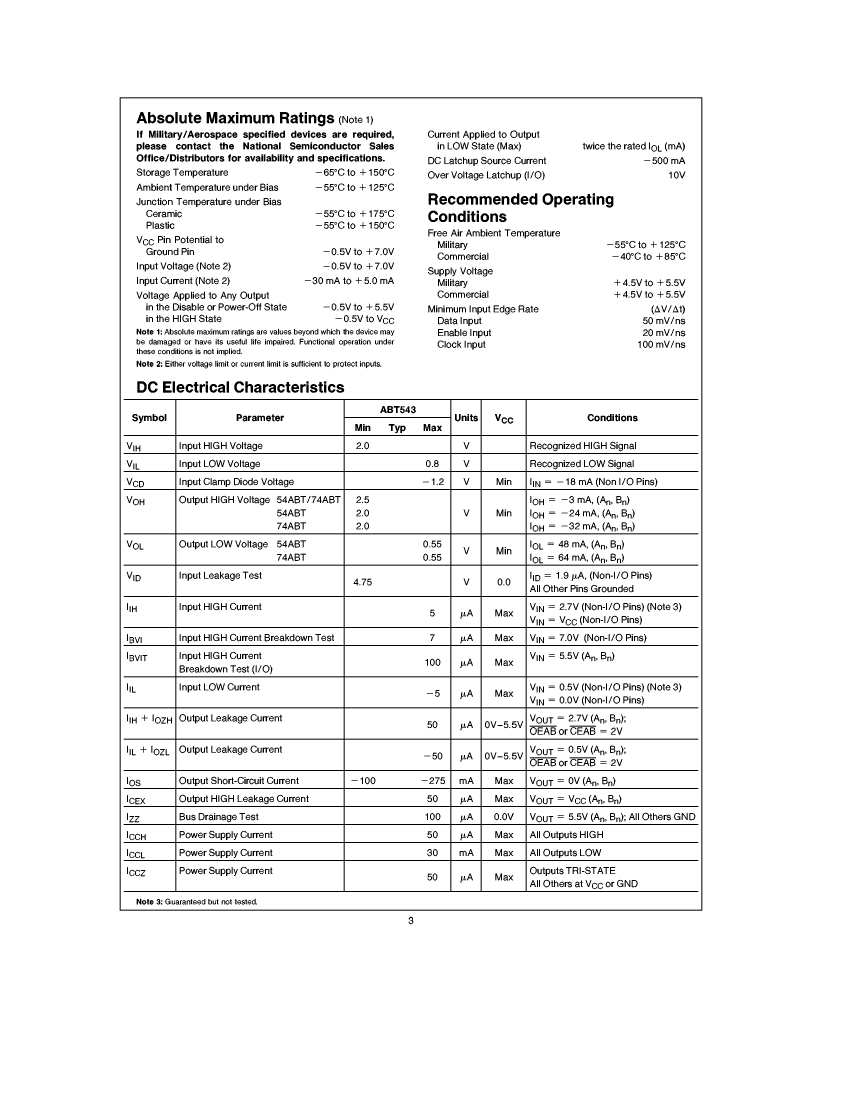

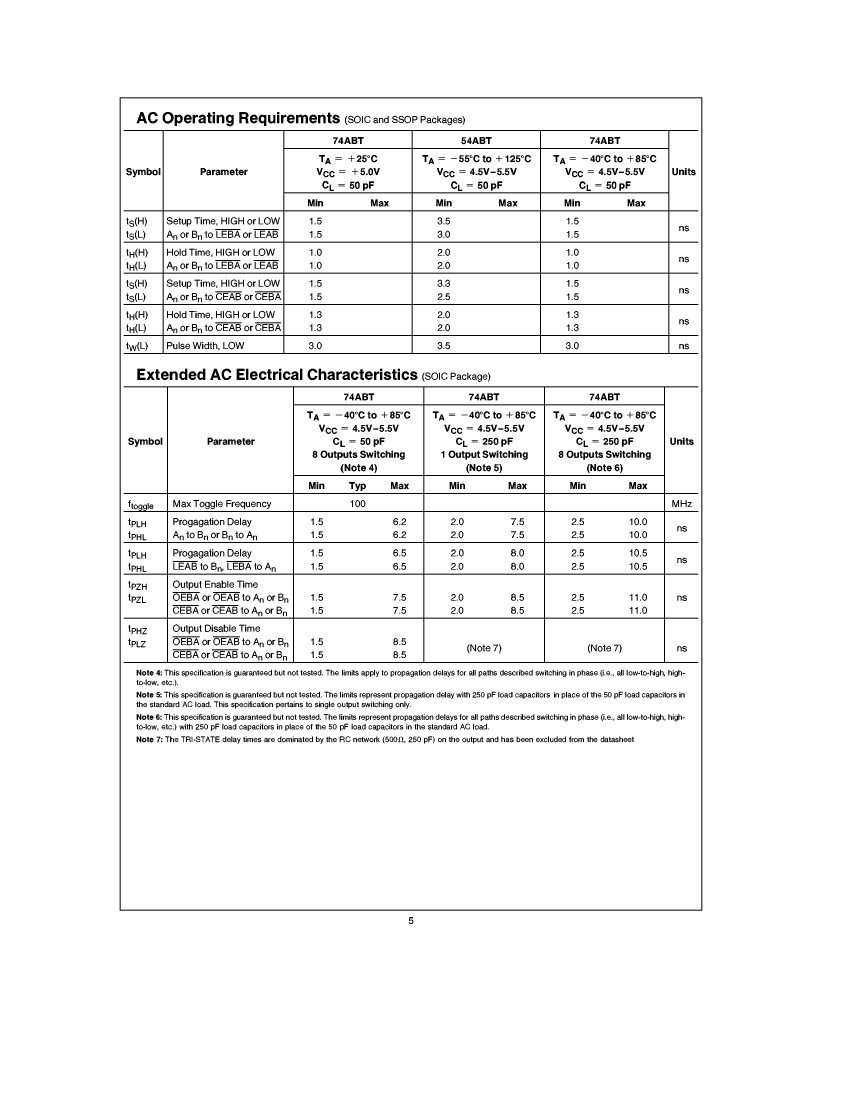

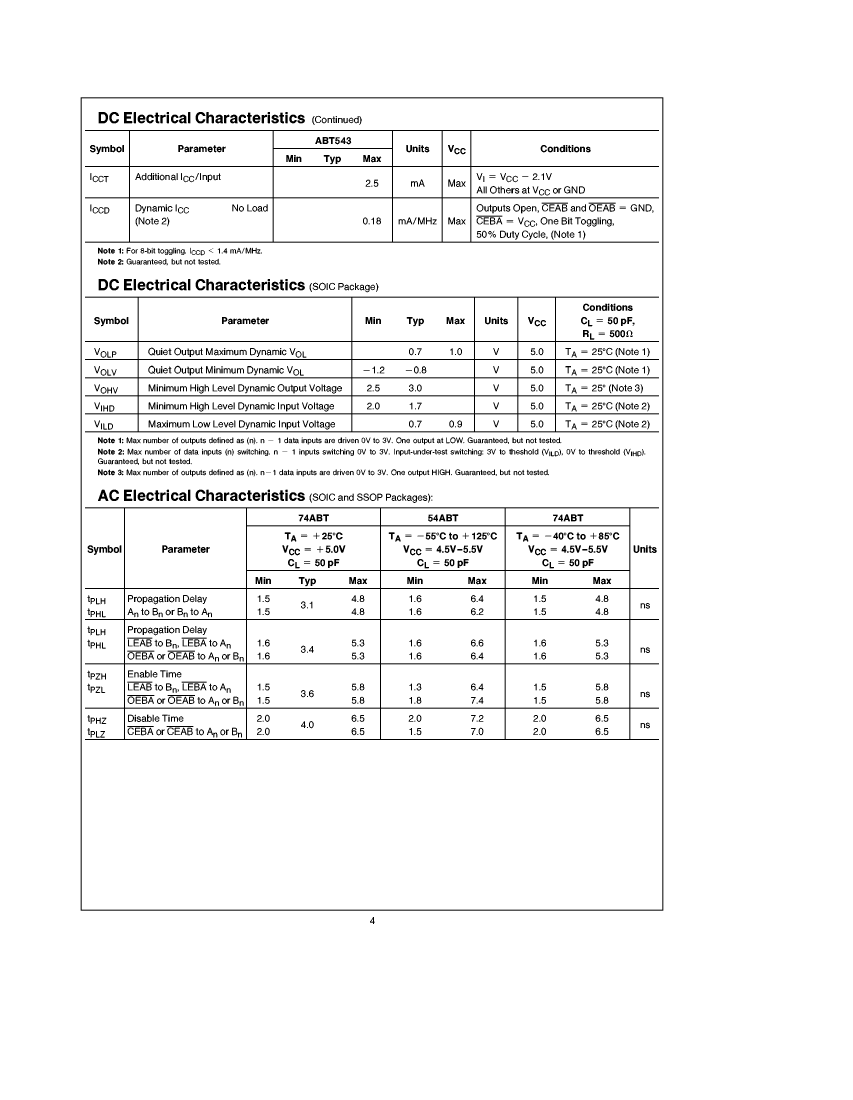

54ABT543E/883 Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerFairchild
package instructionQCCN, LCC28,.45SQ
Reach Compliance Codeunknown
Control typeINDEPENDENT CONTROL
Counting directionBIDIRECTIONAL
JESD-30 codeS-XQCC-N28
JESD-609 codee0
Logic integrated circuit typeREGISTERED BUS TRANSCEIVER
MaximumI(ol)0.048 A
Number of digits8
Number of functions1
Number of terminals28
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Output characteristics3-STATE
Output polarityTRUE
Package body materialCERAMIC
encapsulated codeQCCN
Encapsulate equivalent codeLCC28,.45SQ
Package shapeSQUARE
Package formCHIP CARRIER
power supply5 V
Maximum supply current (ICC)30 mA
Prop。Delay @ Nom-Sup6.4 ns
Certification statusNot Qualified
Filter level38535Q/M;38534H;883B
Nominal supply voltage (Vsup)5 V
surface mountYES
Temperature levelMILITARY
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formNO LEAD
Terminal pitch1.27 mm
Terminal locationQUAD
Base Number Matches1

54ABT543E/883 Related Products

54ABT543E/883 54ABT543J/883
Description Registered Bus Transceiver, 1-Func, 8-Bit, True Output, CQCC28, Registered Bus Transceiver, 1-Func, 8-Bit, True Output, CDIP24,
Is it Rohs certified? incompatible incompatible
Maker Fairchild Fairchild
package instruction QCCN, LCC28,.45SQ DIP, DIP24,.6
Reach Compliance Code unknown unknown
Control type INDEPENDENT CONTROL INDEPENDENT CONTROL
Counting direction BIDIRECTIONAL BIDIRECTIONAL
JESD-30 code S-XQCC-N28 R-XDIP-T24
JESD-609 code e0 e0
Logic integrated circuit type REGISTERED BUS TRANSCEIVER REGISTERED BUS TRANSCEIVER
MaximumI(ol) 0.048 A 0.048 A
Number of digits 8 8
Number of functions 1 1
Number of terminals 28 24
Maximum operating temperature 125 °C 125 °C
Minimum operating temperature -55 °C -55 °C
Output characteristics 3-STATE 3-STATE
Output polarity TRUE TRUE
Package body material CERAMIC CERAMIC
encapsulated code QCCN DIP
Encapsulate equivalent code LCC28,.45SQ DIP24,.6
Package shape SQUARE RECTANGULAR
Package form CHIP CARRIER IN-LINE
power supply 5 V 5 V
Maximum supply current (ICC) 30 mA 30 mA
Prop。Delay @ Nom-Sup 6.4 ns 6.4 ns
Certification status Not Qualified Not Qualified
Filter level 38535Q/M;38534H;883B 38535Q/M;38534H;883B
Nominal supply voltage (Vsup) 5 V 5 V
surface mount YES NO
Temperature level MILITARY MILITARY
Terminal surface Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb)
Terminal form NO LEAD THROUGH-HOLE
Terminal pitch 1.27 mm 2.54 mm
Terminal location QUAD DUAL
Base Number Matches 1 1
