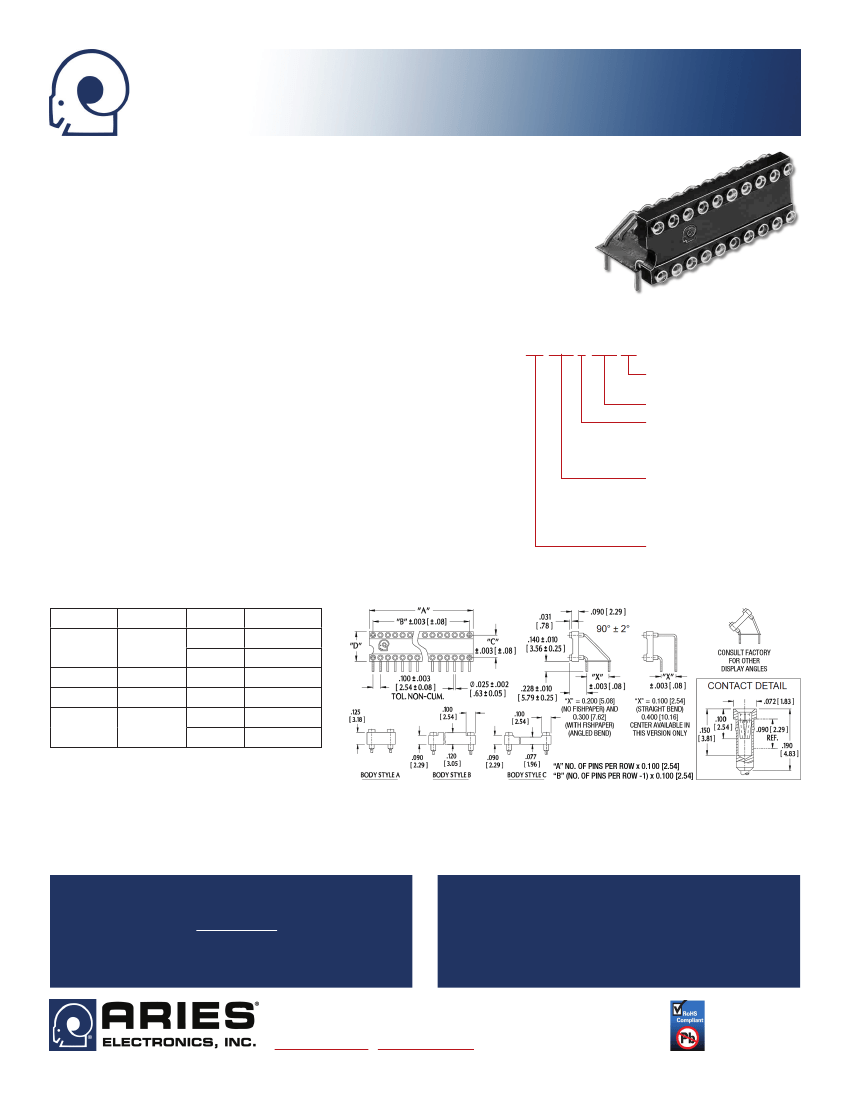

Series 800 Vertisocket
w/Collet Contacts for Horizontal Mounting
™
FEATURES
• DIP Packaging of LEDs, Incandescent Lamps, DIP Switches, Test Points, etc.
• Variations of Mounting Positions provide Exceptional Design Freedom
• Accepts Standard LEDs and Incandescent Displays as well as 0.500 [21.70] and 0.600 [15.24]
Tall Displays
GENERAL SPECIFICATIONS
•
STANDARD BODY MATERIAL: black UL 94V-0 glass-filled 4/6 Nylon
•
SPACER: fish paper (sockets with “X” 0.300 [7.62] only)
•
PIN BODY: Brass 360 1/2-hard per UNS C36000 ASTM B16/B16M-05
•
PIN BODY PLATING: 200µ [5.07µ] min. 93/7 Sn/Pb per ASTM B545 –OR–
200µ
ORDERING INFORMATION
[5.07µ] Sn per ASTM B545 Type 1 over 100µ [2.54µ] min. Ni per SAE AMS-QQ-N-
XX-X82 X-90C TL
290B
•
4-FINGER COLLET CONTACT: BeCu per UNS C17200 ASTM B194-08
Optional Pin Body Plating
•
CONTACT PLATING: 30µ [0.76µ] min. Au per MIL-G-45204 over 50µ [1.27µ] min. Ni
TL = Sn/Pb
per SAE AMS-QQ-N-290B
Display Angle
•
ACCEPTS LEADS: 0.015-0.025 [0.38-0.64] dia., 0.110-0.150 [2.79-3.81] long
PCB Footprint, Dim. “X”
•
CONTACT CURRENT RATING: 3 amps
0 = 0.100 [2.54]
•
OPERATING TEMPERATURE: -67°F to 221°F [-55°C to 105°C]
2 = 0.200 [5.08]
•
INSERTION FORCE: 180g/pin, based on 0.018 [0.46] dia. test lead
3 = 0.300 [7.62]
•
WITHDRAWAL FORCE: 90g/pin, based on 0.018 [0.46] dia. test lead
Device Footprint, Dim. “C”
•
NORMAL FORCE: 140g/pin, based on 0.018 [0.46] dia. test lead
282 = 0.200 [5.08]
MOUNTING CONSIDERATIONS
•
SUGGESTED PCB HOLE SIZE: 0.035 ±0.002 [0.89 ±0.05] dia.
82 = 0.300 [7.62]
482 = 0.400 [10.16]
682 = 0.600 [15.24]
Pin Count & Spacing, Dim. “C”
(See Table)
Centers “C”
0.200 [5.08]
0.300 [7.62]
0.400 [10.16]
0.600 [15.24]
Dim. “D”
0.300 [7.62]
0.400 [10.16]
0.500 [12.70]
0.700 [17.78]
Body Style
A
C
B
C
C
B
Available Sizes
6 thru 10
6 thru 20
22 thru 40
6 thru 22
6 thru 40
42 thru 48
ALL DIMENSIONS: INCHES [MILLIMETERS]
ALL TOLERANCES: ±0.005 [0.13] UNLESS OTHERWISE SPECIFIED
FOR VERTICAL MOUNTING, SEE DATA SHEET 13002
CONSULT FACTORY FOR OTHER SIZES AND CONFIGURATIONS
CUSTOMIZATION: ARIES SPECIALIZES IN CUSTOM DESIGN AND PRODUCTION.
SPECIAL MATERIALS, PLATINGS, SIZES, AND CONFIGURATIONS CAN BE
FURNISHED, DEPENDING ON QUANTITY.
ARIES RESERVES THE RIGHT TO CHANGE PRODUCT GENERAL SPECIFICATIONS
WITHOUT NOTICE
PRINTOUTS OF THIS DOCUMENT MAY BE OUT-OF-DATE AND SHOULD BE
CONSIDERED UNCONTROLLED
2609 Bartram Road
•
Bristol, PA 19007-6810 USA
TEL 215-781-9956
•
FAX 215-781-9845
WWW.ARIESELEC.COM
•
INFO@ARIESELEC.COM
13005
Rev. 1.2
1 of 1
