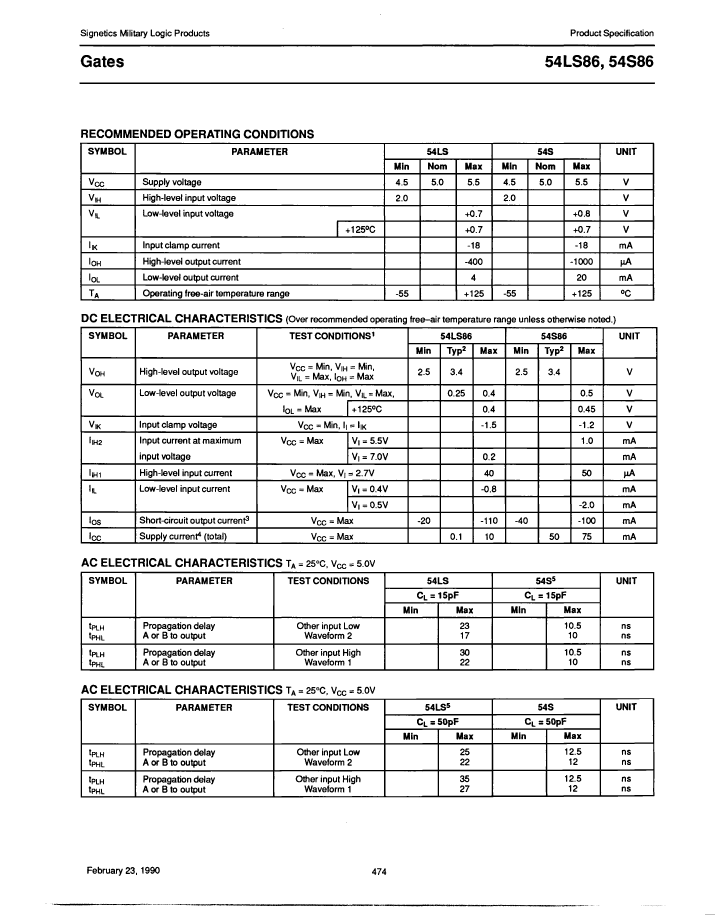

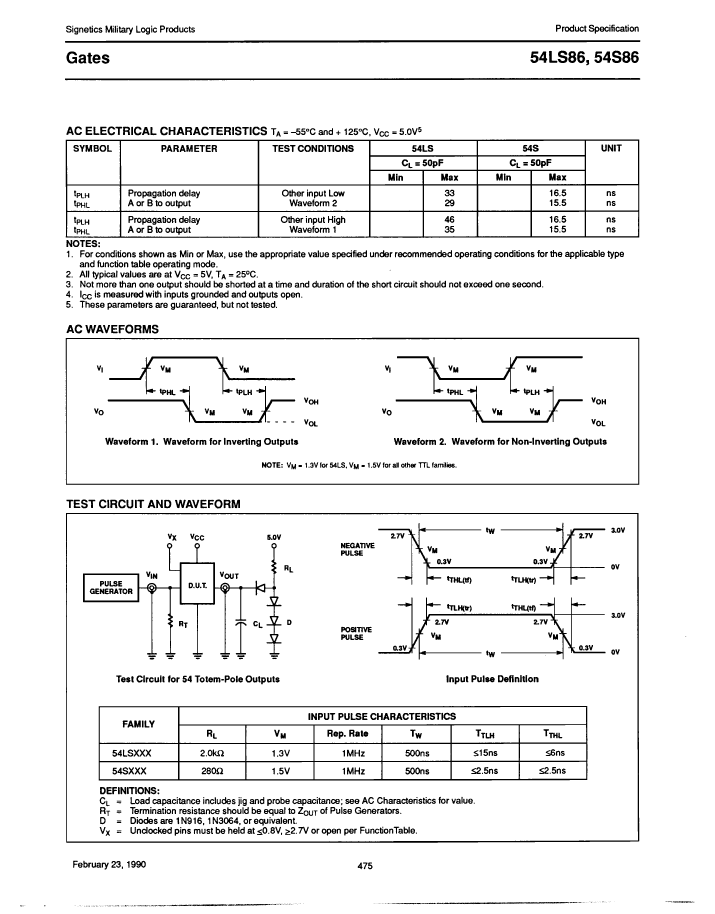

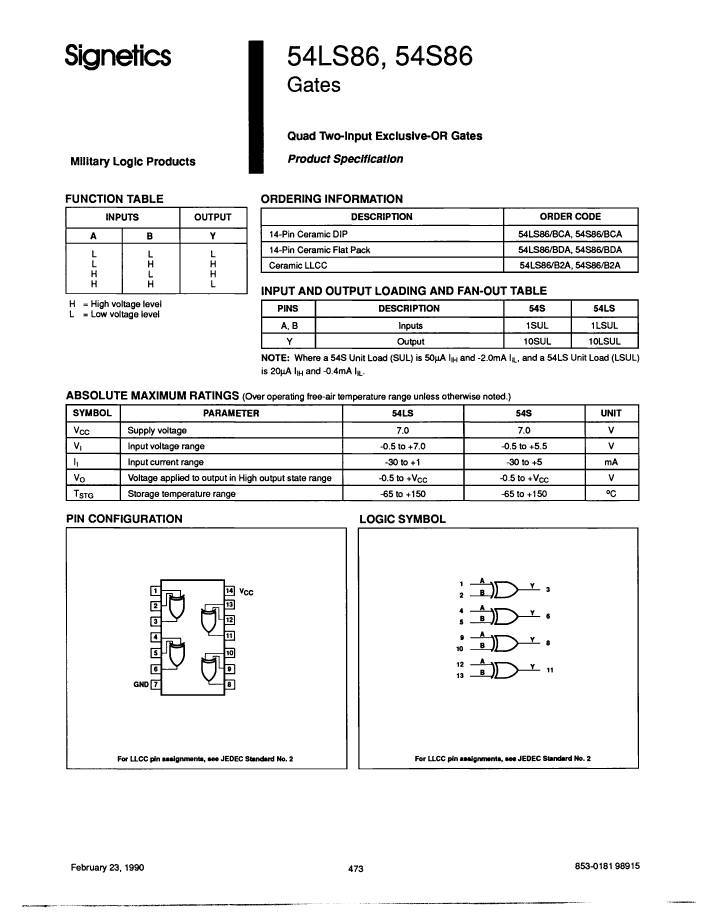

54S86/BCA datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> 54S86/BCA

54S86/BCA: DescriptionXOR Gate, S Series, 4-Func, 2-Input, TTL, CDIP14; Categorylogic logic; File Size117KB，3 Pages; ManufacturerYAGEO; Websitehttp://www.yageo.com/

Download Datasheet Parametric Compare View All

54S86/BCA Overview

XOR Gate, S Series, 4-Func, 2-Input, TTL, CDIP14

54S86/BCA Parametric

Parameter Name	Attribute value
package instruction	,
Reach Compliance Code	unknown
series	S
JESD-30 code	R-CDIP-T14
Load capacitance (CL)	50 pF
Logic integrated circuit type	XOR GATE
Number of functions	4
Number of entries	2
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR
Package form	IN-LINE
Maximum supply current (ICC)	75 mA
propagation delay (tpd)	15.5 ns
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal location	DUAL
Base Number Matches	1

Preview

Download Datasheet

View All

54S86/BCA Related Products

	54S86/BCA	54LS86/BCA	54LS86/B2A	54LS86/BDA	54S86/B2A	54S86/BDA
Description	XOR Gate, S Series, 4-Func, 2-Input, TTL, CDIP14	XOR Gate, LS Series, 4-Func, 2-Input, TTL, CDIP14	XOR Gate, LS Series, 4-Func, 2-Input, TTL, CQCC20	XOR Gate, LS Series, 4-Func, 2-Input, TTL, CDFP14	XOR Gate, S Series, 4-Func, 2-Input, TTL, CQCC20	XOR Gate, S Series, 4-Func, 2-Input, TTL, CDFP14
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknow
series	S	LS	LS	LS	S	S
JESD-30 code	R-CDIP-T14	R-CDIP-T14	S-CQCC-N20	R-CDFP-F14	S-CQCC-N20	R-CDFP-F14
Load capacitance (CL)	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF
Logic integrated circuit type	XOR GATE	XOR GATE	XOR GATE	XOR GATE	XOR GATE	XOR GATE
Number of functions	4	4	4	4	4	4
Number of entries	2	2	2	2	2	2
Number of terminals	14	14	20	14	20	14
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR	RECTANGULAR	SQUARE	RECTANGULAR	SQUARE	RECTANGULAR
Package form	IN-LINE	IN-LINE	CHIP CARRIER	FLATPACK	CHIP CARRIER	FLATPACK
Maximum supply current (ICC)	75 mA	10 mA	10 mA	10 mA	75 mA	75 mA
propagation delay (tpd)	15.5 ns	35 ns	35 ns	35 ns	15.5 ns	15.5 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	YES	YES	YES	YES
technology	TTL	TTL	TTL	TTL	TTL	TTL
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal form	THROUGH-HOLE	THROUGH-HOLE	NO LEAD	FLAT	NO LEAD	FLAT
Terminal location	DUAL	DUAL	QUAD	DUAL	QUAD	DUAL
Maker	-	YAGEO	YAGEO	YAGEO	YAGEO	YAGEO
