BR13-675B3-26V: DescriptionElectromechanical Relay, DPDT, 32VDC (Coil), 5A (Contact), 28VDC (Contact), Random, DC Output; CategoryMechanical and electronic products relay; File Size448KB，3 Pages; ManufacturerMicrosemi; Websitehttps://www.microsemi.com

Download Datasheet Parametric Compare View All

BR13-675B3-26V Overview

Electromechanical Relay, DPDT, 32VDC (Coil), 5A (Contact), 28VDC (Contact), Random, DC Output

BR13-675B3-26V Parametric

Parameter Name	Attribute value
Maker	Microsemi
Reach Compliance Code	compliant
body width	10.41 mm
body height	20.6 mm
Body length or diameter	22.86 mm
Coil operating voltage (DC)	13 V
Coil release voltage (DC)	1.3 V
Coil resistance	675 Ω
Maximum coil voltage (DC)	32 V
Nominal coil voltage	26 V
Coil/Input Power Type	DC
Maximum contact current (DC)	5 A
Contact (DC) maximum rated R load	5A@28VDC
Contact resistance	50 mΩ
Maximum contact voltage (DC)	28 V
Contact/Output Power Type	DC
Dielectric strength between coil and contacts	1000 Vrms
Dielectric strength between breaking contacts	750 Vrms
Input switching control type	Random
Insulation resistance	10000000000 Ω
operating hours	5 ms
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
physical size	22.86mm x 10.41mm x 20.6mm
Relay style	2 FORM C
Relay function	DPDT
release time	5 ms
Termination type	SOLDER HOOK
weight	37 g
Base Number Matches	1

Preview

Download Datasheet

View All

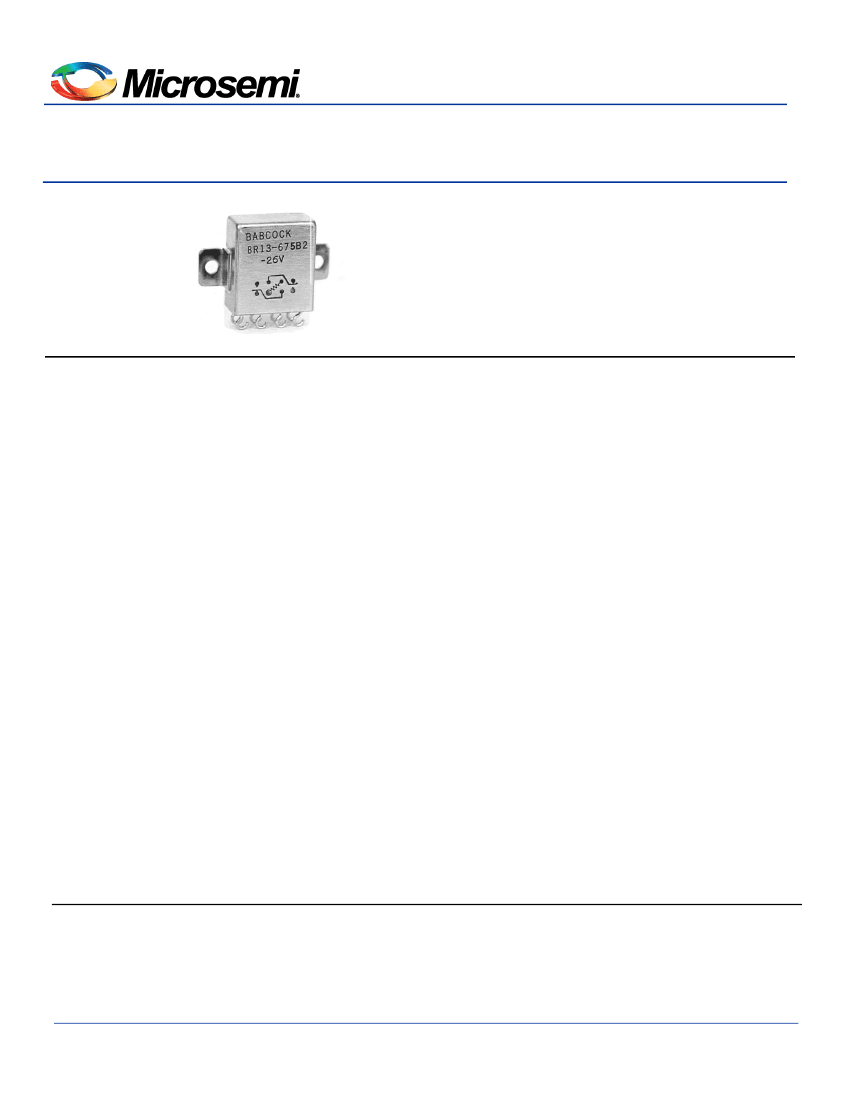

BR13

Crystal Can Welded • DPDT Dry Circuit

to 5 Amps

Crystal Can

Welded • DPDT

Dry Circuit to 5 Amps

SPECIFICATIONS

GENERAL

Contact Arrangement

.......................... 2PDT (2 Form C)

Weight.........................................................

1.3 oz approx.

Designed to meet the requirements of MIL-PRF-39016.

Contact Resistance:

Before Life.......................0.050 Ohms @ rated current

and 6 VDC

After Life ..........................0.100 Ohms @ rated current

and 6 VDC

PERFORMANCE

Contact Rating

(Note 1)

Resistive:

BR13 ......................................... 5 Amps @ 28 VDC

BR13H.................3 Amps @ 28 VDC or 2 Amps @

115 VAC, 400 Hz (Case Ungrounded)

BR13K ........................................2 Amps @ 28 VDC

115 VAC, 400 Hz (Case Ungrounded)

Inductive ........................................... 1 Amp @ 28 VDC

Low Level ............................ 10-50 µA @ 10-50 mv DC

or peak AC (Note 4)

Pull In Power:

BR13.....................................................250 mw approx.

BR13H..................................................100 mw approx.

BR13K ....................................................40 mw approx.

Operate/Release Time:

BR13............................................................... 5 ms max

BR13H............................................................ 6 ms max

BR13K .......................................................... 15 ms max

excluding bounce time at nominal coil voltage

Contact Bounce Time:

BR13 and BR13H .............2 MS max @ 2 and 3 Amps

@ 28 VDC

BR13K ........................... 2 MS max @ 2 Amps 28 VDC

Notes

1. For case grounded loads and other ratings, consult the

factory.

For applications requiring other shock and vibration

levels, consult the factory.

ENVIRONMENTAL

Temperature Range

............................... -65 C to +125 C

Vibration

(Note 2):

BR13............................................... 0.4" DA 10 - 38 Hz,

20 G's 38 - 2,000 Hz

BR13H and BR13K........................ 0.4" DA 10 - 31 Hz,

20 G's 31 - 2,000 Hz

Shock (Operating) (Note 2) .......................... 50 G's 11 ms

ELECTRICAL

CHARACTERISTICS

Duty Cycle........................................................Continuous

Insulation Resistance..

10,000 megohms @ 500V 25 C

1,000 megohms @ 500V 125 C

Dielectric Strength:

Sea Level:

Contact to Case ................................... 1,000 VRMS

Contact to Coil ..................................... 1,000 VRMS

Coil to Case ......................................... 1,000 VRMS

Across Open Contacts:

BR13 and BR13H ................................ 750 VRMS

BR13K.................................................. 500 VRMS

70,000 Feet

All points.................................................. 350 VRMS

For other ratings consult the factory.

Relay contacts which have switched high level currents

are no longer suitable for switching low level loads.

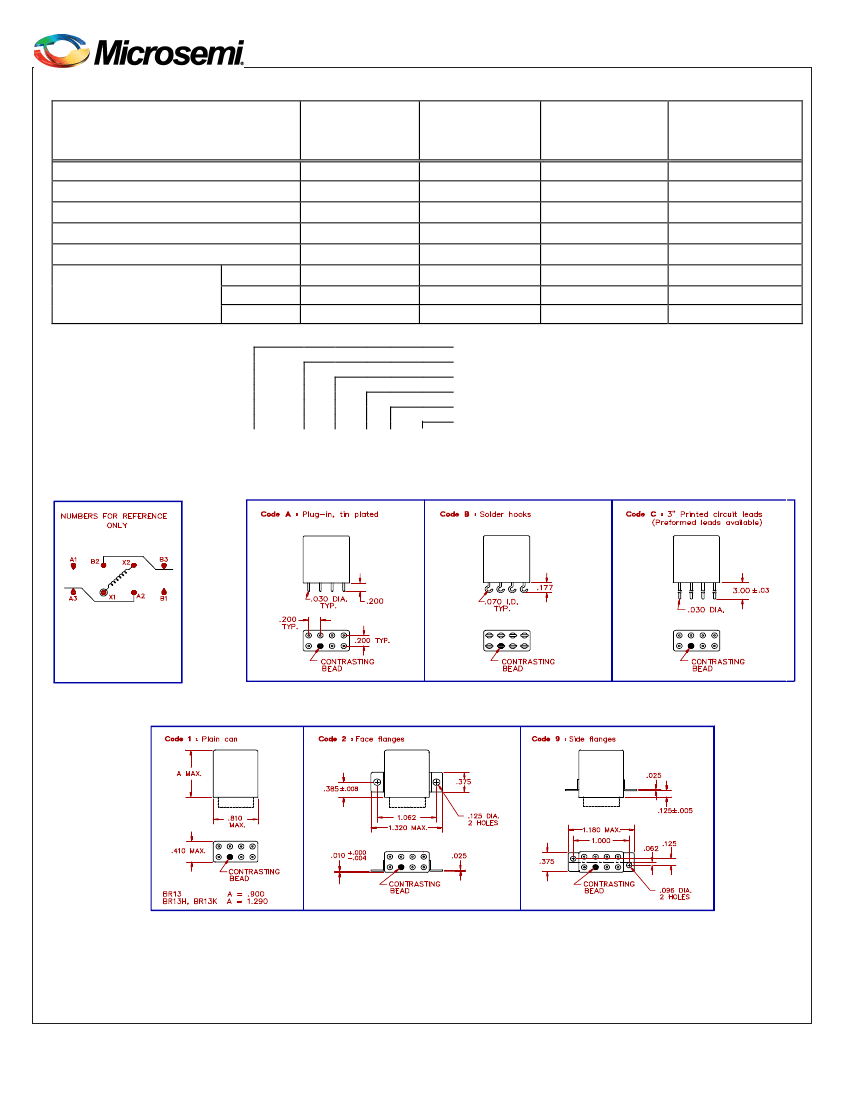

April

2015 Rev.

www.microsemi.com

Microsemi Corporation (Nasdaq: MSCC) offers a comprehensive portfolio of semiconductor

and system solutions for communications, defense & security, aerospace and industrial

markets. Products include high-performance and radiation-hardened analog mixed-signal

integrated circuits, FPGAs, SoCs and ASICs; power management products; timing and

synchronization devices and precise time solutions, setting the world’s standard for time; voice

processing devices; RF solutions; discrete components; security technologies and scalable

anti-tamper products; Power-over-Ethernet ICs and midspans; as well as custom design

capabilities and services. Microsemi is headquartered in Aliso Viejo, Calif., and has

approximately 3,400 employees globally. Learn more at

www.microsemi.com.

Microsemi Corporate Headquarters

One Enterprise, Aliso Viejo,

CA 92656 USA

Within the USA:

+1 (800) 713-4113

Outside the USA:

+1 (949) 380-6100

Sales:

+1 (949) 380-6136

Fax:

+1 (949) 215-4996

E-mail:

sales.support@microsemi.com

rights reserved. Microsemi and the

Microsemi logo are trademarks of

Microsemi Corporation. All other

trademarks and service marks are the

property of their respective owners.

Microsemi makes no warranty, representation, or guarantee regarding the information contained herein or

the suitability of its products and services for any particular purpose, nor does Microsemi assume any

liability whatsoever arising out of the application or use of any product or circuit. The products sold

hereunder and any other products sold by Microsemi have been subject to limited testing and should not

be used in conjunction with mission-critical equipment or applications. Any performance specifications are

believed to be reliable but are not verified, and Buyer must conduct and complete all performance and

other testing of the products, alone and together with, or installed in, any end-products. Buyer shall not rely

on any data and performance specifications or parameters provided by Microsemi. It is the Buyer's

responsibility to independently determine suitability of any products and to test and verify the same. The

information provided by Microsemi hereunder is provided "as is, where is" and with all faults, and the entire

risk associated with such information is entirely with the Buyer. Microsemi does not grant, explicitly or

implicitly, to any party any patent rights, licenses, or any other IP rights, whether with regard to such

information itself or anything described by such information. Information provided in this document is

proprietary to Microsemi, and Microsemi reserves the right to make any changes to the information in this

document or to any products and services at any time without notice.

BR13-04/04.15

BR13-675B3-26V Related Products

	BR13-675B3-26V	BR13K-850C3-12V	BR13H-28KA3-115V	BR13K-40KA3-115V
Description	Electromechanical Relay, DPDT, 32VDC (Coil), 5A (Contact), 28VDC (Contact), Random, DC Output	Electromechanical Relay, DPDT, 14.8VDC (Coil), 2A (Contact), 28VDC (Contact), Random, AC/DC Output	Electromechanical Relay, DPDT, 127VDC (Coil), 3A (Contact), 28VDC (Contact), Random, AC/DC Output	Electromechanical Relay, DPDT, 127VDC (Coil), 2A (Contact), 28VDC (Contact), Random, AC/DC Output
Maker	Microsemi	Microsemi	Microsemi	Microsemi
Reach Compliance Code	compliant	compliant	compliant	compliant
body width	10.41 mm	10.41 mm	10.41 mm	10.41 mm
body height	20.6 mm	20.6 mm	20.6 mm	20.6 mm
Body length or diameter	22.86 mm	22.86 mm	22.86 mm	22.86 mm
Coil operating voltage (DC)	13 V	6 V	57.5 V	57.5 V
Coil release voltage (DC)	1.3 V	0.6 V	5.7 V	5.7 V
Coil resistance	675 Ω	850 Ω	28000 Ω	40000 Ω
Maximum coil voltage (DC)	32 V	14.8 V	127 V	127 V
Nominal coil voltage	26 V	12 V	115 V	115 V
Coil/Input Power Type	DC	DC	DC	DC
Maximum contact current (DC)	5 A	2 A	3 A	2 A
Contact (DC) maximum rated R load	5A@28VDC	2A@28VDC	3A@28VDC	2A@28VDC
Contact resistance	50 mΩ	50 mΩ	50 mΩ	50 mΩ
Maximum contact voltage (DC)	28 V	28 V	28 V	28 V
Contact/Output Power Type	DC	AC/DC	AC/DC	AC/DC
Dielectric strength between coil and contacts	1000 Vrms	1000 Vrms	1000 Vrms	1000 Vrms
Dielectric strength between breaking contacts	750 Vrms	500 Vrms	750 Vrms	500 Vrms
Input switching control type	Random	Random	Random	Random
Insulation resistance	10000000000 Ω	10000000000 Ω	10000000000 Ω	10000000000 Ω
operating hours	5 ms	15 ms	6 ms	15 ms
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-65 °C	-65 °C	-65 °C	-65 °C
physical size	22.86mm x 10.41mm x 20.6mm	22.86mm x 10.41mm x 20.6mm	22.86mm x 10.41mm x 20.6mm	22.86mm x 10.41mm x 20.6mm
Relay style	2 FORM C	2 FORM C	2 FORM C	2 FORM C
Relay function	DPDT	DPDT	DPDT	DPDT
release time	5 ms	15 ms	6 ms	15 ms
Termination type	SOLDER HOOK	SOLDER	QUICK CONNECT	QUICK CONNECT
weight	37 g	37 g	37 g	37 g
Contact (AC) maximum rated R load	-	2A@115VAC	2A@115VAC	2A@115VAC
Maximum contact current (AC)	-	2 A	2 A	2 A
Maximum contact voltage (AC)	-	115 V	115 V	115 V
