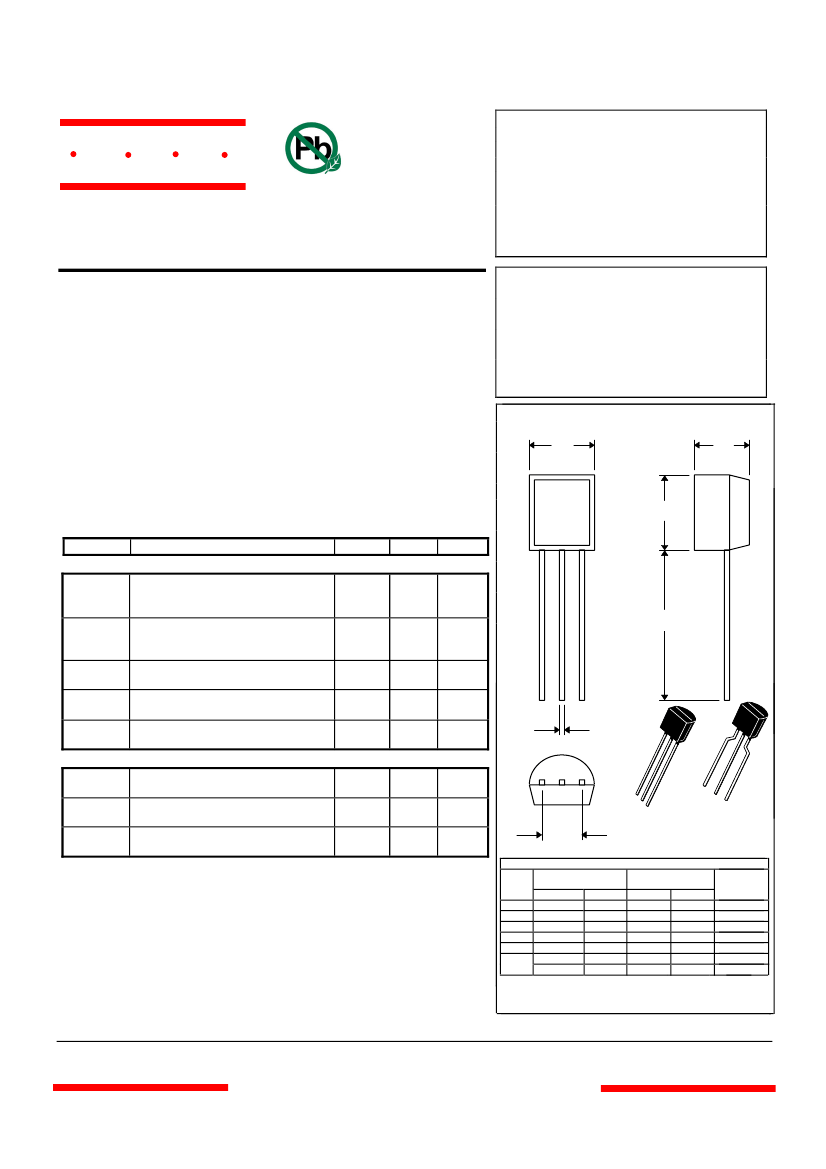

BF420
BF422
Features
•
•
•
•
•
•
•
•
•
Lead Free Finish/RoHS Compliant ("P" Suffix designates
RoHS Compliant. See ordering information)
Capable of 0.83Watts of Power Dissipation.
Collector-current 0.1A
Collector-base Voltage: BF420 300V
BF422 250V
Operating and storage junction temperature range: -55
O
C to +150
O
C
Epoxy meets UL 94 V-0 flammability rating
Moisure Sensitivity Level 1
Marking: Type Number
Halogen
free available upon request by adding suffix "-HF"
NPN Silicon
Plastic-Encapsulate
Transistor
TO-92
A
E
B
Electrical Characteristics @ 25
O
C Unless Otherwise Specified
Symbol
Parameter
Collector-Emitter Breakdown Voltage
(I
C
=1.0mAdc, I
B
=0)
BF420
BF422
Collector-Base Breakdown Voltage
(I
C
=100uAdc, I
E
=0)
BF420
BF422
Emitter-Base Breakdown Voltage
(I
E
=100uAdc, I
C
=0)
Collector Cutoff Current
(V
CB
=200Vdc, I
E
=0)
Emitter Cutoff C
urrent
(V
EB
=5.0Vdc, I
C
=0)
DC Current Gain
(I
C
=25mAdc,V
CE
=20Vdc)
Collector-Emitter Saturation Voltage
(I
C
=30mAdc, I
B
=5.0mAdc)
Transition Frequency
(V
CE
=10Vdc, I
C
=10mA dc, f=100MHz)
Min
Max
Units
OFF CHARACTERISTICS
V
(BR)CEO
300
250
300
250
5.0
---
---
---
---
---
---
---
0.01
0.05
Vdc
C
V
(BR)CBO
Vdc
Adc
uAdc
uAdc
D
V
(BR)EBO
I
CBO
I
EBO
ON CHARACTERISTICS
h
FE
V
CE(sat)
fT
50
---
60
---
0.6
---
---
Vdc
MHz
G
E
E
C
B
C
B
STRAIGHT LEAD BENT LEAD
BULK PACK
AMMO PACK
DIMENSIONS
DIM
A
B
C
D
E
G
INCHES
MIN
.175
.175
.500
.016
.135
.095
.173
MM
MAX
.185
.185
---
.020
.145
.105
.220
MIN
4.45
4.45
12.70
0.41
3.43
2.42
4.40
MAX
4.70
4.70
---
0.63
3.68
2.67
5.60
NOTE
Straight Lead
Bent Lead
* For ammo packing detailed specification, click here to visit our website
of product packaging for details.
www.mccsemi.com
Revision:
D
1 of 2
2013/01/01
MCC
Micro Commercial Components
TM
Ordering Information :
Device
Part Number-AP
Part Number-BP
Note : Adding "-HF" suffix for halogen free, eg. Part Number-AP-HF
Packing
Ammo Packing:
20Kpcs/Carton
Bulk:
100Kpcs/Carton
