DOT75E48S15 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> DOT75E48S15

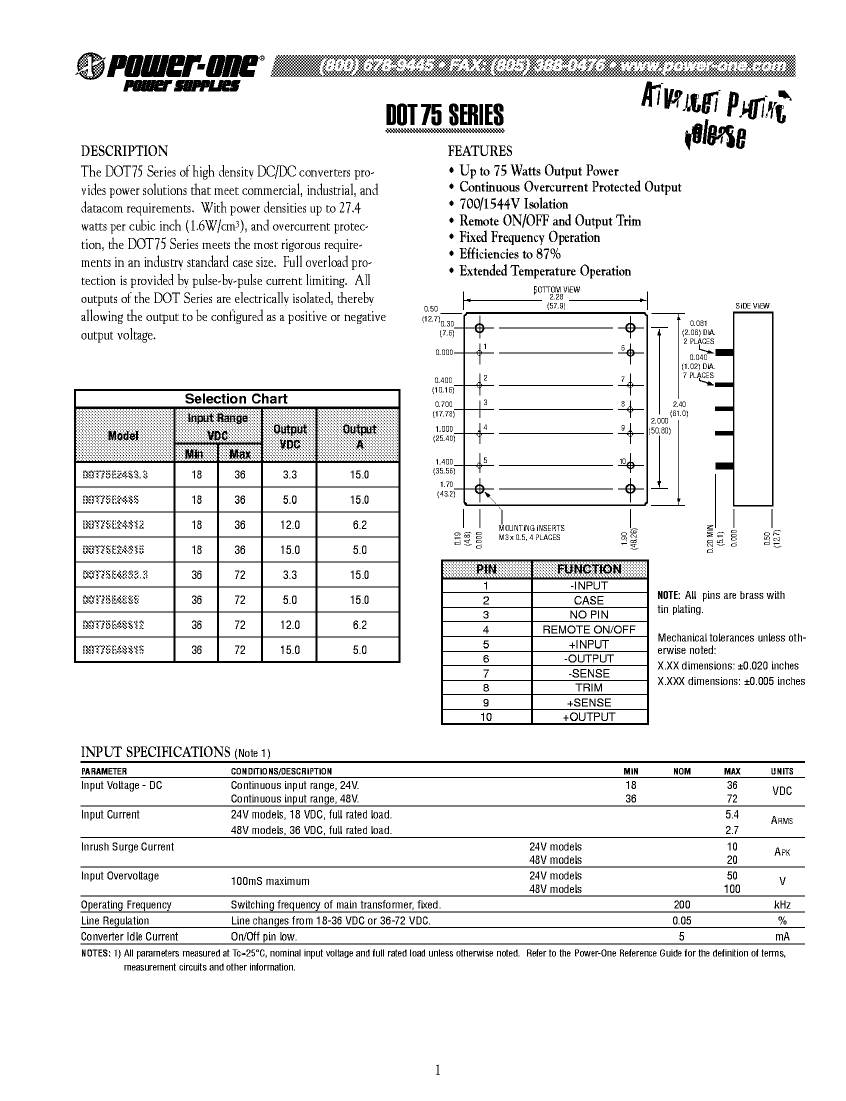

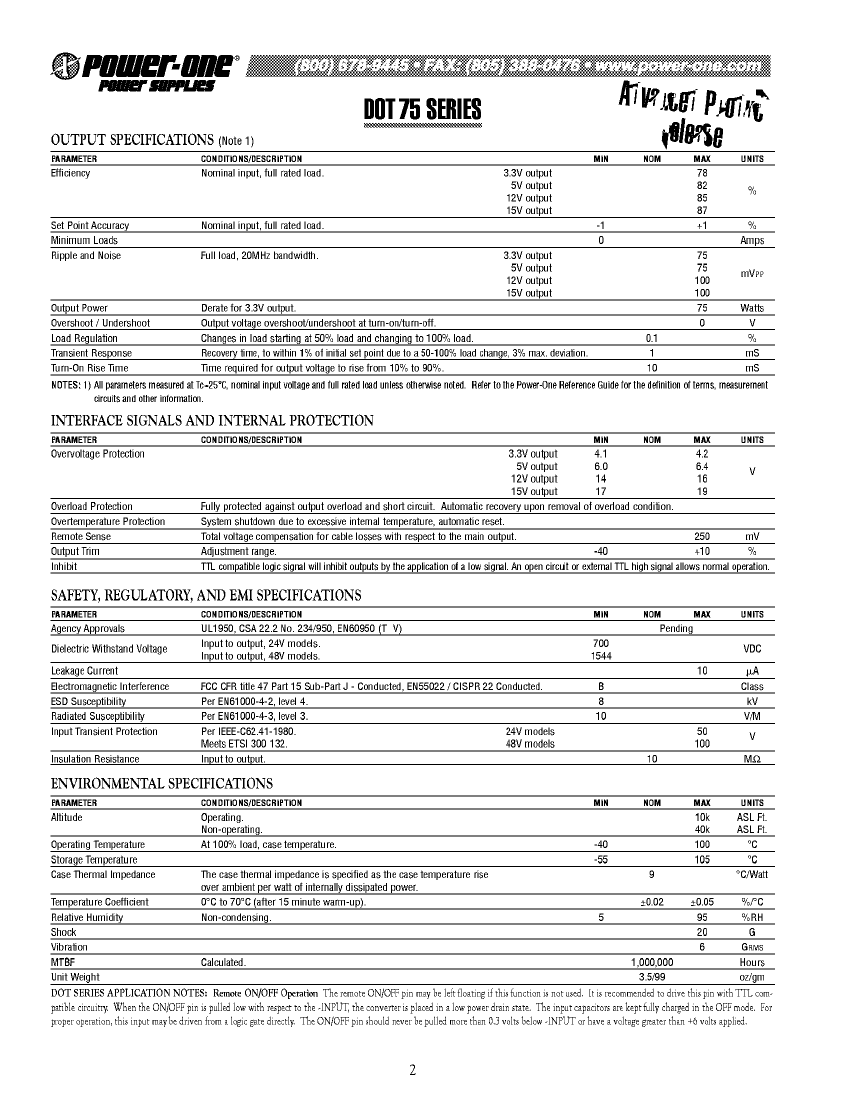

DOT75E48S15: DescriptionDC-DC Regulated Power Supply Module, 1 Output, 75W; CategoryPower/power management The power supply circuit; File Size86KB，2 Pages; ManufacturerBel Fuse

Download Datasheet Parametric Compare View All

DOT75E48S15 Overview

DC-DC Regulated Power Supply Module, 1 Output, 75W

DOT75E48S15 Parametric

Parameter Name	Attribute value
Brand Name	Power-One
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Bel Fuse
package instruction	DIP,
Reach Compliance Code	compliant
ECCN code	EAR99
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	72 V
Minimum input voltage	36 V
Nominal input voltage	48 V
JESD-30 code	R-XDIP-P10
JESD-609 code	e0
Maximum load regulation	0.1%
Number of functions	1
Output times	1
Number of terminals	10
Maximum operating temperature	100 °C
Minimum operating temperature	-40 °C
Maximum output voltage	16.5 V
Minimum output voltage	9 V
Nominal output voltage	15 V
Package body material	UNSPECIFIED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
surface mount	NO
Temperature level	INDUSTRIAL
Terminal surface	TIN LEAD
Terminal form	PIN/PEG
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Maximum total power output	75 W
Fine-tuning/adjustable output	YES
Base Number Matches	1

Preview

Download Datasheet

View All

DOT75E48S15 Related Products

	DOT75E48S15	DOT75E24S12	DOT75E48S12	DOT75E24S15	DOT75E48S5	DOT75E24S5	DOT75E48S3.3	DOT75E24S3.3
Description	DC-DC Regulated Power Supply Module, 1 Output, 75W	DC-DC Regulated Power Supply Module, 1 Output, 75W	DC-DC Regulated Power Supply Module, 1 Output, 75W	DC-DC Regulated Power Supply Module, 1 Output, 75W	DC-DC Regulated Power Supply Module, 1 Output, 75W	DC-DC Regulated Power Supply Module, 1 Output, 75W	DC-DC Regulated Power Supply Module, 1 Output, 75W	DC-DC Regulated Power Supply Module, 1 Output, 75W
Brand Name	Power-One	Power-One	Power-One	Power-One	Power-One	Power-One	Power-One	Power-One
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Bel Fuse	Bel Fuse	Bel Fuse	Bel Fuse	Bel Fuse	Bel Fuse	Bel Fuse	Bel Fuse
package instruction	DIP,	DIP,	DIP,	DIP,	DIP,	DIP,	DIP,	DIP,
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	72 V	36 V	72 V	36 V	72 V	36 V	72 V	36 V
Minimum input voltage	36 V	18 V	36 V	18 V	36 V	18 V	36 V	18 V
Nominal input voltage	48 V	24 V	48 V	24 V	48 V	24 V	48 V	24 V
JESD-30 code	R-XDIP-P10	R-XDIP-P10	R-XDIP-P10	R-XDIP-P10	R-XDIP-P10	R-XDIP-P10	R-XDIP-P10	R-XDIP-P10
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0
Maximum load regulation	0.1%	0.1%	0.1%	0.1%	0.1%	0.1%	0.1%	0.1%
Number of functions	1	1	1	1	1	1	1	1
Output times	1	1	1	1	1	1	1	1
Number of terminals	10	10	10	10	10	10	10	10
Maximum operating temperature	100 °C	100 °C	100 °C	100 °C	100 °C	100 °C	100 °C	100 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Maximum output voltage	16.5 V	13.2 V	13.2 V	16.5 V	5.5 V	5.5 V	3.63 V	3.63 V
Minimum output voltage	9 V	7.2 V	7.2 V	9 V	3 V	3 V	1.98 V	1.98 V
Nominal output voltage	15 V	12 V	12 V	15 V	5 V	5 V	3.3 V	3.3 V
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
encapsulated code	DIP	DIP	DIP	DIP	DIP	DIP	DIP	DIP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	NO	NO	NO	NO	NO	NO
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal surface	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD
Terminal form	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Maximum total power output	75 W	75 W	75 W	75 W	75 W	75 W	75 W	75 W
Fine-tuning/adjustable output	YES	YES	YES	YES	YES	YES	YES	YES
Base Number Matches	1	1	1	1	1	1	1	1
