T. 085120
www.vishay.com
Vishay Draloric

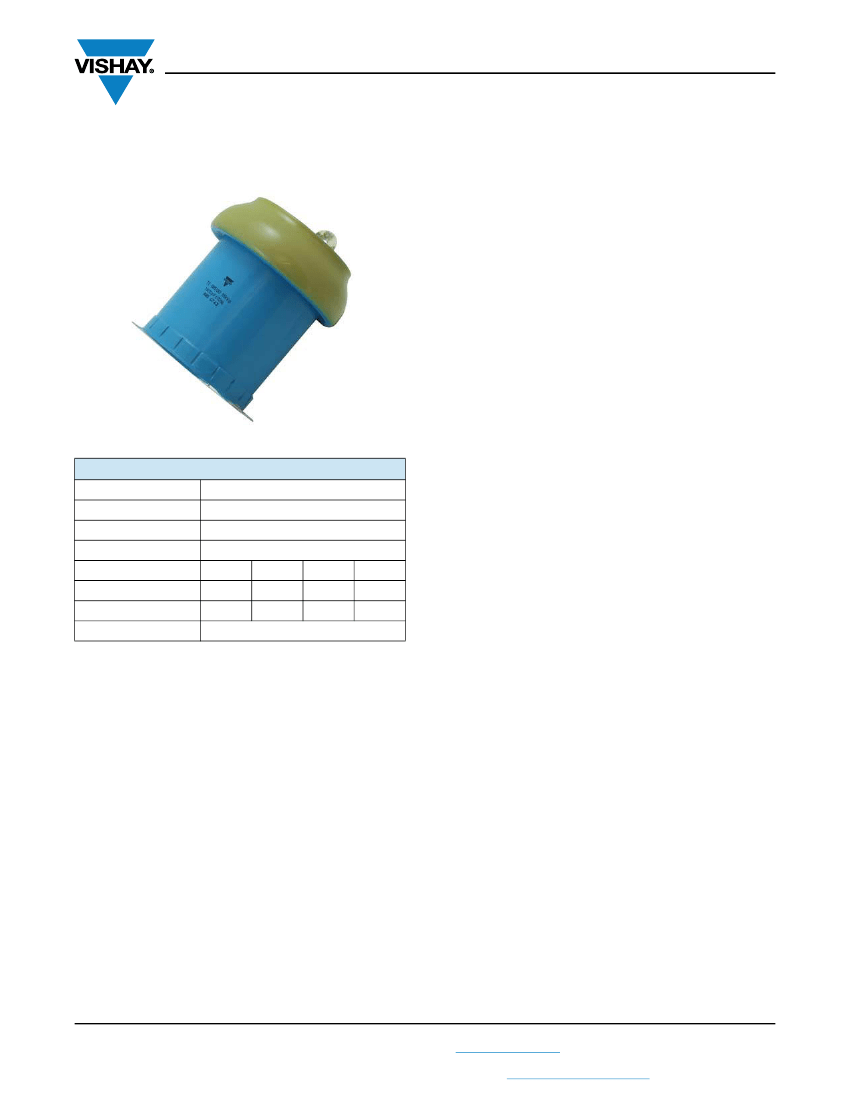

RF Power Pot Capacitors
with Mounting Tags, Class 1 Ceramic
FEATURES
• High reliability
• Multiple terminals
• Wide range of capacitance values
APPLICATIONS
• Induction and dielectric heating
• Antenna units
• Filter, bypass, and coupling circuits
CAPACITANCE RANGE
100 pF to 4.0 nF
CAPACITANCE TOLERANCE
± 20 %; ± 10 %; ± 5 %
QUICK REFERENCE DATA
DESCRIPTION
Ceramic Class
Ceramic Dielectric
Type
Voltage (V
p
)
Min. Capacitance (pF)
Max. Capacitance (pF)
Mounting
VALUE
1
R7, R42, R85
TA 085120, TB 085120, TE 085120
10 000
400
4000
12 000
250
2500
13 000
2000
2000
15 000
100
1600
CERAMIC DIELECTRICS
• R7 (TCC + 100 ppm/K)
• R42 (TCC - 250 ppm/K)
• R85 (TCC - 750 ppm/K)
RATED VOLTAGE
• 10.0 kV
p
• 12.0 kV
p
• 13.0 kV
p
• 15.0 kV
p
Screw terminal
MATERIAL
Capacitor elements made from class 1 ceramic dielectric
with noble metal electrodes.
Connection terminals made from copper / brass, silver
plated.
DIELECTRIC STRENGTH TEST
200 % of rated AC voltage (50 Hz, 5 minutes)
DISSIPATION FACTOR
R7:
R42, R85:
max. 0.07 %
max. 0.05 %
FINISH
Capacitor body completely protective lacquered.
The contoured insulating rim is additionally glazed.
Measuring frequencies:
1 MHz (< 1 nF); 300 kHz or 100 kHz ( 1 nF)
INSULATION RESISTANCE
Min. 100 000 M (at 25 °C)
MARKING
Type designator, capacitance value and tolerance, rated
peak voltage, ceramic material code, production date code,
manufacturer logo.
OPERATING TEMPERATURE RANGE
-55 °C to +100 °C
Revision: 19-Sep-14
Document Number: 22097
1
For technical questions, contact:
powcap@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
T. 085120
www.vishay.com
Vishay Draloric
CAP.
VALUES
(pF)
100
160
250
400
500
600
800
1000
1600
2000
2500
4000
RATED
VOLTAGE
(kV
p
)
15
12
10
15
15
12
15
13
12
10
70
56

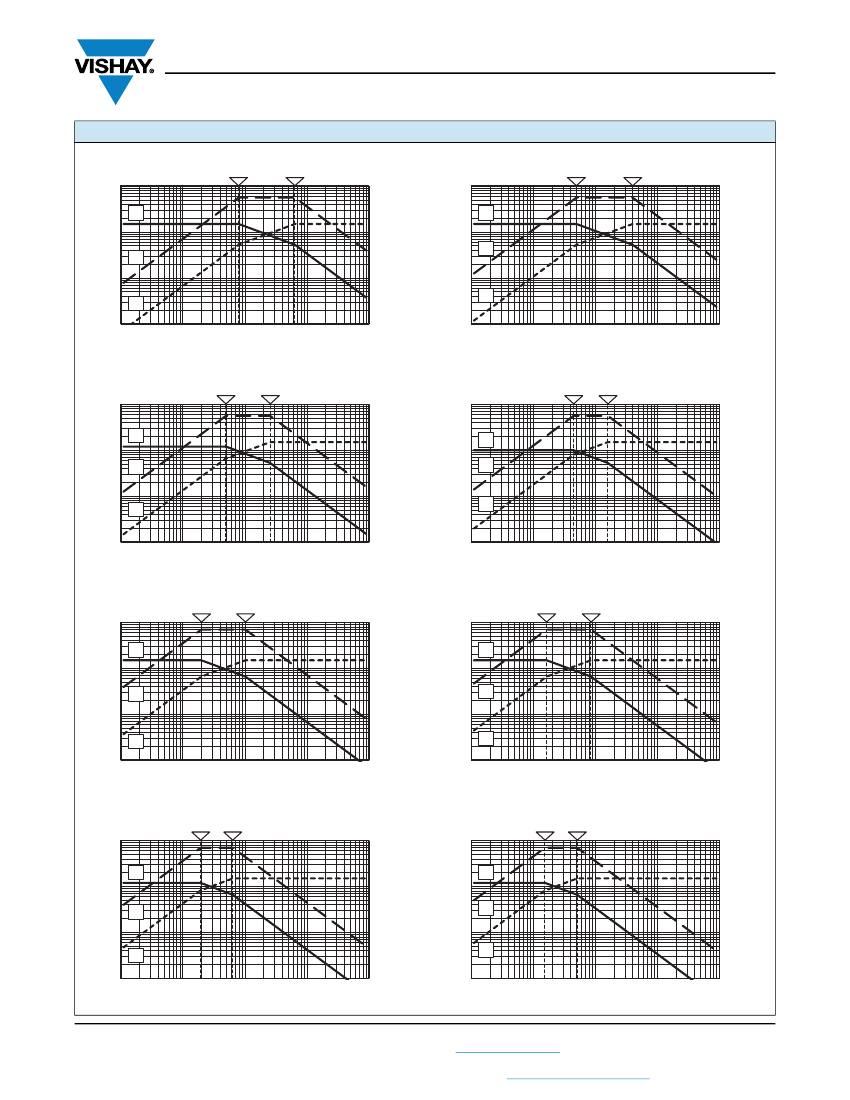

RATED
POWER
(1)
(kvar)
RATED
CURRENT
(A
RMS
)
SAP PART NUMBER AND ELECTRICAL DATA
PART NUMBER
T#085120BJ101##BF1
T#085120BJ161##BF1
T#085120WF251##BF1
T#085120BH401##BF1
T#085120BJ501##BH1
T#085120BJ601##BH1
T#085120WF801##BH1
T#085120WF102##BH1
T#085120BJ162##BJ1
T#085120WH202##BJ1
T#085120WF252##BJ1
T#085120BH402##BJ1
R85
R42
R7
CERAMIC
Notes
• # 2
nd
digit: code letter of the terminal version A, B, E
• ## 14
th
to 15
th
digit: capacitance tolerance code ± 20 % = 38, ± 10 % = 36, ± 5 % = 33
(1)
The surface temperature during operation must not exceed +100 °C

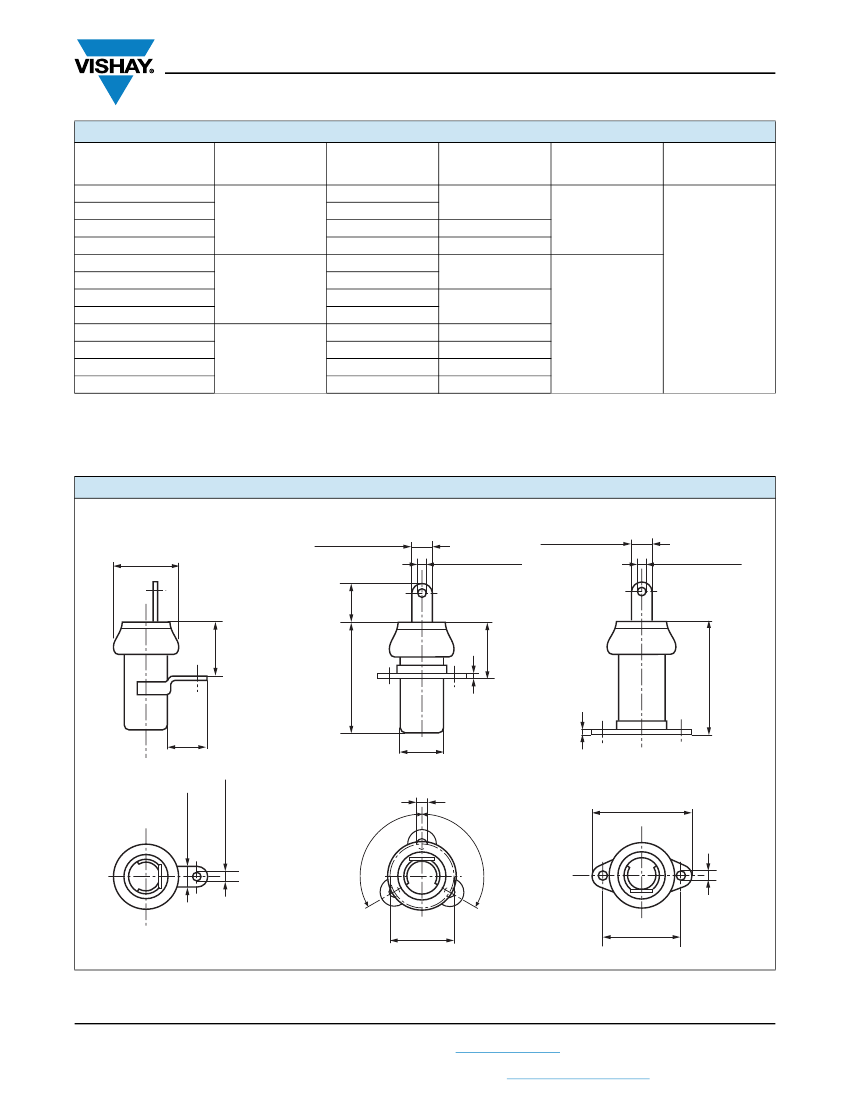

DIMENSIONS
in millimeters (inches)
TA
Ø 110
(4.33 Dia.)
TB
Ø 20.0 x 0.8
(0.787 x 0.031 Dia.)
Ø 5.2 ± 0.2
(0.205 ± 0.008 Dia.)
TE
Ø 20.0 x 0.8
(0.787 x 0.031 Dia.)
Ø 5.2 ± 0.2
(0.205 ± 0.008 Dia.)
20 + 1
(0.79 + 0.04)
120
(4.72)
1
(0.04)
20 + 1
(0.79 + 0.04)
Ø 5.4 ± 0.2
(0.213 ± 0.008 Dia.)
Ø 85
(3.35 Dia.)
Ø 7.5 + 0.3
(0.295 + 0.012 Dia.)
120
(4.72)
120°
120°
1
(0.04)
20.0 x 0.8
(0.787 x 0.031)
123 ± 2
(4.84 ± 0.08)
105.0 ± 0.2
(4.134 ± 0.008)
Ø 6.4 ± 0.4
(0.252 ± 0.016 Dia.)
60 ± 2
(2.36 ± 0.08)
60 ± 2
(2.36 ± 0.08)
102 ± 1
(4.02 ± 0.04)
Revision: 19-Sep-14
Document Number: 22097
2
For technical questions, contact:
powcap@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
