GD74HCT74D datasheet, PDF - EEWORLD Datasheet

GD74HCT74D: DescriptionD Flip-Flop, HCT Series, 2-Func, Positive Edge Triggered, 1-Bit, Complementary Output, CMOS, PDSO14, SOP-14; Categorylogic logic; File Size266KB，6 Pages; ManufacturerMagnaChip; Websitehttp://www.magnachip.com/index/index_cn.php

Download Datasheet Parametric Compare View All

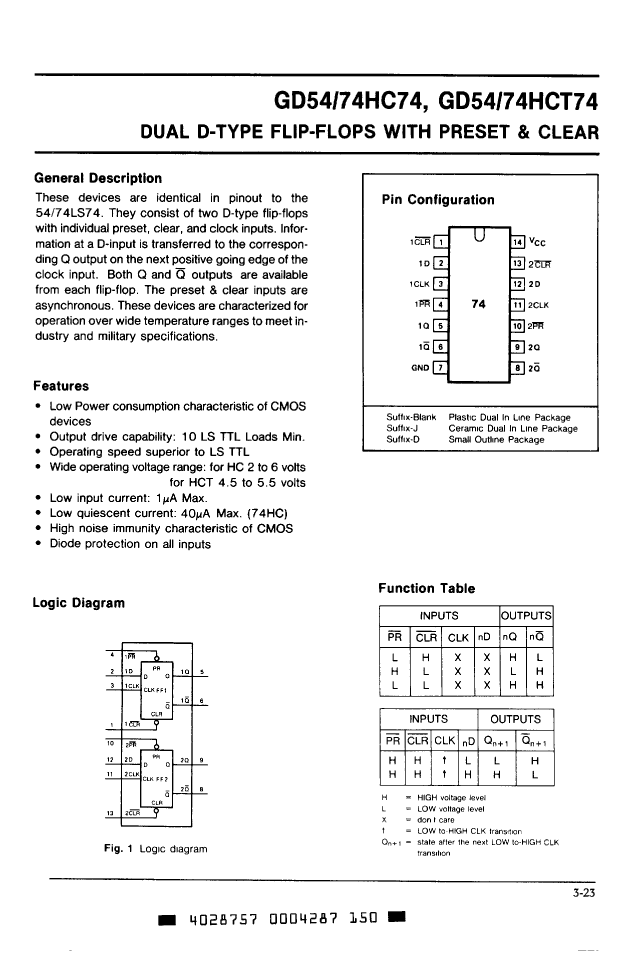

GD74HCT74D Overview

D Flip-Flop, HCT Series, 2-Func, Positive Edge Triggered, 1-Bit, Complementary Output, CMOS, PDSO14, SOP-14

Parameter Name	Attribute value
package instruction	SOP,
Reach Compliance Code	unknown
series	HCT
JESD-30 code	R-PDSO-G14
Logic integrated circuit type	D FLIP-FLOP
Number of digits	1
Number of functions	2
Number of terminals	14

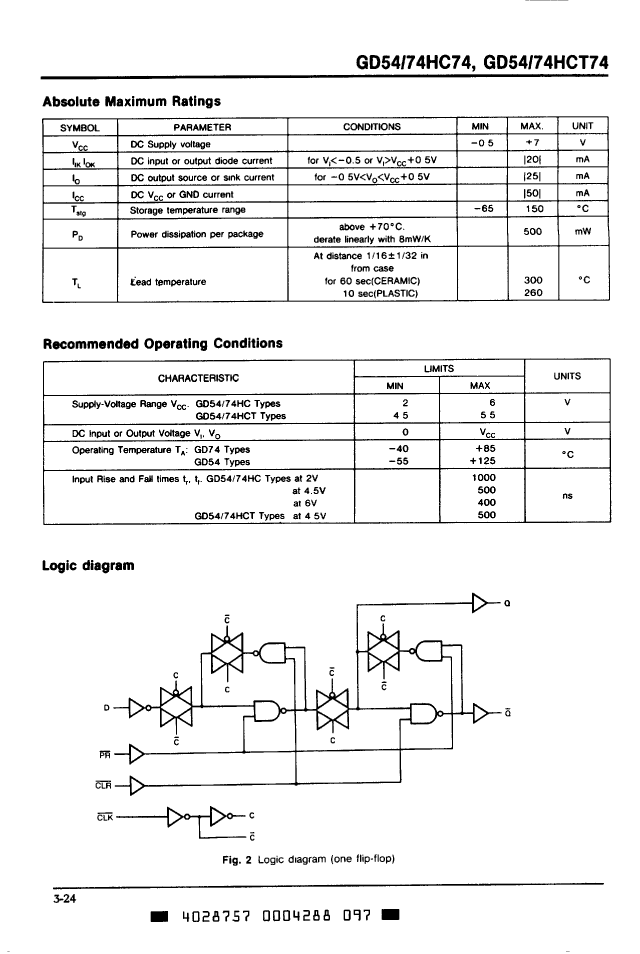

Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output polarity	COMPLEMENTARY
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE

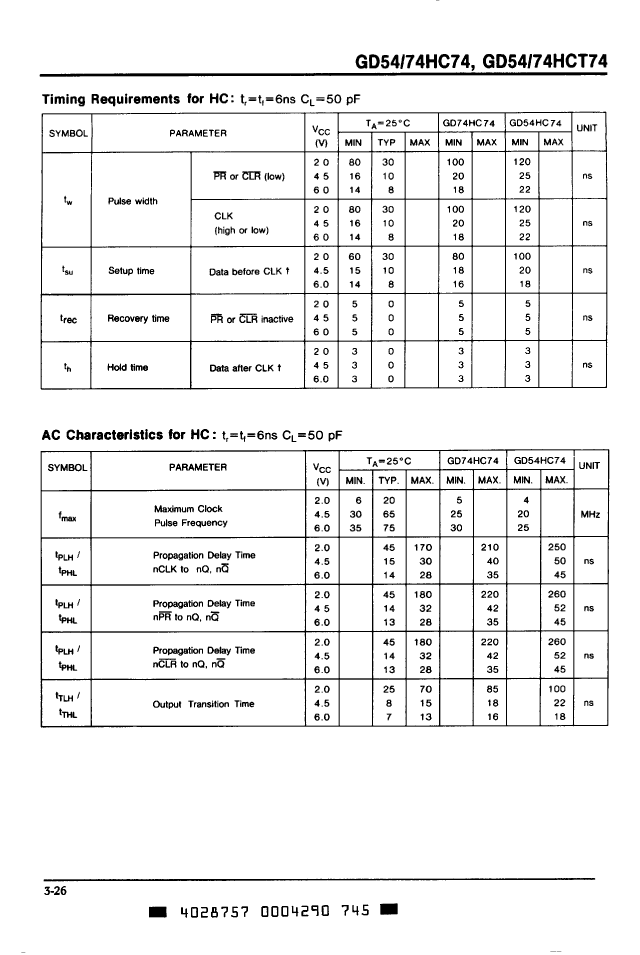

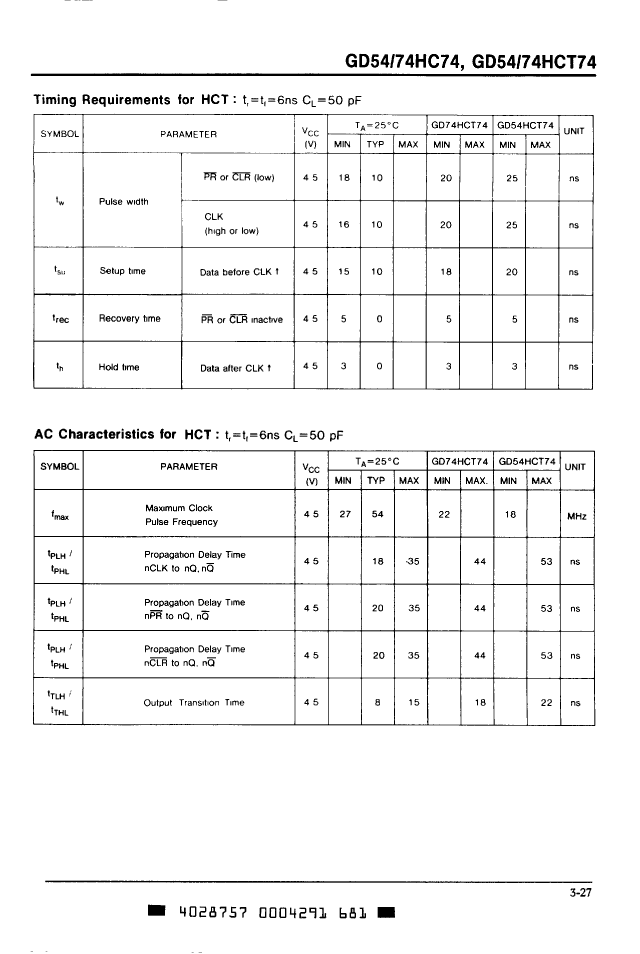

propagation delay (tpd)	44 ns

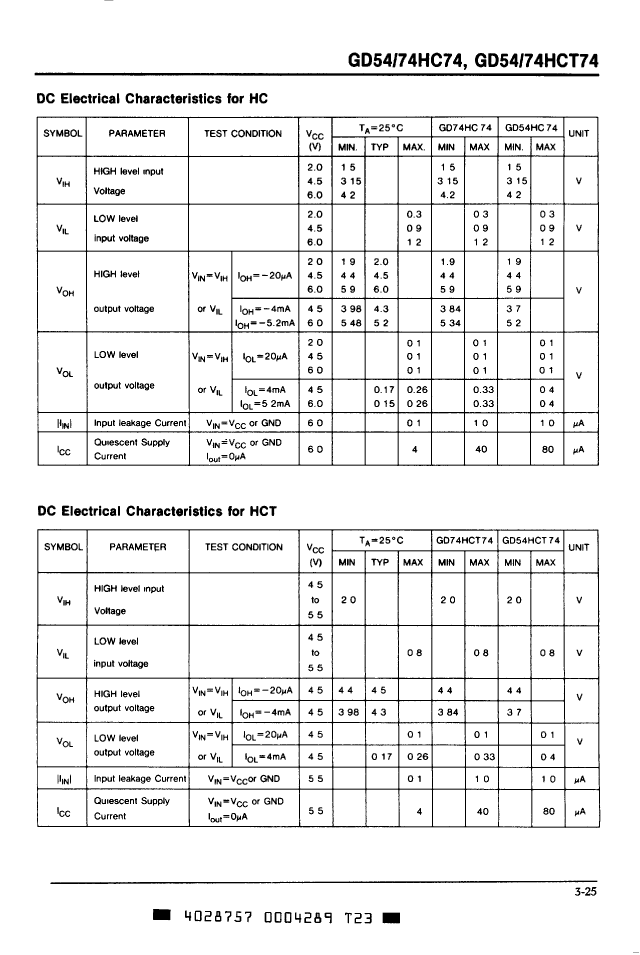

Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal location	DUAL
Trigger type	POSITIVE EDGE
minfmax	22 MHz
Base Number Matches	1

	GD74HCT74D	GD74HC74	GD74HC74D
Description	D Flip-Flop, HCT Series, 2-Func, Positive Edge Triggered, 1-Bit, Complementary Output, CMOS, PDSO14, SOP-14	D Flip-Flop, HC/UH Series, 2-Func, Positive Edge Triggered, 1-Bit, Complementary Output, CMOS, PDIP14, DIP-14	D Flip-Flop, HC/UH Series, 2-Func, Positive Edge Triggered, 1-Bit, Complementary Output, CMOS, PDSO14, SOP-14
package instruction	SOP,	DIP,	SOP,
Reach Compliance Code	unknown	unknown	unknown
series	HCT	HC/UH	HC/UH
JESD-30 code	R-PDSO-G14	R-PDIP-T14	R-PDSO-G14
Logic integrated circuit type	D FLIP-FLOP	D FLIP-FLOP	D FLIP-FLOP
Number of digits	1	1	1
Number of functions	2	2	2
Number of terminals	14	14	14
Maximum operating temperature	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C
Output polarity	COMPLEMENTARY	COMPLEMENTARY	COMPLEMENTARY
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	DIP	SOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	IN-LINE	SMALL OUTLINE
propagation delay (tpd)	44 ns	210 ns	210 ns
Maximum supply voltage (Vsup)	5.5 V	6 V	6 V
Minimum supply voltage (Vsup)	4.5 V	2 V	2 V
Nominal supply voltage (Vsup)	5 V	4.5 V	4.5 V
surface mount	YES	NO	YES
technology	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal form	GULL WING	THROUGH-HOLE	GULL WING
Terminal location	DUAL	DUAL	DUAL
Trigger type	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE
minfmax	22 MHz	30 MHz	30 MHz
Maker	-	MagnaChip	MagnaChip
