CAT28C64BJ-20 datasheet, PDF - EEWORLD Datasheet

CAT28C64BJ-20: DescriptionEEPROM, 8KX8, 200ns, Parallel, CMOS, PDSO28, 0.300 INCH, SOIC-28; Categorystorage storage; File Size314KB，10 Pages; ManufacturerCatalyst; Websitehttp://www.catalyst-semiconductor.com/

Download Datasheet Parametric View All

CAT28C64BJ-20 Overview

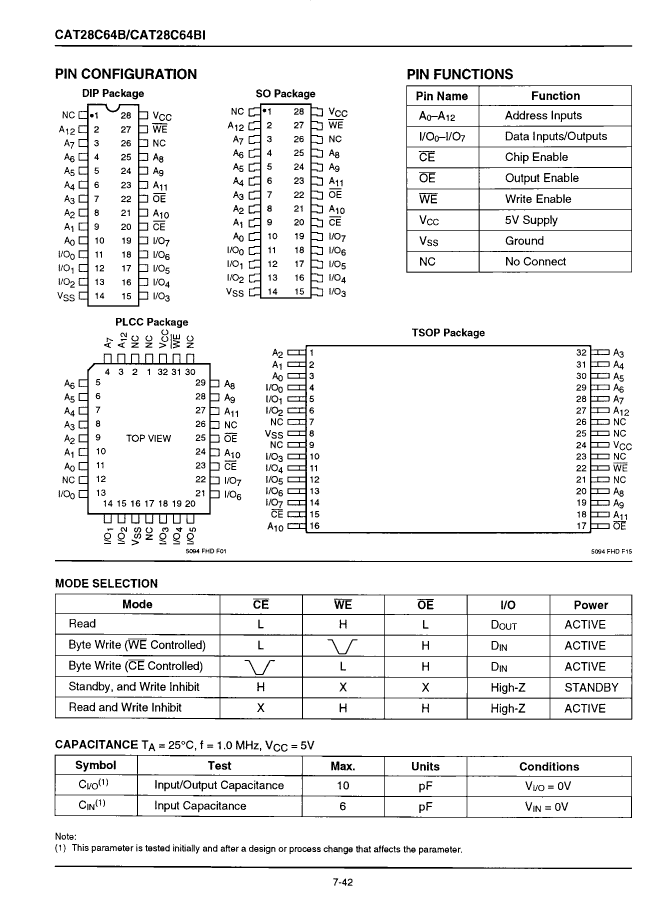

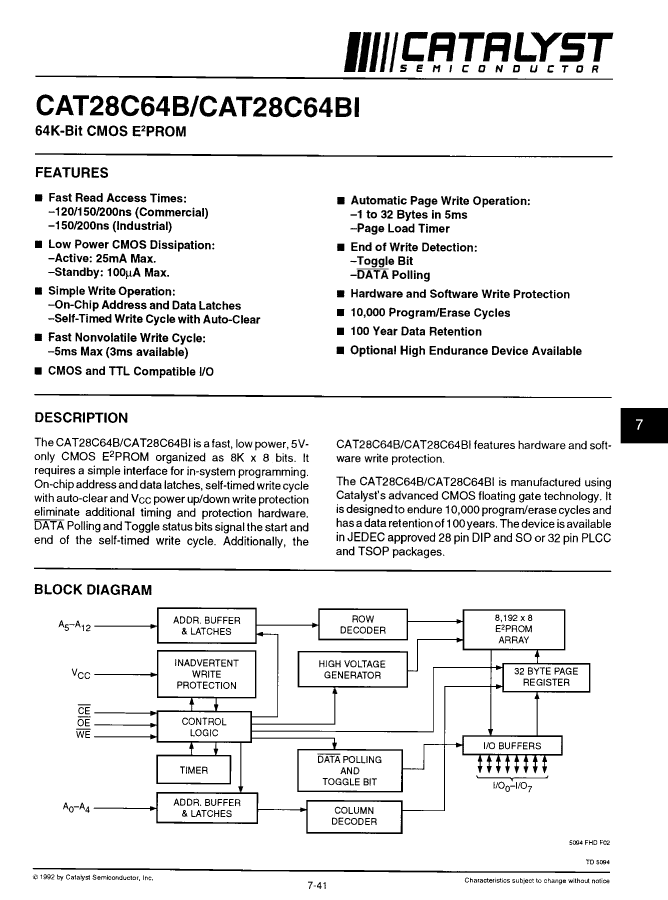

EEPROM, 8KX8, 200ns, Parallel, CMOS, PDSO28, 0.300 INCH, SOIC-28

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Parts packaging code	SOIC
package instruction	SOP, SOP28,.4
Contacts	28
Reach Compliance Code	unknow
ECCN code	EAR99

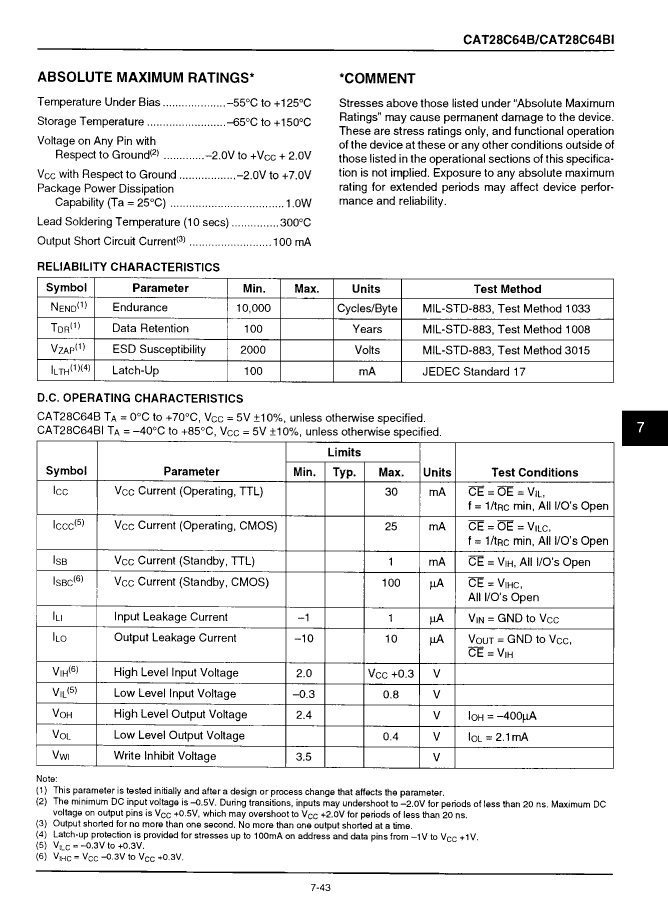

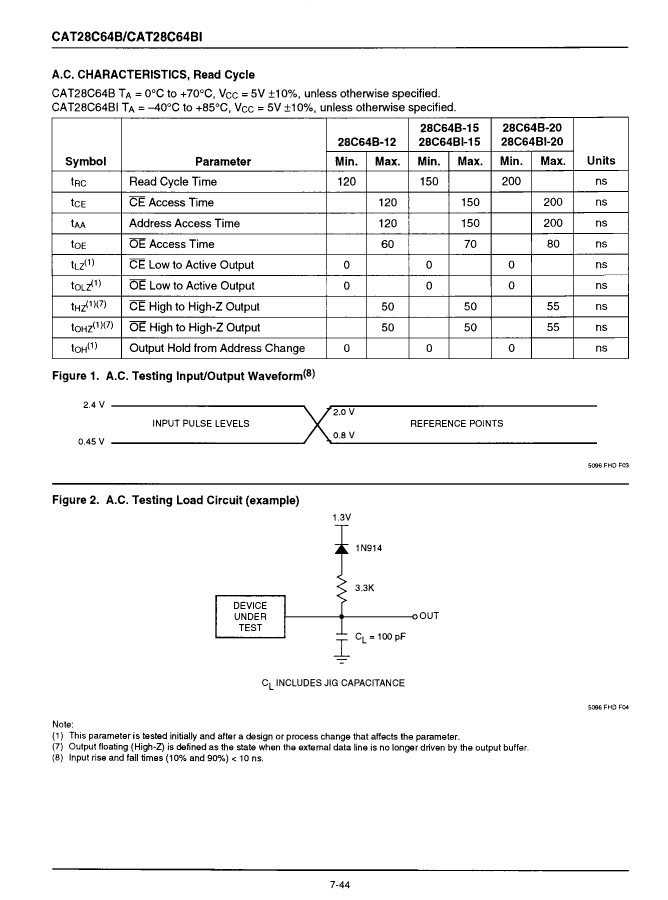

Maximum access time	200 ns
Other features	AUTOMATIC WRITE; PAGE WRITE
command user interface	NO
Data polling	YES
Durability	10000 Write/Erase Cycles
JESD-30 code	R-PDSO-G28
JESD-609 code	e0
length	17.9 mm
memory density	65536 bi
Memory IC Type	EEPROM
memory width	8
Humidity sensitivity level	1
Number of functions	1
Number of terminals	28
word count	8192 words
character code	8000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	8KX8
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP28,.4
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
page size	32 words
Parallel/Serial	PARALLEL
Peak Reflow Temperature (Celsius)	240
power supply	5 V
Programming voltage	5 V
Certification status	Not Qualified
Maximum seat height	2.65 mm
Maximum standby current	0.0001 A
Maximum slew rate	0.03 mA
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	30
switch bit	YES
width	7.5 mm

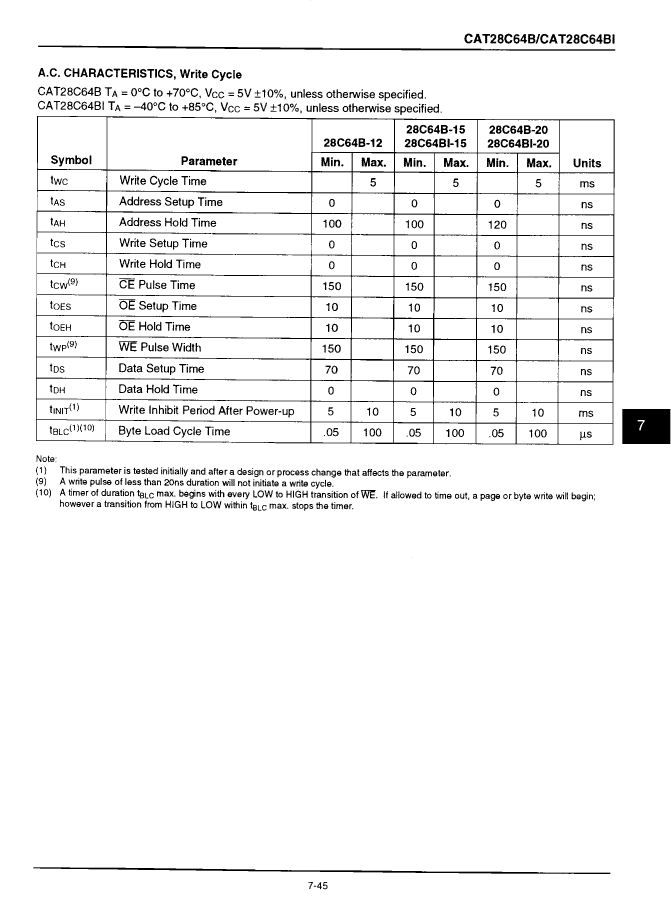

Maximum write cycle time (tWC)	5 ms
Base Number Matches	1
