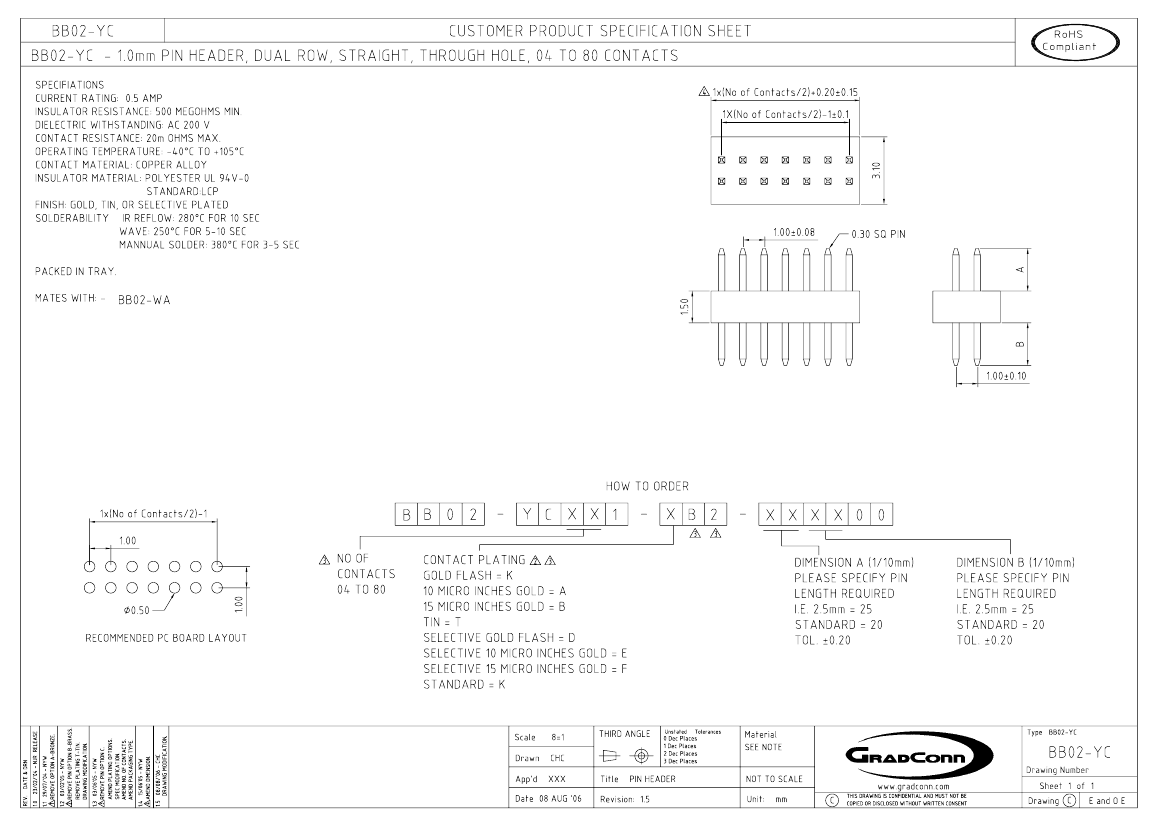

BB02-YC041-KB2-202000: DescriptionBoard Connector, 4 Contact(s), 2 Row(s), Male, Straight, 0.039 inch Pitch, Solder Terminal, Receptacle; CategoryThe connector The connector; File Size76KB，1 Pages; ManufacturerGradConn Ltd

Download Datasheet Parametric Compare View All

BB02-YC041-KB2-202000 Overview

Board Connector, 4 Contact(s), 2 Row(s), Male, Straight, 0.039 inch Pitch, Solder Terminal, Receptacle

BB02-YC041-KB2-202000 Parametric

Parameter Name	Attribute value
Maker	GradConn Ltd
Reach Compliance Code	unknown
Other features	ROHS COMPLIANT, TRAY PACKAGING
body width	0.122 inch
subject depth	0.059 inch
body length	0.087 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	GOLD
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	200VAC V
Insulation resistance	500000000 Ω
insulator material	LIQUID CRYSTAL POLYMER (LCP)
Manufacturer's serial number	BB02-YC
Plug contact pitch	0.039 inch
Match contact row spacing	0.039 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	.9906 mm
Plating thickness	FLASH inch
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.079 inch
Terminal pitch	0.9906 mm
Termination type	SOLDER
Total number of contacts	4
Base Number Matches	1

Preview

Download Datasheet

View All

BB02-YC041-KB2-202000 Related Products

	BB02-YC041-KB2-202000	BB02-YC141-KB2-202000	BB02-YC221-KB2-202000	BB02-YC161-KB2-202000	BB02-YC181-KB2-202000	BB02-YC061-KB2-202000	BB02-YC081-KB2-202000	BB02-YC101-KB2-202000
Description	Board Connector, 4 Contact(s), 2 Row(s), Male, Straight, 0.039 inch Pitch, Solder Terminal, Receptacle	Board Connector, 14 Contact(s), 2 Row(s), Male, Straight, 0.039 inch Pitch, Solder Terminal, Receptacle	Board Connector, 22 Contact(s), 2 Row(s), Male, Straight, 0.039 inch Pitch, Solder Terminal, Receptacle	Board Connector, 16 Contact(s), 2 Row(s), Male, Straight, 0.039 inch Pitch, Solder Terminal, Receptacle	Board Connector, 18 Contact(s), 2 Row(s), Male, Straight, 0.039 inch Pitch, Solder Terminal, Receptacle	Board Connector, 6 Contact(s), 2 Row(s), Male, Straight, 0.039 inch Pitch, Solder Terminal, Receptacle	Board Connector, 8 Contact(s), 2 Row(s), Male, Straight, 0.039 inch Pitch, Solder Terminal, Receptacle	Board Connector, 10 Contact(s), 2 Row(s), Male, Straight, 0.039 inch Pitch, Solder Terminal, Receptacle
Maker	GradConn Ltd	GradConn Ltd	GradConn Ltd	GradConn Ltd	GradConn Ltd	GradConn Ltd	GradConn Ltd	GradConn Ltd
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Other features	ROHS COMPLIANT, TRAY PACKAGING	ROHS COMPLIANT, TRAY PACKAGING	ROHS COMPLIANT, TRAY PACKAGING	ROHS COMPLIANT, TRAY PACKAGING	ROHS COMPLIANT, TRAY PACKAGING	ROHS COMPLIANT, TRAY PACKAGING	ROHS COMPLIANT, TRAY PACKAGING	ROHS COMPLIANT, TRAY PACKAGING
body width	0.122 inch	0.122 inch	0.122 inch	0.122 inch	0.122 inch	0.122 inch	0.122 inch	0.122 inch
subject depth	0.059 inch	0.059 inch	0.059 inch	0.059 inch	0.059 inch	0.059 inch	0.059 inch	0.059 inch
body length	0.087 inch	0.283 inch	0.441 inch	0.323 inch	0.362 inch	0.126 inch	0.165 inch	0.205 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	AU	AU	AU	AU	AU	AU	AU	AU
Contact completed and terminated	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE
Contact material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
Dielectric withstand voltage	200VAC V	200VAC V	200VAC V	200VAC V	200VAC V	200VAC V	200VAC V	200VAC V
Insulation resistance	500000000 Ω	500000000 Ω	500000000 Ω	500000000 Ω	500000000 Ω	500000000 Ω	500000000 Ω	500000000 Ω
insulator material	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER (LCP)
Manufacturer's serial number	BB02-YC	BB02-YC	BB02-YC	BB02-YC	BB02-YC	BB02-YC	BB02-YC	BB02-YC
Plug contact pitch	0.039 inch	0.039 inch	0.039 inch	0.039 inch	0.039 inch	0.039 inch	0.039 inch	0.039 inch
Match contact row spacing	0.039 inch	0.039 inch	0.039 inch	0.039 inch	0.039 inch	0.039 inch	0.039 inch	0.039 inch
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE	ONE	ONE	ONE	ONE
PCB row number	2	2	2	2	2	2	2	2
Number of rows loaded	2	2	2	2	2	2	2	2
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	.9906 mm	.9906 mm	.9906 mm	.9906 mm	.9906 mm	.9906 mm	.9906 mm	.9906 mm
Plating thickness	FLASH inch	FLASH inch	FLASH inch	FLASH inch	FLASH inch	FLASH inch	FLASH inch	FLASH inch
Rated current (signal)	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A
Guideline	UL	UL	UL	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch
Terminal pitch	0.9906 mm	0.9906 mm	0.9906 mm	0.9906 mm	0.9906 mm	0.9906 mm	0.9906 mm	0.9906 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	4	14	22	16	18	6	8	10
Base Number Matches	1	1	1	1	1	-	-	-
