Part Number

Search

BZX85C30

Description
30V, 1.3W, SILICON, UNIDIRECTIONAL VOLTAGE REGULATOR DIODE, DO-41
CategoryDiscrete semiconductor    diode
File Size115KB,4 Pages
ManufacturerSTMicroelectronics
Websitehttp://www.st.com/
Environmental Compliance
Download Datasheet Parametric Compare View All

BZX85C30 Online Shopping

Suppliers Part Number Price MOQ In stock
BZX85C30 - - View Buy Now

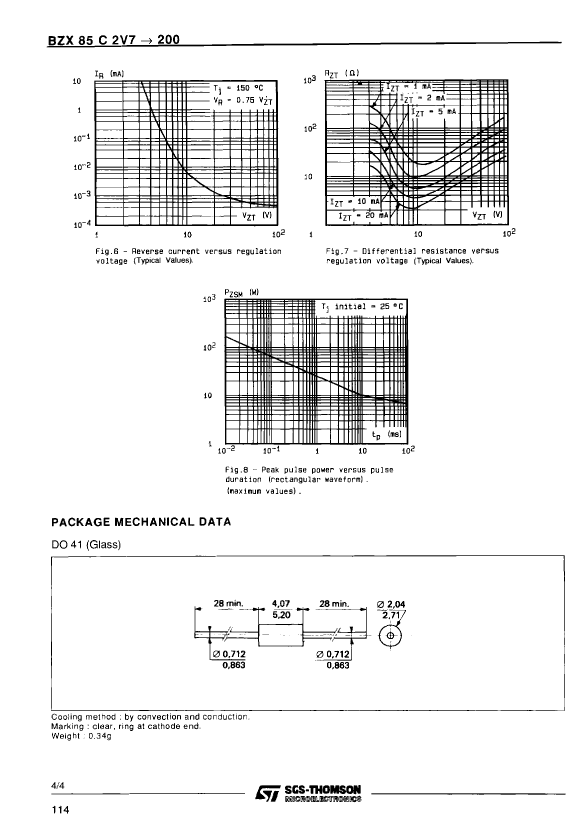

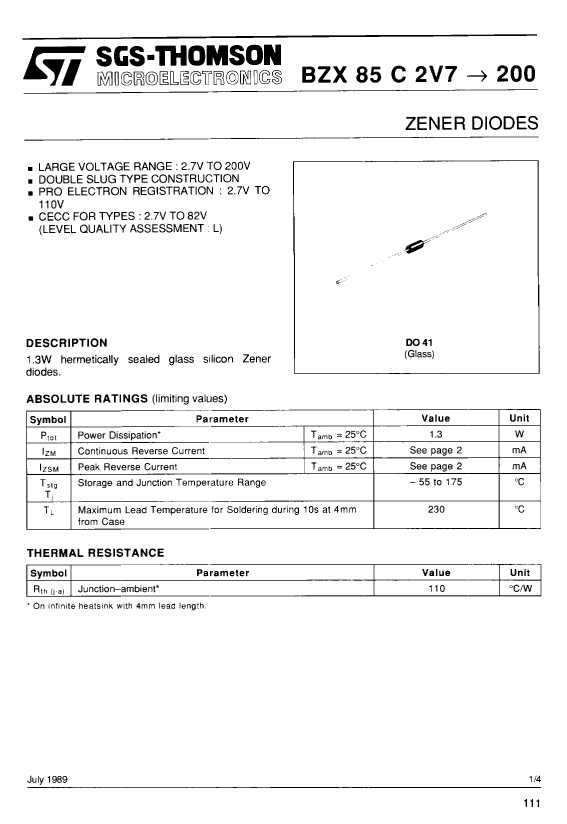

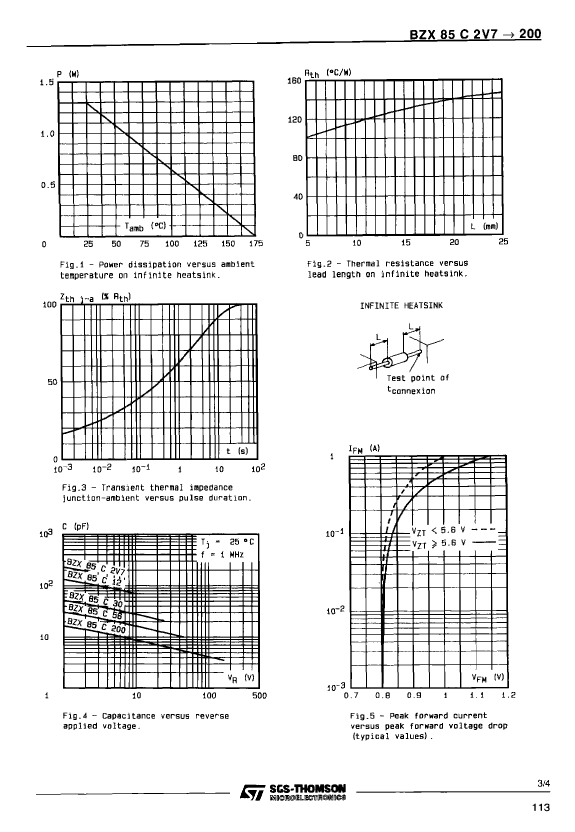

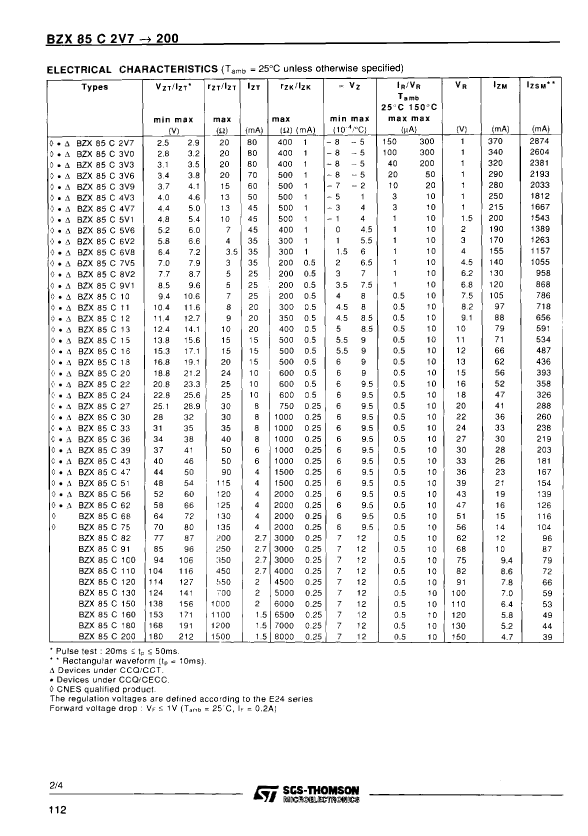

BZX85C30 Overview

30V, 1.3W, SILICON, UNIDIRECTIONAL VOLTAGE REGULATOR DIODE, DO-41

BZX85C30 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerSTMicroelectronics
Reach Compliance Codenot_compliant
ECCN codeEAR99
Shell connectionISOLATED
ConfigurationSINGLE
Diode component materialsSILICON
Diode typeZENER DIODE
Maximum dynamic impedance30 Ω
JEDEC-95 codeDO-41
JESD-30 codeO-LALF-W2
JESD-609 codee3
Maximum knee impedance1000 Ω
Number of components1
Number of terminals2
Maximum operating temperature175 °C
Minimum operating temperature-55 °C
Package body materialGLASS
Package shapeROUND
Package formLONG FORM
Peak Reflow Temperature (Celsius)NOT SPECIFIED
polarityUNIDIRECTIONAL
Maximum power dissipation1.3 W
Certification statusNot Qualified
Nominal reference voltage30 V
Maximum reverse current0.5 µA
surface mountNO
technologyZENER
Terminal surfaceMatte Tin (Sn)
Terminal formWIRE
Terminal locationAXIAL
Maximum time at peak reflow temperatureNOT SPECIFIED
Voltage temperatureCoeff-Max28.5 mV/°C
Maximum voltage tolerance5%
Working test current8 mA
Base Number Matches1

BZX85C30 Related Products

BZX85C30 BZX85C51 BZX85C36
Description 30V, 1.3W, SILICON, UNIDIRECTIONAL VOLTAGE REGULATOR DIODE, DO-41 51V, 1.3W, SILICON, UNIDIRECTIONAL VOLTAGE REGULATOR DIODE, DO-41 36V, 1.3W, SILICON, UNIDIRECTIONAL VOLTAGE REGULATOR DIODE, DO-41
Is it Rohs certified? conform to conform to conform to
Reach Compliance Code not_compliant not_compliant not_compliant
ECCN code EAR99 EAR99 EAR99
Shell connection ISOLATED ISOLATED ISOLATED
Configuration SINGLE SINGLE SINGLE
Diode component materials SILICON SILICON SILICON
Diode type ZENER DIODE ZENER DIODE ZENER DIODE
Maximum dynamic impedance 30 Ω 115 Ω 40 Ω
JEDEC-95 code DO-41 DO-41 DO-41
JESD-30 code O-LALF-W2 O-LALF-W2 O-LALF-W2
JESD-609 code e3 e3 e3
Maximum knee impedance 1000 Ω 1500 Ω 1000 Ω
Number of components 1 1 1
Number of terminals 2 2 2
Maximum operating temperature 175 °C 175 °C 175 °C
Minimum operating temperature -55 °C -55 °C -55 °C
Package body material GLASS GLASS GLASS
Package shape ROUND ROUND ROUND
Package form LONG FORM LONG FORM LONG FORM
Peak Reflow Temperature (Celsius) NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED
polarity UNIDIRECTIONAL UNIDIRECTIONAL UNIDIRECTIONAL
Maximum power dissipation 1.3 W 1.3 W 1.3 W
Certification status Not Qualified Not Qualified Not Qualified
Nominal reference voltage 30 V 51 V 36 V
Maximum reverse current 0.5 µA 0.5 µA 0.5 µA
surface mount NO NO NO
technology ZENER ZENER ZENER
Terminal surface Matte Tin (Sn) Matte Tin (Sn) Matte Tin (Sn)
Terminal form WIRE WIRE WIRE
Terminal location AXIAL AXIAL AXIAL
Maximum time at peak reflow temperature NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED
Voltage temperatureCoeff-Max 28.5 mV/°C 48.45 mV/°C 34.2 mV/°C
Maximum voltage tolerance 5% 5% 5%
Working test current 8 mA 4 mA 8 mA
Base Number Matches 1 1 1
Maker STMicroelectronics - STMicroelectronics
