SURFACE MOUNT DISPLAY
Part Number: KCSA04-123
Green
Features
0.4 inch digit height.
Low current operation.
Excellent character appearance.
Mechanically rugged.
Gray face,white segment.
Package:400pcs/ reel.
Moisture sensitivity level : level 2a.
RoHS compliant.
Description
The Green source color devices are made with AlGaInP on
GaAs substrate Light Emitting Diode.
Package Dimensions& Internal Circuit Diagram
Notes:
1. All dimensions are in millimeters (inches), Tolerance is ±0.25(0.01")unless otherwise noted.
2. The specifications, characteristics and technical data described in the datasheet are subject to change without prior notice.
3. The gap between the reflector and PCB shall not exceed 0.25mm.
SPEC NO: DSAG2193
APPROVED: WYNEC
REV NO: V.8A
CHECKED: Joe Lee
DATE: APR/07/2013
DRAWN: F.Cui
PAGE: 1 OF 5
ERP: 1351000422
Selection Guide
Part No.
Dice
Lens Type
Iv (ucd) [1]
@ 10mA
Min.
5600
KCSA04-123
Green (AlGaInP)
White Diffused
*2200
Note:
1. Luminous intensity/ luminous Flux: +/-15%.
* Luminous intensity value is traceable to the CIE127-2007 compliant national standards.
Description
Typ.
11000
*4100
Common Anode, Rt.
Hand Decimal.
Electrical / Optical Characteristics at TA=25°C
Symbol
λpeak
λD
[1]
Δλ1/2
C
V
F
[2]
I
R
Parameter
Peak Wavelength
Dominant Wavelength
Spectral Line Half-width
Capacitance
Forward Voltage
Reverse Current
Device
Green
Green
Green
Green
Green
Green
Typ.
574
570
20
15
2.1
2.5
10
Max.
Units
nm
nm
nm
pF
V
uA
Test Conditions
I
F
=20mA
I
F
=20mA
I
F
=20mA
V
F
=0V;f=1MHz
I
F
=20mA
V
R
=5V
Notes:
1. Wavelength: +/-1nm.
2. Forward Voltage: +/-0.1V.
3. Wavelength value is traceable to the CIE127-2007 compliant national standards.
Absolute Maximum Ratings at TA=25°C
Parameter
Power dissipation
DC Forward Current
Peak Forward Current [1]
Reverse Voltage
Operating / Storage Temperature
Note:
1. 1/10 Duty Cycle, 0.1ms Pulse Width.
Green
75
30
150
5
-40°C To +85°C
Units
mW
mA
mA
V
SPEC NO: DSAG2193
APPROVED: WYNEC
REV NO: V.8A
CHECKED: Joe Lee
DATE: APR/07/2013
DRAWN: F.Cui
PAGE: 2 OF 5
ERP: 1351000422

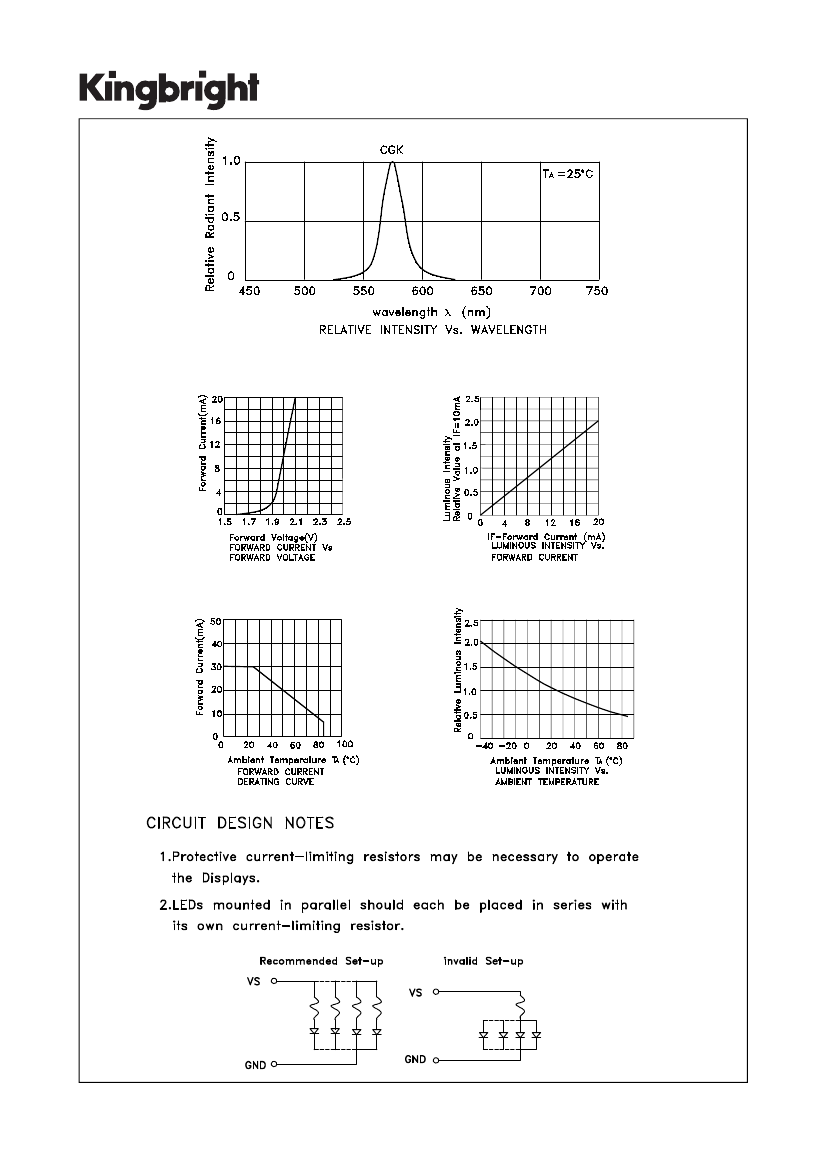

Green
KCSA04-123
SPEC NO: DSAG2193
APPROVED: WYNEC
REV NO: V.8A
CHECKED: Joe Lee
DATE: APR/07/2013
DRAWN: F.Cui
PAGE: 3 OF 5
ERP: 1351000422
KCSA04-123

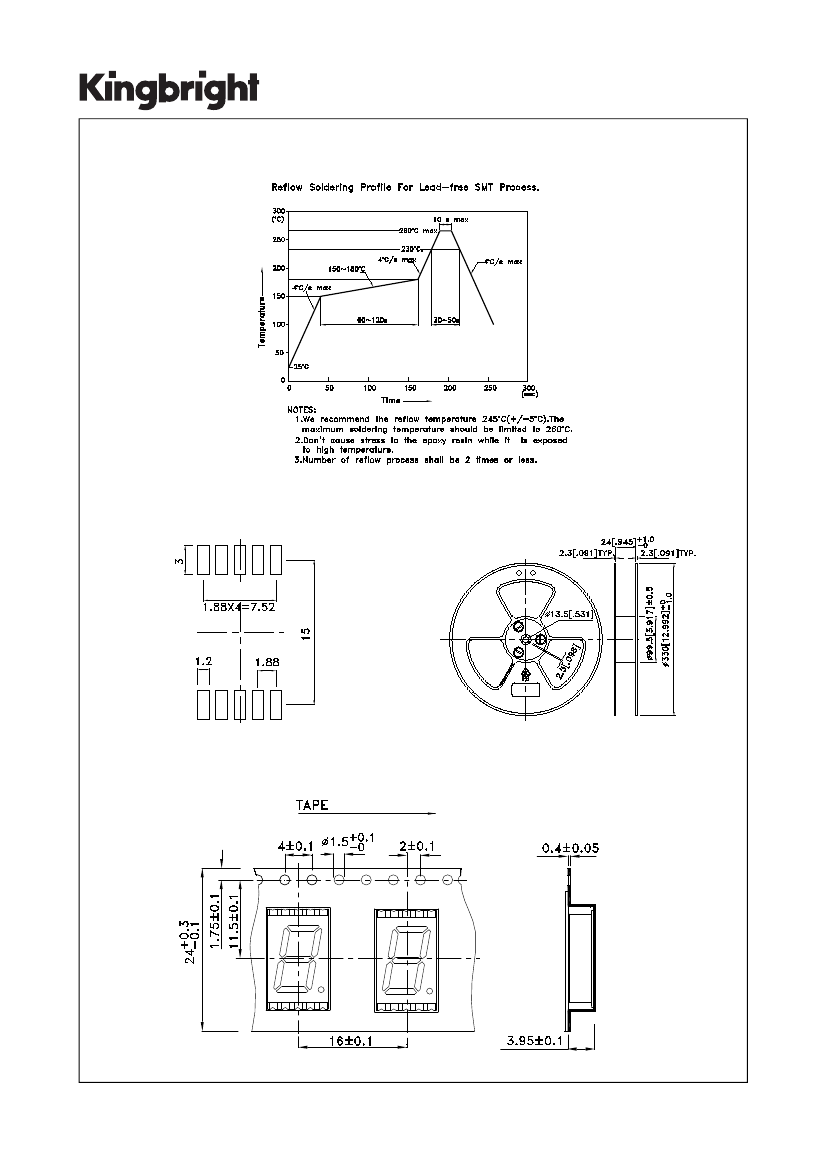

Recommended Soldering Pattern
(Units : mm; Tolerance: ± 0.15)
Reel Dimension
Tape Specifications
(Units : mm)
SPEC NO: DSAG2193
APPROVED: WYNEC
REV NO: V.8A
CHECKED: Joe Lee
DATE: APR/07/2013
DRAWN: F.Cui
PAGE: 4 OF 5
ERP: 1351000422

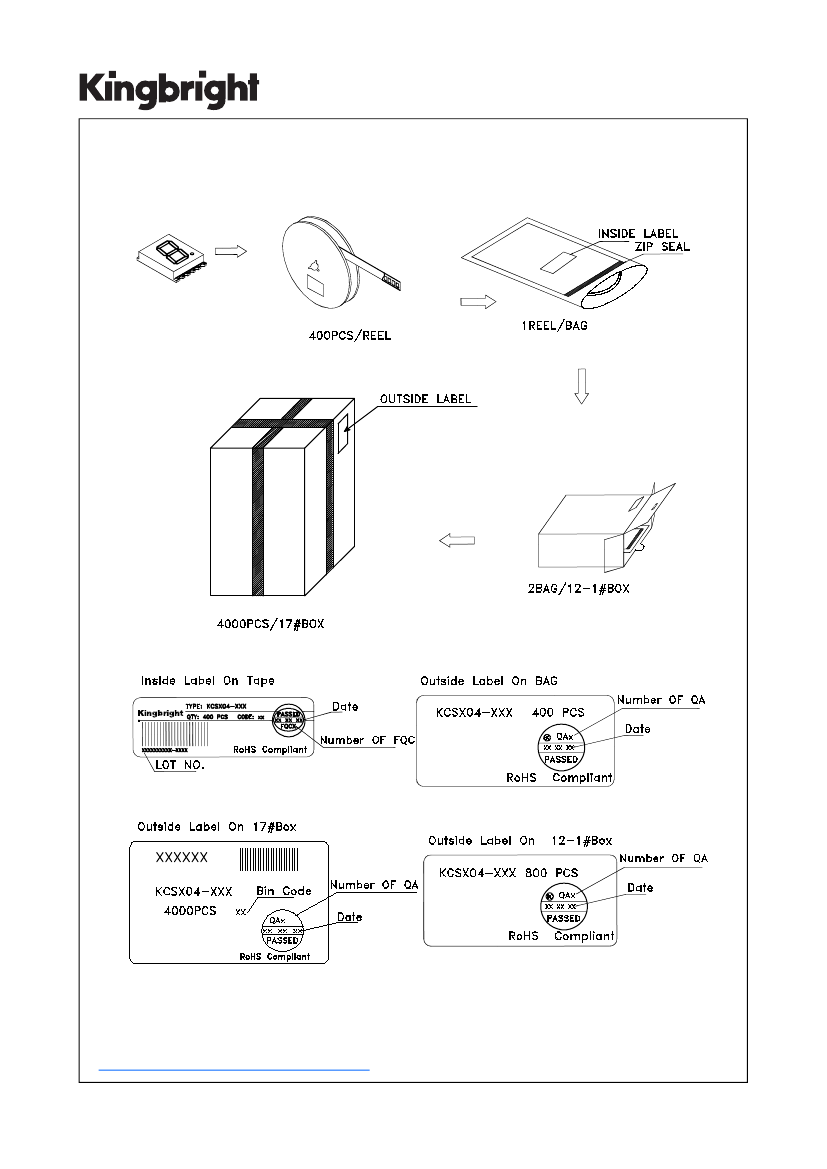

PACKING & LABEL SPECIFICATIONS
KCSA04-123
Detailed application notes are listed on our website.
http://www.kingbright.com/application_notes
SPEC NO: DSAG2193
APPROVED: WYNEC
REV NO: V.8A
CHECKED: Joe Lee
DATE: APR/07/2013
DRAWN: F.Cui
PAGE: 5 OF 5
ERP: 1351000422
