0437H03221016 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 0437H03221016

0437H03221016: DescriptionBoard Connector, 16 Contact(s), 2 Row(s), Male, Right Angle, 0.05 inch Pitch, Solder Terminal, Black Insulator, Receptacle; CategoryThe connector The connector; File Size79KB，2 Pages; ManufacturerRatioplast Electronics

Download Datasheet Parametric View All

0437H03221016 Overview

Board Connector, 16 Contact(s), 2 Row(s), Male, Right Angle, 0.05 inch Pitch, Solder Terminal, Black Insulator, Receptacle

0437H03221016 Parametric

Parameter Name	Attribute value
Maker	Ratioplast Electronics
Reach Compliance Code	compliant
Other features	ROHS COMPLIANT
body width	0.128 inch
subject depth	0.18 inch
body length	0.416 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact style	RND PIN-SKT
Insulator color	BLACK
insulator material	GLASS FILLED POLYESTER
Manufacturer's serial number	043
Plug contact pitch	0.05 inch
Match contact row spacing	0.05 inch
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	1.27 mm
Plating thickness	10u inch
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.126 inch
Terminal pitch	1.27 mm
Termination type	SOLDER
Total number of contacts	16
Base Number Matches	1

Preview

Download Datasheet

View All

Ratioplast-Electronics

Serie

Homepage: www.ratioplast.de / E-Mail: info@ratioplast.de

Tel.: +49 (0) 5741 / 23 661-0 / Fax: +49 (0) 5741 / 23 661-20

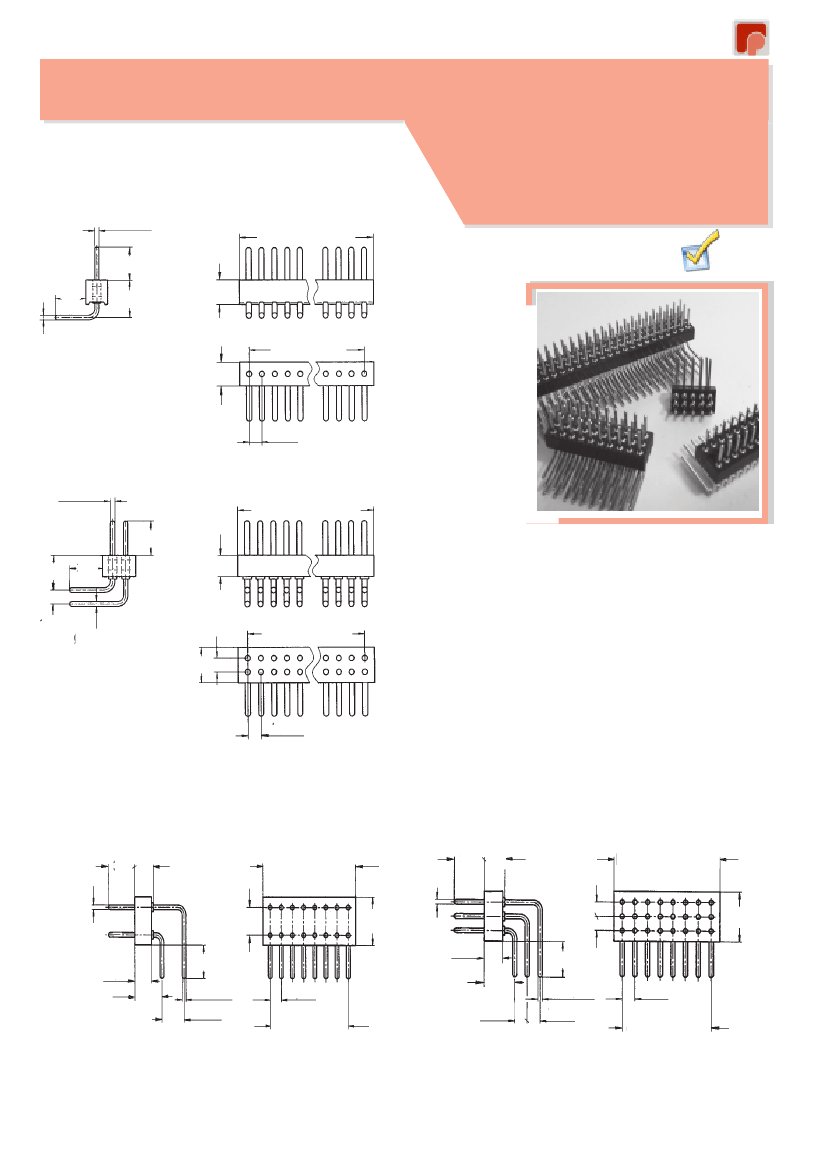

043

Ø 0,41

STIFTLEISTEN

PIN HEADERS

1-, 2-, 3-REIHIG, GEWINKELT, Raster = 1,27 mm

1-, 2-, 3-ROW, RIGHT ANGLED, Pitch = 1,27 mm

1 reihig gewinkelt -

1 row right angled

Mit Rundstift Ø 0,41 mm; zu Serie 123/128

With round pin Ø 0,41 mm;

mating series 123/128

Nx1,27+0,41

3,0

3,4

2,2

RoHs

Ø 0,41

(N-1)x1,27

2,2

2- reihig gewinkelt -

2- row right angled

1,27

Ø 0,41

(N/2)x1,27+0,41

3,0

3,1

1,27

Ø 0,41

(N/2-1)x1,27

3,25 1,27

3,2

1,9

1,27

2- reihig gewinkelt Typ „S“ -

2- row right angled typ „S“

3- reihig gewinkelt -

3- row right angled

3,0 2,1

(N/2)x1,27+0,41

Ø 0,41

3,0

2,1

(N/3)x1,27+0,41

Ø 0,41

2,54

4,42

1,9

1,27

(N/2-1)x1,27

3,1

1,27

3,2

1,27

4,42

3,2

1,9

3,1

Ø 0,41

2,54

Ø 0,41

1,27

(N/3-1)x1,27

Ratioplast-Electronics,

H.Wiedemann GmbH 2006 Sonderanfertigungen und andere Veredelungen auf Anfrage / Customer Designs and special platings on request

Die Vervielfältigung dieser Unterlagen durch Kopieren oder Nachdruck ist nur mit ausdrücklicher Genehmigung des Herausgebers gestattet.

Zuwiderhandlung verplichtet zu Schadensersatz. Design und technische Änderung vorbehalten.
