BUT11FI datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> BUT11FI

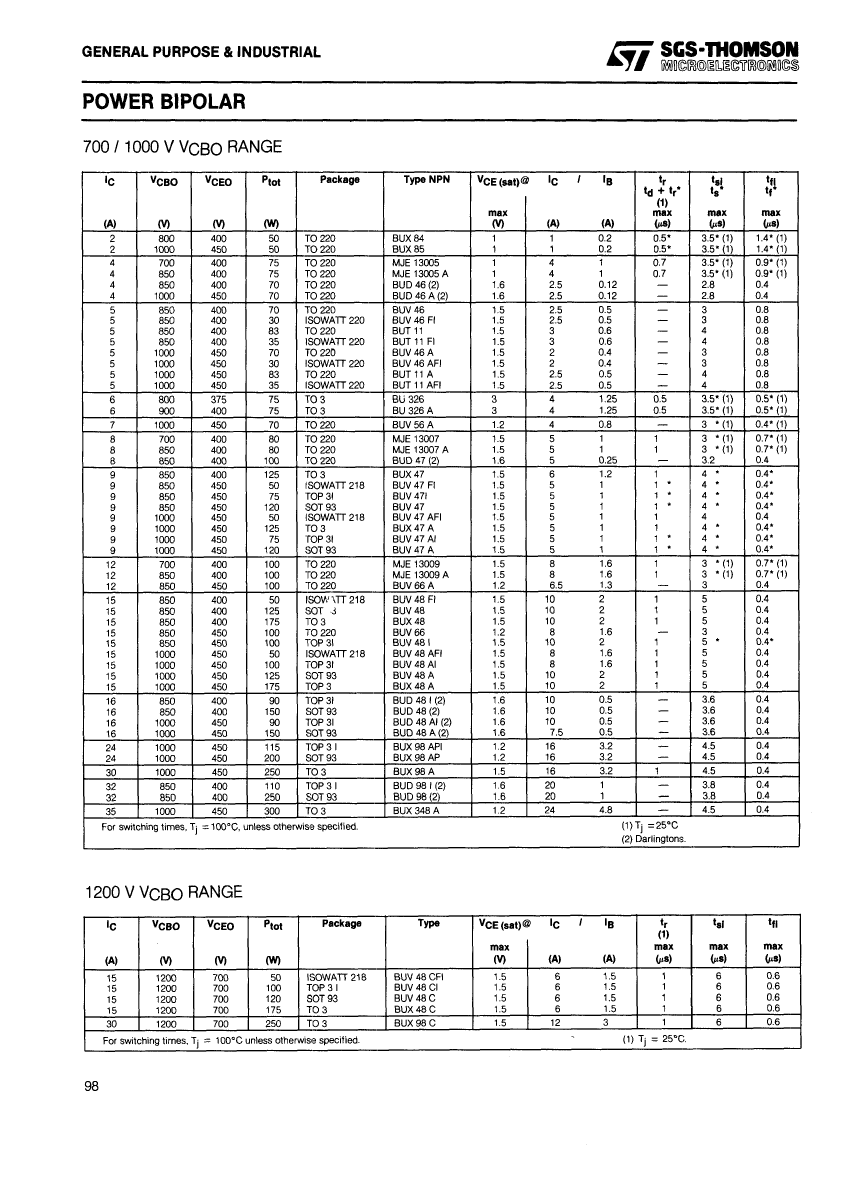

BUT11FI: Description5A, 400V, NPN, Si, POWER TRANSISTOR, TO-220, TO-220, 3 PIN; CategoryDiscrete semiconductor The transistor; File Size67KB，1 Pages; ManufacturerSTMicroelectronics; Websitehttp://www.st.com/

Download Datasheet Parametric Compare View All

BUT11FI Overview

5A, 400V, NPN, Si, POWER TRANSISTOR, TO-220, TO-220, 3 PIN

BUT11FI Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	STMicroelectronics
Parts packaging code	SFM
package instruction	TO-220, 3 PIN
Contacts	3
Reach Compliance Code	not_compliant
Shell connection	ISOLATED
Maximum collector current (IC)	5 A
Collector-emitter maximum voltage	400 V
Configuration	SINGLE
JEDEC-95 code	TO-220AB
JESD-30 code	R-PSFM-T3
JESD-609 code	e0
Number of components	1
Number of terminals	3
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Polarity/channel type	NPN
Maximum power consumption environment	35 W
Maximum power dissipation(Abs)	83 W
Certification status	Not Qualified
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED
transistor applications	SWITCHING
Transistor component materials	SILICON
Maximum off time (toff)	4800 ns
Maximum opening time (tons)	1000 ns
VCEsat-Max	1.5 V
Base Number Matches	1

Preview

Download Datasheet

View All

BUT11FI Related Products

	BUT11FI	BUV66	BUV46AFI	BUV47	BUV47FI	BUV48FI	BU326	BUX47A	BUV46FI
Description	5A, 400V, NPN, Si, POWER TRANSISTOR, TO-220, TO-220, 3 PIN	15A, 450V, NPN, Si, POWER TRANSISTOR, TO-220, TO-220, 3 PIN	5A, 450V, NPN, Si, POWER TRANSISTOR, TO-220, TO-220, 3 PIN	9A, 400V, NPN, Si, POWER TRANSISTOR, TO-218	9A, 400V, NPN, Si, POWER TRANSISTOR, TO-218	15A, 400V, NPN, Si, POWER TRANSISTOR, TO-218	6A, 400V, NPN, Si, POWER TRANSISTOR, TO-3	9A, 450V, NPN, Si, POWER TRANSISTOR, TO-3	5A, 400V, NPN, Si, POWER TRANSISTOR, TO-220, TO-220, 3 PIN
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	conform to
Reach Compliance Code	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant
Maximum collector current (IC)	5 A	15 A	5 A	9 A	9 A	15 A	6 A	9 A	5 A
Collector-emitter maximum voltage	400 V	450 V	450 V	400 V	400 V	400 V	400 V	450 V	400 V
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
JEDEC-95 code	TO-220AB	TO-220AB	TO-220AB	TO-218	TO-218	TO-218	TO-3	TO-3	TO-220AB
JESD-30 code	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3	O-MBFM-P2	O-MBFM-P2	R-PSFM-T3
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0	e3
Number of components	1	1	1	1	1	1	1	1	1
Number of terminals	3	3	3	3	3	3	2	2	3
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C	125 °C	200 °C	175 °C	150 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	METAL	METAL	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	ROUND	ROUND	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Polarity/channel type	NPN	NPN	NPN	NPN	NPN	NPN	NPN	NPN	NPN
Maximum power consumption environment	35 W	100 W	30 W	100 W	55 W	65 W	75 W	125 W	30 W
Maximum power dissipation(Abs)	83 W	100 W	30 W	120 W	55 W	65 W	75 W	125 W	70 W
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Matte Tin (Sn)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	PIN/PEG	PIN/PEG	THROUGH-HOLE
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	BOTTOM	BOTTOM	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
transistor applications	SWITCHING	SWITCHING	SWITCHING	SWITCHING	SWITCHING	SWITCHING	SWITCHING	SWITCHING	SWITCHING
Transistor component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Maximum off time (toff)	4800 ns	3400 ns	3800 ns	3300 ns	3300 ns	3800 ns	4000 ns	3800 ns	3800 ns
VCEsat-Max	1.5 V	1.2 V	5 V	3 V	3 V	5 V	3 V	3 V	5 V
Maker	STMicroelectronics	STMicroelectronics	STMicroelectronics	-	-	-	STMicroelectronics	STMicroelectronics	STMicroelectronics
package instruction	TO-220, 3 PIN	TO-220, 3 PIN	TO-220, 3 PIN	-	-	FLANGE MOUNT, R-PSFM-T3	-	-	TO-220, 3 PIN
Shell connection	ISOLATED	-	ISOLATED	-	ISOLATED	COLLECTOR	COLLECTOR	COLLECTOR	ISOLATED
Maximum opening time (tons)	1000 ns	-	1000 ns	800 ns	800 ns	1000 ns	500 ns	700 ns	1000 ns
Base Number Matches	1	1	1	1	1	1	-	-	-
