B49-012-020-HJBAA

Description
Rectangular Power Connector, 12 Contact(s), Male, Solder Terminal, Plug
CategoryThe connector    The connector
File Size88KB,2 Pages
ManufacturerMitsumi Electric Co., Ltd.
Download Datasheet Parametric View All

B49-012-020-HJBAA Overview

Rectangular Power Connector, 12 Contact(s), Male, Solder Terminal, Plug

B49-012-020-HJBAA Parametric

Parameter NameAttribute value
Reach Compliance Codeunknown
ECCN codeEAR99
Body/casing typePLUG
Connector typeRECTANGULAR POWER CONNECTOR
Contact to complete cooperationTIN (118)
Contact completed and terminatedTIN (118)
Contact point genderMALE
Contact materialNOT SPECIFIED
DIN complianceNO
empty shellNO
Filter functionNO
IEC complianceNO
JESD-609 codee3
MIL complianceNO
Manufacturer's serial numberCAM-B49
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsYES
Installation typeBOARD
OptionsGENERAL PURPOSE
Shell materialGLASS FILLED POLYBUTYLENE TEREPHTHALATE
Termination typeSOLDER
Total number of contacts12
UL Flammability Code94V-0
Base Number Matches1

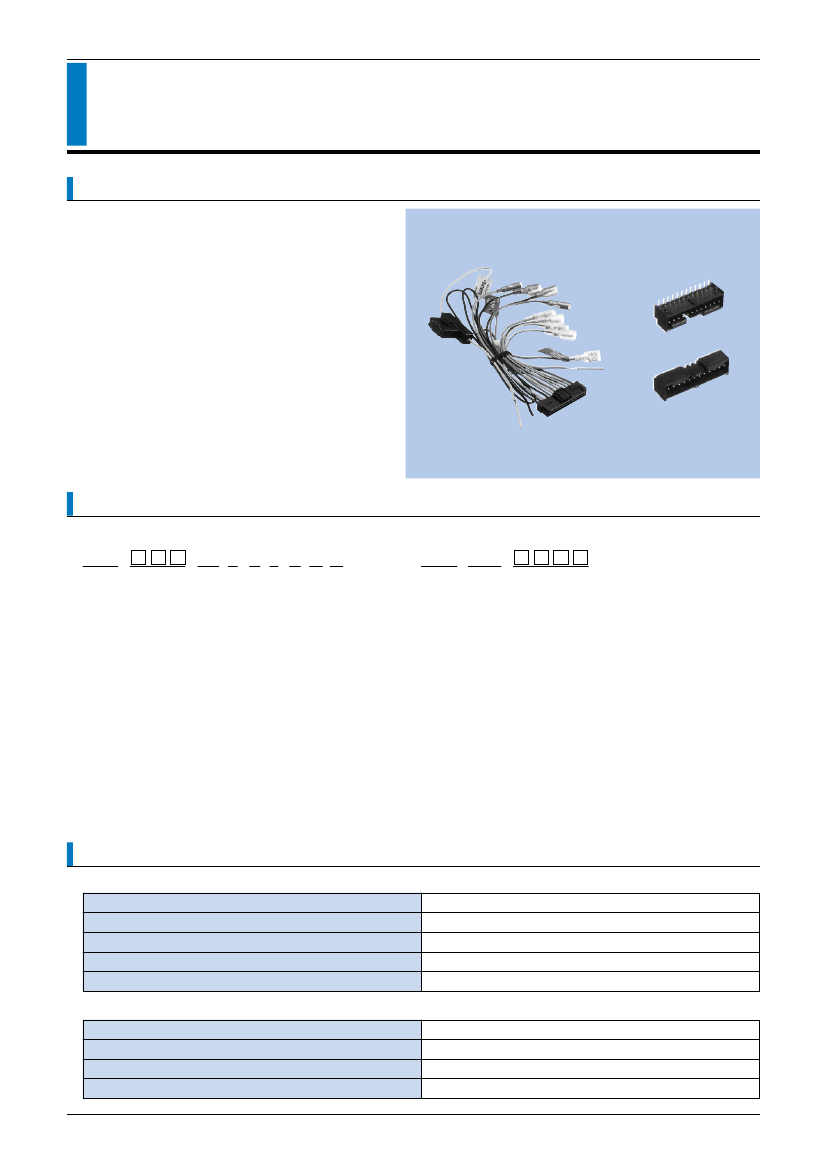

MITSUMI
Power Supply Voltage & Signal
CAM-B49, CCM-B50 Series
Connectors
FEATURES
1. 12 pin and 15 pin power connector of an angle
type on the plug side.
2. The lock device ensures secure fitting.
3. This type is common to both power and signal
contact pins.
CAM-B49(Plug)
CCM-B50(Socket)
HOW TO ORDER
1. CAM-B49 Series (Plug)
2. CCM-B50 Series (Socket)
B49-
1
1
2
3
4
5
6
7
8
9
2
-02 0- I J B A A
3
4
5 6 7
8 9
B50-012-
1
2
3
1 Series No.
2 No. of contacts (012 : 12pins)
3 Running No. assigned by us
Series No.
No. of contacts (012 : 12pins, 015 : 15pins)
Housing material (02 : PBT resin)
Housing UL grade (0 : UL94V-0)
Contact plating (I : Tin reflow plating)
Contact plating thickness (J : 3.0µm)
Contact tail style (B : Angle)
Accessory for connector outside (A : None)
Accessory for connector inside (A : None)

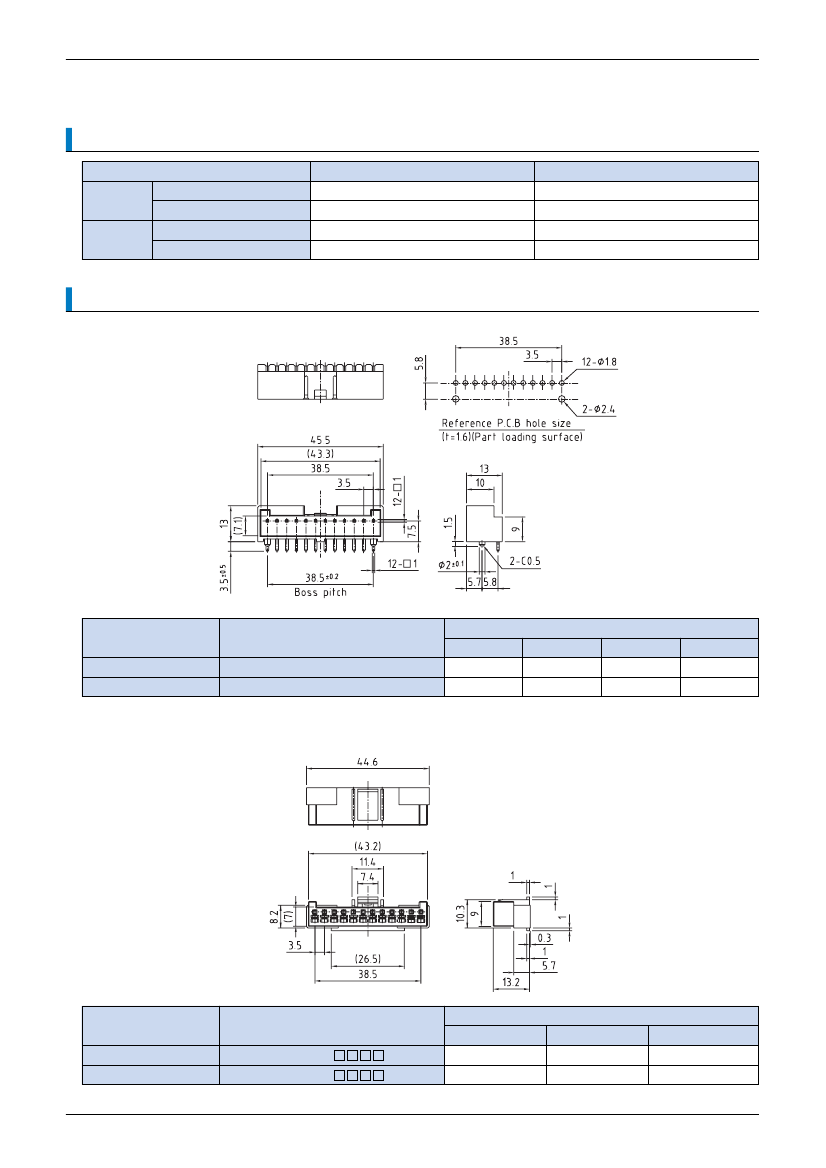

SPECIFICATIONS
ELECTRICAL CHARACTERISTICS
Rated Voltage
Rated Current
Withstanding Voltage
Insulation Resistance
Contact Resistance
MECHANICAL CHARACTERISTICS
Life (Matching Cycle)
Total Insertion Force
Total Withdrawal Force
Using Temperature Range
30 times
117.6N (12kgf) max.
7.06N (0.72kgf) min.
-35~+85˚C
14V DC
10A
500V AC (rms) 1minute
100MΩ min. (at 500V DC)
70mΩ max.
