B53-055-1258A datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> B53-055-1258A

B53-055-1258A: DescriptionBoard Connector, 55 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal; CategoryThe connector The connector; File Size94KB，2 Pages; ManufacturerMitsumi Electric Co., Ltd.

Download Datasheet Parametric View All

B53-055-1258A Overview

Board Connector, 55 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal

B53-055-1258A Parametric

Parameter Name	Attribute value
Maker	Mitsumi Electric Co., Ltd.
Reach Compliance Code	unknown
Other features	TERMINAL PITCH FOR POWER CONTACTS: 5.08 MM
Connector type	BOARD CONNECTOR
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	CPM-B53
Mixed contacts	YES
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	55
Base Number Matches	1

Preview

Download Datasheet

View All

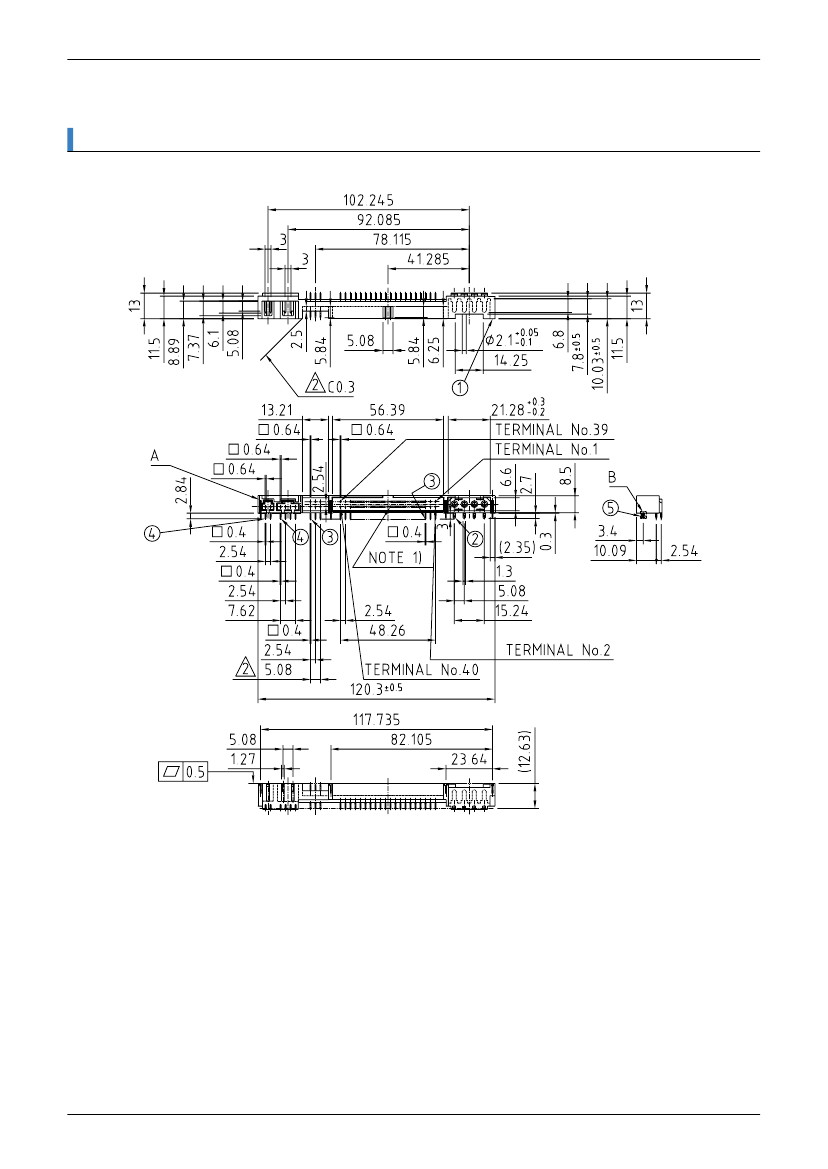

MITSUMI

2.54mm Density Hybrid Pin Header Connectors

CPM-B53 Series

Connectors

FEATURES

1. These connectors are designed to integrate

those for power supply, Interface, changeover,

audio signals, and digital signals.

2. Fixed by the earth lock pin.

3. I/F block is designed for 39 pins (1 pin

disconnected).

HOW TO ORDER

B53-055-1258A

1 Series No.

2 No. of contacts

3 Running No. assigned by us

SPECIFICATIONS

ELECTRICAL CHARACTERISTICS

Rated Voltage

Rated Current

Withstanding Voltage

Insulation Resistance

Contact Resistance

Signal terminal : 3A (Power supply Terminal : 10A)

3A (Power supply 10A)

1,000V AC (rms) 1minute

1,000MΩ min. (at 500V DC)

30mΩ max. (at 1mA)

MATERIAL & FINISH

Component Parts

Housing

Contact (Power Supply area)

Contact (I/F selector area)

Contact (Audio and digital signal area)

Board Locks

Material

Glass filled PBT resin

Copper Alloy

Finish

——

Tin reflow plating

Gold selective plating

Solder plating

Tin reflow plating
