54FCT241DMQB datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> 54FCT241DMQB

54FCT241DMQB: DescriptionBus Driver, FCT Series, 2-Func, 4-Bit, True Output, CMOS, CDIP20, CERAMIC, DIP-20; Categorylogic logic; File Size111KB，5 Pages; ManufacturerRochester Electronics; Websitehttps://www.rocelec.com/

Download Datasheet Parametric Compare View All

54FCT241DMQB Overview

Bus Driver, FCT Series, 2-Func, 4-Bit, True Output, CMOS, CDIP20, CERAMIC, DIP-20

54FCT241DMQB Parametric

Parameter Name	Attribute value
package instruction	DIP,
Reach Compliance Code	unknown
Other features	OUTPUT ENABLE ACTIVE HIGH FOR ONE FUNCTION
series	FCT
JESD-30 code	R-GDIP-T20
length	24.51 mm
Logic integrated circuit type	BUS DRIVER
Number of digits	4
Number of functions	2
Number of ports	2
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
propagation delay (tpd)	9 ns
Maximum seat height	5.08 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	7.62 mm
Base Number Matches	1

Preview

Download Datasheet

View All

54FCT241 Octal Buffer/Line Driver with TRI-STATE Outputs

August 1998

54FCT241

Octal Buffer/Line Driver with TRI-STATE

Outputs

General Description

The FCT241 is an octal buffer and line driver with 3-STATE

outputs designed to be employed as a memory and address

driver, clock driver, or bus-oriented transmitter/receiver.

Features

TTL input and output level compatible

CMOS power consumption

Non-inverting buffers

Output sink capability of 48 mA, source capability of

12 mA

Ordering Code

Military

54FCT241DMQB

54FCT241FMQB

54FCT241LMQB

Package Number

J20A

W20A

E20A

20-Lead Cerpack

20-Lead Ceramic Leadless Chip Carrier, Type C

Pin Names

–I

–O

0–3

Description

Output Enable Input (Active Low)

Output Enable Input (Active High)

Inputs

Outputs

0–3

4–7

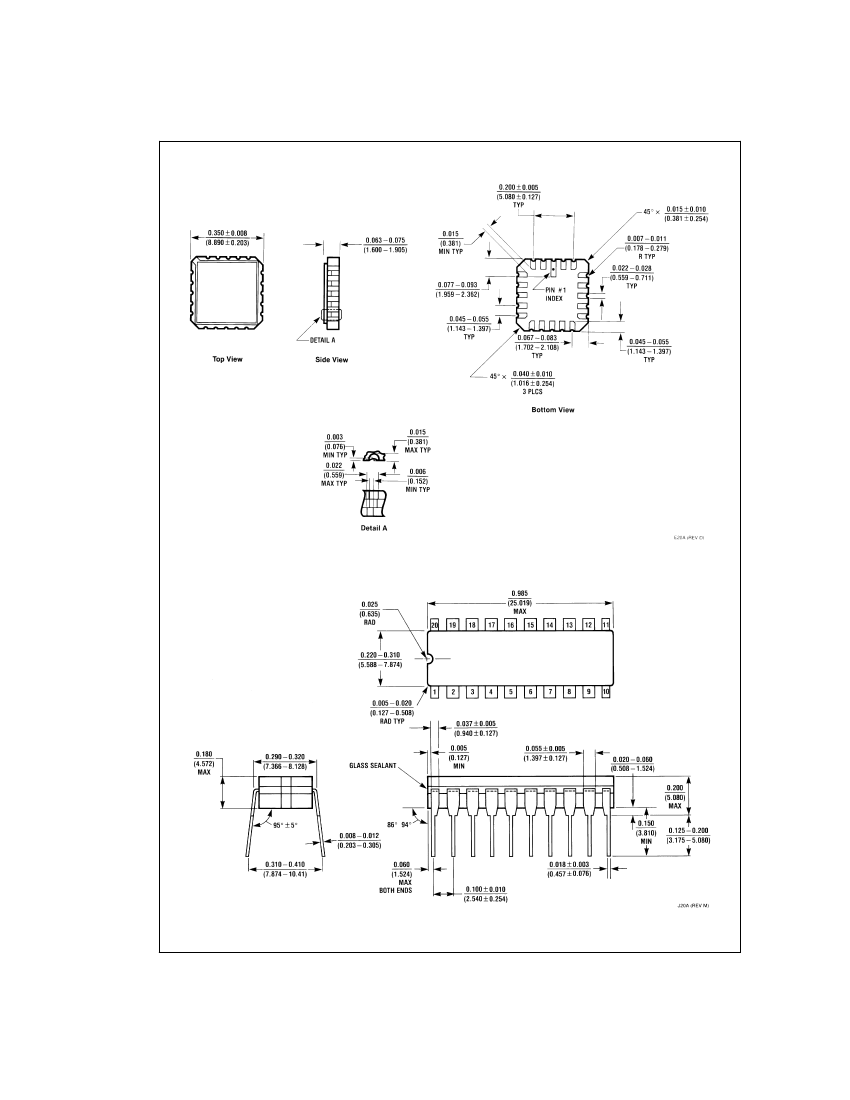

Package Description

20-Lead Ceramic Dual-In-Line

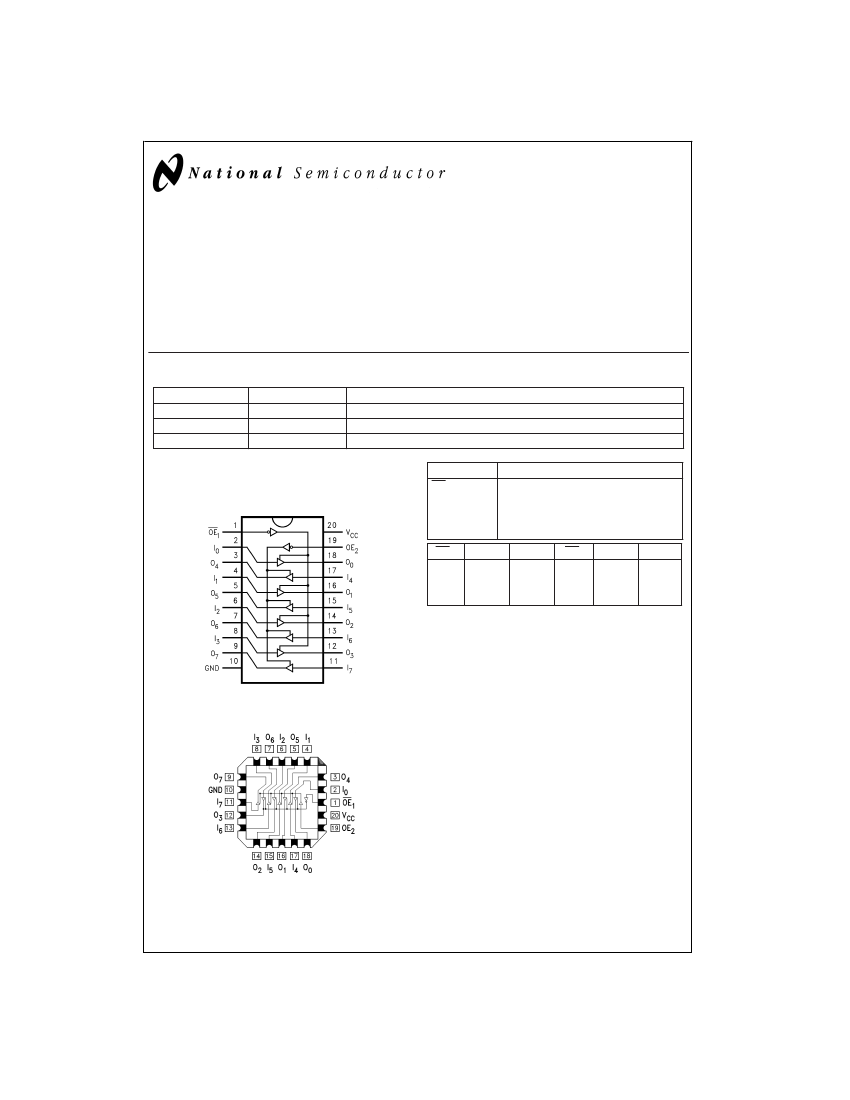

Connection Diagram

Pin Assignment for

DIP and Cerpack

H = HIGH Voltage Level

L = LOW Voltage Level

X = Immaterial

Z = High Impedance

DS100954-1

Pin Assignment for LCC

DS100954-4

TRI-STATE

is a registered trademark of National Semiconductor Corporation.

DS100954

www.national.com

54FCT241DMQB Related Products

	54FCT241DMQB	54FCT241LMQB
Description	Bus Driver, FCT Series, 2-Func, 4-Bit, True Output, CMOS, CDIP20, CERAMIC, DIP-20	Bus Driver, FCT Series, 2-Func, 4-Bit, True Output, CMOS, CQCC20, CERAMIC, LCC-20
package instruction	DIP,	QCCN,
Reach Compliance Code	unknown	unknown
Other features	OUTPUT ENABLE ACTIVE HIGH FOR ONE FUNCTION	OUTPUT ENABLE ACTIVE HIGH FOR ONE FUNCTION
series	FCT	FCT
JESD-30 code	R-GDIP-T20	S-CQCC-N20
length	24.51 mm	8.89 mm
Logic integrated circuit type	BUS DRIVER	BUS DRIVER
Number of digits	4	4
Number of functions	2	2
Number of ports	2	2
Number of terminals	20	20
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C
Output characteristics	3-STATE	3-STATE
Output polarity	TRUE	TRUE
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP	QCCN
Package shape	RECTANGULAR	SQUARE
Package form	IN-LINE	CHIP CARRIER
propagation delay (tpd)	9 ns	9 ns
Maximum seat height	5.08 mm	1.905 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	NO	YES
technology	CMOS	CMOS
Temperature level	MILITARY	MILITARY
Terminal form	THROUGH-HOLE	NO LEAD
Terminal pitch	2.54 mm	1.27 mm
Terminal location	DUAL	QUAD
width	7.62 mm	8.89 mm
Base Number Matches	1	1
