7-1462000-0 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> relay> 7-1462000-0

7-1462000-0: DescriptionRF RELAY, DPDT, MOMENTARY, 0.012A (COIL), 24VDC (COIL), 300mW (COIL), 2A (CONTACT), 220VDC (CONTACT), 900MHz, THROUGH HOLE-STRAIGHT MOUNT, ROHS COMPLIANT; CategoryMechanical and electronic products relay; File Size102KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

7-1462000-0 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	7-1462000-0	-	-	View	Buy Now

7-1462000-0 Overview

RF RELAY, DPDT, MOMENTARY, 0.012A (COIL), 24VDC (COIL), 300mW (COIL), 2A (CONTACT), 220VDC (CONTACT), 900MHz, THROUGH HOLE-STRAIGHT MOUNT, ROHS COMPLIANT

7-1462000-0 Parametric

Parameter Name	Attribute value
Brand Name	CII
Is it Rohs certified?	conform to
Maker	TE Connectivity
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	17 weeks 3 days
Other features	RELEASE TIME TAKEN WITH DIODE
body width	10 mm
body height	11 mm
Body length or diameter	20.2 mm
Maximum coil current (DC)	0.012 A
Coil operating voltage (DC)	16.5 V
Coil power	300 mW
Coil release voltage (DC)	2.4 V
Coil resistance	2060 Ω
Maximum coil voltage (DC)	24 V
Coil/Input Power Type	DC
Contact (AC) maximum rated R load	2A@250VAC
Maximum contact current (AC)	2 A
Maximum contact current (DC)	2 A
Contact (DC) maximum rated R load	2A@220VDC
Maximum contact voltage (AC)	250 V
Maximum contact voltage (DC)	220 V
Contact/Output Power Type	AC/DC
Electrical life	200000 Cycle(s)
Maximum insertion loss	-0.02 dB
Maximum isolation	-31.8 dB
Manufacturer's serial number	1462000
Installation features	THROUGH HOLE-STRAIGHT MOUNT
operating hours	10 ms
Maximum operating frequency	900 MHz
Minimum operating frequency	100 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
method of packing	TUBE
physical size	20.2mm X 10mm X 11mm
Guideline	UL
Relay action	MOMENTARY
Relay function	DPDT
Relay type	RF RELAY
release time	11 ms
seal	IP67; RT3
surface mount	NO
switching time	21 ms
Termination type	SOLDER
voltage standing wave ratio	1.03
Base Number Matches	1

Preview

Download Datasheet

View All

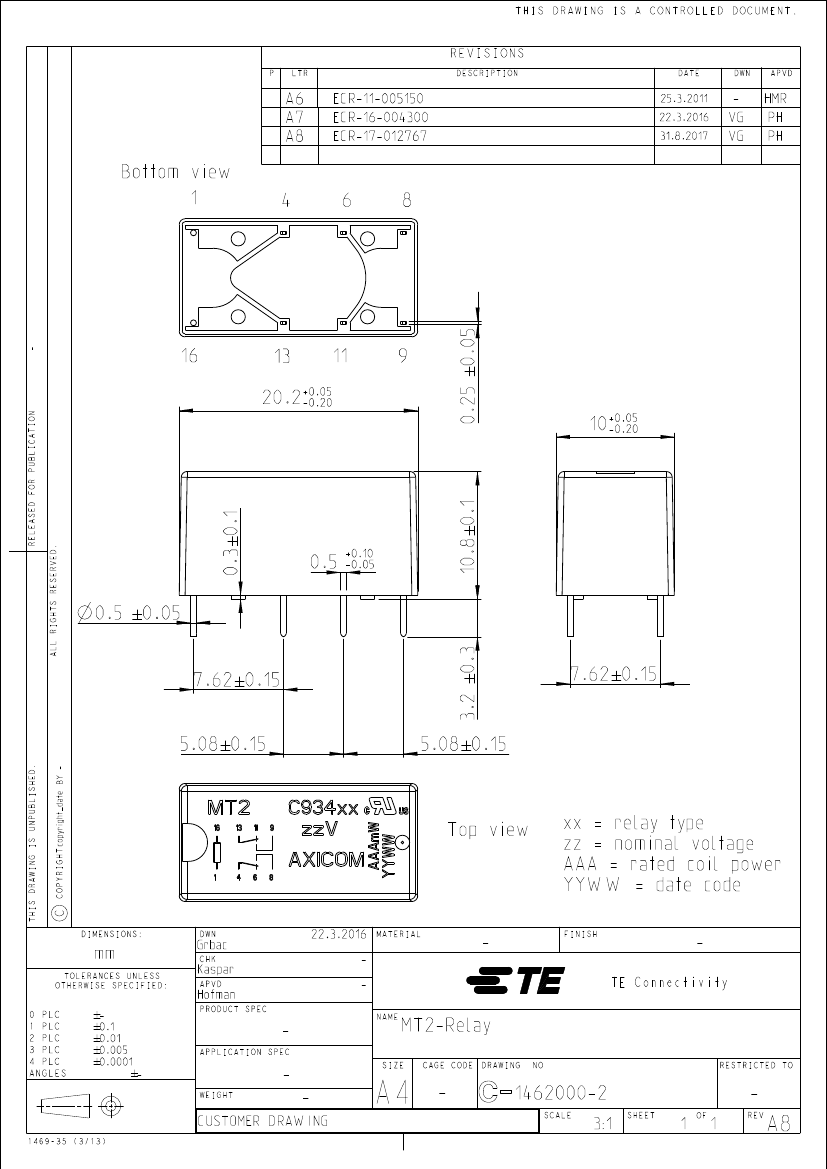

THIS DRAWING IS A CONTROLLED DOCUMENT.

REVISIONS

LTR

DESCRIPTION

DATE

DWN

APVD

ECR-11-005150

ECR-16-004300

ECR-17-012767

25.3.2011

22.3.2016

31.8.2017

HMR

Bottom view

RELEASED FOR PUBLICATION

20.2

+0.05

-0.20

0.25

0.05

+0.05

-0.20

0.3 0.1

0.5

-0.05

+0.10

0.5

0.05

3.2

0.3

7.62 0.15

5.08 0.15

7.62 0.15

THIS DRAWING IS UNPUBLISHED.

5.08 0.15

copyright_date -

10.8 0.1

Top view

xx = relay type

zz = nominal voltage

AAA = rated coil power

YYWW = date code

FINISH

DIMENSIONS:

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

Grbac

Kaspar

Hofman

APVD

PRODUCT SPEC

CHK

DWN

22.3.2016

MATERIAL

TE Connectivity

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

0.1

0.01

0.005

0.0001

APPLICATION SPEC

NAME

MT2-Relay

CAGE CODE DRAWING

RESTRICTED TO

WEIGHT

CUSTOMER DRAWING

1469-35 (3/13)

SIZE

1462000-2

SCALE

3:1

SHEET

REV
