M39016/13-056M

Description
Power/Signal Relay, DPDT, Momentary, 0.057A (Coil), 12VDC (Coil), 686mW (Coil), 2A (Contact), DC Input, AC/DC Output, Through Hole-Straight Mount
CategoryMechanical and electronic products    relay
File Size166KB,4 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Download Datasheet Parametric View All

M39016/13-056M Overview

Power/Signal Relay, DPDT, Momentary, 0.057A (Coil), 12VDC (Coil), 686mW (Coil), 2A (Contact), DC Input, AC/DC Output, Through Hole-Straight Mount

M39016/13-056M Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerTE Connectivity
Reach Compliance Codeunknown
ECCN codeEAR99
Maximum coil current (DC)0.057 A
Coil power686 mW
Coil resistance210 Ω
Maximum coil voltage (DC)12 V
Coil/Input Power TypeDC
Maximum contact current (AC)2 A
Maximum contact current (DC)2 A
Contact/Output Power TypeAC/DC
Installation featuresTHROUGH HOLE-STRAIGHT MOUNT
Maximum operating temperature125 °C
Minimum operating temperature-65 °C
Relay actionMOMENTARY
Relay functionDPDT
Relay typePOWER/SIGNAL RELAY
sealHERMETICALLY SEALED
surface mountNO
Termination typeSOLDER
Base Number Matches1
9/6/2017
3SBC1517A2 = M39016/13-056M: 2-1617072-6 CII | TE Connectivity
TE Connectivity: Every Connection Counts
© 2017 TE Connectivity Ltd. family of companies. All Rights Reserved
Relays, Contactors & Switches
>
Relays
>
Mil-Aero Relays
>
1/5-Size Relays
TE CONNECTIVITY (TE)

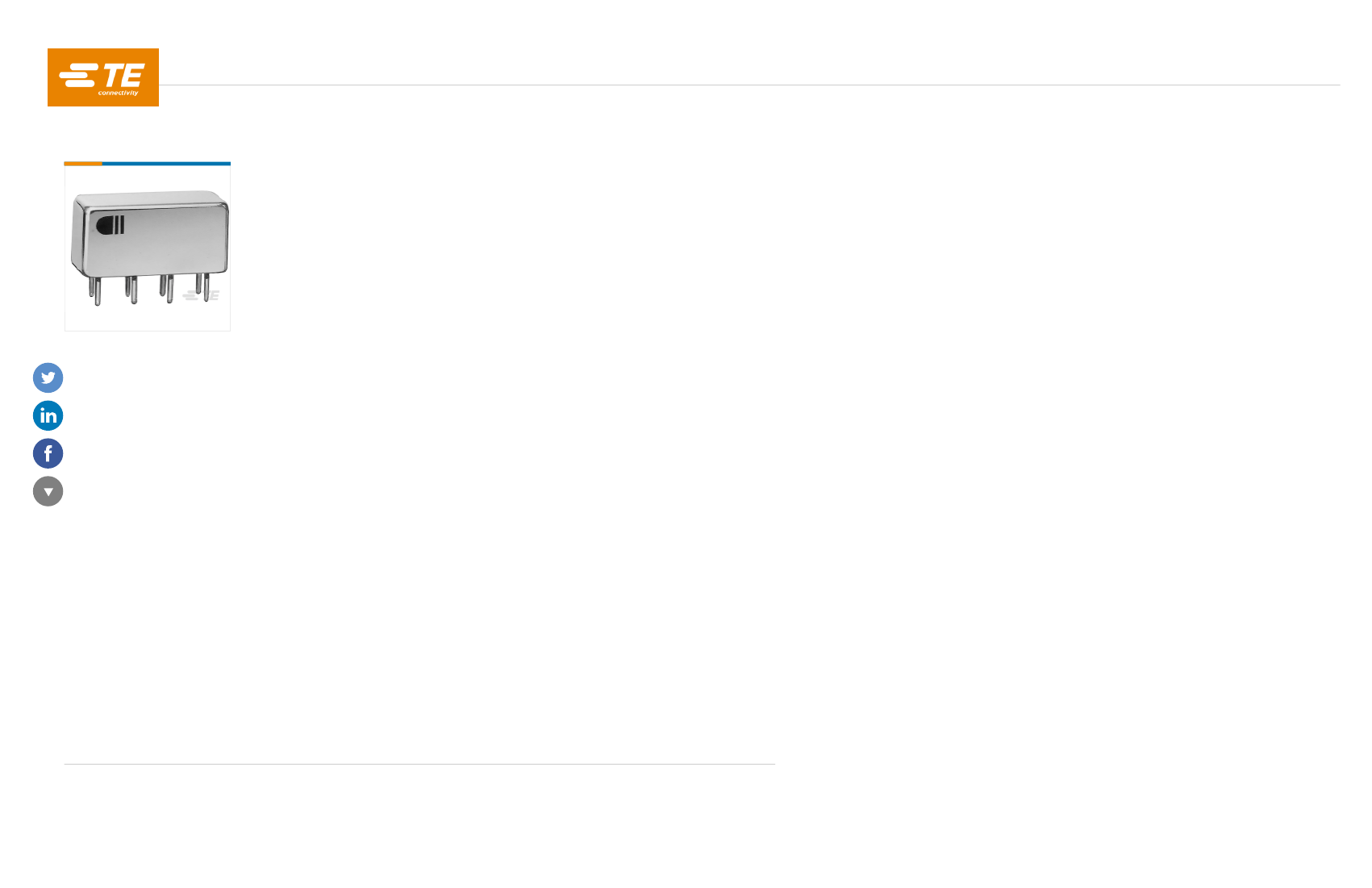

3SBC1517A2 = M39016/13-056M
CII
|
3SBC 1/5-Size Relay
3SBC1517A2
TE Internal Number: 2-1617072-6
Mil-Spec: M39016/13-056M
Not EU RoHS Compliant
Not EU ELV Compliant
Contact Arrangement
2 Form C, DPDT, 2 C/O
Active
Input Voltage (VDC)
12
Coil Suppression Diode
Without
Contact Current Rating (A)
2
Coil Voltage Rating (VDC)
12
3D PDF
CAD Files
3D PDF
PDF
3D
Customer View Model
2D_DXF.ZIP
English
Customer View Model
3D_IGS.ZIP
English
Customer View Model
3D_STP.ZIP
English
Catalog Pages/Data Sheets
RELAY
PDF
English
http://www.te.com/usa-en/product-2-1617072-6.html#pdp-docs-features
