460-40-234-00-001000 Overview

IC Socket, DIP34, 34 Contact(s), ROHS COMPLIANT

460-40-234-00-001000 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Mill-Max
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Contact to complete cooperation	MATTE TIN (200) OVER NICKEL (150)
Contact completed and terminated	Matte Tin (Sn) - with Nickel (Ni) barrier
Contact material	NOT SPECIFIED
Device slot type	IC SOCKET
Type of equipment used	DIP34
JESD-609 code	e3
Number of contacts	34
Base Number Matches	1

Preview

Download Datasheet

View All

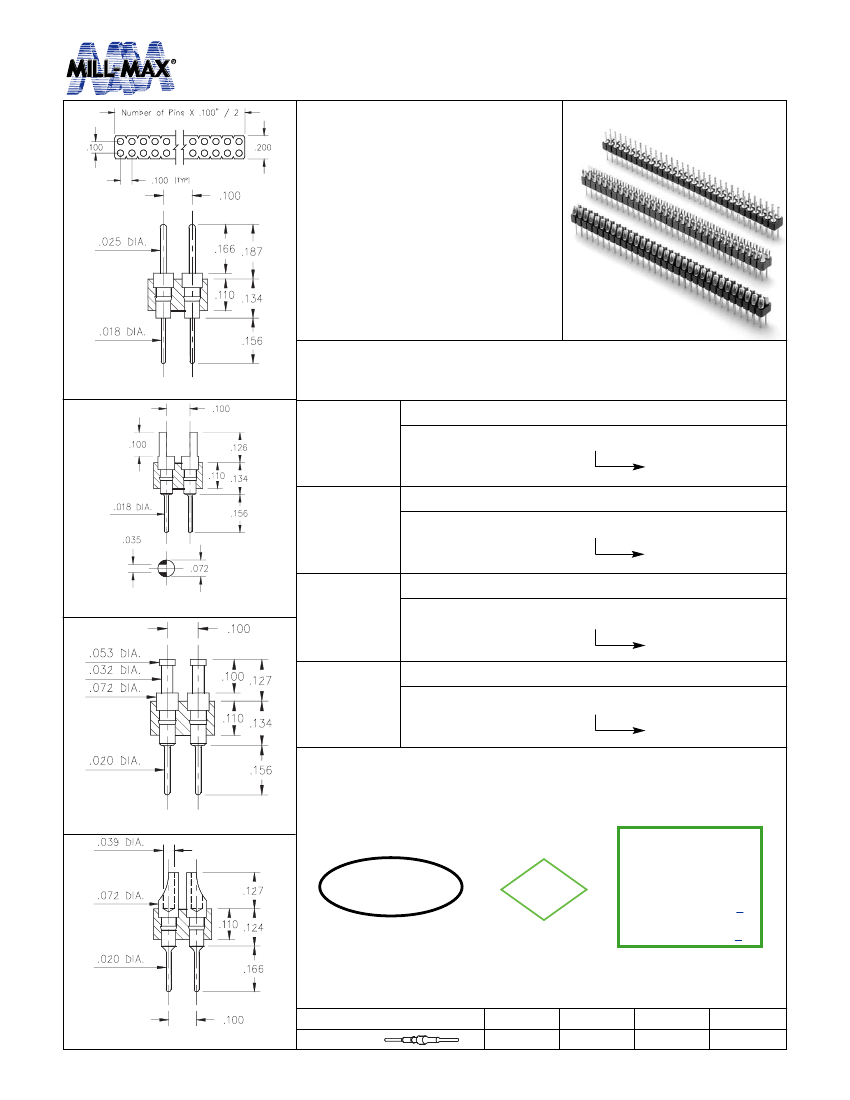

HEADER STRIPS

Solder Tail

Double Row

Series 450, 460

470, 480

•

Series 450, 460, 470, 480 double

row Header Strips come with

various contacts (pin, slotted

head, turret and solder cup) with

pluggable solder tails.

(M-M# 0290, 0282, 0700, or 8000

see pages 173 & 174 for details).

Ordering Information

Fig. 1

Series 450...001

Pin / Solder Tail

450-XX-2_ _-00-001000

Specify # of pins

02-64

Fig. 2

Series 460...001

Slotted Head / Solder Tail

460-XX-2_ _-00-001000

Specify # of pins

02-64

Fig. 2

Fig. 3

Series 470...001

Turret / Solder Tail

470-XX-2_ _-00-001000

Specify # of pins

02-64

Fig. 4

Series 480...001

Solder Cup / Solder Tail

480-XX-2_ _-00-001000

Specify # of pins

02-64

Fig. 3

For RoHS compliance,

select plating code.

For the gold option

(XX=10) also change

part number from

4X0-XX-2XX-00-001000

to

4X0-10-2XX-00-001100

XX=Plating Code

See Below

SPECIFY PLATING CODE XX=

10

10μ” Au

90

200μ” Sn/Pb

40

200μ” Sn

Fig. 4

Pin Plating

w w w. m i l l - m a x . c o m

64

516-922-6000
