TECHNICAL DATA SHEET
Reverse
SMA
RIGHT ANGLE PLUG
REVERSE POLARITY
32RS247-302F3

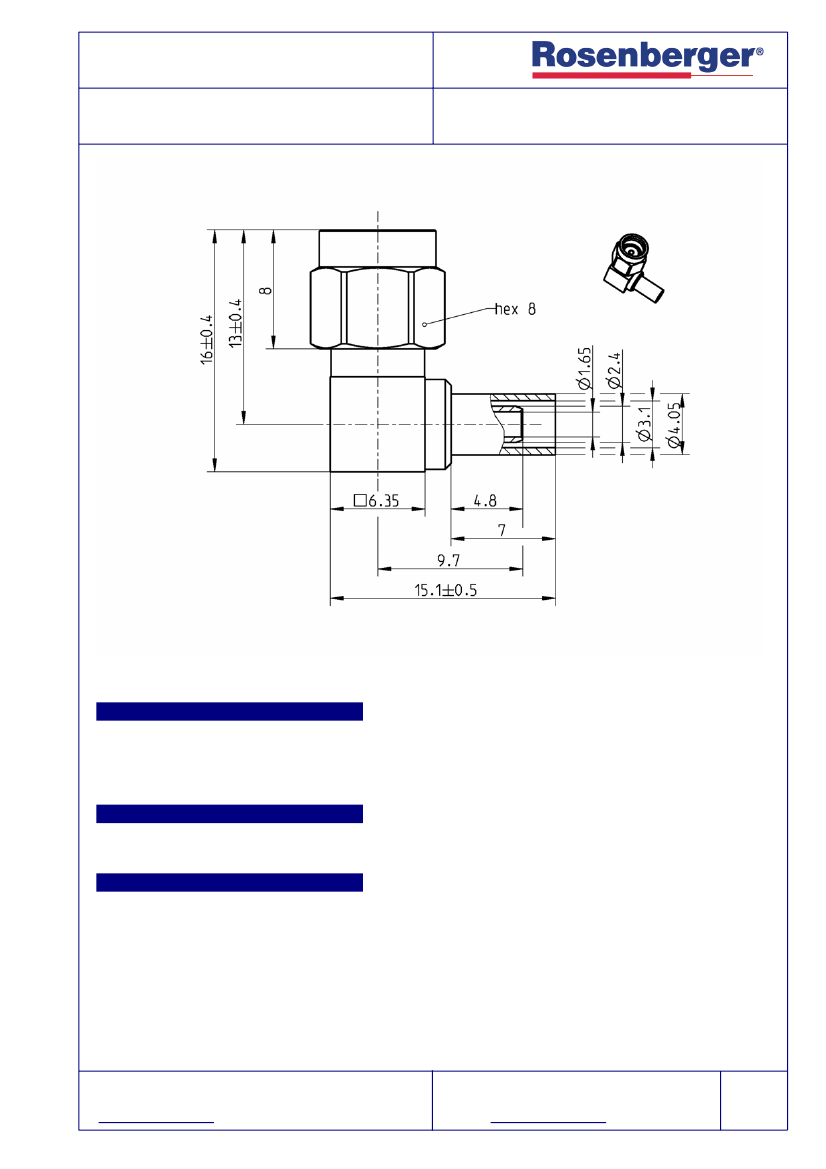

All dimensions are in mm; tolerances according to ISO 2768 m-H
Interface
According to
Derived from
Compliant with
Rosenberger 32RS000-000, series reverse SMA
IEC 60169-15; EN 122110; MIL-STD-348A, Fig. 310
FCC standard (part 15; section 15.203)
Documents
Assembly instruction
32 B6
Material and plating
Connector parts
Center contact
Outer contact
Body
Dielectric
Gasket
Coupling nut
Crimping ferrule
RF_35/12.04/3.0
Material
Beryllium copper
Brass
Brass
PTFE
Silicone
Brass
Copper
Plating
Gold, min. 1.27 µm, over chemical nickel
Gold, min. 0.15 µm, over chemical nickel
Gold, min. 0.15 µm, over chemical nickel
Gold, 0.1 µm min.
Gold, min. 0.15 µm, over chemical nickel
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel.: +49 8684 18-0
Fax: +49 8684 18-499
email: info@rosenberger.de
Page
1/2
TECHNICAL DATA SHEET
Reverse
SMA
Impedance
Frequency
VSWR
Insertion loss
Insulation resistance
Center contact resistance
Outer contact resistance
Test voltage
Working voltage
Power handling
(at 20 °C, sea level, VSWR 1.0)
RF-leakage
- Limitations are possible due to the used cable type -
RIGHT ANGLE PLUG
REVERSE POLARITY
32RS247-302F3
50
Ω
DC to 12.4 GHz
≤
1.05 + 0.01 x f [GHz], DC to 5 GHz
≤
0.05 x
f(GHz)
dB, DC to 5 GHz
≥
5 x10
3
MΩ
≤
3 mΩ
≤
2 mΩ
1000 V rms
480 V rms
≤
200 W @ 2 GHz
≥
100 dB up to 1 GHz
Electrical data
Mechanical data
Mating cycles
Coupling nut retention
Center contact captivation: axial
Coupling test torque
Recommended torque
min. 100
≥
180 N
≥
20 N
max. 0.6 Nm
0.5 Nm
Environmental data
Temperature range
Thermal shock
Corrosion
Vibration
Shock
Moisture resistance
2002/95/EC (RoHS)
-65°C to +165°C
MIL-STD-202, Meth.
MIL-STD-202, Meth.
MIL-STD-202, Meth.
MIL-STD-202, Meth.
MIL-STD-202, Meth.
compliant
107,
101,
204,
213,
106
Cond.
Cond.
Cond.
Cond.
B
B
D
I
Tooling
Crimping tool
Crimp insert
11W150-000
11W150-102
Suitable cables
RG 174 A/U, RG 188 A/U, RG 316 /U
Packing
Standard
Weight
100 pcs in bag
4.9 g/pce
While the information has been carefully compiled to the best of our knowledge, nothing is intended as representation or warranty on
our part and no statement herein shall be construed as recommendation to infringe existing patents. In the effort to improve our
products, we reserve the right to make changes judged to be necessary.
RF_35/12.04/3.0
Draft
Rong Fang
Date
24/11/04
Approved
J.Krautenbacher
Date
04/10/06
Rev.
b00
Engineering change number
06-0478
Name
S_Kra.
Date
04/10/06
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel.: +49 8684 18-0
Fax: +49 8684 18-499
email: info@rosenberger.de
Page
2/2
