H SERIES AC/DC

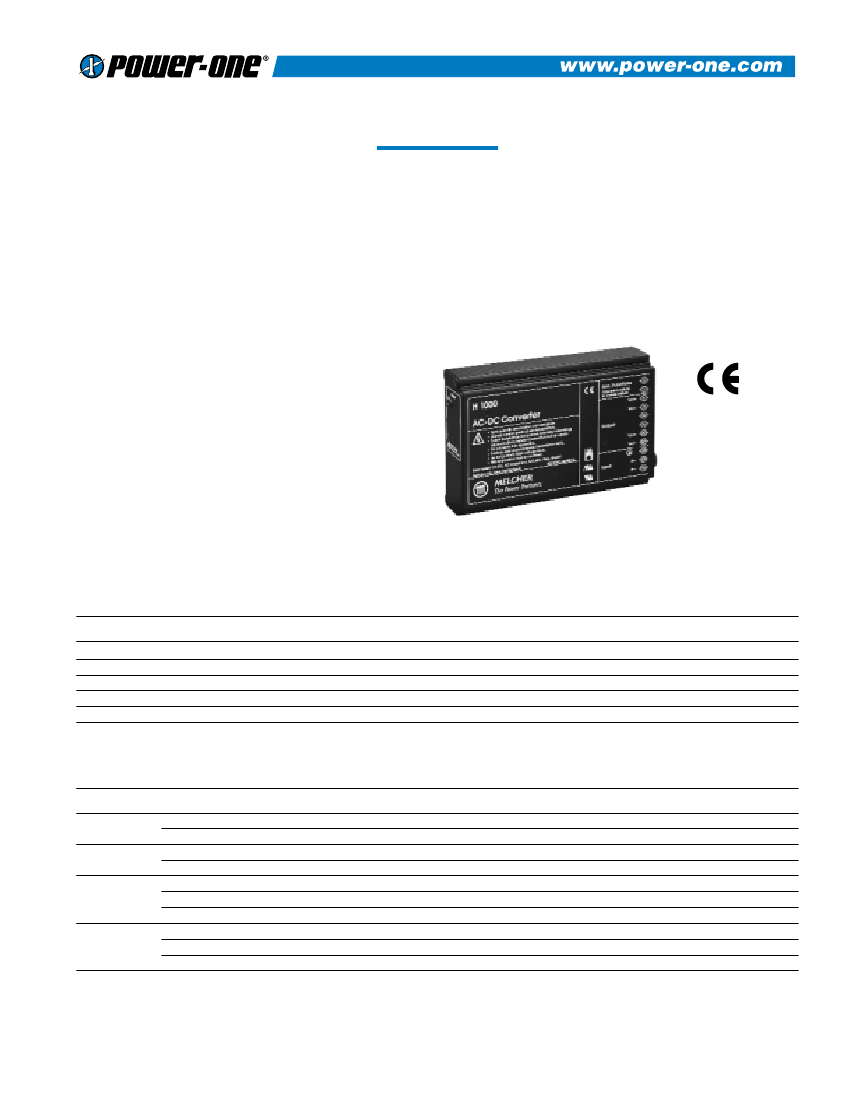

Power-One’s H Series of AC/DC power supplies provides a full
range of features and options for chassis mount applications or 19”
rack systems. With a universal input from 85 to 255 VAC, the H
series meets the most rigorous requirements of commercial,
industrial, and datacom systems. LED indicators display the status
of the converter and allow visual monitoring of the system.
Rated for use in convection applications, the H Series delivers
high reliability power with a Mean Time Between Failure (MTBF)
in excess of 300,000 hours. In addition to UL, CUL, and LGA
regulatory compliance to IEC950/EN60950, the H series displays
the CE Mark.
FEATURES
• Universal Input, 85-255VAC
• 4.2kV Isolation
• Individually Isolated Outputs
• Overtemperature, Overvoltage, and Overcurrent Protected
• CE marked to Low Voltage Directive
• Input Transient & ESD Compliance to EN61000-4-2/-3/-4/-5
• Greater than 300,000 Hours MTBF
• Optional ACFAIL and Undervoltage Detection
• Optional DIN Rail Mounting
SINGLE OUTPUT MODEL SELECTION CHART
MODEL
OUTPUT
VOLTAGE
ADJUSTMENT
RANGE
MAXIMUM OUTPUT
CURRENT
LINE
REGULATION
LOAD
REGULATION
RIPPLE & NOISE
mV (NOTE 1)
INITIAL SETTING
ACCURACY
LH 1001-2R
LH 1301-2R
LH 1501-2R
LH 1601-2R
LH 1901-2R
5.1V
12.0V
15.0V
24.0V
48.0V
0.0V to 5.5V
0.0V to 13.2V
0.0V to 16.5V
0.0V to 26.4V
0. 0V to 52.8V
11.0A
6.0A
4.5A
3.0A
1.5A
±1.0%
±0.9%
±0.7%
±0.7%
±0.4%
1.0%
1.25%
1.0%
0.7%
0.4%
200
200
200
200
150
5.00V to 5.20V
11.76V to 12.24V
14.70V to 15.30V
23.52V to 24.48V
47.04 V to 48.96V
MULTIPLE OUTPUT MODEL SELECTION CHART
MODEL
OUTPUT
VOLTAGE
ADJUSTMENT
RANGE
OUTPUT
CURRENT
LINE
REGULATION
LOAD
REGULATION
RIPPLE & NOISE
%p-p (NOTE 1)
INITIAL SETTING
ACCURACY
LH 2320-2
48 Watts
LH 2540-2
51 Watts
LH 3020-2
42 Watts
LH 3040-2
44 Watts
12V
12V
15V
15V
5.1V
12V
12V
5V
15V
15V
Fixed
Fixed
Fixed
Fixed
Fixed
Fixed
Fixed
Fixed
Fixed
Fixed
2.0A
2.0A
1.7A
1.7A
5.0A
0.7A
0.7A
5.0A
0.6A
0.6A
±0.4%
±0.7%
±1.0%
±1.0%
±0.6%
±1.25%
±1.25%
±0.6%
±1.0%
±1.0%
0.4%
See Graph 1
0.4%
See Graph 2
0.5%
See Graph 3
See Graph 3
0.5%
See Graph 4
See Graph 4
1.25%
1.25%
1.0%
1.0%
3.0%
1.25%
1.25%
3.0%
1.0%
1.0%
11.76V to 12.24V
11.40V to 12.60V
14.70V to 15.30V
14.25V to 15.75V
5.00V to 5.20V
11.40V to 12.60V
11.40V to 12.60V
5.00V to 5.20V
14.25V to 15.75V
14.25V to 15.75V
NOTE:
1) Maximum peak-to-peak noise, 20 MHz bandwidth.
Rev. 10/2000
1
H SERIES AC/DC
INPUT SPECIFICATIONS
(NOTE 1)
PARAMETER
CONDITIONS/DESCRIPTION
MIN
NOM
MAX
UNITS
Input Voltage - AC
Input Frequency
Hold-up Time
No Load Input Power
Input Current
Input Protection
Inrush Surge Current
Continuous input range.
AC Input.
At 85VAC.
At 110VAC.
Single output models, nominal input.
Dual output models, nominal input.
Triple output models, nominal input
230 VAC at full rated load.
Non-user serviceable internal AC input line fuse, 250V, slow blow.
Internally limited by thermistor, one cycle, 25°C, 255VAC.
85
47
5.0
10.7
255
63
VAC
Hz
mS
2.5
9.0
9.0
0.44
2.5
42
W
A
RMS
A
A
PK
NOTE:
1) All parameters measured at Tc=25°C, pins 2 and 23 connected, nominal input voltage and full rated load unless otherwise noted.
OUTPUT SPECIFICATIONS
(NOTE 1)
PARAMETER
CONDITIONS/DESCRIPTION
MIN
NOM
MAX
UNITS
Efficiency
Minimum loads
Ripple and Noise
Output Power
Overshoot / Undershoot
Transient Response
Turn-on Rise Time
Full rated load, 230VAC. Varies with distribution of loads among outputs.
Minimum load required for regulation.
Full load, 20 MHz bandwidth.
5V single output model
12V single output model
15V single output model
24V single output model
48V single output model
Dual and triple output models
Output voltage overshoot/undershoot at turn-on.
Recovery time, to within 1% of initial set point due to a 50-100% load change,
4% max. deviation. (Main output only on multi-output units).
Time required for output voltage to
5V single output model
rise from 10% to 90%, 100% load.
12V single output model
15V single output model
24V single output model
48V single output model
Dual output models
Triple output models
74
0
83
%
Amps
See Model Selection Charts
56.1
72.0
67.5
Watts
72.0
72.0
See Model Selection Chart
0
V
120
µS
5
10
15
20
85
25
75
25
40
50
70
230
80
210
mS
NOTE:
1) All parameters measured at Tc=25°C, pins 2 and 23 connected, nominal input voltage and full rated load unless otherwise noted.

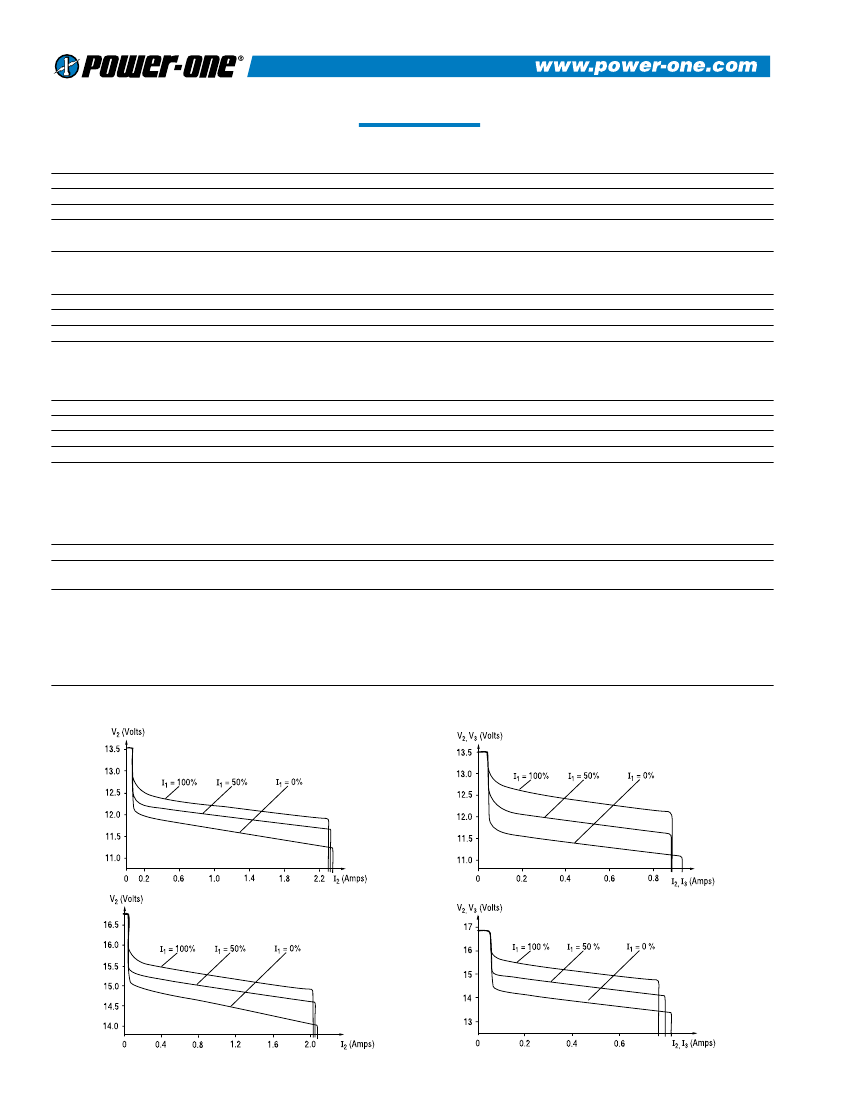

Graph 1
LH2320-2 Cross-Regulation
Graph 3
LH3020-2 Cross-Regulation
Graph 2
LH2540-2 Cross-Regulation
Graph 4
LH3040-2 Cross-Regulation
2
H SERIES AC/DC
INTERFACE SIGNALS AND INTERNAL PROTECTION
PARAMETER
CONDITIONS/DESCRIPTION
MIN
NOM
MAX
UNITS
Overvoltage Protection
Overload Protection
Overtemperature Protection
Inhibit Control Voltage
Inhibit Control Current
Inhibit LED
Power OK LED
Output Adjust Range
Output Adjust Limits
5V single output model
V1, 12V single and dual output models
V2, V3, 12V dual and triple output models
V1, 15V single and dual output models
V2, V3, 15V dual and triple output models
24V single output model
48V single output model
5V single output model
12V single output model
V1, V2, 12V dual output model
V2, V3, 12V triple output model
15V single output model
V1, V2, 12V dual output model
V2, V3, 15V dual and triple output models
24V single output model
48V single output model
Case temperature which activates protective shutdown and Inhibit LED.
Automatic restart below this temperature.
Voltage to enable outputs (or connect pins 2 and 23 together)
Voltage to disable outputs (or leave open)
Outputs enabled.
Red LED illuminated when output is inhibited.
Green LED illuminated when output is within regulation limits.
Percentage of output, single output models only.
Voltage limits of +Voltage Adjust input.
7.5
21
24
25
31
41
85
11.44
6.24
2.08
0.73
4.68
1.77
0.62
3.12
1.56
95
-50
2.4
-60
V
Amps
105
0.8
50.0
-220
°C
V
µA
-100
0
0
110
8
%
V
SAFETY, REGULATORY, AND EMI SPECIFICATIONS
PARAMETER
CONDITIONS/DESCRIPTION
MIN
NOM
MAX
UNITS
Agency Approvals
Dielectric Withstand Voltage
Electromagnetic Interference
ESD Susceptibility
Radiated Susceptibility
EFT/Burst
Input Transient Protection
Insulation Resistance
Leakage Current
UL1950.
CSA 22.2 NO. 234/950.
EN60950 (LGA).
Input to output.
Output to output.
EN55011 / CISPR 11 and EN55022 / CISPR 22 Conducted.
EN55011 / CISPR 11 and EN55022 / CISPR 22 Radiated.
Per EN61000-4-2, level 2.
Per EN61000-4-3, level 3.
Per EN61000-4-3, level X
Per EN61000-4-4, level 1.
Per EN61000-4-5 class 1.
Input to output.
Per EN60950, 264VAC.
Approved
4200
300
A
B
4
10
20
±0.5
0.5
0.5
300
1.4
VDC
Class
kV
V/M
kV
kV
M
mA
Line to Ground
Line to Line

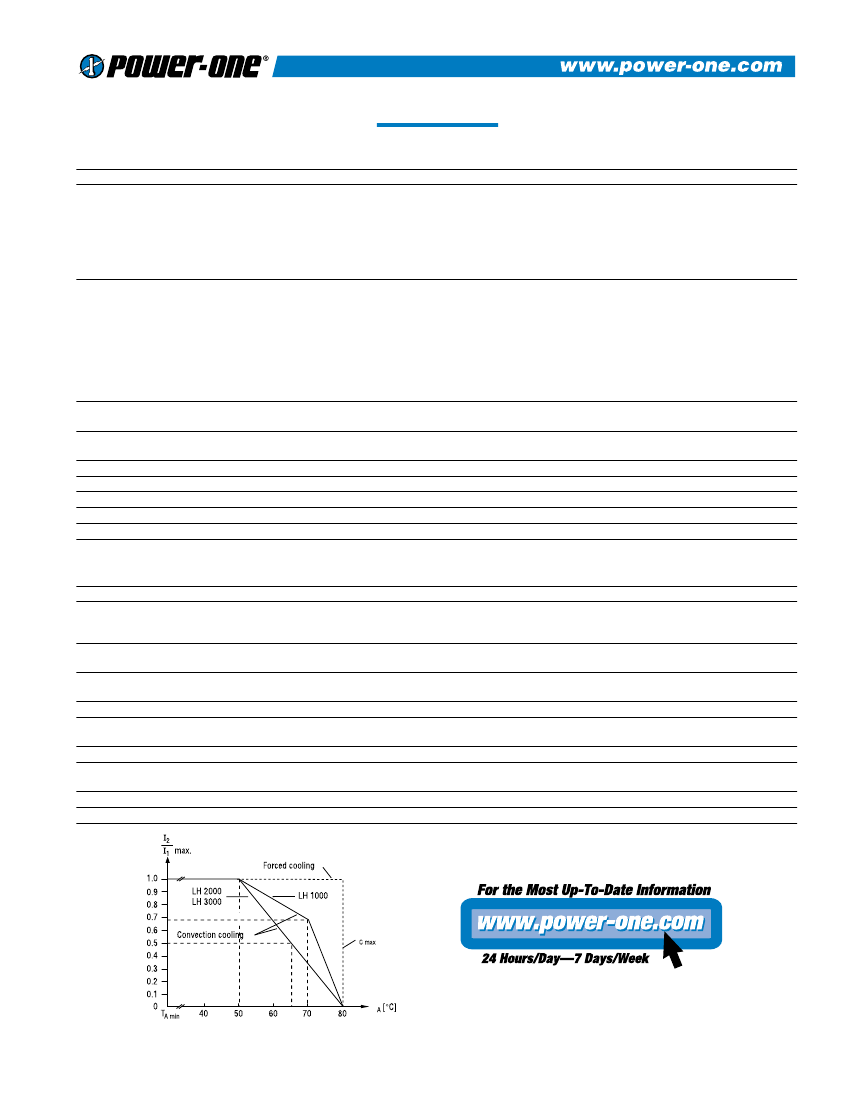

Output current derating versus temperature
3
H SERIES AC/DC
ENVIRONMENTAL SPECIFICATIONS
PARAMETER
CONDITIONS/DESCRIPTION
MIN
NOM
MAX
UNITS
Altitude
Temperature- Operating
Temperature- Storage
Temperature Coefficient
Operating.
Non-Operating.
Operating ambient temperature.
Operating case temperature.
0°C to 70°C (after 15 minute warm-up).
5V single and triple output model
12V single and dual output models
15V single and dual output models
24V single output model
48V single output model
10k
40k
-10
-10
-25
±1.0
±2.4
±3.0
±4.8
±9.6
5
93
15
2
384,000
306,000
270,000
27.1/770
50
80
100
ASL Ft.
ASL Ft.
°C
°C
mV/°C
Relative Humidity
Shock
Vibration
MTBF
Non-Condensing.
Per EN60068-2-27, MIL-STD-810D section 516.3.
Per EN60068-2-6, MIL-STD-810D section 514.3.
Calculated, MIL-HDBK-217F, 40°C, ground benign, single output models.
Calculated, MIL-HDBK-217F, 40°C, ground benign, dual output models.
Calculated, MIL-HDBK-217F, 40°C, ground benign, triple output models
%RH
G
G
RMS
Hours
oz/gm
Unit Weight
OPTIONS
DESCRIPTION
OPTION
NOTES
Undervoltage Monitor
-D1 thru -D8
ACFAIL Signal (VME)
-V2
-V3
Front Panel for 19” Rack
Chassis Mounting Plate
DIN Rail Bracket
Mating Connectors
Input and/or V1 output monitoring circuitry. The input and/or output undervoltage monitoring circuit operates
independently of the built-in input undervoltage lock-out circuit. A logic "low" (JFET output) or "high" signal
(NPN output) is generated at pin 5 as soon as one of the monitored voltages drops below the preselected
threshold level. Consult factory for specific types. Not compatible with -V options.
This option defines an undervoltage monitoring circuit for the input voltage. Equivalent to -D option and
generates an ACFAIL signal (V signal) which conforms to the VME standard. Not compatible with -D option.
This option defines an undervoltage monitoring circuit for the input and main output voltage. Equivalent to
–D option and generates an ACFAIL signal (V signal) which conforms to the VME standard.
Not compatible with -D option.
Order HZZ00802 front panel for 19" rack mounting on Schroff systems.
Order HZZ01215 for chassis mounting plates. Designed for mounting the 19" cassette to a chassis/wall where
only frontal access is given.
Order HZZ01210 universal mounting bracket for DIN-rail or chassis mounting.
Order as follows for mating H11 connectors:
HZZ00101: Faston, straight, 0.250” x 0.030” (6.3 x 0.8 mm)
HZZ00102: Screw terminals, 90°, #13 AWG (2.5 mm
2
) max
HZZ00103 Solder pin 0.200” (5.2 mm), Ø 0.063” (1.6 mm)
Pin
2
5
8
11
14
17
20
23
26
29
32
Single Output
Inhibit Control
-D or -V Option
+V1
-V1
+Voltage Adjust
-Voltage Adjust
+V1
-V1
GND (note1)
Neutral
Line
Dual Output
Inhibit Control
-D or -V Option
Triple Output
Inhibit Control
-D or -V Option
+V3
-V3
+V2
-V2
+V1
-V1
GND (note1)
Neutral
Line
+V2
-V2
+V1
-V1
GND (note1)
Neutral
Line
Note 1: Leading pin (pregrounded)
4
H SERIES AC/DC
OUTPUT VOLTAGE ADJUSTMENT
As a standard feature, single output modules offer an adjustable output voltage, identified by the letter “R” in the part number. The output voltage V1 can either be adjusted
with an external voltage (Vext) or with an external resistor (R1 or R2) to the new value, V1
A
. The adjustment range of V1
A
is approximately 0% to 110% of the nominal
output voltage, V1. For output voltages above the nominal output value, the minimum input voltage must be increased proportionally to the increase in output. For example,
to increase the output of an H Series power supply to 110% of initial value, the minimum input voltage must be increased by an additional 10%.
Method 1:
Adjust output voltage V1
A
from 0% to 110% of V1 using Vext between +VOLTAGE ADJUST (pin 14) and -VOLTAGE ADJUST (pin 17). NOTE: Values of Vext must be
between 0.0V and 8.0V.
2.5V
X
V1
A
Vext
X
V1
V1
A
=
—————
where Vext =
———————
2.5V
V1
Voltage Adjustment with external voltage Vext
Method 2:
Adjust output voltage V1
A
from 0% to 100% of V1 using resistor R1 between +VOLTAGE ADJUST (pin 14) and -VOLTAGE ADJUST (pin 17).
V1
X
R1
4000
X
V1
A
V1
A
=
——————
where Vext =
———————
R1 + 4000
V1- V1
A
Voltage Adjustment with external resistor R1 or R2
Method 3:
Adjust output voltage V1
A
from 100% to 110% of V1 using resistor R2 between +VOLTAGE ADJUST (pin 14) and output V1 (pin 20).
R2=
4000 x V1
A
x (V1 -2.5V)
2.5V
X
(V1
A
-V1)
and V1
A
=
V1
X
2.5V
X
R2
2.5V
X
(R2 + 4000 )-(V1
X
4000 )
NOTES:
To prevent damage, R2 should never be less than 47k . R inputs of n units with paralleled outputs may be paralleled,
but if one single external resistor is to be used, its value should be R1/n, or R2/n respectively.
NUCLEAR AND MEDICAL APPLICATIONS Power-One products are not authorized for use as critical components in life support systems,
equipment used in hazardous environments, or nuclear control systems without the express written consent of the President of Power-One, Inc.
TECHNICAL REVISIONS The appearance of products, including safety agency certifications pictured on labels, may change depending on the
date manufactured. Specifications are subject to change without notice.
5
京公网安备 11010802033920号
EEWORLD
