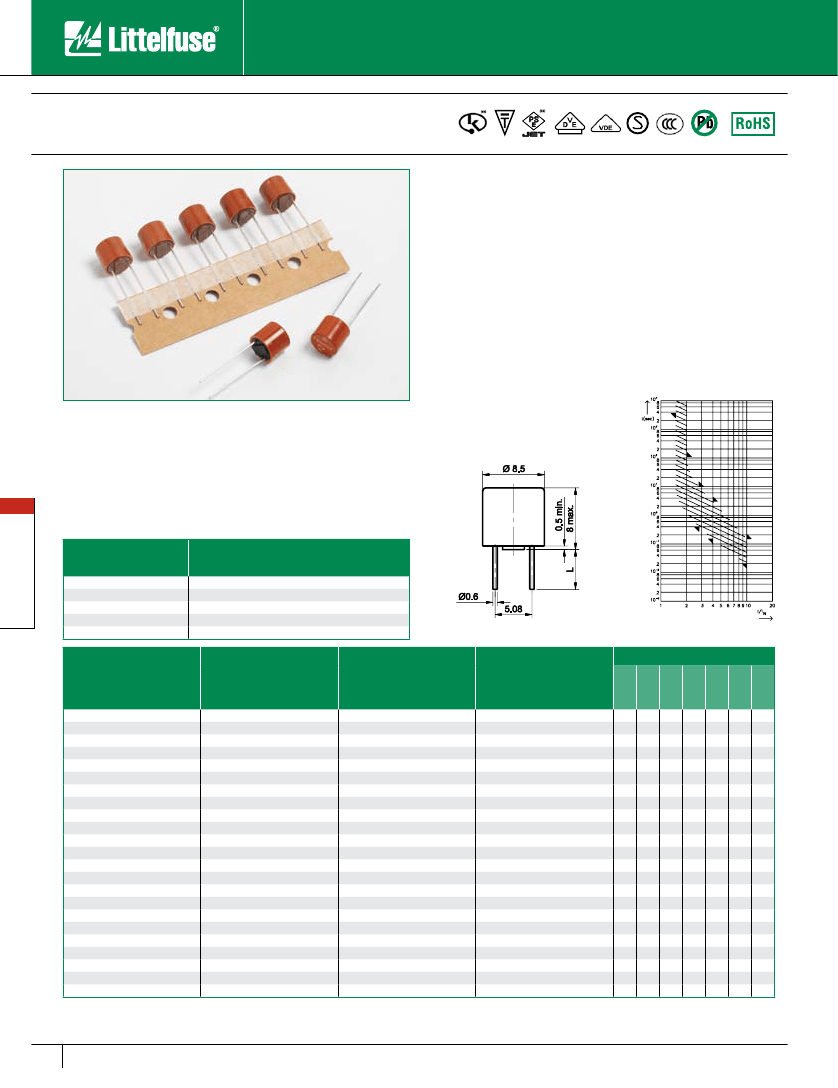

Subminiature Fuses
TR5
®
-Fuse links for rated voltage
up to 250V
Specifications
IEC 60127-3/IV
VDE:Licence No. 97187, No. 116448 ÜG (5A)
Semko: Certificate No. 9812212, No. 9748179 (5A)
cULus Recognized: No. E 67006
METI: No. 32-1888
Base, Top:
Out of thermoplastic (UL 94-V0, heat-resistant)
Round pins:
Copper, tinned
Breaking capacity:
50mA - 3,15A:
35A, 250 VAC
4A:
40A, 250 VAC
5A - 6,3A:
50A, 250 VAC
Packaging:
Last 3 digits of Article-No.
000 = tape ammopack 1.000 pcs.
010 = bulk 1.000 pcs.
Automatic mountable fuse for through hole soldering. Rated
voltage 250 VAC / 125 VDC; Current rating 40 mA - 6.3A.
Bedrahtete Sicherung für automatische Leiterplattenbestückung/
Lötprozesse. Nennspannung 250 VAC/125 VDC,
Nennstrom 40 mA bis 6.3A.
Subminiature Fuses
Dimensions in mm / Maße in mm
Time-Current Characteristics / Schmelzzeit-Grenzwerte
% of Rating
% des Nennstromes
150
210
275
400
1000
Opening Time Min / Max (s)
Schmelzcharakteristik Min / Max (s)
60 min / –
– / 2 min
400 ms / 10 s
150 ms / 3 s
20 ms / 150 ms
FI = 1,00 (max. operating current: 1,0 x I
rat
at 23°C)
Approvals
PSEJET*
SEMKO
UR
US
METI
CCC
VDE
I
t
0,009 A²s
0,01 A²s
0,02 A²s
0,023 A²s
0,047 A²s
0,066 A²s
0,14 A²s
0,20 A²s
0,28 A²s
0,36 A²s
0,90 A²s
1,30 A²s
2,50 A²s
3,80 A²s
5,50 A²s
9,00 A²s
14,0 A²s
23,0 A²s
35,0 A²s
60,0 A²s
95,0 A²s
94,0 A²s
105 A²s
3720040_
3720050_
3720063_
3720080_
3720100_
3720125_
3720160_
3720200_
3720250_
3720315_
3720400_
3720500_
3720630_
3720800_
3721100_
3721125_
3721160_
3721200_
3721250_
3721315_
3721400_
3721500_
3721630_**
40 mA
50 mA
63 mA
80 mA
100 mA
125 mA
160 mA
200 mA
250 mA
315 mA
400 mA
500 mA
630 mA
800 mA
1,00 A
1,25 A
1,60 A
2,00 A
2,50 A
3,15 A
4,00 A
5,00 A
6,30 A
900 mV
500 mV
400 mV
370 mV
300 mV
260 mV
200 mV
170 mV
150 mV
140 mV
130 mV
125 mV
120 mV
110 mV
110 mV
95 mV
95 mV
85 mV
80 mV
80 mV
75 mV
80 mV
58 mV
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
G
G
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Last figure of part number = packaging code, see Section “Packaging Index,” pg.157
*PSE-JET and K-Mark for China production
** Conducting path min. 0.2 mm
G = Expert Report
© 2006 Littelfuse
•
Automotive Circuit Protection Products
www.littelfuse.com
K-Mark*
Part Number
Artikel-Nr.
Current Rating
Nennstrom
Typ. Voltage Drop
Typ. Spannungsfall
C
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
