M80-7980445 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> M80-7980445

M80-7980445: DescriptionBoard Connector; CategoryThe connector The connector; File Size3MB，1 Pages; ManufacturerHarwin; Websitehttp://www.harwin.com/

Download Datasheet Parametric View All

M80-7980445 Overview

Board Connector

M80-7980445 Parametric

Parameter Name	Attribute value
Maker	Harwin
Reach Compliance Code	unknown
ECCN code	EAR99
Connector type	BOARD CONNECTOR
Manufacturer's serial number	M80
Base Number Matches	1

Preview

Download Datasheet

View All

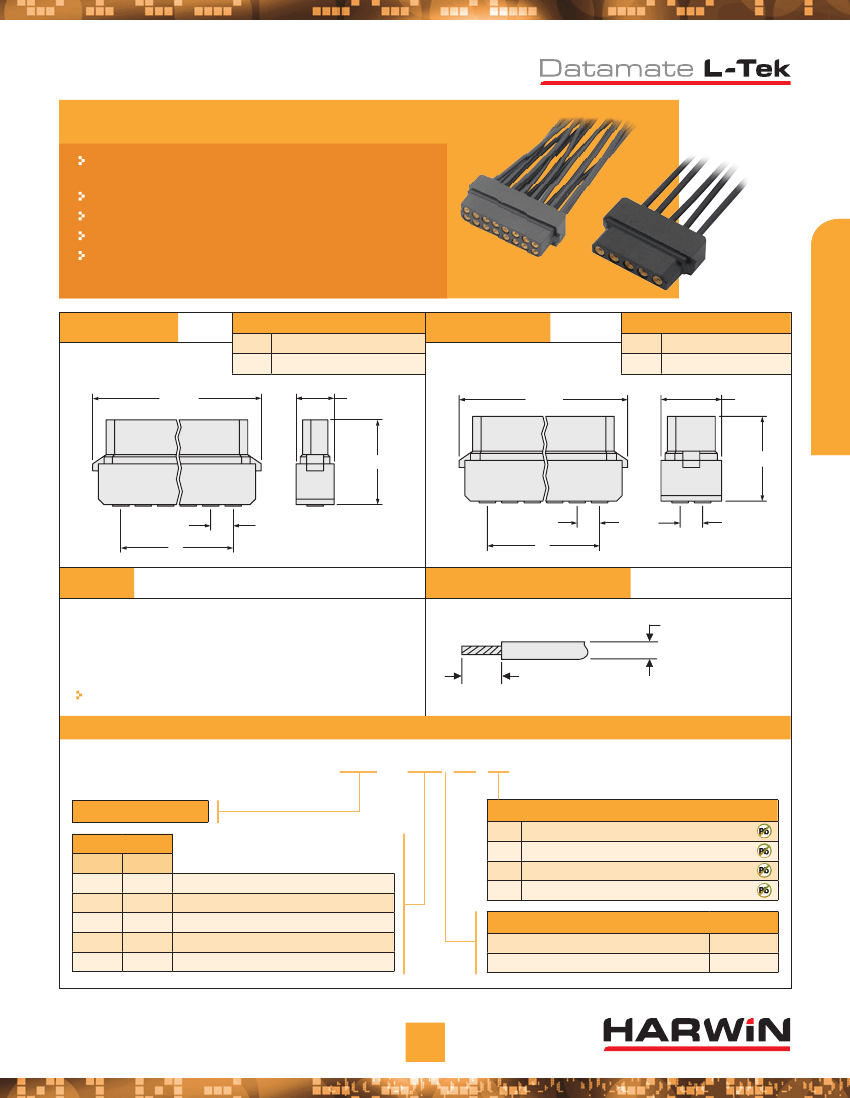

Datamate Connectors

Female Crimp

Part numbers are for housings and the equivalent

number of contacts.

Contacts are rear insertable.

For British Standard versions see pages 18 to 19.

Mates with male connectors on pages 27 to 33.

Spare contacts are available – see page 25.

SINgLE rOw

CALCULAtion

A max

B + 5.15

(Total no. of contacts - 1) x 2

DOuBLE rOw

CALCULAtion

B + 5.15

Total no. of contacts - 2

3.40

A max

5.40

7.55

2.00

TOOLS

Recommended Crimp tool

– M22520/2-01

Positioner

– T5747

Contact insertion/Removal tool

– Z80-280

See pages 87 to 89

Instruction sheets available at www.harwin.com/downloads/instructions

wIrE STrIPPINg DETAILS

Ø1.10 max (Ø0.75 max

for Extra Small Bore)

2.00 nominal

HOw TO OrDEr

M80 - XXX XX XX

seRies CoDe

tyPe

sinGLe DoUBLe

798

845

611

898

899

788

844

613

888

889

Extra Small Bore (28-32 AWG), Hi-Temp Plastic

Small Bore (24-28 AWG), Hi-Temp Plastic

Large Bore (22 AWG), Hi-Temp Plastic

Small Bore (24-28 AWG)

Large Bore (22 AWG)

Finish

Gold + Tin (M80-788/789/888/889/898/899)

Gold (M80-788/789/888/889/898/899)

Gold + Tin (M80-611/613/844/845)

Gold (M80-611/613/844/845)

totAL no. oF ContACts

02 to 07, 17

04, 06, 08, 10, 12, 14, 16, 18, 20, 26, 34

Single Row

Double Row

All dimensions in mm.

www.harwin.com
