BW-N12W5+: DescriptionFixed Attenuator, 0MHz Min, 18000MHz Max, ROHS COMPLIANT, CASE DC736; CategoryWireless rf/communication Radio frequency and microwave; File Size29KB，1 Pages; ManufacturerMini-Circuits; Websitehttps://www.minicircuits.com; Environmental Compliance

Download Datasheet Parametric View All

BW-N12W5+ Overview

Fixed Attenuator, 0MHz Min, 18000MHz Max, ROHS COMPLIANT, CASE DC736

BW-N12W5+ Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Mini-Circuits
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	N-F; N-M, I/P POWER-MAX(PEAK)=125W
Nominal attenuation	12 dB
Characteristic impedance	50 Ω
structure	COAXIAL
Maximum input power (CW)	36.99 dBm
Maximum operating frequency	18000 MHz
Minimum operating frequency
Maximum operating temperature	100 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	FIXED ATTENUATOR
Maximum voltage standing wave ratio	1.3
Base Number Matches	1

Preview

Download Datasheet

View All

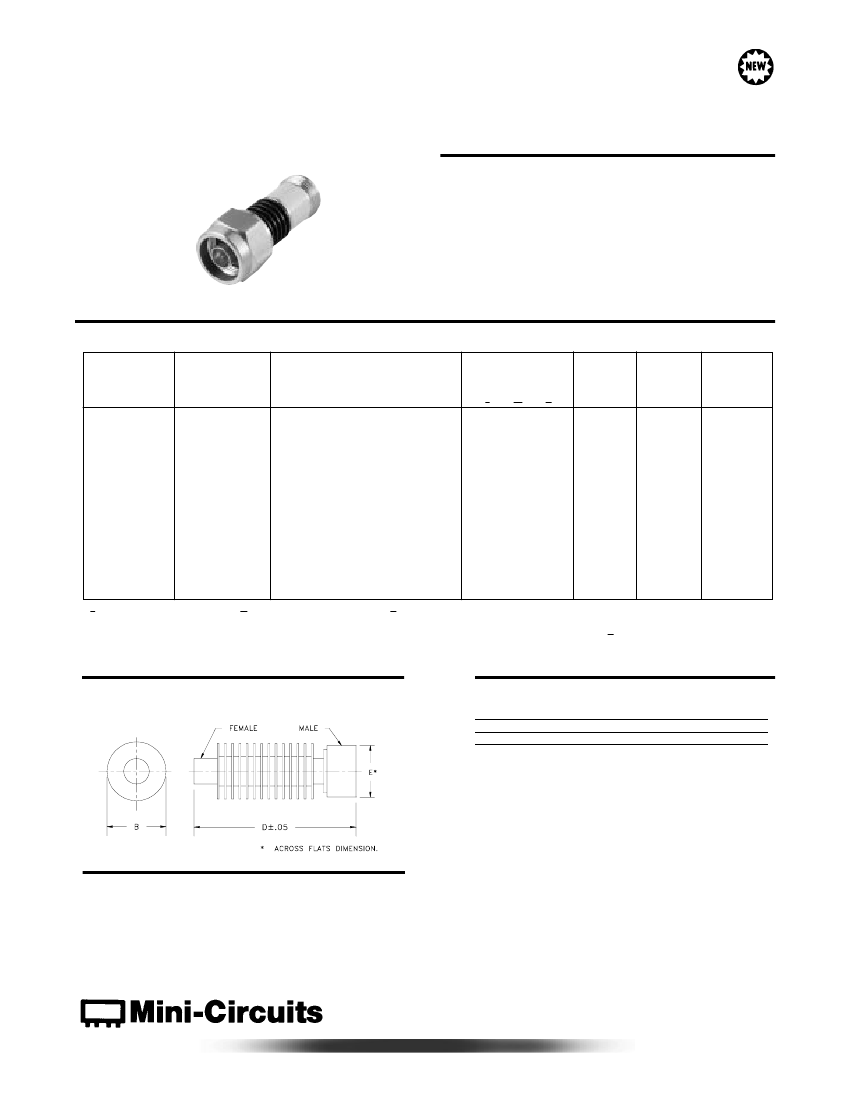

Precision Fixed Attenuators,

5W

1 to 40 dB, DC to 18 GHz

Features

• DC to 18 GHz

• precise attenuation

• excellent VSWR, 1.20:1 typ.

• stainless steel N male and female connectors

BW-NXW5

Applications

DC736

• matching

• instrumentation

• test set-ups

50Ω

Electrical Specifications 50

Ω

MODEL

NO.

FREQUENCY

RANGE

(GHz)

f

L

-f

U

DC-18

M= 4-8 GHz

ATTENUATION

(dB)

Nom.

1

2

3

4

5

6

7

8

9

10

12

15

20

30

40

ACCURACY*

±0.40

±0.60

±0.85

U= 8-12.4 GHz

VSWR*

max.

L

1.20

M

1.25

U

1.30

POWER**

(W)

CASE

STYLE

PRICE

$

Qty.

(1-49)

BW-N1W5

BW-N2W5

BW-N3W5

BW-N4W5

BW-N5W5

BW-N6W5

BW-N7W5

BW-N8W5

BW-N9W5

BW-N10W5

BW-N12W5

BW-N15W5

BW-N20W5

BW-N30W5

BW-N40W5

L = DC - 4 GHz

5

DC736

54.95

Notes:

* At 25°C includes power & frequency variations up to 12.4 GHz. Above 12.4 GHz add 0.5 dB typ. to accuracy and 0.3 typ. to VSWR in the U range.

Temperature coefficient for attenuation .0004 dB/dB/°C typ.

** Average power at 25°C ambient, derate linearly to 2W at 100°C. Peak Power 125W max., 5

µ

sec pulse width, 100 Hz PRF.

Outline Drawing

Maximum Ratings

Operating Temperature

Storage Temperature

Connectors:

-55°C to 100°C

-55°C to 100°C***

N Female-N Male

*** With mated connectors. Unmated, 85°C max.

Outline Dimensions (

inch

)

mm

A

B

—

.61

— 15.49

C

D

E

—

1.90

.812

— 48.26 20.64

wt.

grams

49.7

®

INTERNET

http://www.minicircuits.com

P.O. Box 350166, Brooklyn, New York 11235-0003 (718) 934-4500 Fax (718) 332-4661

REV. OR

M72282

EA-8722

BW-NXW5

RS/TD/CP

000605

Distribution Centers

NORTH AMERICA 800-654-7949 • 417-335-5935 • Fax 417-335-5945 • EUROPE 44-1252-832600 • Fax 44-1252-837010

ISO 9001

CERTIFIED
