LD8039AHL datasheet, PDF - EEWORLD Datasheet

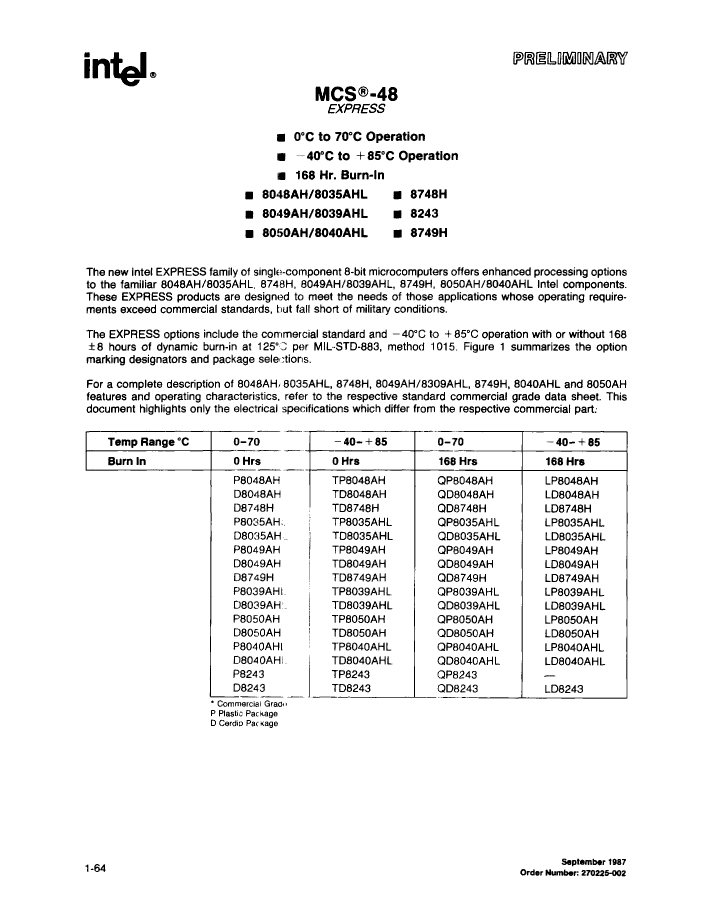

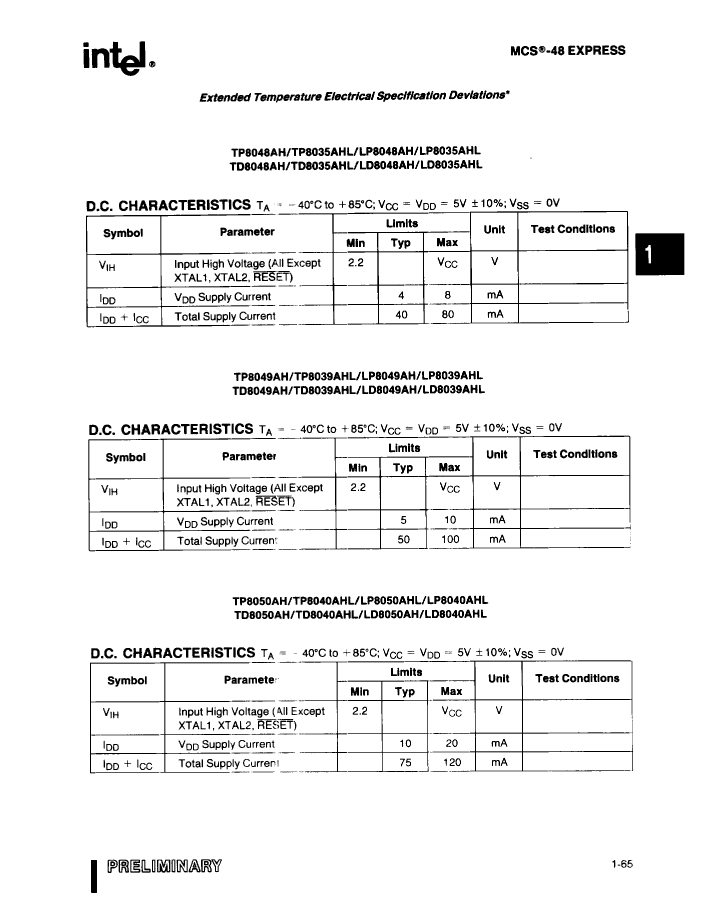

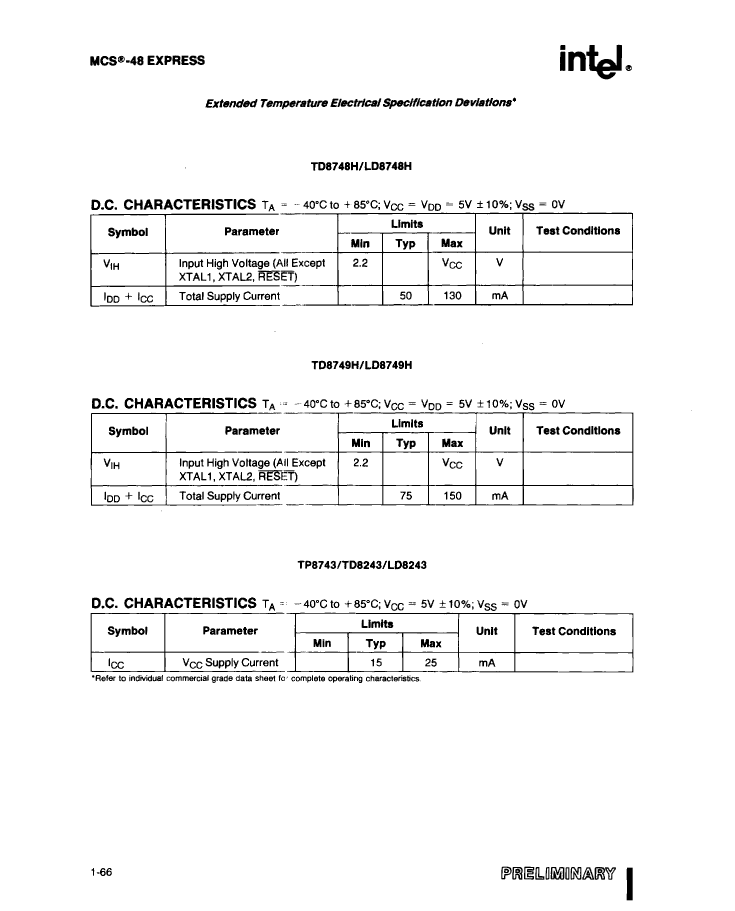

LD8039AHL: DescriptionMicrocontroller, 8-Bit, 8048 CPU, 3.67MHz, NMOS, CDIP40, CERDIP-40; CategoryThe embedded processor and controller Microcontrollers and processors; File Size81KB，3 Pages; ManufacturerIntel; Websitehttp://www.intel.com/

Download Datasheet Parametric View All

LD8039AHL Overview

Microcontroller, 8-Bit, 8048 CPU, 3.67MHz, NMOS, CDIP40, CERDIP-40

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Intel
Parts packaging code	DIP
package instruction	CERDIP-40
Contacts	40
Reach Compliance Code	compliant
Has ADC	NO
Address bus width	12
bit size	8
boundary scan	NO
CPU series	8048
maximum clock frequency	11 MHz
DAC channel	NO
DMA channel	NO
External data bus width	8
Format	FIXED POINT
Integrated cache	NO
JESD-30 code	R-GDIP-T40
JESD-609 code	e0
length	52.325 mm
low power mode	YES
Number of DMA channels
Number of external interrupt devices	1
Number of I/O lines	24
Number of serial I/Os
Number of terminals	40
Number of timers	1
On-chip data RAM width	8
On-chip program ROM width
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
PWM channel	NO
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Encapsulate equivalent code	DIP40,.6
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Certification status	Not Qualified
RAM (bytes)	128
RAM (number of words)	128
rom(word)	0
Maximum seat height	5.72 mm
speed	3.67 MHz
Maximum slew rate	100 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	NO
technology	NMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	15.24 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER
Base Number Matches	1
