BAL74235 datasheet, PDF - EEWORLD Datasheet

BAL74235: DescriptionDIODE 0.215 A, 50 V, SILICON, SIGNAL DIODE, Signal Diode; CategoryDiscrete semiconductor diode; File Size115KB，5 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

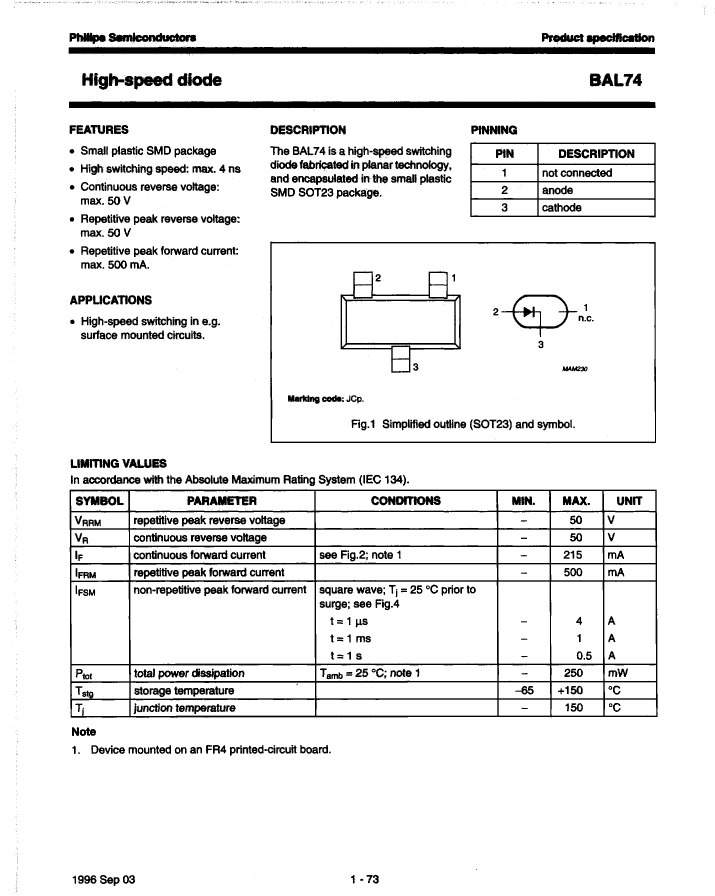

BAL74235 Overview

DIODE 0.215 A, 50 V, SILICON, SIGNAL DIODE, Signal Diode

Parameter Name	Attribute value
package instruction	R-PDSO-G3
Reach Compliance Code	unknown
ECCN code	EAR99
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE

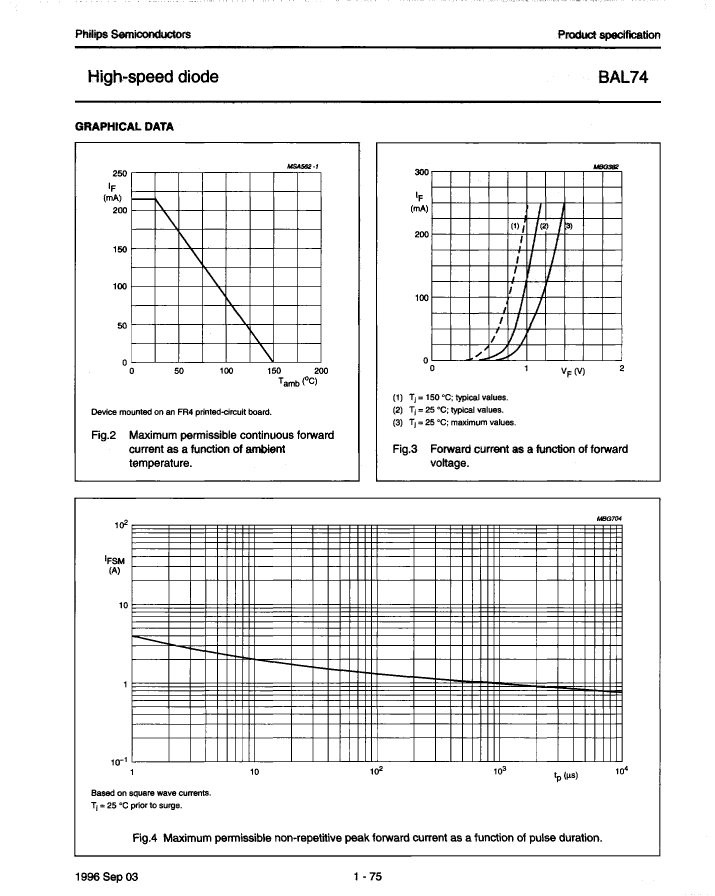

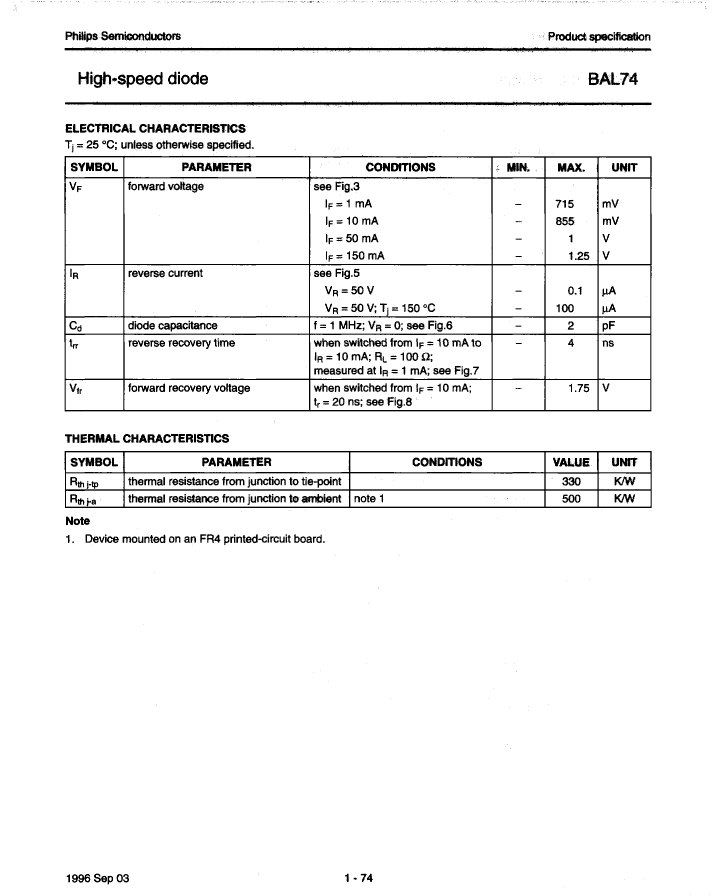

Maximum forward voltage (VF)	1.25 V
JESD-30 code	R-PDSO-G3
Maximum non-repetitive peak forward current	4 A
Number of components	1
Number of terminals	3
Maximum operating temperature	150 °C
Maximum output current	0.215 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Maximum power dissipation	0.25 W
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	50 V

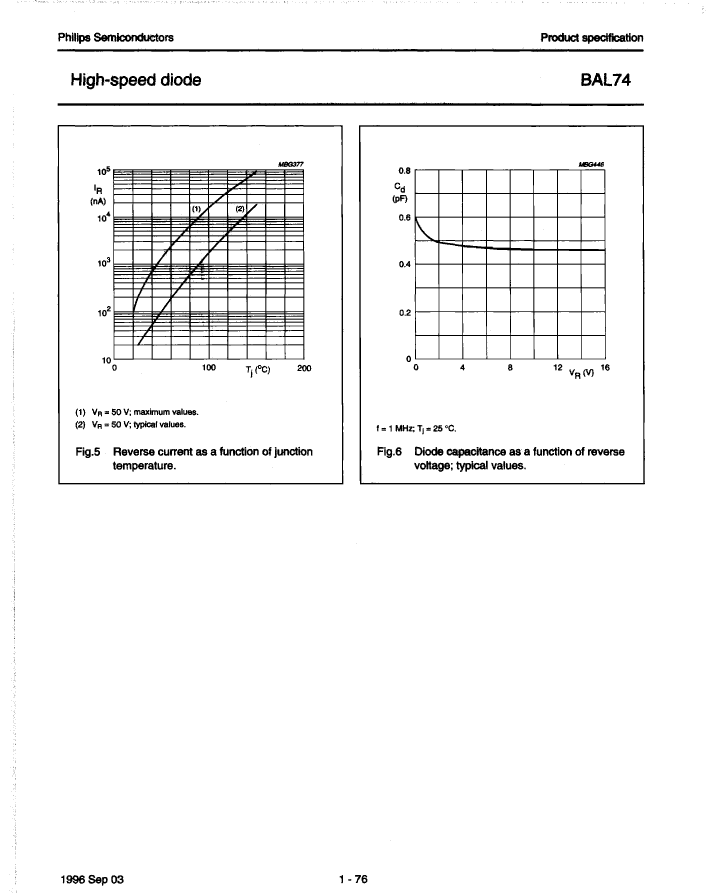

Maximum reverse current	0.1 µA

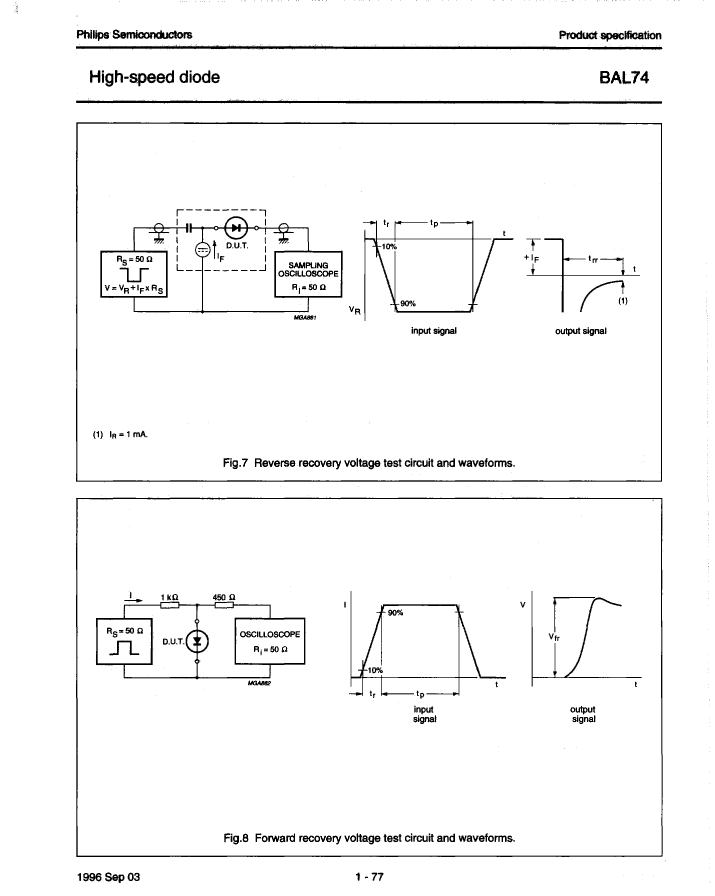

Maximum reverse recovery time	0.004 µs
surface mount	YES
Terminal form	GULL WING
Terminal location	DUAL
Base Number Matches	1

	BAL74235	BAL74212
Description	DIODE 0.215 A, 50 V, SILICON, SIGNAL DIODE, Signal Diode	DIODE 0.215 A, 50 V, SILICON, SIGNAL DIODE, Signal Diode
package instruction	R-PDSO-G3	R-PDSO-G3
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
Configuration	SINGLE	SINGLE
Diode component materials	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	1.25 V	1.25 V
JESD-30 code	R-PDSO-G3	R-PDSO-G3
Maximum non-repetitive peak forward current	4 A	4 A
Number of components	1	1
Number of terminals	3	3
Maximum operating temperature	150 °C	150 °C
Maximum output current	0.215 A	0.215 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE
Maximum power dissipation	0.25 W	0.25 W
Certification status	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	50 V	50 V
Maximum reverse current	0.1 µA	0.1 µA
Maximum reverse recovery time	0.004 µs	0.004 µs
surface mount	YES	YES
Terminal form	GULL WING	GULL WING
Terminal location	DUAL	DUAL
Base Number Matches	1	1
