Part Number

Search

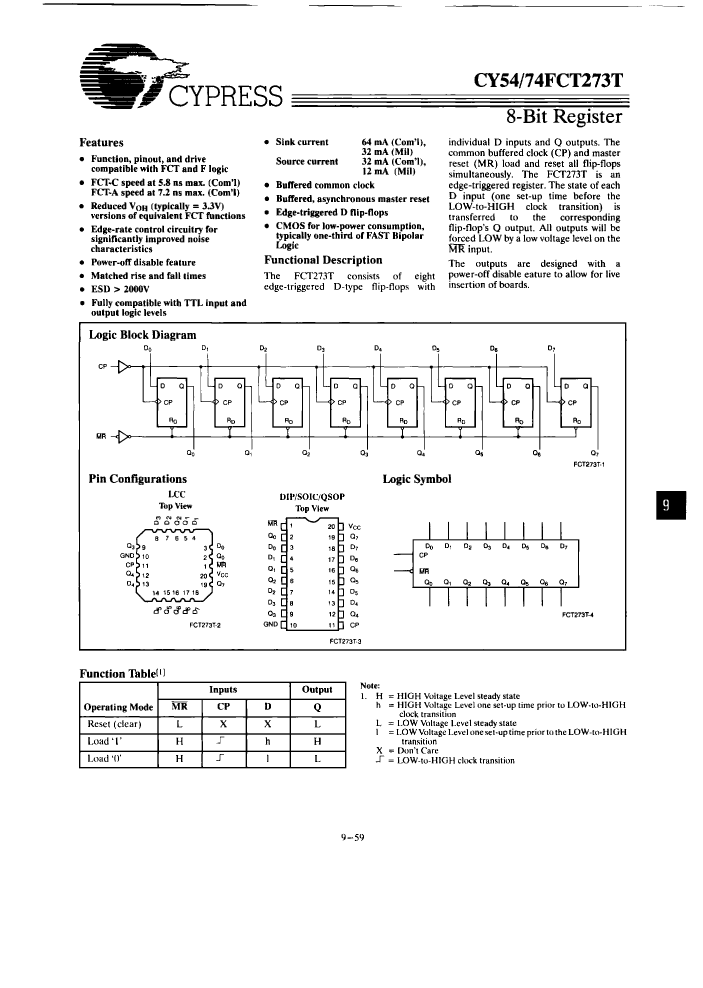

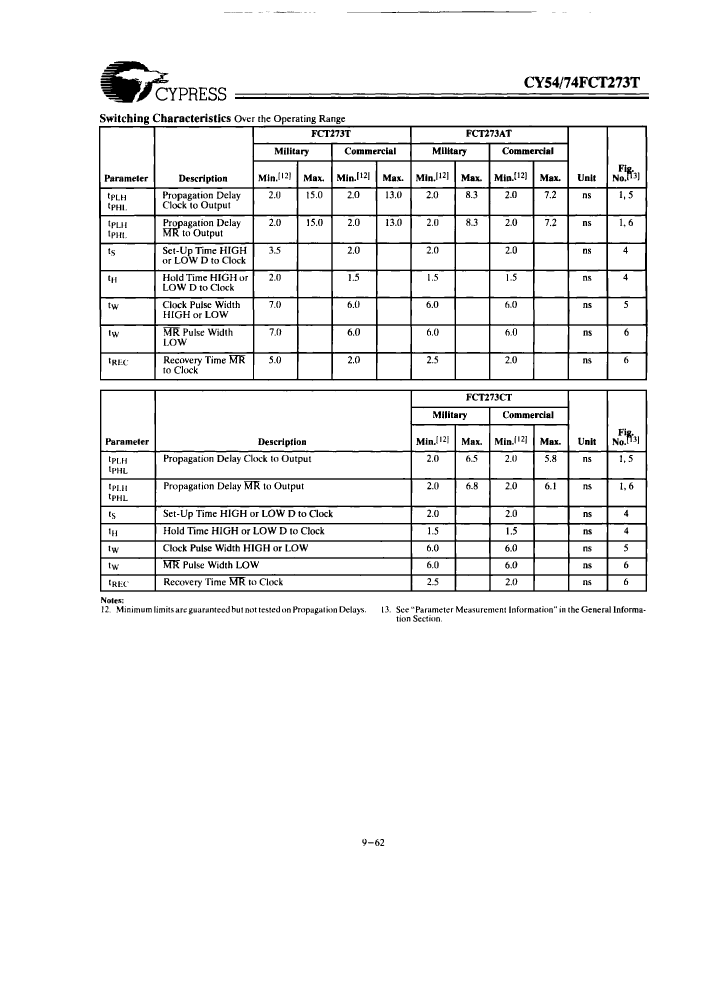

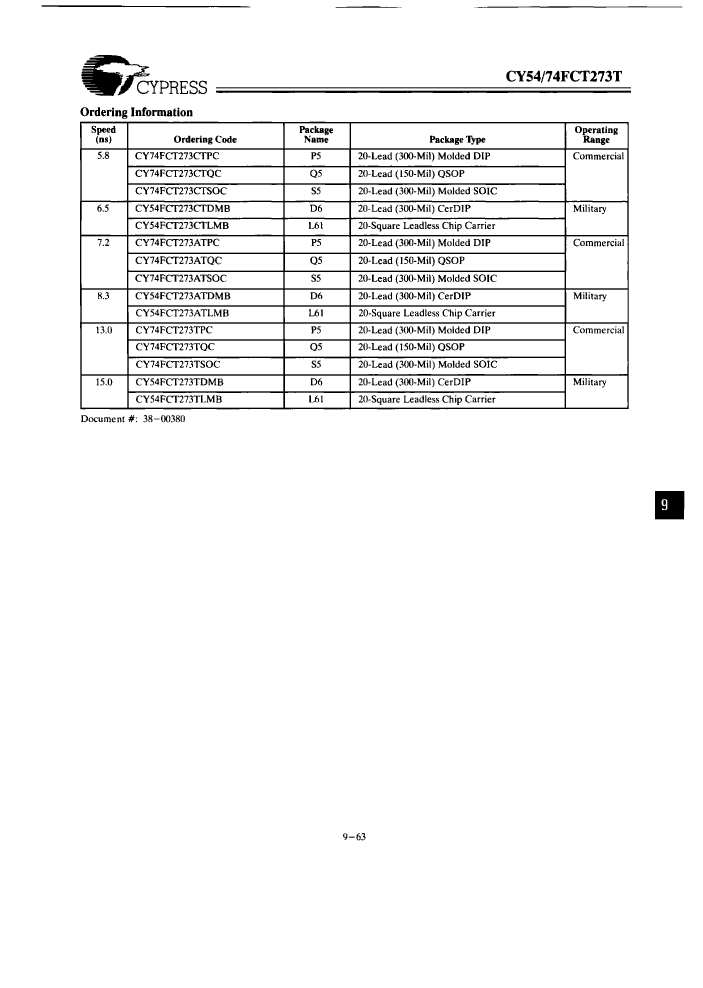

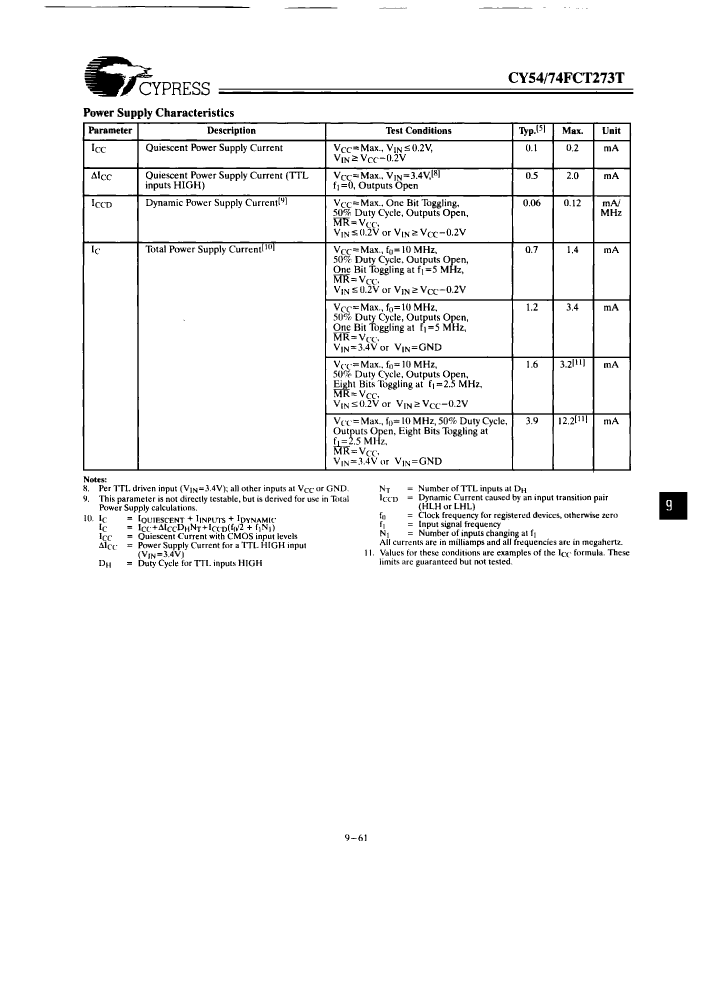

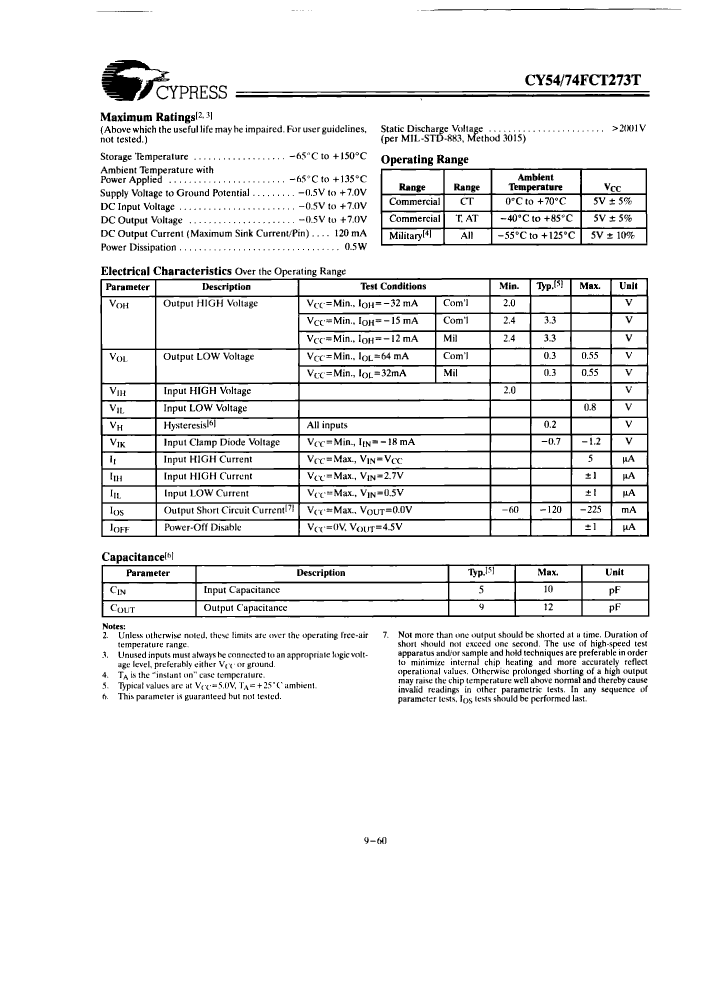

5962-9221501MRA

Description
D Flip-Flop, FCT Series, 1-Func, Positive Edge Triggered, 8-Bit, True Output, CMOS, CDIP20, 0.300 INCH, CERDIP-20
Categorylogic    logic
File Size137KB,5 Pages
ManufacturerCypress Semiconductor
Download Datasheet Parametric View All

5962-9221501MRA Overview

D Flip-Flop, FCT Series, 1-Func, Positive Edge Triggered, 8-Bit, True Output, CMOS, CDIP20, 0.300 INCH, CERDIP-20

5962-9221501MRA Parametric

Parameter NameAttribute value
Parts packaging codeDIP
package instructionDIP,
Contacts20
Reach Compliance Codeunknown
seriesFCT
JESD-30 codeR-GDIP-T20
JESD-609 codee0
length24.13 mm
Load capacitance (CL)50 pF
Logic integrated circuit typeD FLIP-FLOP
Number of digits8
Number of functions1
Number of terminals20
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Output polarityTRUE
Package body materialCERAMIC, GLASS-SEALED
encapsulated codeDIP
Package shapeRECTANGULAR
Package formIN-LINE
propagation delay (tpd)15 ns
Certification statusNot Qualified
Filter levelMIL-STD-883
Maximum seat height5.08 mm
Maximum supply voltage (Vsup)5.5 V
Minimum supply voltage (Vsup)4.5 V
Nominal supply voltage (Vsup)5 V
surface mountNO
technologyCMOS
Temperature levelMILITARY
Terminal surfaceTIN LEAD
Terminal formTHROUGH-HOLE
Terminal pitch2.54 mm
Terminal locationDUAL
Trigger typePOSITIVE EDGE
width7.62 mm
Base Number Matches1
