BAT54TW
SURFACE MOUNT SCHOTTKY BARRIER DIODE ARRAY
WON-TOP ELECTRONICS
Pb
Features
Isolated Triple Diode
Low Forward Voltage
PN Junction Guard Ring for Transient and
ESD Protection
For General Purpose Switching Applications
Plastic Material – UL Recognition Flammability
Classification 94V-0
A
L
B
E
H
D
C
M
Dim
A
B
C
D
E
H
J
K
L
M
SOT-363
Min
Max
0.10
0.30
1.15
1.35
2.00
2.30
0.65 Typical
0.40
0.50
1.80
2.20
—
0.10
1.0 Typical
0.25
0.40
0.10
0.22
Mechanical Data
Case: SOT-363, Molded Plastic
Terminals: Plated Leads Solderable per
MIL-STD-202, Method 208
Polarity: See Diagram
Weight: 0.006 grams (approx.)
Mounting Position: Any
Marking: KLA
Lead Free: For RoHS / Lead Free Version,
Add “-LF” Suffix to Part Number, See Page 4
K
J
All Dimensions in mm
TOP VIEW
Maximum Ratings
@T
A
=25°C unless otherwise specified
Characteristic
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
Forward Continuous Current
Repetitive Peak Forward Current
Non-Repetitive Peak Forward Surge Current
Operating and Storage Temperature Range
@ t < 1.0s
Symbol
V
RRM
V
RWM
V
R
I
F
I
FRM
I
FSM
T
J
, T
STG
Value
Unit
30
200
300
600
-55 to +125
V
mA
mA
mA
°C
Thermal Characteristics
Characteristic
Power Dissipation (Note 1)
Thermal Resistance, Junction to Ambient (Note 1)
Symbol
P
D
R
θJA
Value
200
625
Unit
mW
°C/W
Note: 1. Mounted on FR-4 PC board with minimum recommended pad layout.
© Won-Top Electronics Co., Ltd.
Revision: May, 2014
www.wontop.com
1
®
BAT54TW
WON-TOP ELECTRONICS
Electrical Characteristics
@T
A
=25°C unless otherwise specified
Characteristic
Reverse Breakdown Voltage
Forward Voltage Drop
@ I
R
= 100µA
@ I
F
= 0.1mA
@ I
F
= 1.0mA
@ I
F
= 10mA
@ I
F
= 30mA
@ I
F
= 100mA
@ V
R
= 25V
Symbol
V
(BR)
Min.
30
Typ.
Max.
Unit
V
V
F
0.24
0.32
0.40
0.50
1.00
2.0
10
5.0
V
Reverse Leakage Current
Diode Capacitance (V
R
= 1.0V, f = 1.0MHz)
I
R
C
D
t
rr
I
F
, INSTANTANEOUS FORWARD CURRENT (mA)
100
µA
pF
nS
Reverse Recovery Time (I
F
= I
R
= 10mA, I
RR
= 0.1 x I
R
, R
L
= 100Ω)
250
P
D
, POWER DISSIPATION (mW)
200
10
T
A
= 125°C
150
T
A
= 85°C
100
1.0
50
T
A
= 25°C
T
A
= -40°C
0
0
25
50
75
100
125
T
A
, AMBIENT TEMPERATURE (°C)

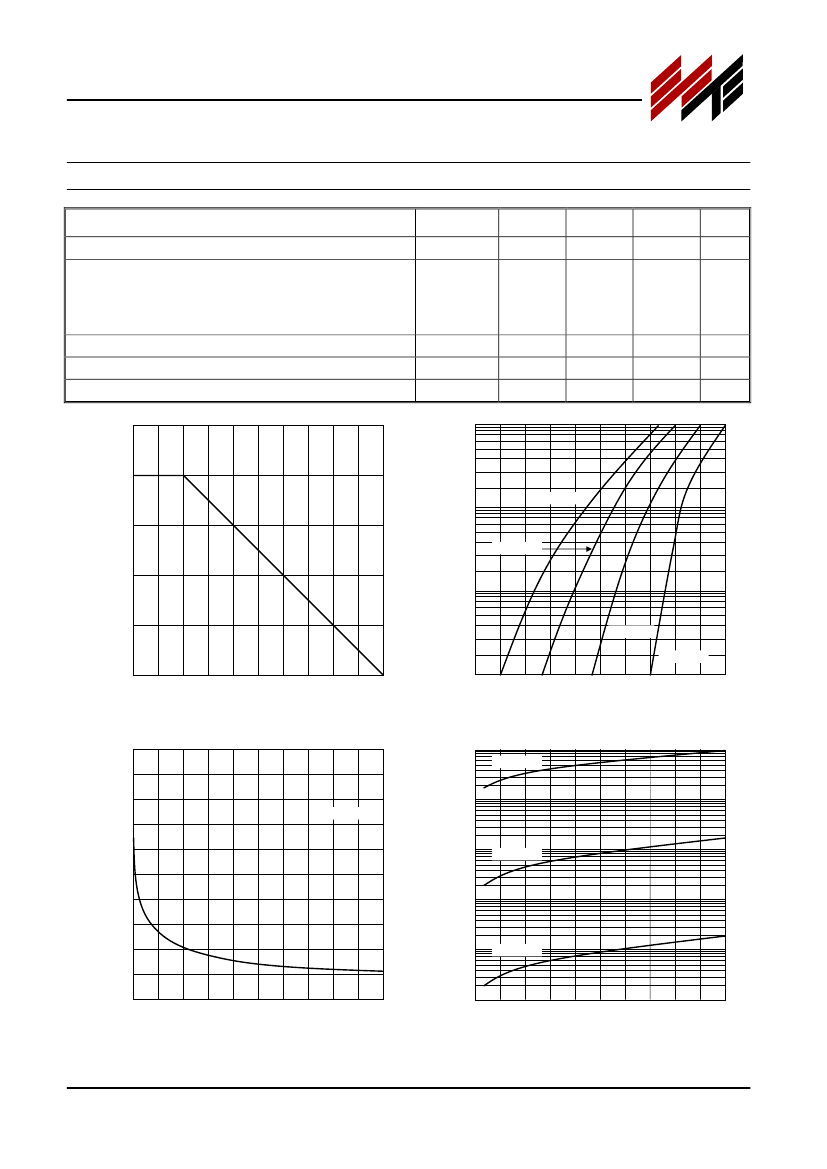

Fig. 1 Power Derating Curve
0.1
0
0.1
0.2
0.3
0.4
0.5
V
F
, INSTANTANEOUS FORWARD VOLTAGE (V)
Fig. 2 Typical Forward Characteristics
I
R
, INSTANTANEOUS REVERSE CURRENT (µA)
20
100
T
A
= 125°C
C
T
, TOTAL CAPACITANCE (pF)
16
f = 1.0MHz
10
12
1.0
T
A
= 85°C
8
0.1
4
0.01
T
A
= 25°C
0
0
5
10
15
20
25
V
R
, DC REVERSE VOLTAGE (V)
Fig. 3 Total Capacitance vs. Reverse Voltage
0.001
0
5
10
15
20
25
V
R
, INSTANTANEOUS REVERSE VOLTAGE (V)
Fig. 4 Typical Reverse Characteristics
www.wontop.com
2
© Won-Top Electronics Co., Ltd.
Revision: May, 2014
®
BAT54TW
WON-TOP ELECTRONICS
MARKING INFORMATION
RECOMMENDED FOOTPRINT
0.025
(0.65)
0.025
(0.65)
KLA
KLA
= Device Code
0.024
(0.60)
0.075
(1.90)
0.016
(0.42)
inches(mm)
PACKAGING INFORMATION
TAPE & REEL
Inspection Hole
Direction of Unreeling
4mm
178mm
8mm
4mm
8mm
Product ID Label
1.6mm
Reel Diameter
(mm)
178
Quantity
(PCS)
3,000
Inner Box Size
L x W x H (mm)
187 x 187 x 65
Quantity
(PCS)
15,000
Carton Size
L x W x H (mm)
390 x 240 x 420
Quantity
(PCS)
150,000
Approx. Gross Weight
(KG)
10.0
Note:
1. Anti-static plastic reel, white, water clear or blue color. Inspection hole might be varied in different alignment.
2. Components are packed in accordance with EIA standard 481-1 and 481-2.
© Won-Top Electronics Co., Ltd.
Revision: May, 2014
www.wontop.com
3
®
BAT54TW
WON-TOP ELECTRONICS
ORDERING INFORMATION
Product No.
BAT54TW-T1
1.
2.
Package Type
SOT-363
Shipping Quantity
3000/Tape & Reel
Shipping quantity given is for minimum packing quantity only. For minimum
order quantity, please consult the Sales Department.
To order RoHS / Lead Free version (with Lead Free finish), add “-LF”
suffix to part number above. For example, BAT54TW-T1-LF.
