8D34L15F35PN046

Description
MIL Series Connector, 37 Contact(s), Aluminum Alloy, Male, Solder Terminal, Receptacle,
CategoryThe connector    The connector
File Size669KB,7 Pages
ManufacturerEsterline Technologies Corporation
Download Datasheet Parametric View All

8D34L15F35PN046 Overview

MIL Series Connector, 37 Contact(s), Aluminum Alloy, Male, Solder Terminal, Receptacle,

8D34L15F35PN046 Parametric

Parameter NameAttribute value
MakerEsterline Technologies Corporation
Reach Compliance Codecompliant
ECCN codeEAR99
Other featuresSHIELDED, STANDARD: MIL-DTL-38999
Back shell typeSOLID
Body/casing typeRECEPTACLE
Connector typeMIL SERIES CONNECTOR
Contact to complete cooperationGOLD OVER NICKEL
Contact completed and terminatedTIN LEAD
Contact point genderMALE
Coupling typeTHREADED
DIN complianceNO
empty shellNO
Environmental characteristicsCORROSION/FLUID/IMMERSION RESISTANT
Filter functionNO
IEC complianceNO
JESD-609 codee0
MIL complianceYES
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsNO
Installation typeBOARD AND PANEL
OptionsGENERAL PURPOSE
Shell surfaceNICKEL PLATED
Shell materialALUMINUM ALLOY
Housing size15
Termination typeSOLDER
Total number of contacts37
Base Number Matches1
8D Series
|

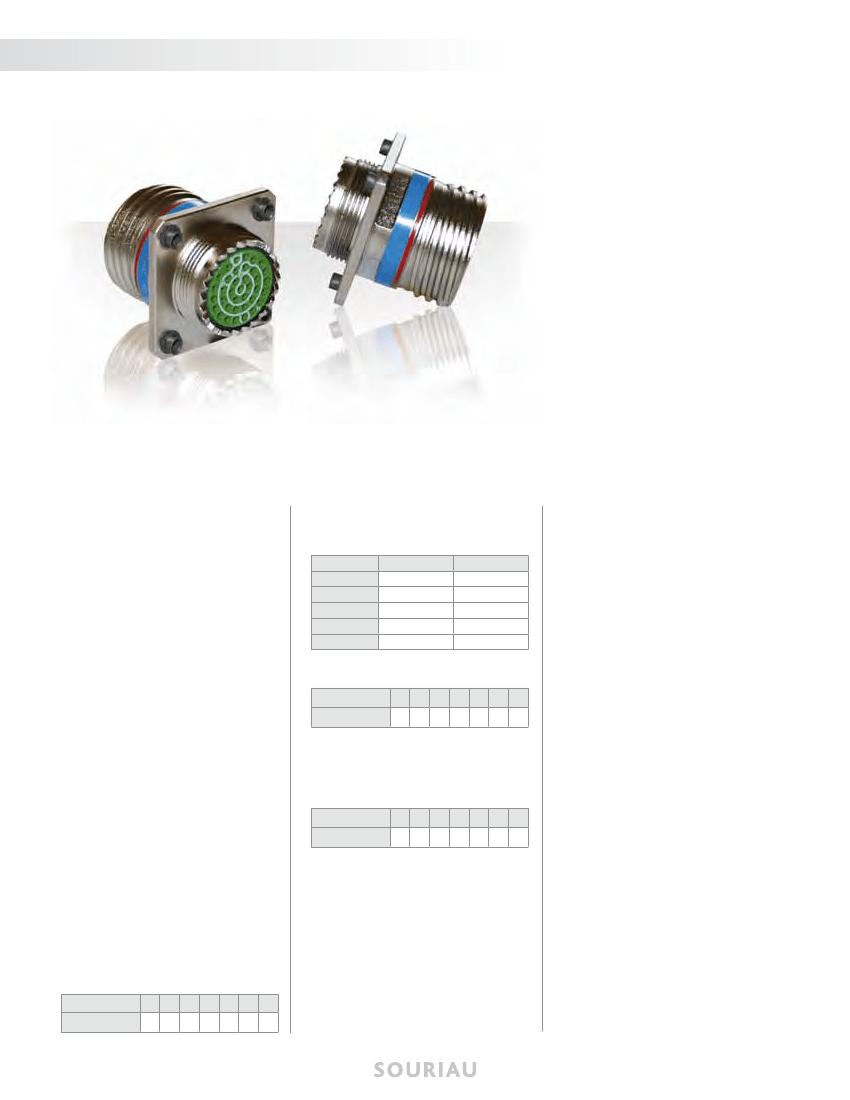

Overview

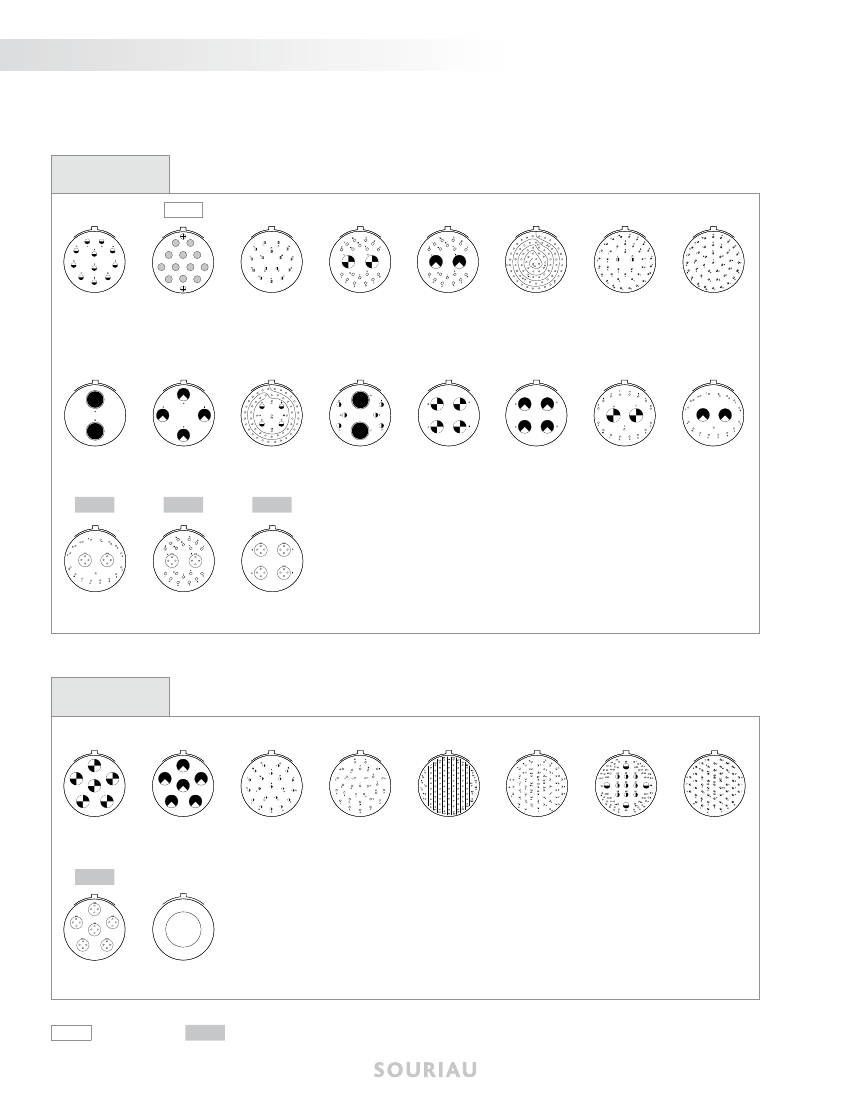

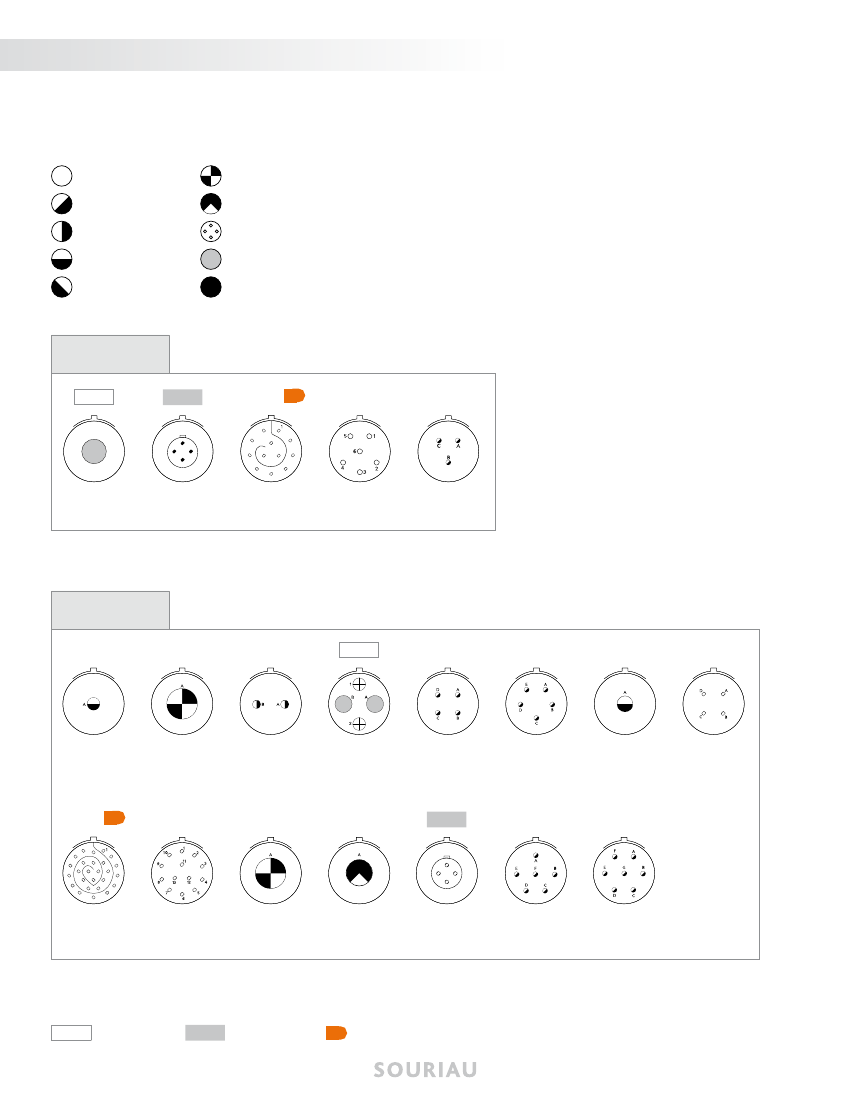

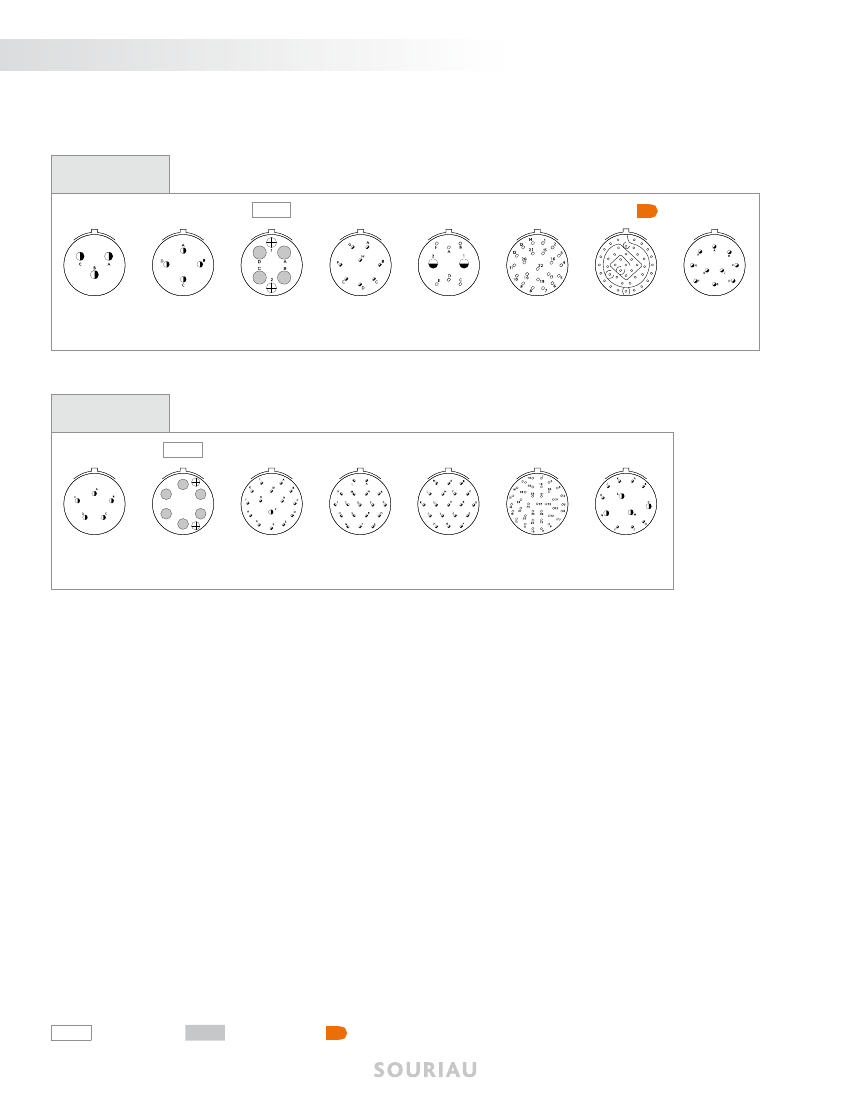

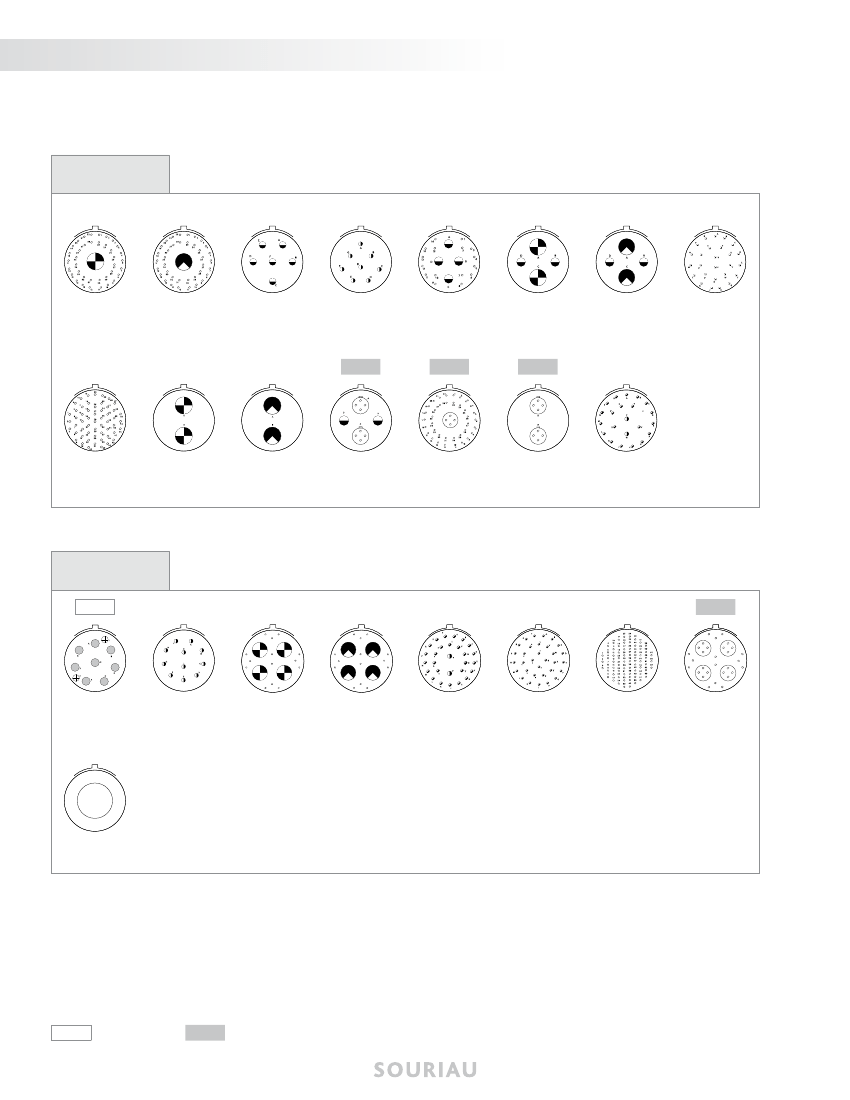

Contact layouts
Contact #26 & #22D
Contact #20
Contact #16
Contact #12
Contact #10
Contact #8 Coax or Concentric Twinax
- consult us
Contact #8 Power
Contact #8 Quadrax
Contact ELIO
®
(fiber optic)
Contact #4 Power
09 / A
01
05
*
12
hD
35
98
1 Optical
position
1#8 Quadrax
12#26
Service R
6#22D
Service M
3#20
Service I
* 09-05 layout:
- Grounded version only (spec. 620)
- Plug with female contact & receptacle with male contact only
11 / B
01
01
02
02
04
05
12
22
1#12
Service II
all series
excepted JVS
1#8 Coax
Service I
only for JVS
2#16
Service I
2 Optical
positions
4#20
Service I
5#20
Service I
1#12
Service II
only for JVS
4#22D
Service M
26
hD
35
80
Spec 251
80
81
98
99
26#26
Service R
13#22D
Service M
1#8 Concentric
Twinax
Service I
1#8 Power
1#8 Quadrax
6#20
Service I
7#20
Service I
ELIO
®
fiber optic
Ethernet Quadrax
hD
High Density layout
Note: Concentric Twinax = Triax
